Grade capability of ±15% (X/Y axes)
Working range up to 4,400 ft.
Accuracy of 1/16" at 100 ft.
Self-leveling range of ±6°
Rotation speed: 0, 2, 5, 10, 15, 20 RPS
Included CLC Remote/Receiver Combo
IP68 dustproof and water immersible
One-button horizontal laser

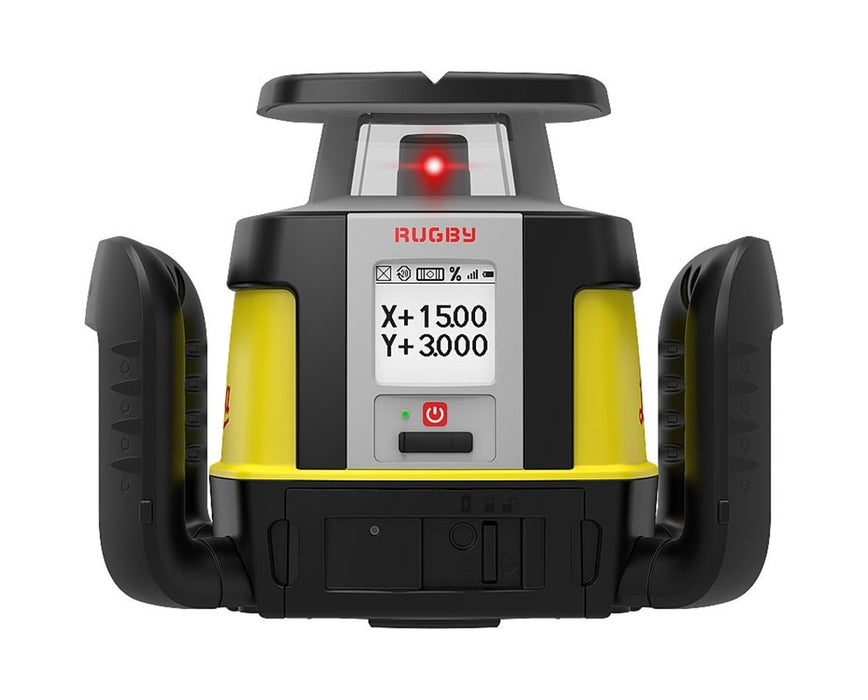

The Leica Rugby CLA All-Rounder Rotary Laser is a highly flexible laser level that offers upgradeable software features to adapt to any application needs. This one-button Leica laser level is simple to operate, making concrete and formwork leveling, height checking and transferring, and land leveling applications quick and easy. It features a grade capability of ±15 percent and offers versatile rotation speeds of 0, 2, 5, 10, 15, or 20 RPS.

The Leica Rugby CLA has a Class 2 laser and can self-level within ±6 degrees with an accuracy of ±1/16-inch at 100 feet (±1.5 millimeter at 30 meters). It also has a working diameter range of up to 4,400 feet using the Leica CLC receiver. In addition, the CLC remote control has a range of up to 1,960 feet.

The included Leica CLC remote/receiver combo is a two-in-one device with an anti-strobe functionality. With large displays on both sides, it allows digital readout of measurements.

The Leica Rugby CLA rotary laser is made of durable materials and has an IP68 protection class. This ensures that the laser level can withstand different outdoor working conditions. It is powered by a Li-Ion rechargeable battery that works up to 50 hours of continuous use.

Configuration Options

The Leica Rugby CLA Laser Level is available in various software upgrades. Please select your preference from the menu above.

Model/Upgrade	CLX 250 Upgrade	CLX 500 Upgrade	CLX 600 Upgrade	CLX 700 Upgrade	CLX 800 Upgrade
Functionality	Horizontal & Manual Slope	Horizontal, Vertical, & Manual Slope	Horizontal, Vertical, & Dial-In Single Grade	Horizontal, Vertical, & Dial-In Dual Grade	Horizontal, Vertical, Dial-In Dual Grade, & Machine Compatibility
Grade	N/A	N/A	Dial-In Single Grade, Fully Automatic to 15%	Dial-In Dual Grade, Fully Automatic to 15%	Dial-In Dual Grade, Fully Automatic to 15%
Applications	* Batterboard * Formwork Alignment *	* Batterboard * Formwork Alignment * Drywalls and Suspended Ceilings	* Fully-Automatic Dial-In Slopes in X-Axis: Driveways & Ramps	* Fully-Automatic Dial-In Slopes in X and Y Axes: Driveways, Ramps, Roads, & Parking Lots	* Land leveling * Slopes Over Large Distances * Covers All Applications

Choice of CLX 500, CLX 600, CLX 700, or CLX 800 software upgrades
Working range up to 4,400 ft
Accuracy of 1/16” at 100 ft. (±1.5mm at 30m)
Horizontal and vertical grade capability of ±15%
Self-leveling range of ±6°
Rotation speed: 0, 2, 5, 10, 15, 20 RPS
Compatible with RE120, RE140, RE160, and CLC remote combo receivers
Class 2 laser
One-button horizontal laser
Remote control range up to 1,968 ft
50-hour battery life
Fast charge
IP68 protection class

What’s in the Box

Leica Rugby CLA Rotary Laser
CLC remote/receiver combo
Li-Ion battery
Charger
Carry case
5-year warranty

Available Product Options

w/ CLX 500 Function
w/ CLX 600 Function
w/ CLX 700 Function
w/ CLX 800 Function

5-year manufacturer’s warranty.

Leica Geosystems products are special order only.

We do not accept returns or cancellations for special ordered items.

Accuracy

Horizontal

±1/16 inch at 100 feet

Vertical

±1/16 inch at 100 feet

Applications

Concrete Forms, Footings and Foundations

Yes

Installation of Interior Fittings (cabinets, lighting, windows, countertops, etc.)

Yes

Installation/Leveling Interior Walls

Yes

Machine Control of Excavators, Graders, Dozers or Similar Equipment

Yes

Matching Existing Slope & Grade

Yes

Battery/Power

Battery Life Alert

Yes

Battery Life with Rechargeable Battery Pack

Up to 50 hours

Power Source

Li-Ion battery

Charger

Charging Time

Up to 5 hours

Extra Technology

Detector/Receiver

Leica CLC Combo

Remote Control

Leica CLC Combo

Features

Adjustable Rotating Speed

0, 2, 5, 10, 15, 20 RPS

Display

Yes

Drop Damage Protection

Yes

Dual Handles

Yes

One-Touch Commands

Yes

Protection Class

IP68 dustproof and water immersible beyond 1 meter

Tripod Adapter (Center Screw Thread)

5/8 x 11

Functions

Automatic Leveling

Yes

Grade Operation

Yes

Slope Match

Yes

General

Dimensions

9.1" H x 8.3" D x 11.7" W

Remote Control Operating Distance

Up to 1,960 feet (597 m)

Warranty

5-year

Weight

8.3 lbs (3.76 kg)

Laser

Classification

Color

Red

Direction

Horizontal and vertical

Visibility

Visible

Range

Exterior

Up to 2,000 feet (600m)

Interior

Up to 4,400 feet (1,341 m)

Remote

Up to 1,968 feet (600 m)

Self Leveling

±6 degrees

Temperature

Operating

-4 to 122 °F (-20 to 50 °C)

Storage

-4 to 158 °F (-20 to 70 °C)
