GL622N Dual Grade Laser

MFR#: GL622N-BCC
TIGER#: TS20967
Original price List Price: $2,550.00
You Save: $510.00 -20%
Original price $2,550.00 - Original price $2,550.00
Original price List Price: $2,550.00
Current price $2,040.00
$2,066.00 - $2,066.00
Current price $2,040.00
GL622N Dual Grade Laser
GL622N Dual Grade Laser - $2,040.00
$2,040.00
*Must Purchase 1 for GL622N Dual Grade Laser

The cart will thereforce automatically set Qty to 1 when you order this product

Free Shipping (USA) Ships Out Within: 2 - 4 Business Days Shipping Date By: 6/20/2024

One of our Sales Experts will be in touch!

Essential Add-Ons:
Aluminum Rod
Aluminum Rod
Details
$43.95
$44.95
Universal Contractor’s Tripod
Universal Contractor’s Tripod
Details
$75.99
$79.99
Topcon LS-B20 Machine Control Laser Receiver - 1063525-03
Topcon LS-B20 Machine Control Laser Receiver - 1063525-03
Details
$651.60
Fiberglass Rod
Fiberglass Rod
Details
$76.95
  • Range up to 2,600 feet with laser receiver
  • Accuracy ±1/16 inch at 100 feet
  • Self-leveling within ±14 degrees
  • Dual grade to ±25%
  • Automatic axis alignment
  • Grade matching and PlaneLok
  • Battery life up to 40 hours
  • Withstands a 3-feet drop onto concrete

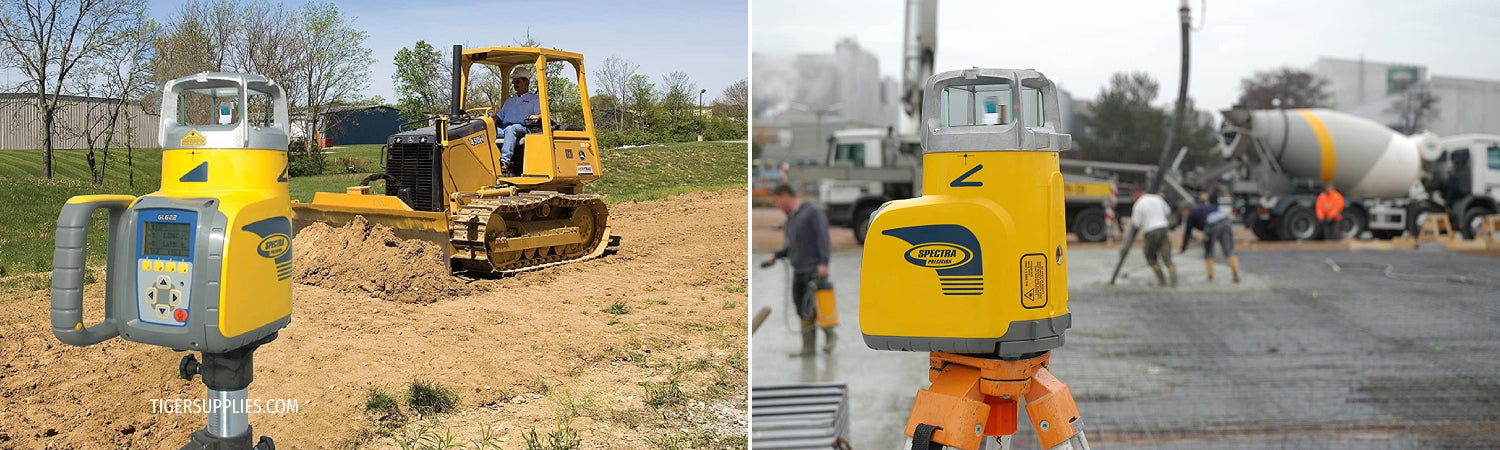

The Spectra Precision GL622N is a self-leveling, dual-grade construction laser with long-range operation up to 2,600 feet. With an intuitive keypad and graphic LCD, this rotary laser features automatic axis alignment and offers PlaneLok and grade matching capabilities for highly-accurate results. Capable of tilting on both axes for precise measurement of slopes, the GL622N laser can be used in a wide variety of outdoor grading and excavating. Automatic axes alignments can be accomplished by positioning the laser receiver at the direction hub in a range of ±40° at the desired laser axis. This allows construction professionals to easily perform axis alignments for grade work applications such as sports fields, parking lots, tennis courts, driveways, or any irregular field with non-perpendicular grade profiles.

Ideal for agricultural and construction applications, the Spectra GL622N grade laser delivers a self-leveling accuracy of ±1/16 inch. It also has an automatic dual grade range of ±25% in both axes, providing a fast and easy horizontal level and vertical plumb setup. The self-plumb in the vertical position enables an even wider range of applications such as anchor bolt installation, form, tilt-up, and curtain wall plumbing.

The Spectra GL622N incorporates automatic temperature and grade compensation for high accuracy in any weather or geographical location. Mask mode eliminates interference with other crews using a laser onsite and electronic leveling vibration filter reduces vibrations typically experienced on tall tripods, in high winds, or on high vibration job sites. With its rugged design, the GL622N laser level can survive a drop of up to three feet on concrete. It also features IP67 rating moisture and dust sealing to handle the tough construction environment. This dual grade slope laser works up to 35 hours using rechargeable NiMH batteries and approximately 40 hours using alkaline batteries.

Construction professionals can mount this grade laser vertically or horizontally on a 5/8-11 tripod thread.

Configuration Options

The Spectra Precision GL622N Dual Grade Laser comes in options that differ in their configuration. You may choose the standard package, or the package with an included HL760 Receiver, RC602N Remote Control, and C70 Adapter Rod Clamp. Kindly choose your preference in the options menu above.

The Spectra HL760 laser receiver provides a digital readout of elevation and features an anti-strobe detector that prevents false readings from site strobe lights. This device also has an optional RC602N radio remote control with a backlit display that gives contractors full control of the laser from up to 490 feet away.

  • Standard Package (GL622N-BCC)
  • w/ HL760 Receiver & RC602N Remote Control (GL622N)



Scroll back to Top

  • Up to 2,600 feet operating range with laser receiver
  • ±1/16 inch accuracy at 100 feet
  • Self-leveling within ±14 degrees
  • Dual grade to ±25% in both axes
  • Automatic axis alignment
  • Grade matching measures and displays the existing grade
  • PlaneLok automatically locks on the laser beam
  • Scan mode with five preset sizes and variable adjustment
  • Mask mode for using multiple lasers on site
  • Electronic leveling vibration filter
  • Automatic temperature compensation
  • Optional radio remote control
  • Ideal for machine control applications
  • 5/8-11 tripod thread
  • Up to 40-hour battery life
  • Water resistant and dustproof to IP-67
  • Withstands a 3 feet drop onto concrete
  • Graphic LCD display and keypad

What’s in the Box

  • Spectra GL622N Dual Grade Laser
  • Carrying case
  • Rechargeable NiMH battery pack
  • Universal Charger
  • AC power cable
  • User manual
  • 5-year manufacturer’s warranty

Available Package Options

  • Type: Standard or w/ HL760 Receiver & RC602N Remote Control

Tiger Supplies offers a 30-day return policy from date of shipment for this product, subject to a 20% restocking fee, in addition to the return shipping charges. The product must be in new condition and in its original packaging. We take the responsibility to make sure this product arrives in a brand new working condition. Should your item arrive damaged, we will take full responsibility and replace the product at no cost to you.

For complete details of our return policy and process, please refer to our general return policy page.

Accuracy
Horizontal
±1/16" at 100 feet (1.5 mm per 30 m)
Applications
Concrete Forms, Footings and Foundations
Yes
Checking Building Square & Area
Yes
Checking Elevations of Sub-Base and Sub-Grade
Yes
Checking/Setting Elevations
Yes
Estimating Cut & Fill
Yes
Installation of Interior Fittings (cabinets, lighting, windows, countertops, etc.)
Yes
Installation/Leveling Ceiling Grids
Yes
Installation/Leveling Interior Walls
Yes
Locating Finished Floor Levels
Yes
Machine Control of Excavators, Graders, Dozers or Similar Equipment
Yes
Matching Existing Slope & Grade
Yes
Plumb Reference
Yes
Short-Range Leveling for Decks, Patios & Swimming Pools
Yes
Short-Run Vertical Alignment
Yes
Squaring and Layout of Partitions, Walls & Tile Floors
Yes
Transferring Points from Floor to Ceiling
Yes
Battery/Power
Battery Life Alert
Yes
Battery Life with Alkaline Batteries
Up to 40 hours
Battery Life with Rechargeable Battery Pack
Up to 35 hours
Power Source
Rechargeable NiMH or alkaline batteries
Extra Technology
Detector/Receiver
HL760
Remote Control
RC602N (Optional)
Features
Adjustable Rotating Speed
0 to 900 RPM
Automatic Shut-Off
Yes
Built-in Bubble Vial
Yes
Detecting Indicator
LCD indications and LED flashes
Display
Backlit, graphic LCD
Drop Damage Protection
Up to 3 feet drop onto concrete
Protection Class
IP67 dustproof & water immersible
Tripod Adapter (Center Screw Thread)
5/8 x 11
Functions
Automatic Leveling
Yes
Beam Operating Modes
Beam masking
Grade Operation
Automatic
Scanning Modes
Five preset sizes and variable adjustment
Slope Match
Yes
General
Remote Control Operating Distance
Up to 490 ft (150 m)
Warranty
5-year
Weight
6.8 lbs (3.1 kg)
Grade
Accuracy
±1/8” per 100 ft. (3.0 mm per 30 m)
Percentage
±25%
Type
Dual
Laser
Classification
Class 3A/3R
Color
Red
Direction
Horizontal and vertical
Visibility
Visible
Wavelength
650 nm
Range
Exterior
Up to 2,600 feet (792 m)
Remote
Up to 490 feet (150 m)
Self Leveling
±14 degrees
Temperature
Operating
-4 to 122 °F (-20 to 50 °C)
Storage
-4 to 158 °F (-20 to 70 °C)
