Theodolites

  • Original price List Price: $1,575.00
    You Save: $425.00 -27%
    Original price $1,575.00 - Original price $1,575.00
    Original price List Price: $1,575.00
    Current price $1,150.00
    $1,150.00 - $1,150.00
    Current price $1,150.00

    Digital Electronic Theodolite (2-Second) - DET-2

    Spectra Geospatial
    • Angular accuracy of 2-sec
    • Magnification up to 30x
    • Wide aperture of 1.8”
    • Backlit LCD display with 6-button keypad
    • Audible 90-deg beep for faster orientation
    • IP54 dustproof and water spray resistant
    View full details
    Original price List Price: $1,575.00
    You Save: $425.00 -27%
    Original price $1,575.00 - Original price $1,575.00
    Original price List Price: $1,575.00
    Current price $1,150.00
    $1,150.00 - $1,150.00
    Current price $1,150.00
    Save 27% Save %
  • Original price $1,495.00 - Original price $1,495.00
    Original price List Price:
    $1,495.00
    $1,495.00 - $1,495.00
    Current price $1,495.00

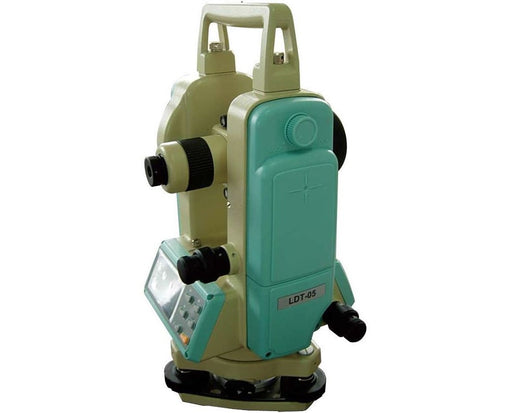

    Leica Digital Electronic Theodolite LDT-05 - 6003830

    Leica
    • Angular accuracy of 5-sec
    • Magnification up to 30x
    • Wide aperture of 1.8”
    • Dual LCD display panels
    • Audible 90-deg beep for faster orientation
    • Automatic tilt warning
    View full details
    Original price $1,495.00 - Original price $1,495.00
    Original price List Price:
    $1,495.00
    $1,495.00 - $1,495.00
    Current price $1,495.00
  • Original price $1,500.00 - Original price $1,500.00
    Original price List Price:
    $1,500.00
    $1,500.00 - $1,500.00
    Current price $1,500.00

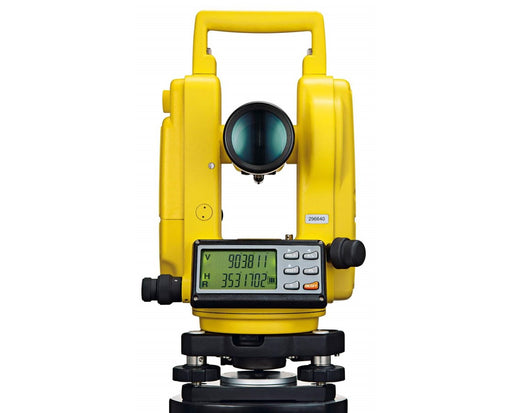

    GeoMax ZIPP02 2 Second Theodolite

    Geomax
    • Angular accuracy of 2”
    • Dual backlit LDC display
    • IP55 dustproof and water resistance
    • Six 1-touch control buttons
    • 36-hour battery life
    • Automatic vertical compensator
    View full details
    Original price $1,500.00 - Original price $1,500.00
    Original price List Price:
    $1,500.00
    $1,500.00 - $1,500.00
    Current price $1,500.00
  • Original price $1,086.80 - Original price $1,086.80
    Original price List Price:
    $1,086.80
    $1,086.80 - $1,086.80
    Current price $1,086.80

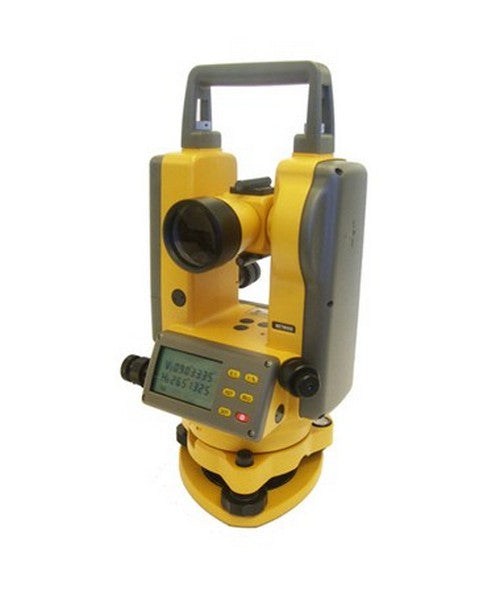

    NETH503 5" Digital Transit-Theodolite (5 Second Accuracy)

    Northwest Instrument
    • Angular accuracy of 5-sec
    • Magnification up to 30x
    • Advanced?glass encoder
    • Reticle?illumination
    • Dual?LCD display
    • Battery?life up to 40 hours
    View full details
    Original price $1,086.80 - Original price $1,086.80
    Original price List Price:
    $1,086.80
    $1,086.80 - $1,086.80
    Current price $1,086.80
  • Original price List Price: $1,500.00
    You Save: $300.00 -20%
    Original price $1,500.00 - Original price $1,500.00
    Original price List Price: $1,500.00
    Current price $1,200.00
    $1,200.00 - $1,200.00
    Current price $1,200.00

    STT402L Electronic Theodolite

    STONEX
    Original price List Price: $1,500.00
    You Save: $300.00 -20%
    Original price $1,500.00 - Original price $1,500.00
    Original price List Price: $1,500.00
    Current price $1,200.00
    $1,200.00 - $1,200.00
    Current price $1,200.00
    Save 20% Save %
  • Original price List Price: $2,130.00
    You Save: $426.00 -20%
    Original price $2,130.00 - Original price $2,130.00
    Original price List Price: $2,130.00
    Current price $1,704.00
    $1,704.00 - $1,704.00
    Current price $1,704.00

    5-Sec. Laser Sight Digital Theodolite, with Optical Plummet DT8-05LS

    David White
    Original price List Price: $2,130.00
    You Save: $426.00 -20%
    Original price $2,130.00 - Original price $2,130.00
    Original price List Price: $2,130.00
    Current price $1,704.00
    $1,704.00 - $1,704.00
    Current price $1,704.00
    Save 20% Save %
  • Original price $1,750.00 - Original price $1,750.00
    Original price List Price: $1,750.00
    $1,750.00
    $1,750.00 - $1,750.00
    Current price $1,750.00

    5-sec Digital Theodolite

    David White
    Original price $1,750.00 - Original price $1,750.00
    Original price List Price: $1,750.00
    $1,750.00
    $1,750.00 - $1,750.00
    Current price $1,750.00
  • Original price List Price: $1,750.00
    You Save: $411.00 -23%
    Original price $1,750.00 - Original price $1,750.00
    Original price List Price: $1,750.00
    Current price $1,339.00
    $1,339.00 - $1,339.00
    Current price $1,339.00

    26-DT205 5-sec Digital Theodolite

    SitePro
    Original price List Price: $1,750.00
    You Save: $411.00 -23%
    Original price $1,750.00 - Original price $1,750.00
    Original price List Price: $1,750.00
    Current price $1,339.00
    $1,339.00 - $1,339.00
    Current price $1,339.00
    Save 23% Save %



Theodolites Buyer's Guide

Accurate angle measurement is essential in surveying and construction projects to prevent costly mistakes. Theodolites provide accuracy and reliability for tasks like land surveying, structural alignment, and landscape mapping. This guide explores theodolites’ features, types, compare them to other surveying tools and answer frequently asked questions.

What is a Theodolite?

A theodolite is an optical instrument designed to measure horizontal and vertical angles. It remains a valuable surveyor’s toolkit because of its versatility and reliability. Modern theodolites come equipped with digital features. These upgrades make them indispensable for tasks like boundary surveys, construction alignment, and topographic mapping.

A theodolite has a telescope mounted on a base with a sight on top for target alignment, an objective lens to sight and magnify the target, and an eyepiece where the user looks to see the target. The target is brought to focus using a focusing knob. The theodolite’s threaded base is used to mount the instrument to a tripod.

Components of a Theodolite

Below are the main components of theodolites:

  1. Telescope: The telescope is the primary component of theodolite. It is responsible for magnifying and focusing on distant targets. Its adjustable optics allow users to achieve sharp imaging, which is critical for accurate alignment.
    Theodolites Components
  2. Optical Plummet: The optical plummet ensures vertical alignment by projecting a line directly below the theodolite. This component is essential for positioning the equipment accurately over a survey point, which is critical for both the precise measurements and data collection integrity.
  3. Graduated Circles: Equipped with two graduated circles, theodolites measure horizontal angles using the azimuth circle and vertical angles with the elevation circle. This dual capability enables precise calculations for surveying tasks.
  4. Spirit Level: The spirit level, also known as a bubble level, guarantees that the theodolite is leveled, setting the base for precise measurements.
  5. Mounting Base: The mounting base secures the theodolite to a tripod, providing stability during operation. The tripod's robust construction minimizes vibrations and ensures that the measurements remain accurate even in demanding environments or prolonged use.

Types of Theodolites

There are two types of theodolites:

Non-Digital Theodolites

Also known as traditional or manual or optical theodolites, they rely on manual scales and vernier readings. Manual theodolites are cost-effective for simpler projects where high-tech features are unnecessary. They are resistant to harsh conditions and affordable for professionals on budget.

Digital Theodolites

Digital or modern theodolites have LCD displays for instant readings and advanced features like data storage and tilt sensors. They are ideal for complex projects, reduce human error and generate faster measurements because of real-time digital displays.

Theodolites Applications

Theodolites are mainly used in surveying and construction projects but are also useful in other applications.

Surveying: Land surveyors use theodolites to measure angles and create precise topographical maps and property boundaries.

Construction: Theodolites help in verifying angles, aligning structures, setting out building footprints, and ensuring components are level and plumb in various construction projects.

Other Applications

  • Meteorology: Track weather balloons and other atmospheric phenomena by measuring angles and calculating positions for meteorological studies.
  • Archaeology: For site mapping and excavation planning.
  • Military: In ballistics and navigation for accurate targeting and positioning.

How to Use a Theodolite?

Follow these steps to operate a theodolite effectively. For detailed guidance, be sure to check the product manual or consider expert training if required.

  1. Mark the point: With a surveyor's nail or stake, mark the point where theodolite will be set up and is the basis for measuring angles and distance.
  2. Set up the tripod: Place it over the survey point and ensure the height of the tripod allows the theodolite to be at eye-level. The centered hole of the mounting plate should be over the nail or stake.
  3. Mount the instrument: Secure the theodolite carefully onto the tripod head with the mounting knob. Measure the height between the ground and the theodolite.
  4. Level the theodolite: While looking at the bulls-eye level, level the theodolite by adjusting tripod legs. You may also use the leveling knobs for slight tunings.
  5. Adjust vertical plummet: The vertical plummet, located at the base of the theodolite, accurately aligns the theodolite above the marked point.
  6. Measure angles: Aim the crosshairs, on the main scope, at the point you want to measure and secure them using the locking knobs on the side of the instrument.
  7. Record data: Look through the viewing scope (located on the side) to record horizontal and vertical angles.

Safety Precautions

  • Handle with care to avoid damaging the optical components of the theodolite.
  • Secure the area to prevent accidents during the surveying operations.
  • Make sure that theodolite is maintained and used according to manufacturer guidelines.

Tips for Precise Measurements

  • Regularly calibrate theodolite.
  • Minimize vibrations during measurements by making sure the tripod is stable.
  • Use consitent procedures for data collection to maintain accuracy.

How to Choose a Theodolite?

Selecting the right theodolite depends on your specific needs and project requirements. Whether you're a beginner, a professional surveyor, or a construction expert, consider the following factors when deciding on a theodolite:

1. Accuracy: Theodolites are defined by their angular accuracy, measured in seconds. For highly detailed projects such as structural alignment or boundary surveys, choose a model with precision ranging from 2 to 5 seconds of angular accuracy.

2. Environmental Conditions: For outdoor and harsh environments, select a theodolite with a high IP rating, such as IP54 (IP66 is the highest). This ensures protection against dust and water, maintaining reliability in challenging conditions.

3. Low-Light Features: If you often work in low-light conditions, opt for models with reticle illuminators and backlit LCD displays. These features allow for clear readings even in tunnels, basements, or evening operations.

4. Advanced Options: Modern theodolites often include features like rechargeable battery packs, backup batteries, and data-logging capabilities.

5. Budget Constaints: Evaluate your budget to balance cost with functionality. Optical theodolites are generally more affordable, making them suitable for basic projects, while digital models deliver enhanced accuracy and long-term value.

Top-Rated Theodolite Models for Beginners

To simplify your search, we’ve highlighted three theodolite models that offer excellent performance, durability, and value:

1. Leica LDT-05 Digital Theodolite

The Leica LDT-05 is ideal for professionals seeking precision and advanced features. With a 5-second angular accuracy, it’s ideal for detailed surveying tasks. High-quality optics ensure clear and sharp imaging, while its IP54-rated construction protects against challenging field conditions. Integrated data-handling capabilities make this a dependable tool for modern surveying applications.

2. Spectra Precision DET-2

The Spectra Precision DET-2 is a digital theodolite designed for professionals who need reliable performance, precision and ease of use. Its 2-second angular accuracy ensures reliable results for both surveying and construction. Dual backlit LCD panels provide excellent readability in any lighting, and the rugged design resists water and dust. Its intuitive controls make it user-friendly, even for those new to theodolites.

3. Geomax ZIPP02

Balancing performance and affordability, the Geomax ZIPP02 is perfect for everyday surveying tasks. With 2-second angular accuracy, it delivers consistent results across various applications. Its IP54-rated durability makes it suitable for harsh environments, while its quick setup and easy operation enhance productivity. This model is an excellent choice for those seeking quality on a budget.

Theodolites FAQs

Q: How accurate is a theodolite?
A: The accuracy of a theodolite depends on the model you choose. Most theodolites have an angular accuracies ranging from 2 to 20 seconds of arc.

Q: What is an optical plummet, and how is it used?
An optical plummet is a component that makes sure theodolite is precisely aligned above a survey point. It helps maintain vertical accuracy during the setup.

Q: How to read an angle with a theodolite?
A: To read an angle, align the telescope with a reference point and lock it in place. Record the initial reading on the horizontal circle. Rotate the telescope to the next reference point, note the final reading. Calculate the angle by finding the difference between the two readings. For vertical angles, use the vertical circle following the same process.

Q: How to use a theodolite for leveling?
A: To use a theodolite for leveling, set it up on a stable tripod over a benchmark or known point. Use the spirit level and leveling screws to ensure the instrument is horizontal. Aim the telescope at a leveling rod on the target point and record the height difference to establish a level line.

Q: What is the difference betweena a theodolite and a transit level?
A: There is a slight difference between a transit level and a theodolite. Transit levels use vernier scales and external graduated metal circles for readings. Theodolites use enclosed graduated circles. Internal magnifying optical system is used to take readings. Also, theodolites are more accurate than transit levels.

Q: What is the difference between a theodolite and a total station?
A: Theodolites are used for measuring angles. A total station combines theodolite’s angular measurement capabilities with an electronic distance meter (EDM), that allows the measurement of both angles and distances.

Q: What is the difference between a theodolite and an auto level?
A: Theodolites measure horizontal and vertical angles while auto levels provide accurate long-distance leveling.

Q: What is the difference between a theodolite and a clinometer?
A theodolite measures vertical and horizontal angles, while a clinometer measures slope or a vertical angle or height of a large object.

Q: What is the price of a theodolite?
Theodolite prices depend on the features and the brand. Basic models start around $800, mid-range digital theodolites cost $2,000 to $5,000, and advanced models can exceed $12,000.

Q:What accessories are available for theodolites?
A: Accessories include tripods, carrying cases, rechargeable batteries, sunshades, reticle illuminators, and plumb bobs, all designed to improve functionality and ease of use.

Q: What are the common errors when using a theodolite?
A: Common errors include:

  • Improper leveling of theodolite
  • Misreading the scales or displays
  • Instrumental errors due to lack of calibration
  • Environmental factors like heat shimmer or vibrations affecting measurements

Q: How to calibrate a theodolite for precise measurements?
A: Calibration means checking and adjusting the theodolite for accurate measurements. This includes:

  • Verifying the plate levels and adjusting if required.
  • Adjusting optical plummet to confirm theodolite is set up over the survey point.
  • Checking the horizontal and vertical circles for zero errors.
  • Performing a collimation test to be sure the telescope is properly aligned.

Maintenance and Care

Proper maintenance extends the life of your theodolite, like other surveying tools, and ensures consistent accuracy in your surveying work.

  • Cleaning
    • Use a soft, lint-free cloth to clean optical surfaces of the telescope and lenses to prevent scratches.
    • Avoid harsh chemicals that can damage coatings on optical components.
    • Keep the optical plummet clean for accurate vertical alignment.
  • Calibration
    • Periodically check and adjust calibration according to manufacturer guidelines.
    • Professional servicing may be required to maintain the theodolite's precision.
  • Storage
    • Store the theodolite in a protective case in a dry, temperature-controlled environment to prevent moisture damage.

At Tiger Supplies, we carry all top brands of Theodolites such as Sokkia, Leica, Spectra Precision, Nikon, Cst Berger, and Northwest Instruments, giving you the assurance of quality and reliability. Explore our range of theodolites or consult with our specialists for tailored advice to meet your project requirements.
