MACHINE CONTROL RECEIVERS & BUYER’S GUIDE

Machine Control Receivers are time-saving tools that give machine operators accurate grade information without stepping out of the cab. With a properly set up Machine Control Receiver, construction projects can be finished faster with higher precision, ultimately boosting your bottom line. Tiger Supplies provides a wide range of Machine Control Receivers at low prices, ranging from starter to higher-end models with advanced features like a 360-degree detection window, angle compensation, and plumb indicator.

OUR BEST-SELLER

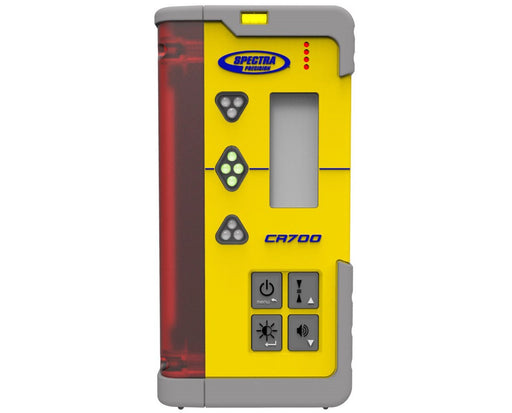

The Spectra Precision CR700 Machine Control Laser Receiver is an essential tool for enhancing accuracy, productivity, and grading efficiency in excavation work. Equipped with patented “light bar” technology, the CR700 delivers highly precise and consistent readings, surpassing traditional methods. Its ultra-bright LED arrow display remains visible in all conditions, even over extended vertical alignments, allowing operators to check grade directly from the cab. This feature boosts productivity and reduces labor requirements. Additionally, the CR700 comes with a magnetic mount for secure and convenient machine attachment. If you’re looking for a top-of-the-line Machine Control Laser Detector that can save you time and money, the Spectra Precision CR700 is the top choice.

MACHINE CONTROL LASER DETECTOR BUYER’S GUIDE

Choosing the right Machine Control Laser Detector can be tricky with all the choices in the market. The key is knowing how you will use it and the features that will make your operators’ lives a lot easier.

How to Use Machine Control Laser Receivers

Machine Control Laser Receivers are used in the field in two ways: through a laser display system and an automatic grade control system.

Laser-Based Display System

In a laser-based display system, the Machine Control Receiver is mounted on a mast or on the machine’s bucket/stick and provides constant grading guidance as it detects the rotary laser. This enables you to excavate or trench with accuracy without needing to step out of the cab or have another guy check the grade for you.

Automatic Grade Control System

The automatic hydraulic control system is a next-level system wherein the Machine Control Receiver keeps you on grade and automatically controls the machine’s blade for grade correction.

This system has 3 parts: the laser level, machine control receiver, and a control box. The machine control receiver, once it detects the laser, relays the grade signal to the control box installed inside the machine’s cab. This control box is connected to the machine’s hydraulic system, enabling it to automatically adjust the blade’s height and angle. Since this system can speed up jobs and reduce stakeout requirements, it can lower costs, lessen reworks, and reduce idle machine time.

Features of Machine Control Laser Detectors

To avoid over or underspending, it’s important to know the features you need to look for in a Machine Control Receiver based on your needs.

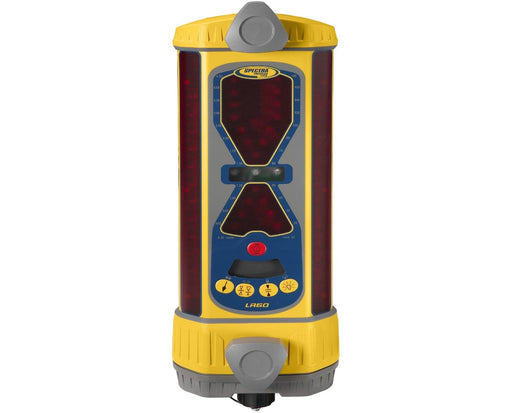

1. Reception / Detection Area - The reception or detection area pertains to the size or degree of the area in which the receiver can detect lasers. Affordable models like the Spectra Precision CR700 Combined Machine Control Receiver have a 200-degree reception window while higher-end models like the Spectra Precision LR60 Laser Machine Control Receiver have a 360-degree reception window. A larger reception window for Machine Control Laser Receivers saves time since it allows for easier laser detection.

2. Accuracy Settings - Machine Control Laser Receivers often have a number of accuracy modes or levels to suit different applications. Most receivers have 4 accuracy settings: fine, medium, coarse, and ultra-fine. The coarse option should be sufficient for rough grading, but you might want ultra-fine to fine accuracy for final grading. Make sure to look at a Machine Control Receiver's accuracy modes to see if it has the level you require for the applications you will be doing.

3. Mounting Options - Machine Control Receivers usually come with a built-in clamp or magnetic mounts for easy mounting on any earthmoving machines. Receivers can also be attached to masts that are placed at the front of the machine.

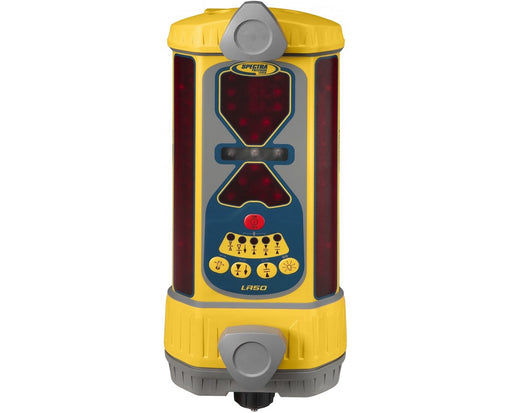

4. Angle Compensator - Angle compensation is an advanced feature that allows operators to check grade even when the bucket is tilted. It works much like the Spectra LR50’s tilt indicator. Medium to large construction projects will most benefit from this time-saving feature.

5. Plumb Indicator - A plumb or vertical indicator tracks the machine's stick's angle and indicates whether it is plumb, overextended, or underextended. This characteristic is essential to prevent over or undercutting. This feature boosts the efficiency of earthmoving crews in medium to large projects.

Other features you need to pay attention to are the power source, battery life, and how well it stands against the elements and rough use.

Picking the right Machine Control Laser Receiver will help you boost your efficiency and get the most out of your investment. If you need more help with selecting the right receiver, give us a call and our team of experts will be happy to help!
