Tiger Supplies Survey Tripod Guide for Laser Level, GNSS, Total Stations and Survey equipment

In surveying and construction, accuracy depends on stability. Whether you are staking control points, running elevation checks, or setting up a GNSS base, a survey tripod provides your instrument with the stability it needs to perform with precision.

But not all tripods are built the same. Some are made to handle tough site conditions; others prioritize portability for fast-paced layout work. From carbon fiber to aluminum, choosing the right tripod means matching it to your instrument, your workflow, and your terrain.

This guide covers everything you need to know to make that choice. We will walk through tripod types, key components, selection tips, and real-world use cases to help you find the right support system — whether you are buying your first survey tripod or upgrading.

What is a survey tripod?

A survey tripod is a three-legged support platform used to stabilize surveying instruments such as laser levels, GNSS receivers, total stations, and theodolites.

Most survey tripods are built with a 5/8" x 11 threaded mount (industry standard) making them compatible with most modern survey instruments. Certain models are fully adjustable with telescoping legs, while others are fixed-leg tripods designed to maintain consistent height and rigidity between set-ups - suitable for repetitive workflows.

Tripods vary in weight, material, and head style but they all provide the same purpose - keeping your instrument secure and aligned throughout the job.

Why are Survey Tripods essential on the job site?

A survey tripod is one of the most important surveying tools you will use on a construction jobsite. Without a stable base, the instruments can deliver unreliable readings. Here's why survey tripods are essential:

Maintains accuracy on any surface: Even a slight movement can throw off a measurement. A tripod provides stability in all terrains via independently adjustable legs and built-in leveling aids (such as bubble vials or laser plummets).
Resistance to Vibration and Disturbance: Vibration from nearby equipment, foot traffic or weather can affect measurements of optical and long-range instruments. Materials like wood and fiberglass are especially effective at absorbing these small but critical movements.
Consistency across Setups: Whether you are returning to a control point or shifting across the site, using a tripod ensures repeatability (the gear is always mounted at the same height and orientation).
Efficiency in the Field: Lightweight tripods with clamp locks/shoulder straps help surveyors move quickly between stations, while heavy-duty tripods provide stability.

Key Components of a Survey Tripod

To choose the right survey tripod, it is helpful to understand the core components. While the materials and design vary, most professional-grade survey tripods share the same core components.

Tripod Head

This is the mounting surface where your instrument attaches. Survey tripods typically feature either a flat head or a dome head.

Flat head tripods are more common and compatible with GNSS receivers, total stations, and laser levels.
Dome head tripods are typically used with theodolites or optical levels that require leveling through a tribrach.

Mounting Screw

Most survey tripods include a standard 5/8" x 11 thread for securing surveying instruments or offer quick-release adapters/removable heads to simplify switching between tools. Quite a few of the laser levels and compact tools may not use the standard thread. In such cases, you will need a tripod adapter to mount your device securely.

Always check thread compatibility before purchasing.

Legs

Tripod feet ensure a solid grip on the surface on which you are working on.

Pointed feet are designed for dirt, gravel and outdoor terrain.
Rubber feet are ideal for polished concrete or indoor floors.

Some of the tripod models include retractable feet, allowing you to switch between pointed and rubber ends for mixed environments.

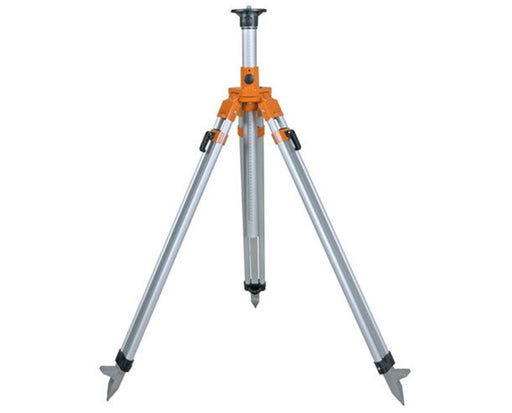

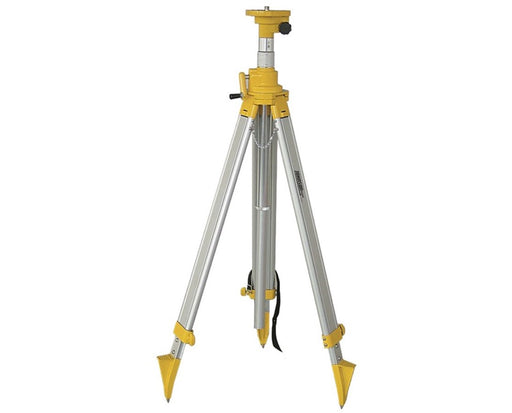

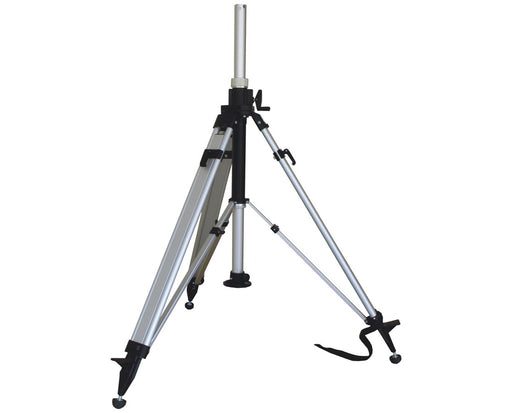

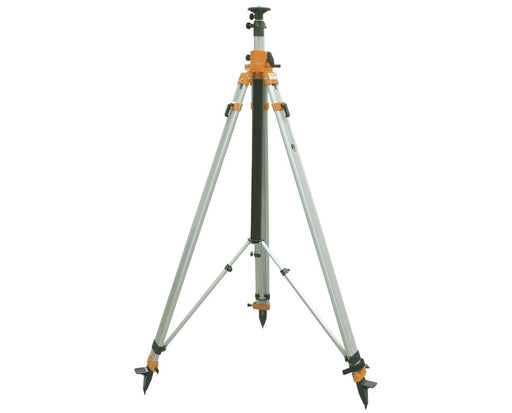

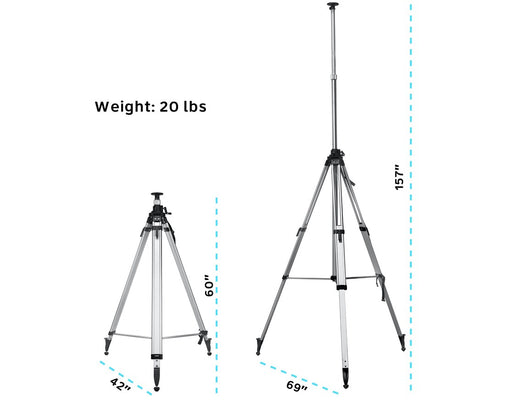

Center Column (Elevating Tripods only)

Elevating tripods include a center column that raises or lowers the instrument without adjusting the legs. This is especially useful for rotary lasers or interior leveling where consistent eye-height placement matters.

Carrying Features

Most professional tripods include shoulder straps or carrying handles to improve transport across large sites or between control points.

Types of Survey Tripods

Survey tripods are available in a variety of materials, each suited for specific field conditions, instruments, and workflows. Here is the breakdown of the most common survey tripods:

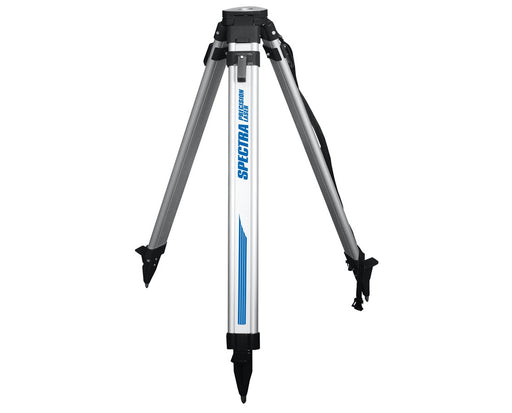

Aluminum Tripods

Aluminum tripods are lightweight, affordable and corrosion resistant. They are often used on active job sites where crews move frequently between layout points or switch between surveying equipment. These are an ideal laser level tripod option for general contractors who value mobility.

However, they can be less stable in high-wind environments or when used with heavier equipment.

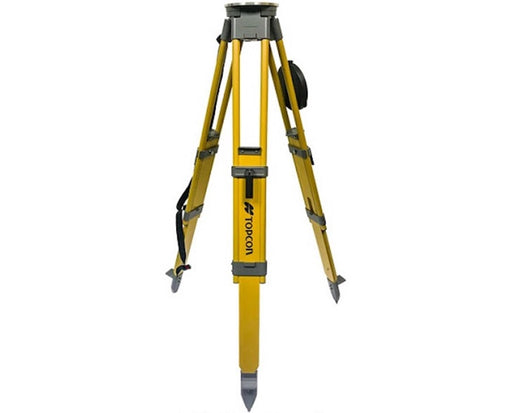

Wooden Tripods

Wooden tripods offer exceptional rigidity and vibration absorption, making them the go-to choice for optical/heavy surveying instruments. Though they require more care and maintenance, land surveyors prefer them because they hold their position and remain stable even in windy or high traffic areas.

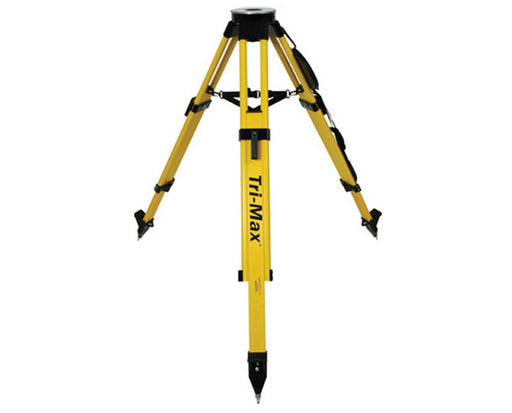

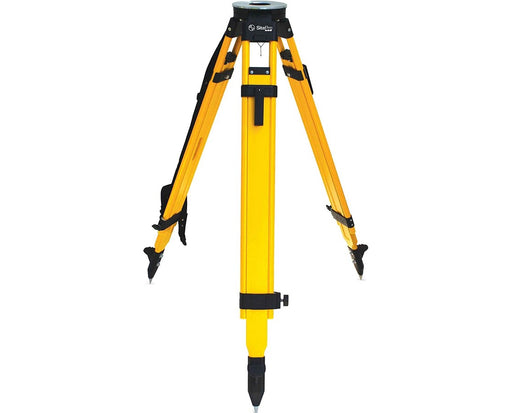

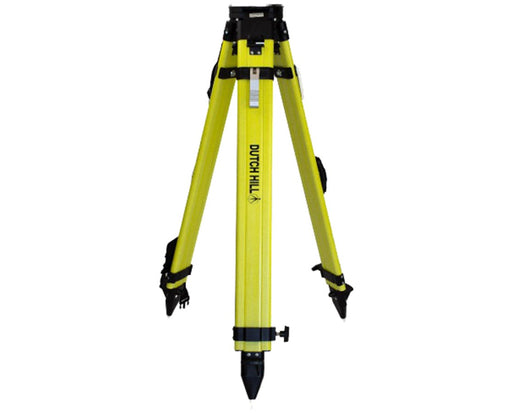

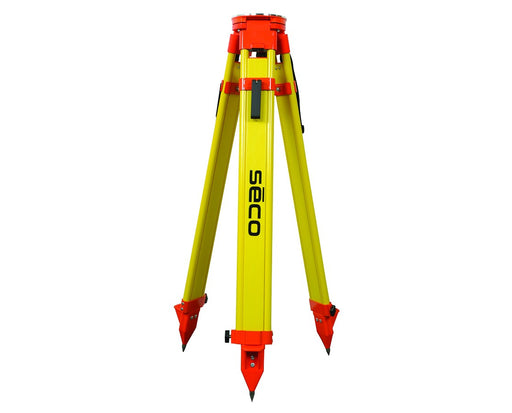

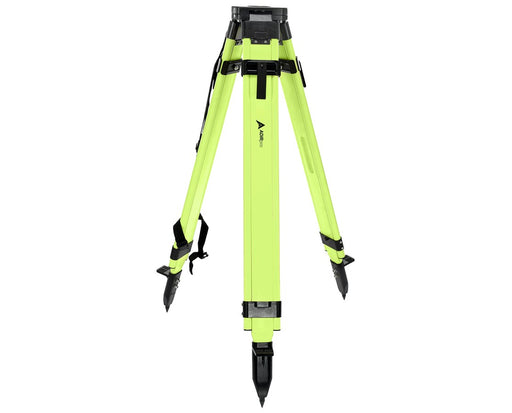

Fiberglass Tripods

Fiberglass strikes a balance between strength and weather resistance. These tripods handle temperature changes, moisture, and UV exposure much better than wood or aluminum. Available in both standard and heavy-duty designs, they are widely used in construction layout, utility staking and topographic surveys.

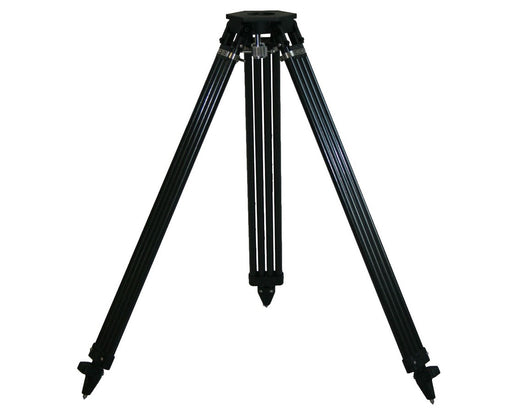

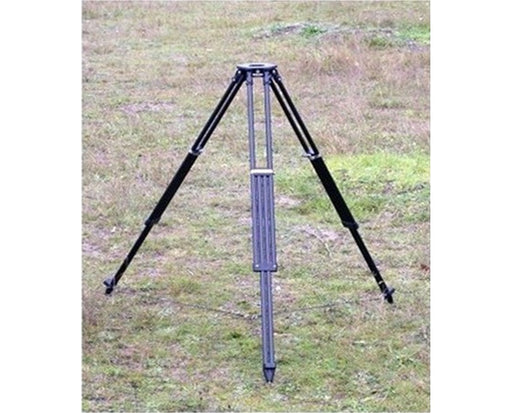

Carbon Fiber Tripods

Carbon fiber tripods are highly rigid, extremely durable, and lighter than fiberglass or wood - making them ideal for long walks between setups, aerial mapping, or remote fieldwork. They are valuable in workflows where setup time and transport effort add up - like with drone-based control, temporary GNSS base setups or frequent scanning work.

In addition to material, survey tripods are designed for conditions based on size, load capacity or application.

Mini Tripods

Mini tripods are designed for confined/low-clearance environments like basements, tunnels, or mechanical rooms where space is limited but stability is required. They are also great for indoor elevation checks or utility marking.

Heavy-duty Tripods

Heavy-duty tripods are designed to support large, high-precision instruments like robotic total stations, long-range scanners and GNSS masts. These models feature reinforced legs, oversized locking mechanisms and stronger head plates. They are preferred choice on bridge projects or machine control setups.

How to choose the right Survey Tripod?

While most survey tripods use a standard mounting thread and work across a range of instruments, not every tripod will hold up to your site demands or usage frequency. Here is what to consider:

1. Instrument Type and Weight

Begin with what you are mounting. Heavier instruments like total stations, robotic scanners and GNSS base stations need rigid, vibration resistant support - often provided by wooden or heavy-duty fiberglass tripods.

For lighter instruments like laser levels or GNSS rovers, a lightweight aluminum or carbon fiber tripod will suffice.

2. Terrain and Site Conditions

Working on soft soil, gravel or uneven terrain? You could either opt for survey tripods with pointed feet or the option to add a stabilizer. For indoor or polished conccrete surfaces, rubber-capped or retractrable feet are best.

3. Setup Frequency and Portability

If you move between layout points all day, aluminum or carbon fiber tripods are easier to carry. Clamp locks make leg adjustments fast, and integrated shoulder straps reduce fatigue over time.

Recommended Product: Sitepro Aluminum Contractor's Tripod w/ Dual Clamp

4. Height and Repeatability

Make sure the tripod's maximum height supports your workflow. If you need fine elevation control for rotary lasers then choose an elevating tripod. Some models include leg graduations, allowing you to replicate tripod height across setups.

5. Material Durability and Weather Resistance

If you are working outdoors year-round, choose fiberglass for all-weather resilience or carbon fiber for its strength-to-weight ratio. Wood offers excellent vibration absorption but needs more care in wet or humid environments.

6. Head Compatibility

Flat head tripods are more common and support most modern surveying instruments. If you use a tool with a tribrach (like an optical level or theodolite), a dome head may offer better leveling control.

If your instrument does not have a standard 5/8" x 11 thread, you may need a tripod adapter to ensure a proper fit.

Choosing the Right Tripod for the Job

Every surveying instrument has different stability and portability needs. Here's how to match the tripod to the tool for best results.

GNSS Surveying

GNSS setups, whether for RTK, static or mapping, require tripods that balance stability with portability. Carbon fiber or fiberglass tripods are ideal for moving between the control points without letting go of rigidity. We recommend checking out Tiger Supplie's GNSS surveying packages - these packages include all the accessories required for out of the box deployment.

Total Station Setup

Total stations demand a tripod that holds its position over long durations. For angular measurements or layout in high-vibration environments, wooden and heavy-duty fiberglass tripods provide unmatched stability.

For bridgework, staking or long-baseline layout (where even millimeter drift matters), opt for models with fixed legs and screw locks for maximum repeatability.

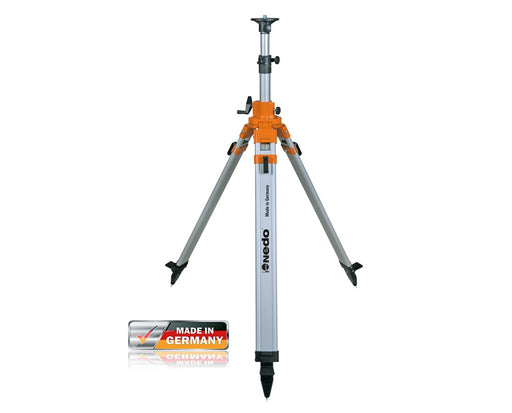

Our Recommendation: Tiger Supplies Heavy-Duty Wood/Fiberglass Survey Tripod w/ Quick Clamp or Nedo Fixed Leg Wooden Survey Tripod

Laser Level

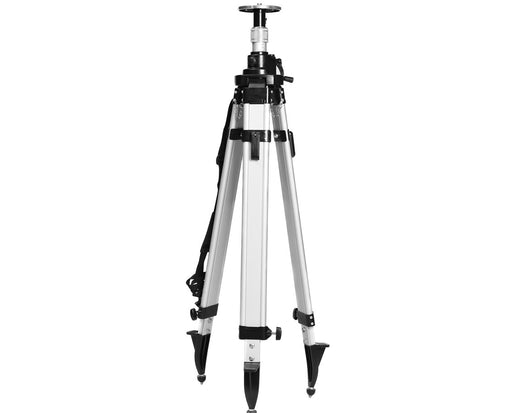

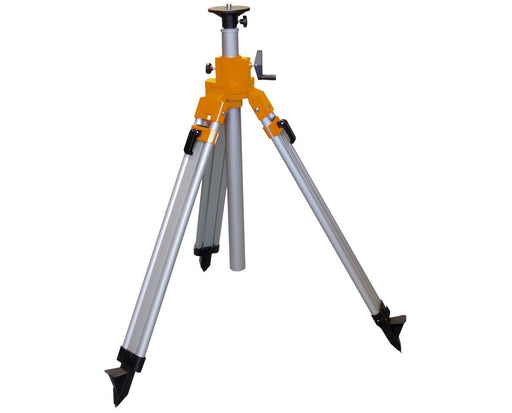

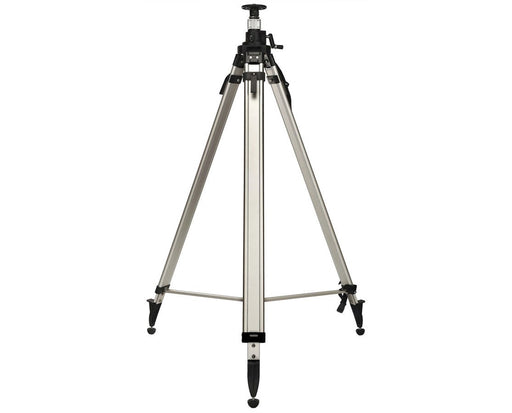

Laser levels benefit from elevating tripods with center columns that allow fine height adjustments. Aluminum models work well in fast-moving interior or exterior layout jobs. In tight spaces or low-clearance environments, a mini tripod allows accurate laser leveling without the bulk of full-size rig.

Our Recommendation: Tiger Supplies Universal Elevating Aluminum Tripod or Seco Mini Survey Tripod

Optical and Auto Levels

Auto levels and dumpy levels are commonly used for elevation checks and drainage work. These instruments typically mount to aluminum or fiberglass tripods with either a flat or dome head, depending on the instrument's leveling system.

Additional Tripod Accessories Recommendations

Get the most from your tripod in the field with these essential surveying tools and supplies:

Tripod Stabilizer/Star: is a foldable ground base that prevents legs from slipping or shifting on soft or slick surfaces.
Tripod Adapter: ensures a secure fit between the instrument and tripod
Thread converter: allows you to safely connect tools with non-standard threads to a tripod without compromising alignment
Tribrach: is used with dome head tripods for precise horizontal and vertical leveling without adjusting the tripod legs.
Tripod mast/Extension pole: raises your GNSS receiver, antenna, or prism higher than the tripod allows. They are perfect for line-of-sight applications, reference point elevation or base station setups.
Carrying Bag: protects the tripod from scratches, moisture and wear during transport.
Replacement clamps and feet: prevent field downtime. Clamps, spikes, and rubber feet wear out with time especially on wood and fiberglass tripods. Keep replacements handy for preventative maintenance.

How to Setup Survey Tripod

Setting up your survey tripod correctly is key to ensuring stability. Follow these steps for a proper setup:

Extend the Legs
Start by spreading the tripod legs wide for a stable base. Adjust each leg individually to accommodate uneven ground. On sloped terrain, position one leg uphill to increase stability and reduce the chance of tipping.
Anchor the Feet
Drive the pointed feet firmly into the soil or plant the rubber tips flat against the surface indoors. On loose gravel or polished concrete, consider using a tripod stabilizer or star for extra grip and control.
Level the Head
Use the bubble vial built into your instrument or tripod head to check for level. Adjust leg lengths as needed until the head sits perfectly horizontal - this ensures the instrument can rotate and measure accurately.
Tighten All Locks
Before mounting anything, make sure all clamps or screw locks are fully tightened. Loose legs or flex in the head can throw off your alignment during use.
Mount and Align the Instrument
Line up your instrument's mounting point with the tripod's 5/8"x11 screw. Tighten it securely, then recheck the level. Some shift is expected/normal during attachment, so verify again before taking readings.

Pro Tip: If you are using a laser level and tripod, mark the leg positions for quick repositioning during layout points - especially when working indoors.

Care and Maintenance of Survey Tripods

Survey tripods are built for rugged environments but need regular care to stay reliable. Proper maintenance extends the life of your tripod - day after day, job after job. Here is how to take care of your tripod:

Wipe off dust, mud and debris from the legs, feet and locking mechanisms. Dirt buildup, especially inside clamps or threads can lead to slipping or uneven wear.
Moisture can lead to corrosion on aluminum components and warping in wood tripods. Always dry your tripod thoroughly before packing it into a bag or vehicle.
Regularly check for loose screws, worn feet, cracked clamps or damaged threads.
If your tripod uses screw locks or rotating pivots, apply a small amount of silicone-based lubricant to keep things moving smoothly. Avoid petroleum grease - it attracts grit and shortens life. For wooden tripods, occasionally apply a light coat of wood conditioner to protect against drying or cracking.
Always store tripod in upright position or in a padded bag.

Frequently Asked Questions

Are survey tripods compatible across varied brands of instruments?

Yes. Most professional-grade instruments use the industry-standard 5/8" x 11 thread, which fits most modern survey tripods. Just verify thread compatibility or use an adapter if your instrument uses a different mount.

What is the difference between a flat head and a dome head tripod?

Flat heads have a level platform with a central screw and are compatible with most GNSS receivers, total stations, and laser levels. Dome heads are slightly curved and used with a tribrach-mounted instrument like theodolites and optical levels that require precision leveling at the base.

Do I need a tripod with a center column aka elevating tripod?

Only if you are working with laser levels that need fast, repeatable height adjustments - such as for ceiling grid installations or elevation layouts.

What is the difference between an elevating tripod and an adjustable-height tripod?

An elevating tripod has a vertical center column you crank up and down. An adjustable-height tripod has telescoping legs (most survey tripods fall into this category). Elevating columns are helpful for lasers, while telescoping legs offer flexibility across all instrument types.

Can I use a camera tripod for surveying?

No. Camera tripods are not built to support the weight, rigidity or vibration resistance needed for surveying instruments.

Do I need a tribrach?

Only if you are using optical levels or total stations that require fine leveling through the instrument base. Tribrachs are usually paired with dome head tripods and help maintain horizontal alignment when rotating or relocating an instrument.

What are tripod stars or stabilizers used for?

Tripod stabilizers help prevent legs from shifting on soft soil, gravel, or concrete. They are especially useful when setting up a GNSS base or laser level in a high traffic or unstable area.

What is a fixed-leg tripod?

A fixed-leg tripod has non-telescoping legs set at a specific height. These are used in applications where maximum stability and repeatability are required.

When should use a heavy-duty tripod?

Use a heavy-duty tripod when mounting heavy or sensitive instruments - such as robotic total stations, tall GNSS masts, or scanners in windy conditions. They are also ideal for long-duration setups.

Looking for a survey tripod to match your requirements? Explore Tiger Supplies' wide selection of survey tripods and accessories or contact our experts today for personalized guidance.
