LL300N Self-Leveling Rotary Laser

MFR#: LL300N-BCA
TIGER#: TS10064
Original price $620.00 - Original price $620.00
Original price List Price:
$640.00
$620.00 - $620.00
Current price $640.00
LL300N Self-Leveling Rotary Laser
LL300N Self-Leveling Rotary Laser - $640.00
$640.00
*Must Purchase 1 for LL300N Self-Leveling Rotary Laser

The cart will thereforce automatically set Qty to 1 when you order this product

Free Shipping (USA) Ships Out Within: 2 - 4 Business Days Shipping Date By: 6/28/2024

One of our Sales Experts will be in touch!

Essential Add-Ons:
Aluminum Rod
Aluminum Rod
Details
$43.95
$44.95
Universal Contractor’s Tripod
Universal Contractor’s Tripod
Details
$75.99
$79.99
Topcon LS-B20 Machine Control Laser Receiver - 1063525-03
Topcon LS-B20 Machine Control Laser Receiver - 1063525-03
Details
$648.00
Fiberglass Rod
Fiberglass Rod
Details
$76.95
  • Range up to 1,650 feet with laser receiver
  • Self-leveling within ±5 degrees
  • Accuracy ±3/32 inch at 100 feet
  • Optional RC601 provides Single-axis slope mode
  • Out-of-level alert
  • IP66 dustproof & powerful water jet resistant
  • Shockproof up to 3 feet
  • Thread 5/8-11

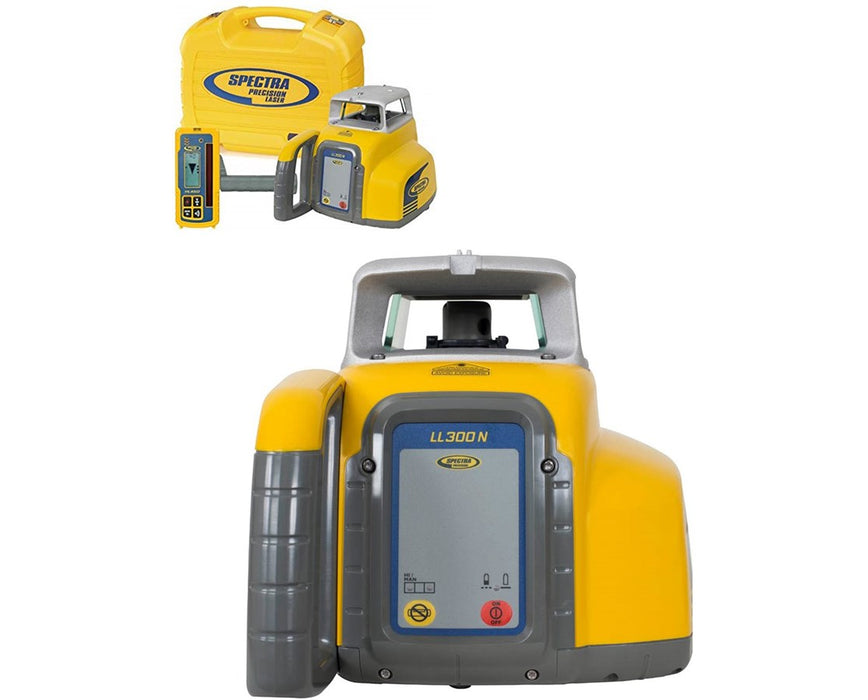

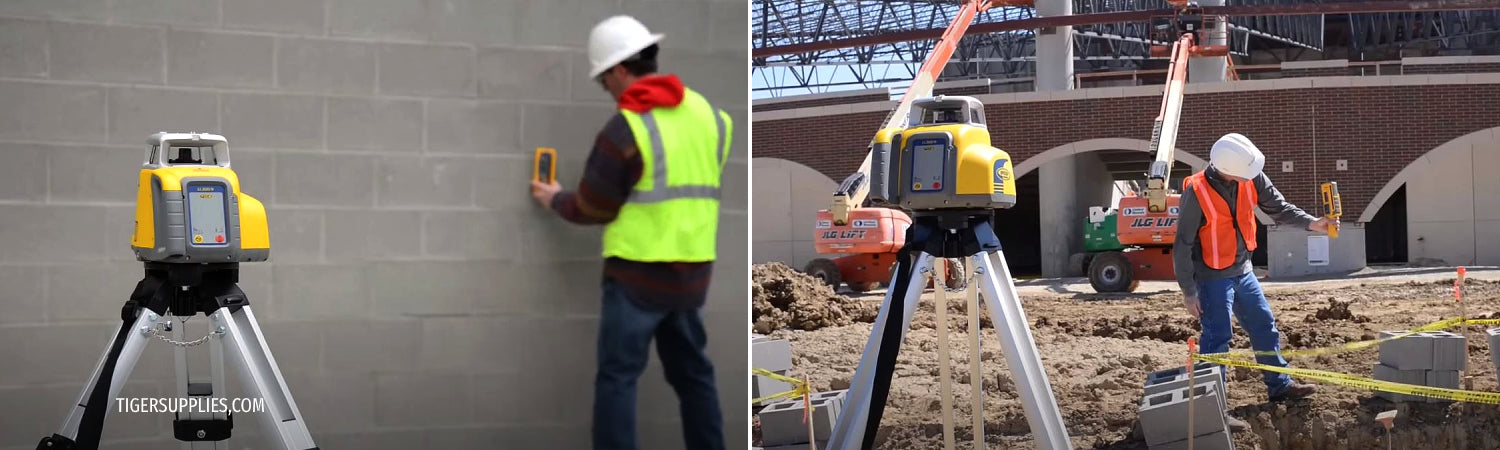

The Spectra Precision LL300N Self-Leveling Laser is ideal for elevation controls, excavations, basic slopes, leveling forms and footers, concrete pours, and more. It features one-button operation, highly rugged design, and a single-axis slope mode that provides grade matching with a self-leveling cross axis for improved accuracy. With a working range of up to 1,650 feet, this rotary laser also includes a laser receiver for enhanced reception outdoors.

Self-leveling horizontally within ±5 degrees, the LL300N has an accuracy of ±3/32 inch per 100 feet and a 600 rpm rotation speed. It has a removable rotor cage that enables unobstructed 360-degree coverage and a 5/8-11 thread that allows you to mount it horizontally or vertically to a tripod. To avoid inaccurate readings, this laser level also features an out-of-level alert that shuts off the unit when knocked out of place.

With an IP66 protection rating, the LL300N can withstand adverse environmental conditions, such as heavy rain and dust. Its patented lighthouse seal protects the rotor head and glass and offers superior drop protection. Using four D-cell alkaline batteries, this rotary laser works up to 90 hours and approximately 45 hours with the optional rechargeable NiMH batteries.

Configurations

The Spectra Precision LL300N Self-Leveling Laser comes in options that differ in their configurations. Packages with Receiver comes with an Adapter Clamp, and options with Rechargeable Batteries include a Universal Charger. Kindly choose your preference in the dropdown menu above.

Featuring a digital readout of elevation and dual LCD display, the optional Spectra HL450 laser detector enables fast grade checking and laser readings. It also has a large 4-inch reception height, two accuracy settings, and an anti-strobe sensor.

The optional Spectra HR320 laser detector features front and rear LCDs that graphically shows grade information. This receiver also has five display channels that indicate grade position, a 90-degree reception angle, and two selectable accuracies.

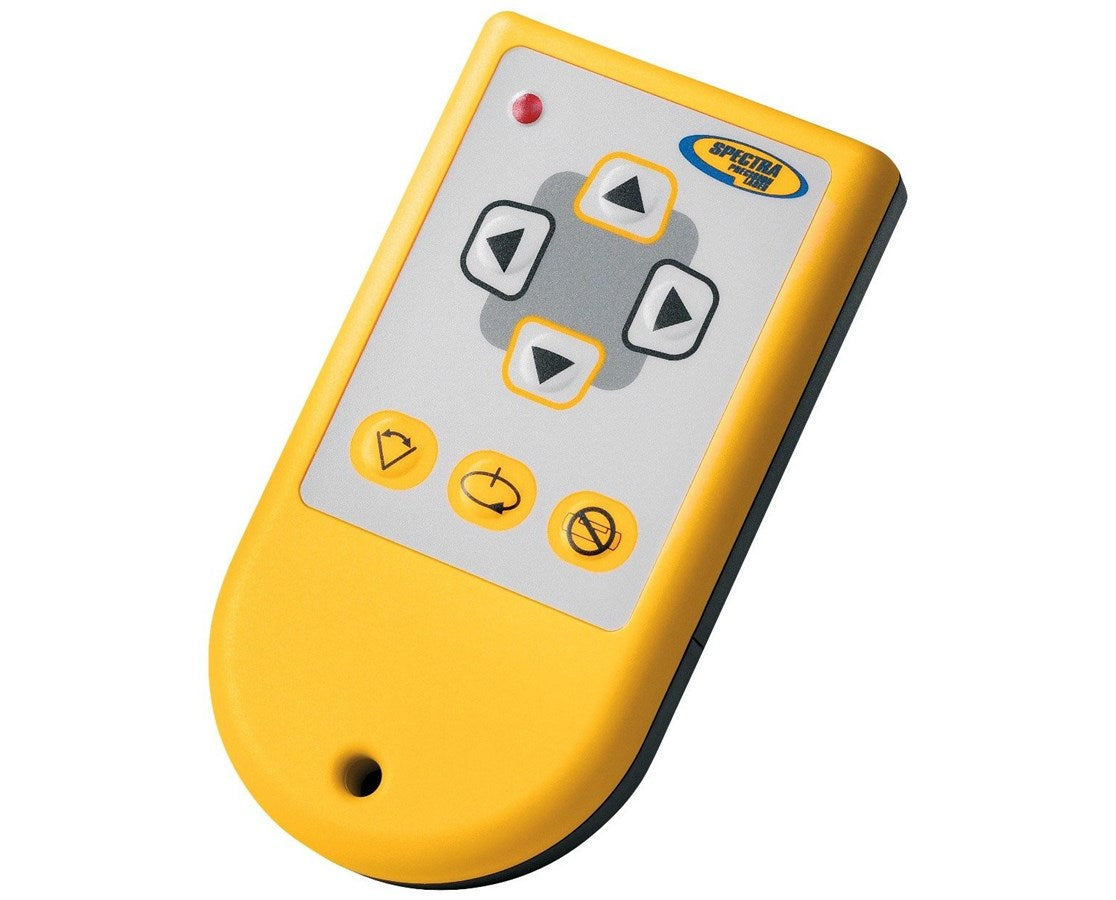

The Spectra LL300N also has an optional RC601 remote control that allows construction professionals to access the laser’s manual single slope mode up to 100 feet away.

Configuration Options

  • LL300N-BCA: With Alkaline Battery

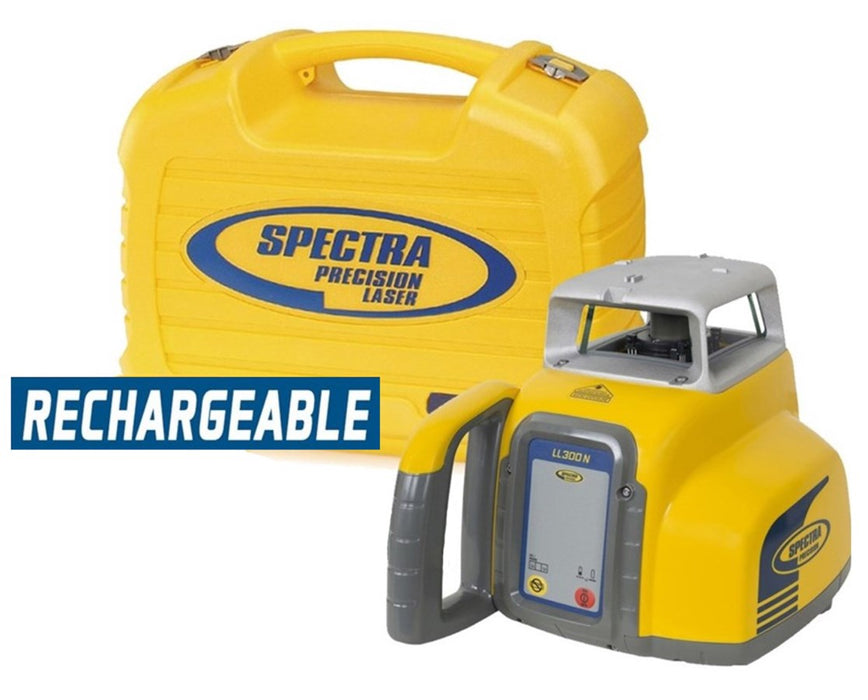

  • LL300N-BCC: With Rechargeable Battery

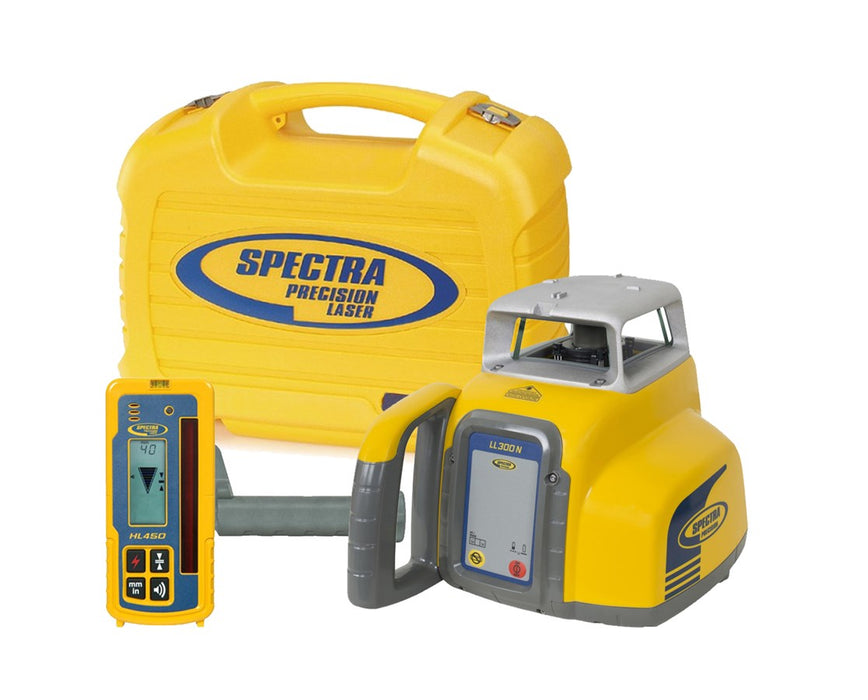

  • LL300N: With HL450 Receiver & Alkaline Battery

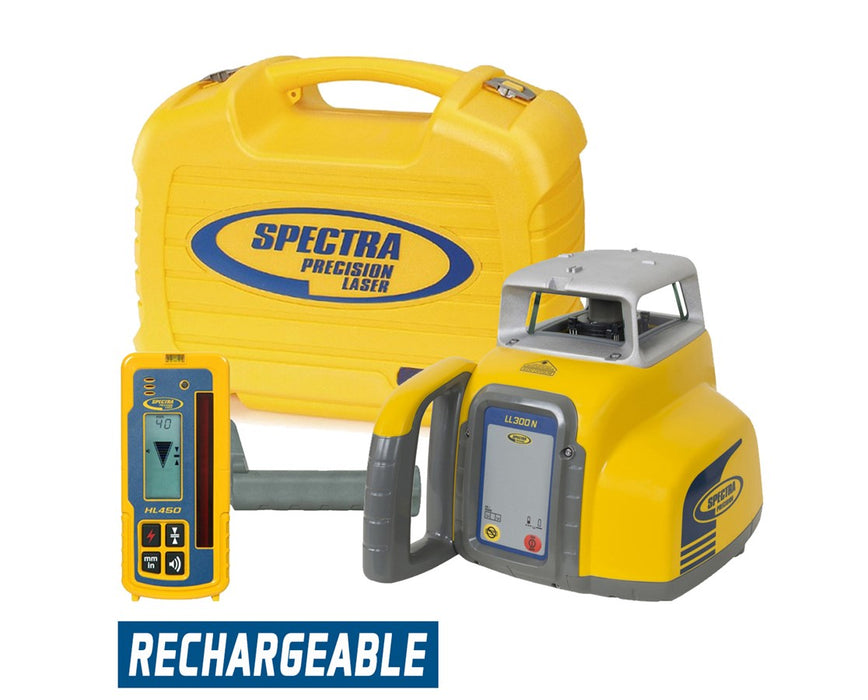

  • LL300N-4: With HL450 Receiver & Rechargeable Battery

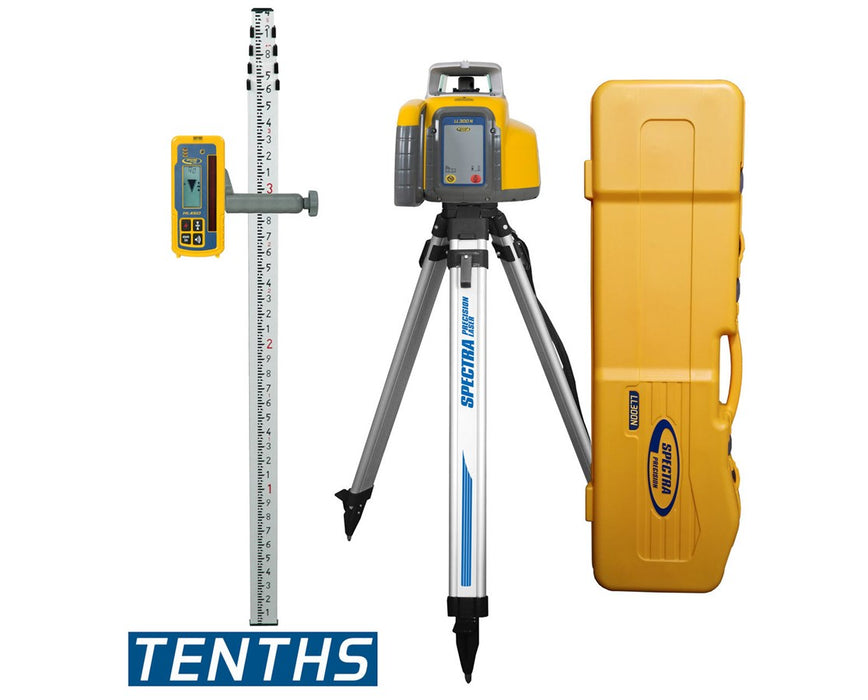

  • LL300N-1: With HL450 Receiver, Alkaline Battery, Aluminum Tripod & GR151 15' Grade Rod (Feet/10ths)

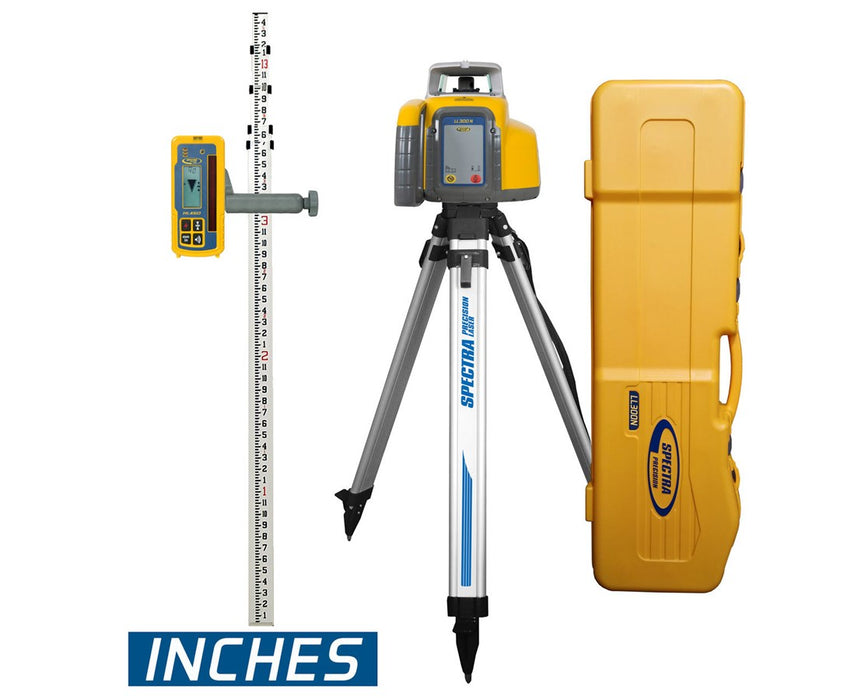

  • LL300N-2: With HL450 Receiver, Alkaline Battery, Aluminum Tripod & GR152 15' Grade Rod (Feet/8ths)

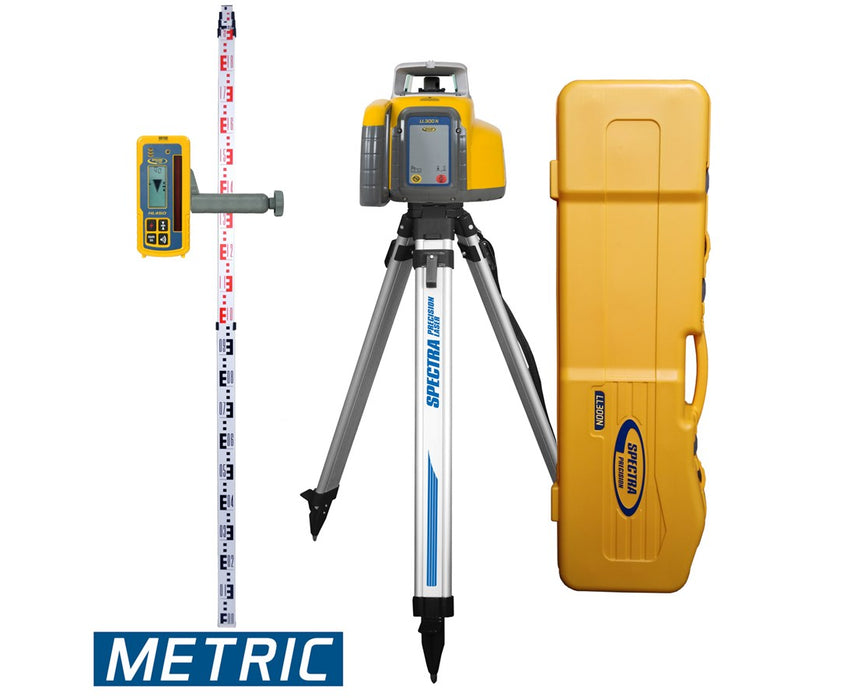

  • LL300N-3: With HL450 Receiver, Alkaline Battery, Aluminum Tripod & GR153 15' Grade Rod (Metric)

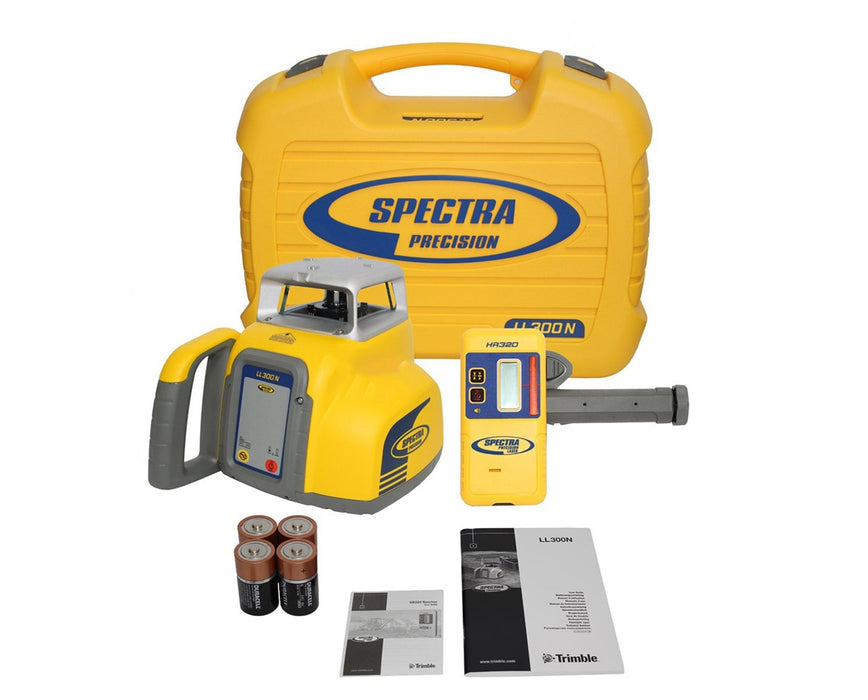

  • LL300N-8: With HR320 Receiver & Alkaline Battery
  • LL300N-5: With RC601 Remote Control, HL450 Receiver, Rechargeable Battery, Aluminum Tripod & 15' Grade Rod (Cut-Fill)

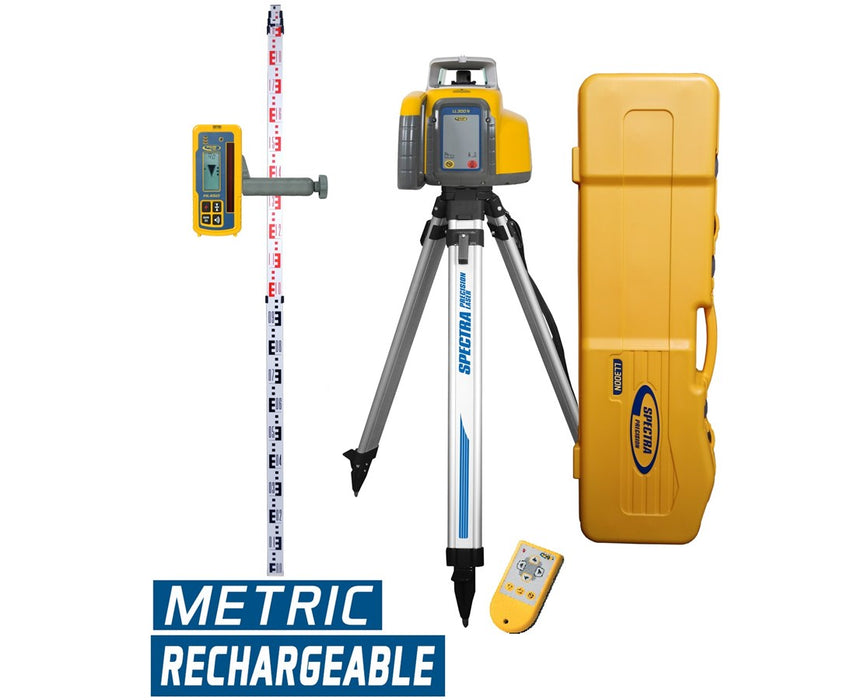

  • LL300N-6: With RC601 Remote Control, HL450 Receiver, Rechargeable Battery, Aluminum Tripod & GR153 15' Grade Rod (Metric)
No Cost 5-Year Warranty offers no repair charge for parts and labor of the laser.
Shock Proof ensures this construction laser withstands a three feet drop onto concrete.
A hard-shelled, portable System Case is available to house the laser, receiver, clamp, tripod, and grade rod.
Optional Infrared Remote control allows the laser to be sloped whilst still remaining self-leveled in the cross axis. This is ideal for grade matching when working on driveways or patios.

Scroll back to Top

  • Up to 1,650-foot range with laser receiver
  • Self-leveling within ±5 degrees
  • ±3/32 inch accuracy at 100 feet
  • Single-axis slope mode
  • Includes laser detector
  • Out-of-level alert
  • Choice of 8 packages
  • 360-degree reference
  • One-button operation
  • Enclosed lighthouse protects rotor head and glass
  • Shockproof up to 3 feet
  • IP66 dustproof and water resistant
  • 5/8-11 tripod thread
  • 5-year warranty

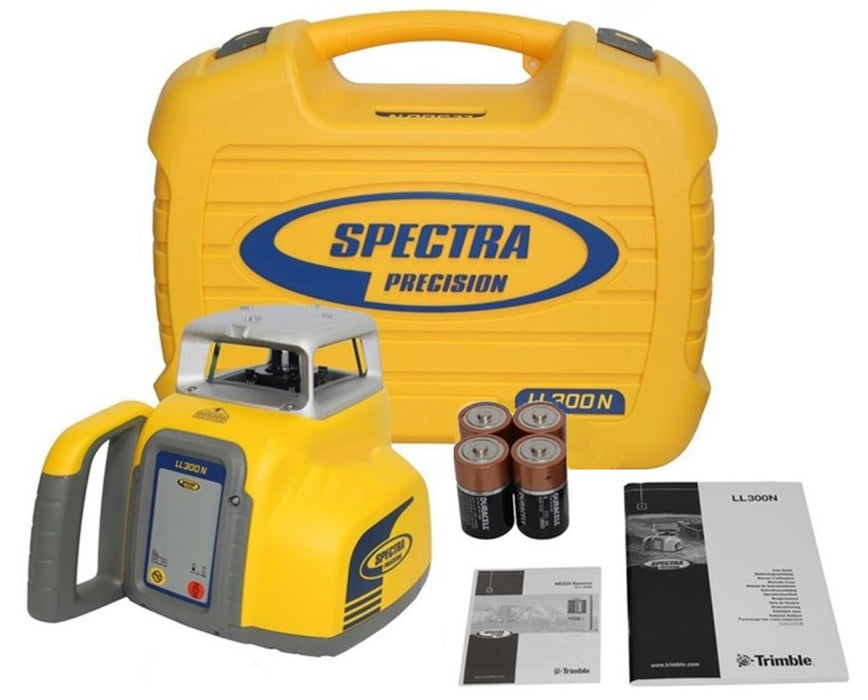

What’s in the Box

  • Spectra LL300N Self-Leveling Laser
  • Hard Carrying Case
  • User Manual
  • 5-Year Manufacturer's Warranty

Available Package Options

  • HL450 or HR320 Laser Receiver
  • RC601 Remote Control
  • Aluminum Tripod
  • GR151 15' (Feet/10ths), GR152 15' (Feet/8ths), GR153 15' (Metric) or 15' (Cut-Fill) Grade Rod
  • Alkaline or NiMH Rechargeable Battery

Tiger Supplies offers a 30-day return policy from date of shipment for this product, subject to a 20% restocking fee, in addition to the return shipping charges. The product must be in new condition and in its original packaging. We take the responsibility to make sure this product arrives in a brand new working condition. Should your item arrive damaged, we will take full responsibility and replace the product at no cost to you.

For complete details of our return policy and process, please refer to our general return policy page.

Accuracy
Horizontal
±3/32 inch at 100 feet
Applications
Concrete Forms, Footings and Foundations
Yes
Checking Building Square & Area
Yes
Checking Elevations of Sub-Base and Sub-Grade
Yes
Checking/Setting Elevations
Yes
Estimating Cut & Fill
Yes
Installation of Interior Fittings (cabinets, lighting, windows, countertops, etc.)
Yes
Installation/Leveling Interior Walls
Yes
Locating Finished Floor Levels
Yes
Machine Control of Excavators, Graders, Dozers or Similar Equipment
Yes
Matching Existing Slope & Grade
Yes
Short-Range Leveling for Decks, Patios & Swimming Pools
Yes
Squaring and Layout of Partitions, Walls & Tile Floors
Yes
Battery/Power
Battery Life Alert
Yes
Battery Life with Alkaline Batteries
Up to 90 hours
Battery Life with Rechargeable Battery Pack
Up to 45 hours
Power Source
D-cell alkaline or rechargeable NiMH batteries
Extra Technology
Detector/Receiver
Choice of HL450, HR320, CR600
Remote Control
RC601 (optional)
Features
Adjustable Rotating Speed
600 RPM
Bump Sensor (H.I./Out of Position Alert)
Yes
Drop Damage Protection
Yes
Protection Class
IP66 dustproof and powerful water jet resistant
Removable Laser Cage (for exact beam spotting)
Yes
Tripod Adapter (Center Screw Thread)
5/8 x 11
Functions
Automatic Leveling
Yes
Grade Operation
Manual
Slope Match
Yes
General
Dimensions
9.6" L x 6.5" W x 7.3" H
Maximum Power Output
<5 mW
Remote Control Operating Distance
Up to 100 feet (30 m)
Warranty
5-year
Weight
6 lbs (2.7 kg)
Laser
Classification
Class 3A/3R
Color
Red
Direction
Horizontal
Visibility
Visible
Wavelength
635 - 670 nm
Range
Exterior
Up to 1,650 feet (500 m)
Self Leveling
±5 degrees
Temperature
Operating
–4 to 122 ºF (–20 to 50 ºC)
Storage
–4 to 158 ºF (–20 to 70 ºC)
