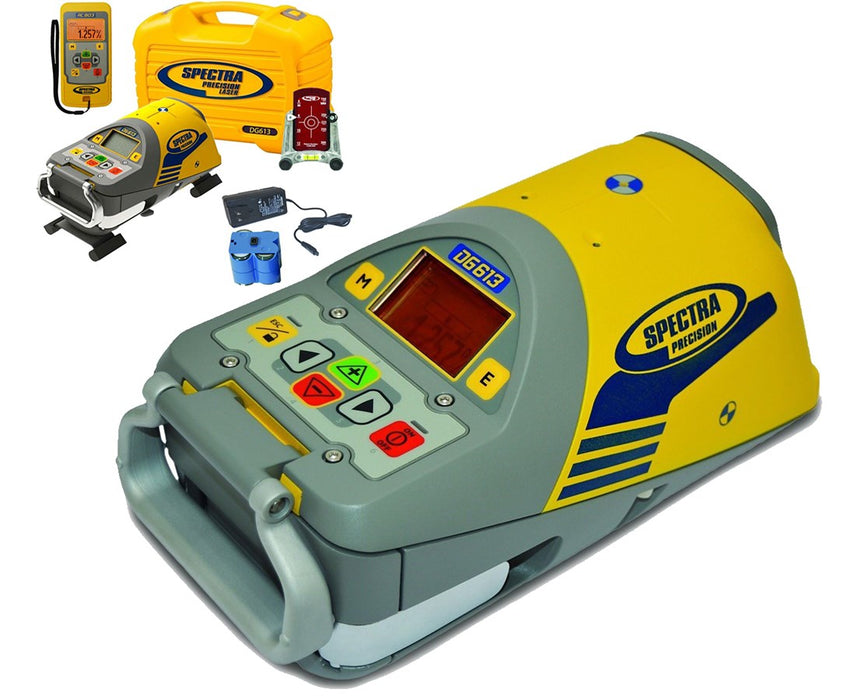

DG613 Red Beam Pipe Laser

Spectra Precision
by Spectra Precision
MFR#: DG613
List Price: USD $5,100.00
You Save: USD $1,020.00 -20%
USD $5,100.00 - USD $5,100.00
List Price: USD $5,100.00
USD $4,080.00
USD $4,080.00 - USD $4,080.00
USD $4,080.00

Add to Cart For Additional Savings

Store Pickup: List of available stores available on the Checkout page.
DG613 Red Beam Pipe Laser
DG613 Red Beam Pipe Laser - USD $4,080.00
USD $4,080.00
*Must Purchase 1 for DG613 Red Beam Pipe Laser

The cart will thereforce automatically set Qty to 1 when you order this product

IN STOCK Free Shipping (USA) Ships Out Within: 24 - 48 Hours Shipping Date By: 11/25/2024

One of our Sales Experts will be in touch!
Documents
Product Manual Item Brochure Product Video
  • Range up to 500 feet inside pipes
  • Accuracy ±10 arc second
  • Self-leveling grade range of -12% to +40%
  • Line scan and line alert features
  • LED plumb light
  • Dust resistant
  • Water-submersible
  • Includes remote control

The Spectra DG613 Red Beam Pipe Laser is an efficient construction tool that features a fully self-leveling grade range of -12% to +40% with around ±10 arc second accuracy. Its cross axis is fully compensated to provide fast set up that the laser will accurately level without adjusting the bottom of the invert. This laser boasts functions such as line centering, line set, and line alert which simplify setting and resetting the vertical line or even the grade on its display.

The DG613 pipe laser works over a distance of 500 feet using the RC803 remote control, providing full operation in a single set-up task. This remote control provides full-function control and utilizes infra-red light inside the pipe and enables radio communication up to a distance of 430 feet. It also features manual grade entry, line scan, start reference check, and standby mode. In addition, alignment markers, a LED plumb light, and a reflective target on top of the device all assist in setting the desired line.

Outlined with a large LCD display and a color-coded keypad, the DG613 provides 40 hours operating time with NiMH rechargeable batteries and 50 hours with alkaline batteries. It has the ability to place standard D batteries in the laser, without a battery pack, so you can still use the laser while the NiMH batteries charge. Built for any tough job, the laser’s IP68 protection makes it dust resistant and water submersible up to 10 feet and comes with a 5-year manufacturer’s warranty.

Configuration Options

The Spectra DG613 Red Beam Pipe Laser comes in four packages to accommodate every surveyor’s needs. Please select your package from the drop-down menu above.

Package Additional Components

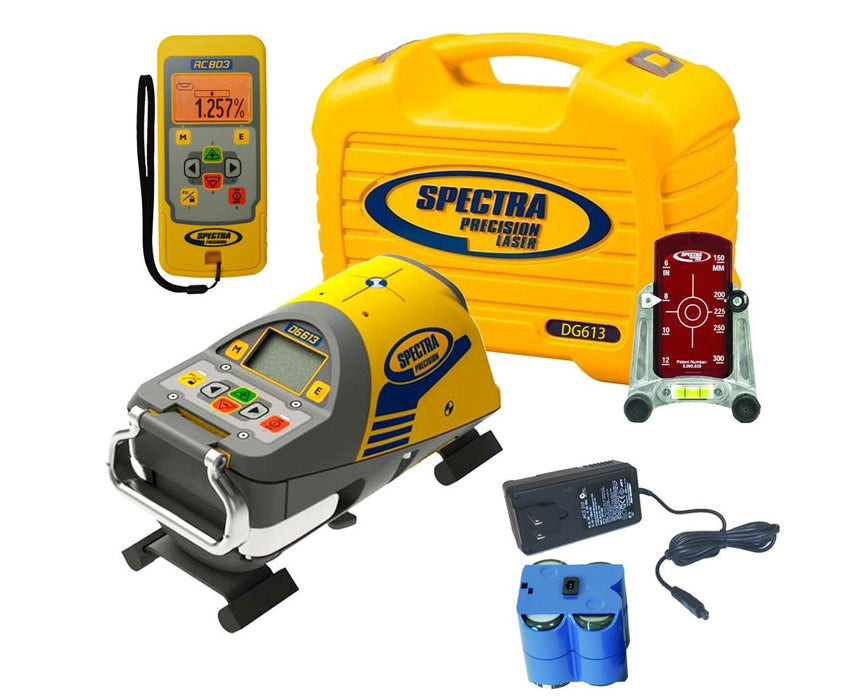

Standard
(DG613)
  • 1248 Centering Plate (200mm)
  • 956 Pipe Target with 2 Plates
Vertical Pole Assembly
(DG613-5)
  • 1230 Large Pipe Invert
  • 1239 Vertical Pole
  • 956 Pipe Target with 2 Plates

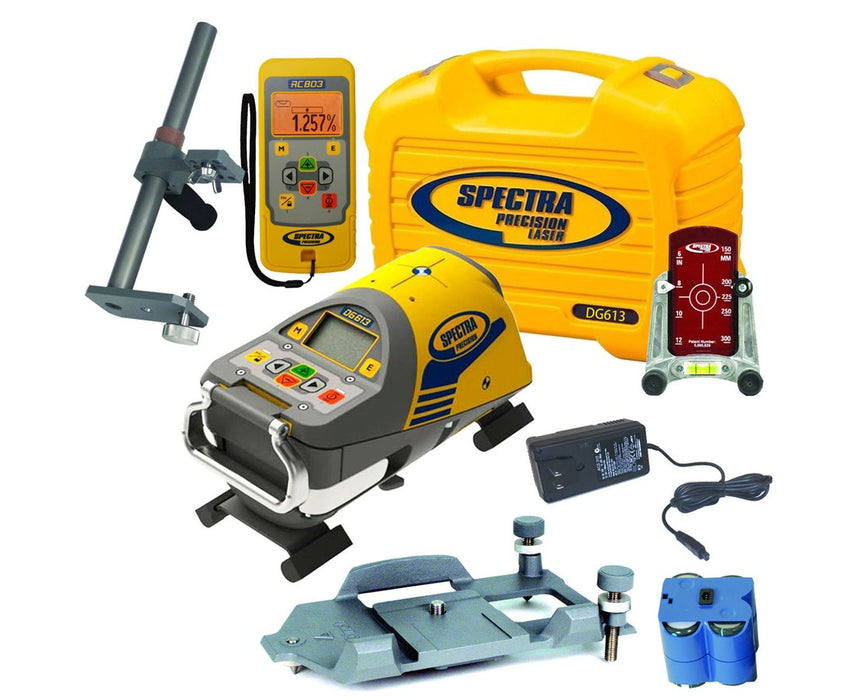

Vertical Pole Assembly Metric
(DG613-6)
  • 1237 Large Pipe Invert Metric
  • 1239 Vertical Pole
  • 956 Pipe Target with 2 Plates

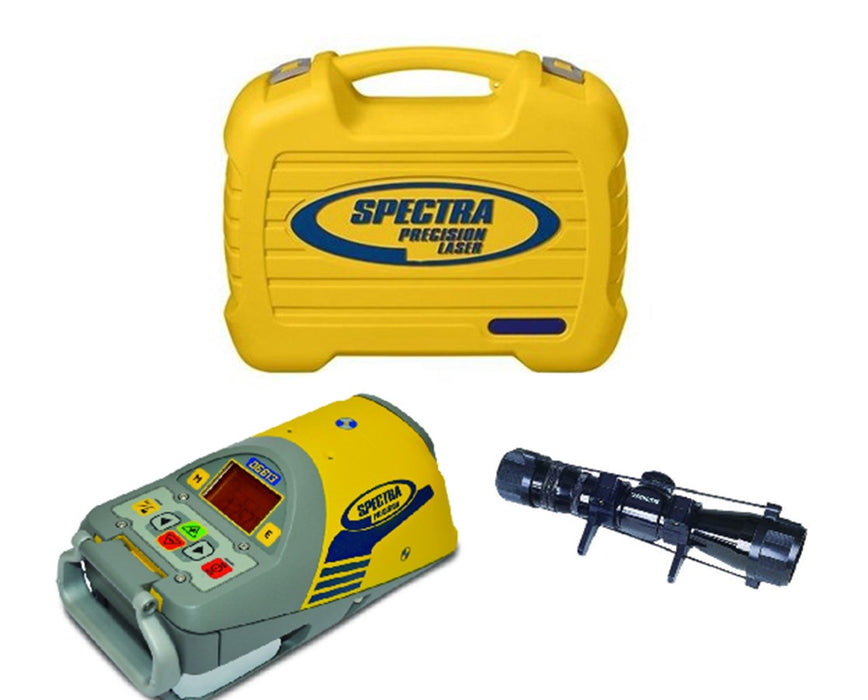

Over-the-Top
(DG613-13)
  • 1263 Precise Dialgrade Scope
  • P25 Cigarette Lighter Charger
  • Extra Q104667 NIMH Rechargeable Battery Pack
  • Choice of packages
  • Range up to 430 feet above and 500 feet inside pipes
  • ±10 arc second accuracy
  • Self-leveling range from -12% to +40%
  • Fully-compensated cross axis
  • Line scan and line alert features
  • Line centering, line set, and line alert functions
  • Start reference check
  • Standby mode
  • LED plumb light
  • Manual grade entry
  • IP68 dustproof and water immersible beyond 1m
  • Waterproof up to 10 feet
  • Large LCD display and color-coded keypad
  • Battery life up to 40 hours using NiMH battery pack
  • RC803 remote control included
  • 5-year manufacturer’s warranty

What’s in the Box

  • Spectra DG613 Red Beam Pipe Laser
  • RC803 Remote Control
  • Q104667 NIMH Rechargeable Battery Pack
  • Q104781 Charger
  • Hard Carrying Case

Please refer to Overview for the full list of accessories

Tiger Supplies offers a 30-day return policy from date of shipment for this product, subject to a 20% restocking fee, in addition to the return shipping charges. The product must be in new condition and in its original packaging. We take the responsibility to make sure this product arrives in a brand new working condition. Should your item arrive damaged, we will take full responsibility and replace the product at no cost to you.

For complete details of our return policy and process, please refer to our general return policy page.

Applications
Exterior Pipe Work
Yes
Interior Pipe Work
Yes
Manholes
Yes
Tunneling
Yes
Battery/Power
Alkaline Battery/Life
Up to 50 hours
Rechargeable Battery/Life
Up to 40 hours
Features
Display
LCD Graphic
Plumb Reference
Yes
Sleep Mode/Auto Shut Off
Yes
General
Accuracy
±1/16 inch at 100 feet (±1.5 mm at 30 m or 10 arc seconds)
Cross Axis Leveling
Automatic
Diameter
5.3 inches (13.5 cm)
Material
Aluminum
Operating Temperature
-4 to 122 °F (-20 to 50 °C)
Protection Class
IP68 dustproof and water immersible beyond 1m
Self-Leveling Range
-12% to +40%
Tripod Thread
5/8 x 11
Warranty
5-year
Weight
6.61 lbs (3.98 kg)
Grade/Slope
Display
Percent, Per Mille, Degree
Entry
Step+Go or Digit Select
Range
-12% to +40%
Laser
Color
Red diode laser
Type/Wavelength
600 - 680 nm
Remote Control
Alkaline Battery/Life
Up to 130 hours
Operating Range
Up to 430 feet above, up to 500 feet in pipes
