Digital Readout Receiver - Red & Green Beam Lasers

MFR#: HL760U
TIGER#: TS30829
Original price $396.00 - Original price $396.00
Original price List Price:
$396.00
$396.00 - $396.00
Current price $396.00
Digital Readout Receiver - Red & Green Beam Lasers
Digital Readout Receiver - Red & Green Beam Lasers - $396.00
$396.00
*Must Purchase 1 for Digital Readout Receiver - Red & Green Beam Lasers

The cart will thereforce automatically set Qty to 1 when you order this product

Free Shipping (USA) Ships Out Within: 2 - 4 Business Days Shipping Date By: 6/20/2024

One of our Sales Experts will be in touch!

Documents
  • Working radius: 3 to 1,500 feet
  • Compatible with red and green beam lasers
  • Fingerprint function
  • Digital readout
  • Wireless capability
  • Anti-strobe sensor
  • LED light rejection firmware update
  • IP67 dustproof and water immersible

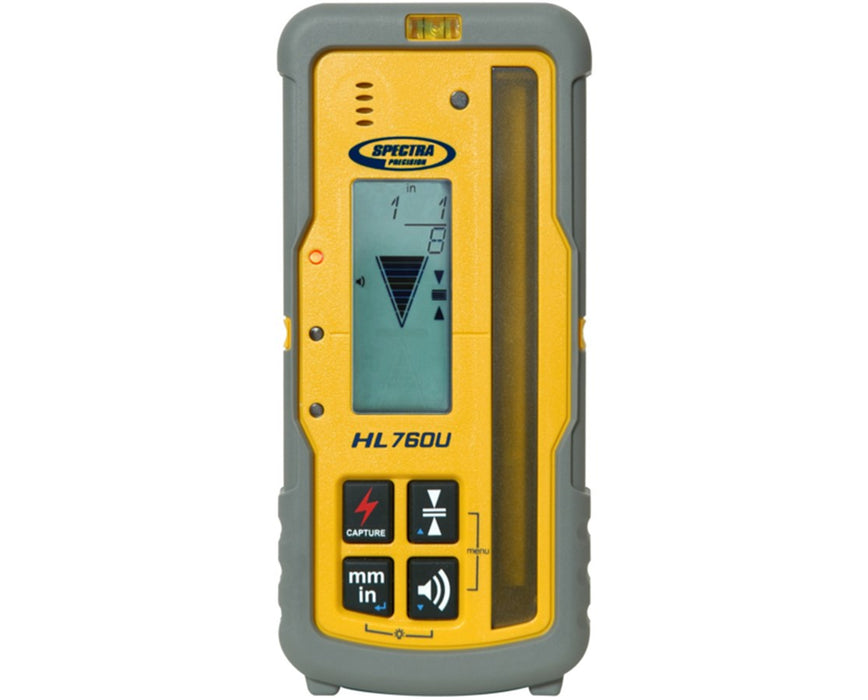

Featuring a digital readout of elevation and fingerprint functionality, the Spectra Universal HL760U Digital Readout Receiver provides fast grade checking and accurate laser readings. It has a working radius of up to 1,500 feet and includes all the functions of the HL750 with the addition of grade matching and PlaneLok capabilities that reduce connection errors and conflicts on the job site. It differs from the HL760 in that it is compatible with red and green beam rotating lasers.

The HL760 shows the exact distance from on-grade on its large LCD. A firmware update is also available which enhances the LED light rejection feature of the Spectra receiver. To put it simply, its sensitivity is now more resistant from the influence of LED light frequencies for increased productivity. It also has six accuracy settings and selectable units of measure are displayed in millimeter, centimeter, feet, inches or fractional inches. The HL760U can communicate with another HL760U or an HL760 for a longer range, wireless remote display, and monitoring.

This Spectra laser detector has a 5-inch reception height for quick acquisition of the laser beam and an anti-strobe sensor that prevents false readings from strobe lights, making it easier to identify true laser beam signals. With an IP67 rating, the HL760U is dustproof and water-resistant. It can withstand a drop of up to 10 feet (3m) high onto concrete and operates at least 60 hours using two alkaline batteries. It also has an optional automatic shut-off to save power. This Spectra laser receiver comes with a rod clamp, batteries, and 3-year manufacturer's warranty.

  • Working radius: 3 - 1,500 ft.
  • Compatible with red and green beam lasers
  • Fingerprint function
  • Digital readout
  • 5" receptor
  • Wireless capability
  • LED Light Rejection Enhancement update
  • Anti-strobe sensor
  • IP67 protection
  • 10' (3m) drop protection
  • Includes rod clamp and batteries
  • 3-year warranty

What’s in the Box

  • Spectra Universal HL760U Digital Readout Receiver
  • Rod clamp
  • 2 x AA alkaline batteries
  • User manual
  • 3-year warranty

Tiger Supplies offers a 30-day return policy from date of shipment for this product, subject to a 20% restocking fee, in addition to the return shipping charges. The product must be in new condition and in its original packaging. We take the responsibility to make sure this product arrives in a brand new working condition. Should your item arrive damaged, we will take full responsibility and replace the product at no cost to you.

For complete details of our return policy and process, please refer to our general return policy page.

Accuracy
Calibration Mode
±0.01", 1/64", 0.1mm
Coarse
±0.50", 1/2", 10.0mm
Fine
±0.10", 1/8", 2.0mm
Medium
±0.20", 1/4", 5.0mm
Super Fine
±0.05", 1/16", 1.0mm
Ultra Fine
±0.02", 1/32", 0.5mm
Battery/Power
Battery Life
Up to 60+ hours
Low Battery Indicator
Yes
Power Source
2 x AA alkaline
Features
Anti-Strobe Technology
Yes
Automatic Shutoff
Yes (Off, 30 min, 24hr)
Digital Readout
Yes
Display
LED: Green=on-grade, Red=high, Blue=low
Internal Radio
Yes
Laser Detection Height
5" (127mm)
Last Beam Memory
Yes
LED Indicators
Yes
Marking Notch
3.15 inches (80.0mm) from top
Numeric Readout Height
4 inches (102.0mm)
Reception Angle
± 45° minimum
Remote Control
Yes
General
Bracket/Clamp
Yes
Compatibility
Red and green lasers
Dimensions
6.6” L x 3” W x 1.4” H
Housing
Hard plastic
Protection Class
IP67 dustproof and water immersible up to 3.3 feet (1 m)
Warranty
3-year
Weight
13.1 oz (371 g)
Temperature
Operating
-4 to 140 °F (-20 to 60 °C)
Storage
-40 to 158 °F (-40 to 70 °C)
Volume Settings
Loud
110 dBA
Low
65 dBA
Medium
95 dBA
