HV101 Self-Leveling Rotary Laser

TIGER#: TS14165
Original price List Price: $775.00
You Save: $155.00 -20%
Original price $775.00 - Original price $775.00
Original price List Price: $775.00
Current price $620.00
$627.75 - $627.75
Current price $620.00
HV101 Self-Leveling Rotary Laser
HV101 Self-Leveling Rotary Laser - $620.00
$620.00
*Must Purchase 1 for HV101 Self-Leveling Rotary Laser

The cart will thereforce automatically set Qty to 1 when you order this product

Free Shipping (USA) Ships Out Within: 2 - 4 Business Days Shipping Date By: 6/5/2024

One of our Sales Experts will be in touch!

Essential Add-Ons:
Aluminum Rod
Aluminum Rod
Details
$33.95
$44.95
Universal Contractor’s Tripod
Universal Contractor’s Tripod
Details
$75.99
$79.99
Topcon LS-B20 Machine Control Laser Receiver - 1063525-03
Topcon LS-B20 Machine Control Laser Receiver - 1063525-03
Details
$651.60
Fiberglass Rod
Fiberglass Rod
Details
$76.95
  • Range up to 1,000 feet with laser receiver
  • Self-leveling within ±5 degrees
  • Accuracy ±1/8 inch at 100 feet
  • 90-degree layout
  • Out-of-level alert
  • Adjustable rotation speeds
  • IP54 dustproof and water splash resistant
  • Thread 5/8-11 and wall mount

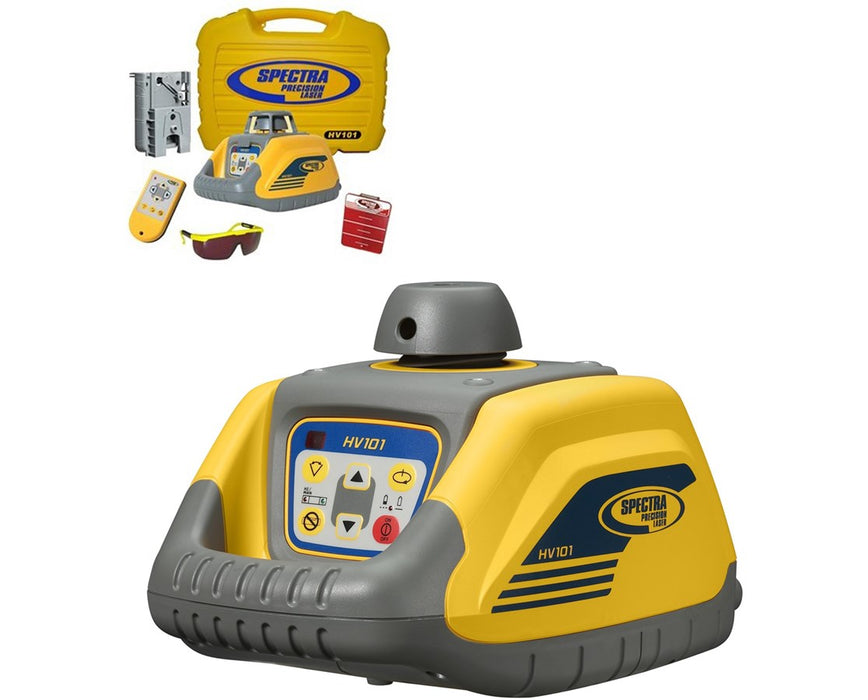

The Spectra Precision HV101 Self-Leveling Laser has 100 feet interior range that extends up to 1,000 feet when used with a laser receiver. It has an accuracy rate of ±1/8 inches at 100 feet and self-levels within ±5 degrees. The HV101 laser level can be mounted on a tripod either vertically or horizontally and includes a plumb reference point, making it perfect for acoustical ceiling and drywall installation. It is also great for interior squaring, vertical, and 90-degree layout, along with any other indoor finishing work.

The Spectra HV101 laser level features four rotation speeds: 0, 50, 200, and 600 RPMs, plus five preset angles for fast setup. It also works well outdoors with septic tank installation or other elevation transfer work, as well as short-range general construction aligning and leveling.

The included RC601 remote control offers scanning, speed, and alignment controls for fast one person setups. It allows the single-axis manual slope matching feature to be used up to 100 feet away from the laser.

The Spectra HV101 automatic self-leveling laser is water-resistant and maintains accuracy even after a three-foot drop. If it has knocked out of level, the beam and rotation automatically shut off and a red LED light flashes. This Spectra Precision laser comes with two D-cell alkaline batteries that provide up to 50 hours of continuous use and its LED light flashes red to indicate low battery power.

Configuration Options

The optional Spectra HR150U is a general-purpose universal laser receiver that effectively detects red, infrared, or green beam rotary laser levels. It features a three-channel dual-sided LCD display that can be easily seen indoors or outdoors.

The Spectra HV101 also has an optional HR320 laser receiver that features two on-grade sensitivities - fine and coarse. It has dual LCD displays and a 90-degree reception angle. Please select your preference from the menu above.

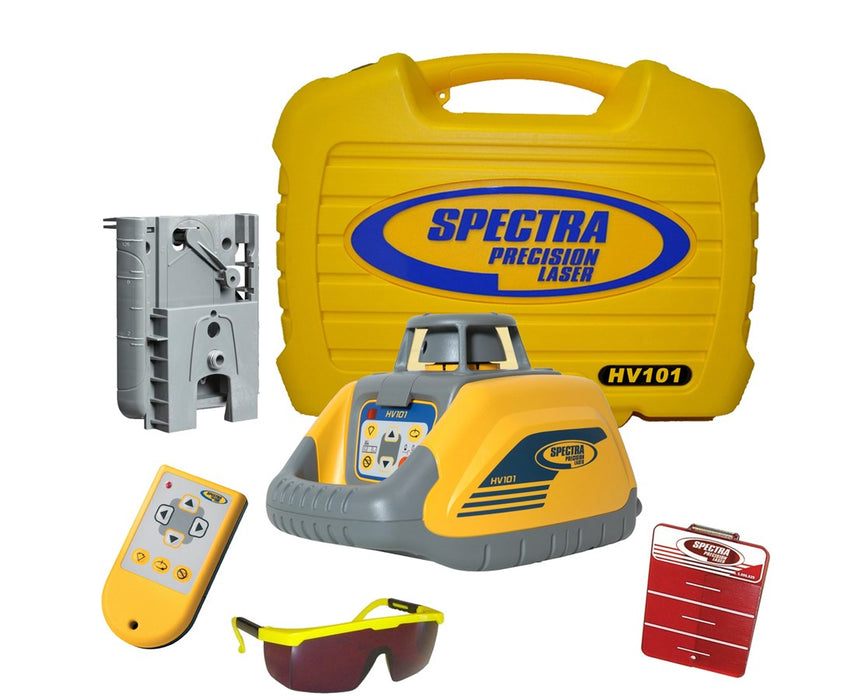

  • HV101: Laser Only

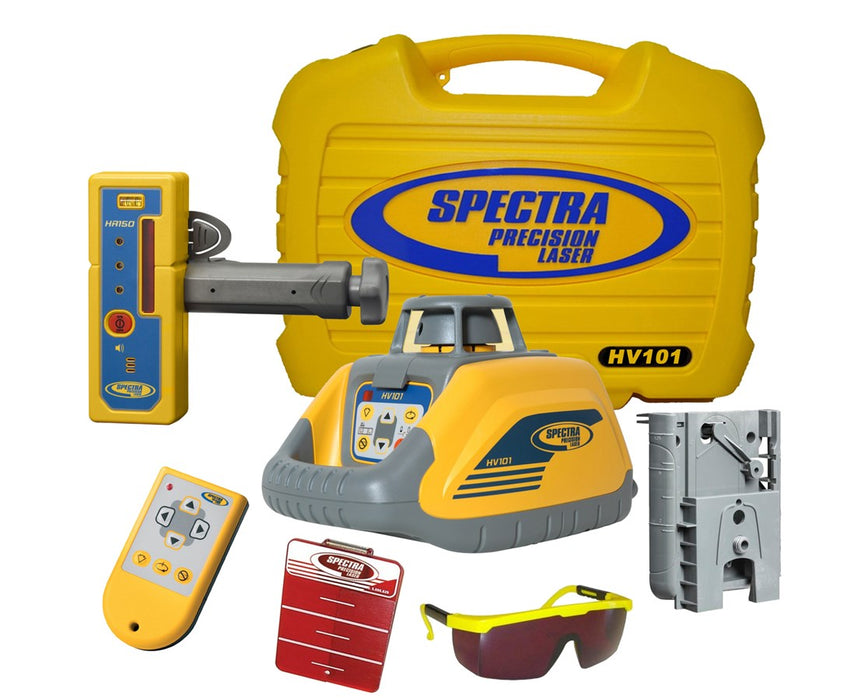

  • HV101-4: With HR150U Receiver
  • HV101GC-1: With HR320 Receiver, Aluminum Tripod And Rod (10ths)

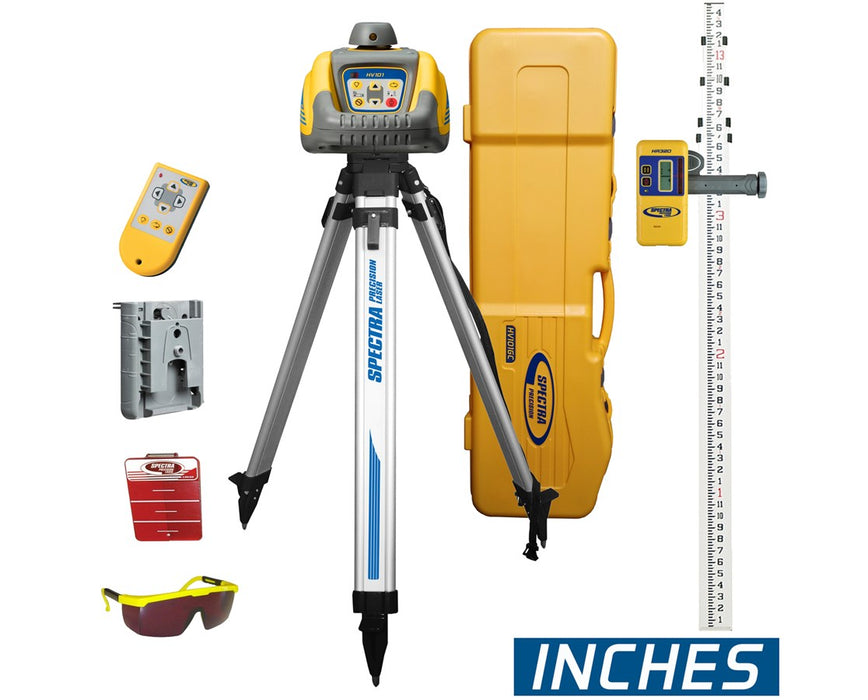

  • HV101GC-2: With HR320 Receiver, Aluminum Tripod And Rod (Inches)

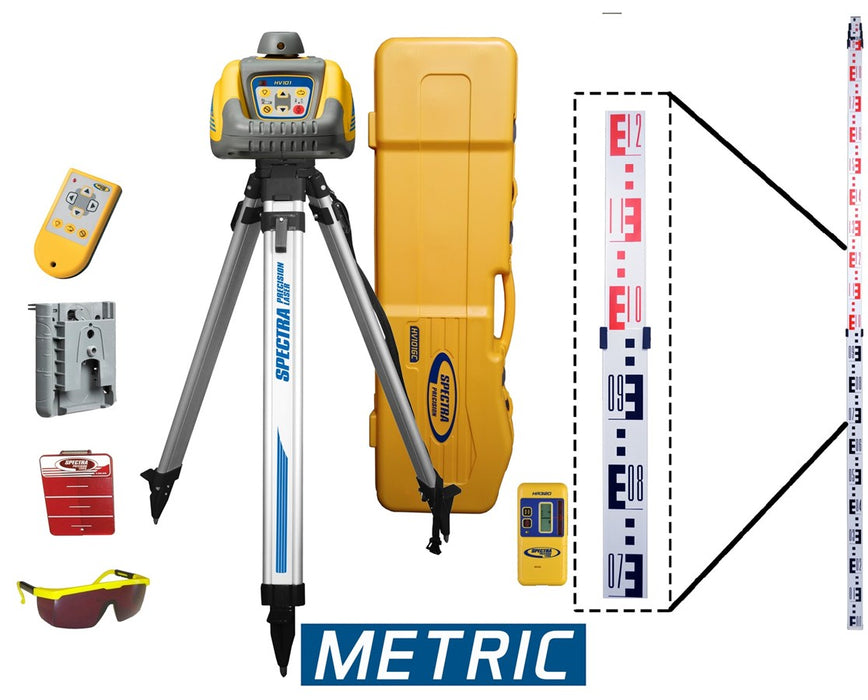

  • HV101GC-3: With HR320 Receiver, Aluminum Tripod And Rod (Metric)
Shock Proof ensures this construction laser withstands three feet drop onto concrete.
Included Infrared Remote control allows the laser to be sloped whilst remaining self-leveled in the cross axis. This is ideal for grade matching when working on driveways or patios.
90 Degree Layout provides all the references required for a wide variety of interior applications including wall layout and installation, acoustic ceiling installation, point transfer, and tile layout.
A hard-shelled, portable System Case is available to house the laser, receiver, clamp, tripod, and grade rod.

Scroll back to Top

  • Choice of 5 packages
  • Up to 100-foot interior range
  • Up to 1,000-foot range with laser receiver
  • Self-leveling within ±5 degrees
  • ±1/8 inch accuracy at 100 feet
  • 90-degree layout
  • Out-of-level alert
  • Adjustable rotation speeds
  • Manual slope control match
  • Great for interior and general construction projects, including plumb
  • One touch operator controls
  • Automatic shut off
  • IP54 dustproof and water resistant
  • 5/8-11 tripod thread – vertical and horizontal
  • 3-year limited warranty

What’s in the Box

  • Spectra HV101 Self-Leveling Laser
  • RC601 Remote control
  • Wall mount
  • Magnetic target plate
  • Detector rod clamp
  • Laser glasses
  • Batteries
  • Hard carrying case
  • User manual
  • 3-year manufacturer's warranty

Available Package Options

  • HR150U or HR320 Laser Receiver
  • Aluminum Tripod
  • 10ths, Inches, or Metric Grade Rod

Tiger Supplies offers a 30-day return policy from date of shipment for this product, subject to a 20% restocking fee, in addition to the return shipping charges. The product must be in new condition and in its original packaging. We take the responsibility to make sure this product arrives in a brand new working condition. Should your item arrive damaged, we will take full responsibility and replace the product at no cost to you.

For complete details of our return policy and process, please refer to our general return policy page.

Accuracy
Horizontal
±1/8 inch at 100 feet
Vertical
±1/8 inch at 100 feet
Applications
Checking/Setting Elevations
Yes
Installation of Interior Fittings (cabinets, lighting, windows, countertops, etc.)
Yes
Installation/Leveling Ceiling Grids
Yes
Installation/Leveling Interior Walls
Yes
Plumb Reference
Yes
Short-Range Leveling for Decks, Patios & Swimming Pools
Yes
Short-Run Vertical Alignment
Yes
Squaring and Layout of Partitions, Walls & Tile Floors
Yes
Battery/Power
Battery Life with Alkaline Batteries
Up to 50 hours
Battery Life with Rechargeable Battery Pack
Up to 45 / 25 Ni-MH / Ni-CD not included
Power Source
2 x D-cell alkaline batteries
Extra Technology
Detector/Receiver
Yes in Receiver Package
Remote Control
Yes
Features
Adjustable Rotating Speed
0, 50 ,200, 600 RPMs
Automatic Shut-Off
On Remote after 30 minutes
Bump Sensor (H.I./Out of Position Alert)
Yes
Detecting Indicator
Red Hi/Low, Green on-grade
Display
Dual LED (on Receiver only)
Drop Damage Protection
Yes
One-Touch Commands
On unit and remote
Protection Class
IP54 dustproof and water splash resistant
Tripod Adapter (Center Screw Thread)
5/8 x 11
Wall Mount Bracket
Yes
Functions
Automatic Leveling
Yes
Beam Operating Modes
Level and Plumb beams
Grade Operation
Manual
Scanning Modes
Five preset angles 3°, 8°, 45°, 90°, 180°
Slope Match
Manual
General
Dimensions
8.5" L × 6.7" W × 6" H
Maximum Power Output
<5 mW
Remote Control Operating Distance
Up to 150 feet (50 m)
Warranty
2-year
Weight
3.3 lbs (1.5 kg)
Laser
Classification
Class 3A
Color
Red
Direction
Horizontal and vertical
Visibility
Highly Visible
Wavelength
635nm
Range
Exterior
Up to 1,000 feet (300m) with detector
Interior
Up to 100 feet (30m)
Remote
Up to 150 feet (50 m)
Self Leveling
±5 degrees horizontal/vertical (when laid on side)
Temperature
Operating
23 to 113 °F (-5 to 45 °C)
Storage
-4 to 158 °F (-20 to 70 °C)
