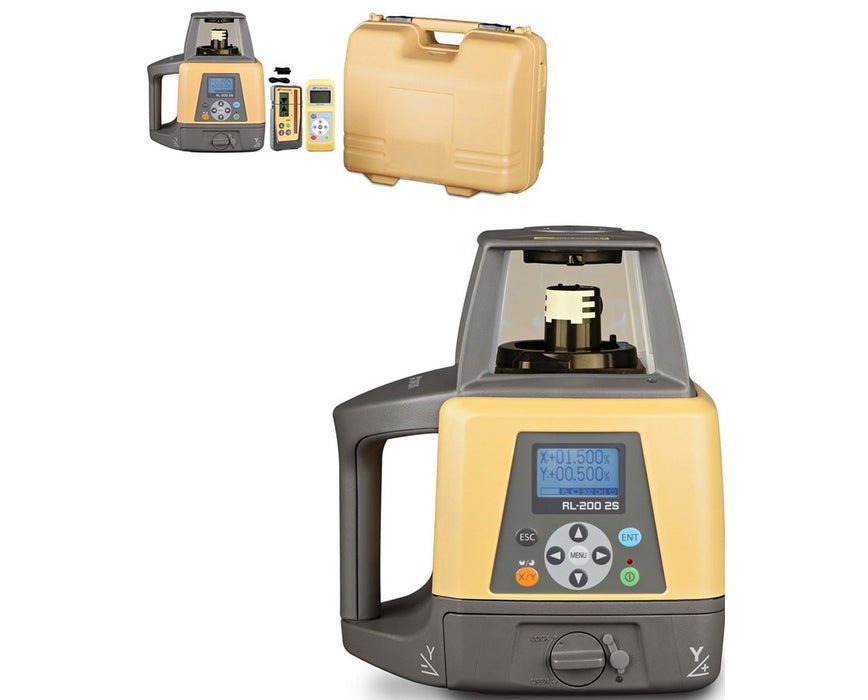

Topcon RL-200 2S Dual Grade Laser w/ LS-80X Receiver

MFR#: 314920712
TIGER#: TS23669
You Save: $937.00 -23%
Original price $4,070.00 - Original price $4,070.00
Original price List Price: $4,070.00
$3,133.00
$4,070.00 - $4,070.00
Current price $3,133.00
Topcon RL-200 2S Dual Grade Laser w/ LS-80X Receiver
Topcon RL-200 2S Dual Grade Laser w/ LS-80X Receiver - $3,133.00
$3,133.00
*Must Purchase 1 for Topcon RL-200 2S Dual Grade Laser w/ LS-80X Receiver

The cart will thereforce automatically set Qty to 1 when you order this product

Free Shipping (USA) Ships Out Within: 5 - 7 Business Days Shipping Date By: 6/7/2024

Requires Manager App for Bluetooth Connectivity. Purchase in Appstore for $99

One of our Sales Experts will be in touch!

Essential Add-Ons:
Aluminum Rod
Aluminum Rod
Details
$33.95
$44.95
Universal Contractor’s Tripod
Universal Contractor’s Tripod
Details
$75.99
$79.99
Topcon LS-B20 Machine Control Laser Receiver - 1063525-03
Topcon LS-B20 Machine Control Laser Receiver - 1063525-03
Details
$651.60
Fiberglass Rod
Fiberglass Rod
Details
$76.95
  • Range up to 3,600 feet with laser receiver
  • Accuracy of ±7 arc seconds
  • Horizontal axis grade: -10% to +10%
  • Vertical axis grade: -5% to +25%
  • Auto-leveling within ±5 degrees
  • Rotation speed: 300, 600, or 900 RPM
  • IP66 dustproof & powerful water jet resistant
  • Battery life up to 100 hours

The Topcon RL-200 2S Dual Grade Laser is an effective construction device that works on both horizontal and vertical axes. Offering an operating range up to 3,600 feet with laser receiver, it is perfect for geopositioning, land surveying, geospatial monitoring, construction layout, and other outdoor applications. The RL-200 2S is auto-leveling within ±5 degrees and has a ±7 arc second accuracy.

This Topcon dual grade laser features a wide range of ±10 horizontally and -5 to 25 percent vertically. For added precision, it has an adjustable rotation speed of 300, 600 or 900 rotations per minute. Also, it comes with clear LCD graphical display that makes it easier to see readings.

With an IP66 environmental rating, the Topcon RL-200 2S is dust tight and water jet resistant. It also uses batteries that power this construction instrument up to 100 hours of use. In addition, it includes a 5/8-11 screw thread that is compatible with both flat and dome-head type of tripods.

Configuration Options

The Topcon RL-200 2S Dual Grade Laser offers two packages with optional laser receiver and choice of battery. Please select your desired package from the drop-down menu above.

  • 314920722: Topcon RL-200 2S Dual Grade Laser with BT-67Q Rechargeable Battery
  • 314920782: Topcon RL-200 2S Dual Grade Laser with LS-100D Laser Receiver and BT-67Q Rechargeable Battery
  • Choice of laser receiver and battery
  • Up to 3,600 feet range with laser receiver
  • Accuracy of ±7 arc seconds
  • Auto-leveling within ±5 degrees
  • Rotation speed: 300, 600, or 900 RPM
  • Horizontal axis grade: -10% to +10%
  • Vertical axis grade: -5% to +25%
  • Up to 100 hours battery life
  • Clear graphical display
  • IP66 dustproof and water resistant
  • 5/8-11 tripod thread, flat and dome head type

What’s in the Box

  • Topcon RL-200 2S Dual Grade Laser
  • Hard carrying case
  • Batteries
  • User manual
  • 5-year manufacturer's warranty

Available Package Options

  • LS-100D Laser Receiver: Optional
  • Battery: BT-67Q Rechargeable

Tiger Supplies offers a 30-day return policy from date of shipment for this product, subject to a 20% restocking fee, in addition to the return shipping charges. The product must be in new condition and in its original packaging. We take the responsibility to make sure this product arrives in a brand new working condition. Should your item arrive damaged, we will take full responsibility and replace the product at no cost to you.

For complete details of our return policy and process, please refer to our general return policy page.

Accuracy
Horizontal
±7 arc seconds
Applications
Concrete Forms, Footings and Foundations
Yes
Checking Building Square & Area
Yes
Checking Elevations of Sub-Base and Sub-Grade
Yes
Checking/Setting Elevations
Yes
Estimating Cut & Fill
Yes
Installation of Interior Fittings (cabinets, lighting, windows, countertops, etc.)
Yes
Installation/Leveling Ceiling Grids
Yes
Installation/Leveling Interior Walls
Yes
Locating Finished Floor Levels
Yes
Matching Existing Slope & Grade
Yes
Short-Range Leveling for Decks, Patios & Swimming Pools
Yes
Short-Run Vertical Alignment
Yes
Squaring and Layout of Partitions, Walls & Tile Floors
Yes
Transferring Points from Floor to Ceiling
Yes
Battery/Power
Battery Life Alert
Yes
Battery Life with Alkaline Batteries
Up to 100 hours
Battery Life with Rechargeable Battery Pack
Up to 90 hours
Power Source
Rechargeable NiMH or Dry-Cell
Extra Technology
Detector/Receiver
LS-100D (Optional)
Remote Control
RC-400 (Optional)
Features
Adjustable Rotating Speed
300, 600, or 900 RPM
Bump Sensor (H.I./Out of Position Alert)
Yes
Display
Backlit, graphic LCD
Protection Class
IP66 dustproof and powerful water jet resistant
Tripod Adapter (Center Screw Thread)
5/8 x 11
Functions
Automatic Leveling
Yes
Beam Operating Modes
Yes
Grade Operation
Yes
General
Dimensions
6.9" L x 8.6" W x 10" H
Remote Control Operating Distance
Up to 1,000 feet (300 m)
Warranty
5-year
Weight
7.5 lbs (3.4 kg)
Grade
Accuracy
Horizontal ±7 arc seconds
Percentage
±10% in X axis; -5 to +25% in Y axis
Type
Dual
Laser
Classification
Class 3
Color
Red
Direction
Horizontal and vertical
Visibility
Visible
Wavelength
685 nm
Range
Exterior
Up to 3,600 feet (1,100 m)
Interior
Up to 3,600 feet (1,100 m)
Remote
Up to 984 feett (300 m)
Self Leveling
±5 degrees
Temperature
Operating
-4 to 122 °F (-20 to 50 °C)
Storage
-22 to 140 °F (-30 to 60 °C)
