Topcon RL-200 1S Single Grade Laser

MFR#: 314910712
TIGER#: TS23659
You Save: $838.00 -24%
Original price $3,480.00 - Original price $3,480.00
Original price List Price: $3,480.00
$2,642.00
$3,480.00 - $3,480.00
Current price $2,642.00
Topcon RL-200 1S Single Grade Laser
Topcon RL-200 1S Single Grade Laser - $2,642.00
$2,642.00
*Must Purchase 1 for Topcon RL-200 1S Single Grade Laser

The cart will thereforce automatically set Qty to 1 when you order this product

IN STOCK Free Shipping (USA) Ships Out Within: 24 - 48 Hours Shipping Date By: 6/22/2024

Requires Manager App for Bluetooth Connectivity. Purchase in Appstore for $99

One of our Sales Experts will be in touch!

Essential Add-Ons:
Aluminum Rod
Aluminum Rod
Details
$43.95
$44.95
Universal Contractor’s Tripod
Universal Contractor’s Tripod
Details
$75.99
$79.99
Topcon LS-B20 Machine Control Laser Receiver - 1063525-03
Topcon LS-B20 Machine Control Laser Receiver - 1063525-03
Details
$648.00
Fiberglass Rod
Fiberglass Rod
Details
$76.95
  • Range up to 3,600 feet with laser receiver
  • Accuracy of ±7 arc seconds horizontally
  • Wide grade range: Single -5 to +25%
  • Auto-leveling within ±5 degrees
  • Rotation speed: 300, 600 or 900 RPM
  • Height-of-Instrument (H.I.) alert
  • High contrast LCD graphical display
  • IP66 dustproof & powerful water jet resistant

Works on both horizontal and vertical axes, the Topcon RL-200 1S Single Grade Laser is great for geopositioning, land surveying, geospatial monitoring, construction, surveying, layout, foundation and other exterior construction applications. With an accuracy of horizontal ±7 arc seconds, this offers an operating range up to 3,600 feet with a laser receiver. Also, it is auto-leveling within ±5 degrees and has a wide single grade range of -5 to +25 percent.

When using the beam masking mode, the RL-200 1S allows multiple teams doing measurements from conflicting with other readings. For more accuracy, it comes with adjustable rotation speeds of 300, 600 or 900 rotations per minute. Also, it has a height-of-instrument alert function to prevent errors and mistakes in leveling.

The Topcon RL-200 1S includes a high contrast LCD graphical display that makes it easier to track data. With an IP66 rating, this Topcon grade laser is protected from dust and water splashes. Also, it runs up to 100 hours with dry-cell batteries and up to 90 hours with rechargeable NiMH batteries. As an extra feature, it includes a 5/8-11 tripod thread that is compatible with most tripod brands.

Configuration Options

The Topcon RL-200 1S Single Grade Laser offers two packages with optional laser receiver and choice of battery. Please select your preference from the drop-down menu above.

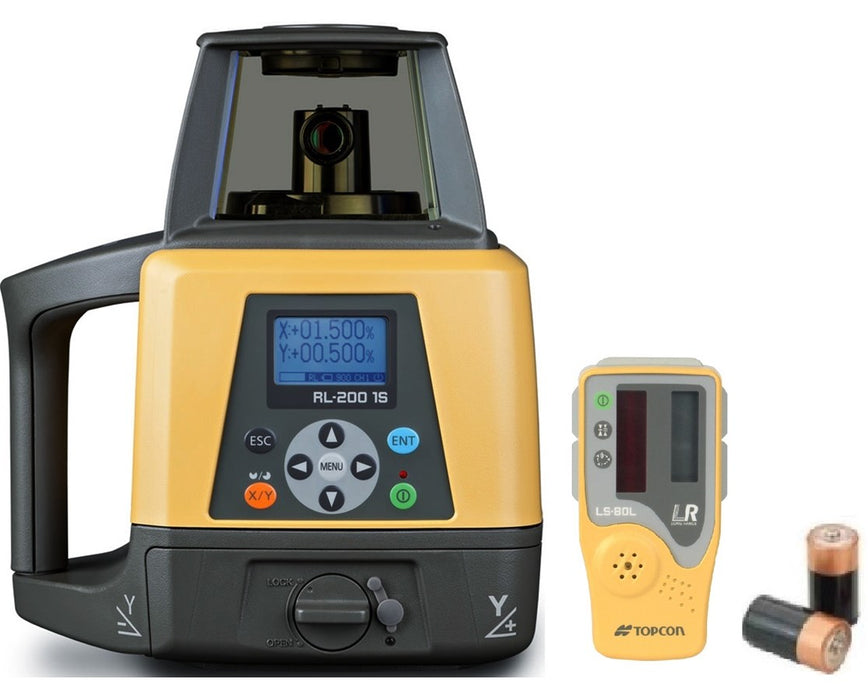

  • 314910702: Topcon RL-200 1S Single Grade Laser with BT-67Q Battery

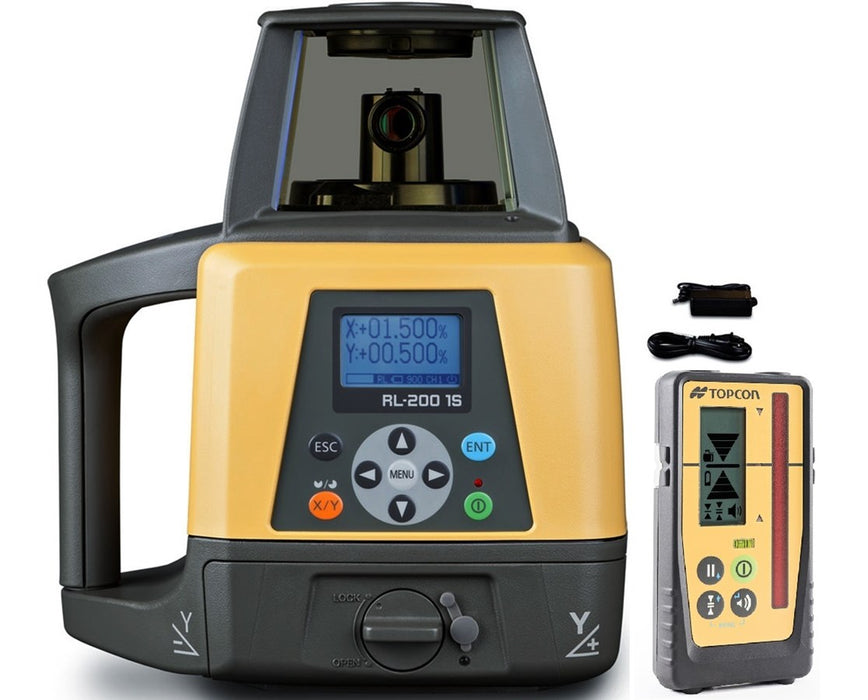

  • 314910782: Topcon RL-200 1S Single Grade Laser with LS-100D Laser Receiver and BT-67Q Rechargeable Battery
  • Choice of laser receiver & battery
  • Accuracy of ±7 arc seconds horizontally
  • Range up to 3,600 feet with laser receiver
  • Auto-leveling within ±5 degrees
  • Wide grade range: Single -5 to +25%
  • Rotation speed: 300, 600 or 900 RPM
  • Height-of-Instrument (H.I.) alert
  • Beam masking
  • High contrast LCD graphical display
  • IP66 dustproof and water resistant
  • Up to 100 hours with dry-cell batteries
  • Up to 90 hours with rechargeable NiMH batteries
  • 5/8-11 tripod thread

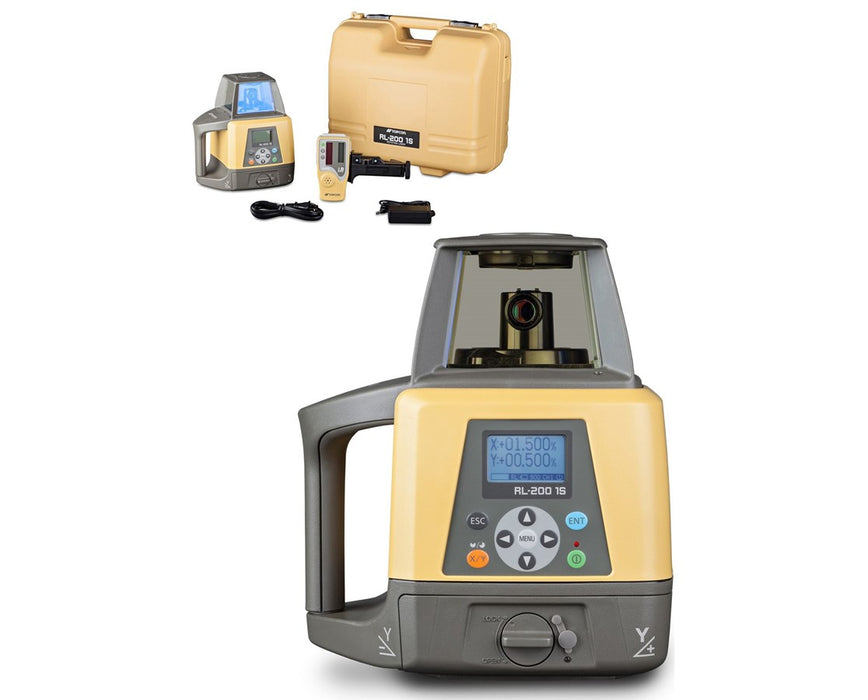

What’s in the Box

  • Topcon RL-200 1S Single Grade Laser
  • Hard carrying case
  • Batteries
  • User manual
  • 5-year manufacturer's warranty

Available Package Options

  • LS100D Laser Receiver: Optional
  • Battery:  BT-67Q Rechargeable

Tiger Supplies offers a 30-day return policy from date of shipment for this product, subject to a 20% restocking fee, in addition to the return shipping charges. The product must be in new condition and in its original packaging. We take the responsibility to make sure this product arrives in a brand new working condition. Should your item arrive damaged, we will take full responsibility and replace the product at no cost to you.

For complete details of our return policy and process, please refer to our general return policy page.

Accuracy
Horizontal
±7 arc seconds
Applications
Concrete Forms, Footings and Foundations
Yes
Checking Building Square & Area
Yes
Checking Elevations of Sub-Base and Sub-Grade
Yes
Checking/Setting Elevations
Yes
Estimating Cut & Fill
Yes
Installation of Interior Fittings (cabinets, lighting, windows, countertops, etc.)
Yes
Installation/Leveling Ceiling Grids
Yes
Installation/Leveling Interior Walls
Yes
Locating Finished Floor Levels
Yes
Machine Control of Excavators, Graders, Dozers or Similar Equipment
Yes
Matching Existing Slope & Grade
Yes
Short-Range Leveling for Decks, Patios & Swimming Pools
Yes
Short-Run Vertical Alignment
Yes
Squaring and Layout of Partitions, Walls & Tile Floors
Yes
Transferring Points from Floor to Ceiling
Yes
Battery/Power
Battery Life Alert
Yes
Battery Life with Alkaline Batteries
Up to 100 hours
Battery Life with Rechargeable Battery Pack
Up to 90 hours
Power Source
Rechargeable NiMH or Dry-Cell
Extra Technology
Detector/Receiver
LS-100D (Optional)
Features
Adjustable Rotating Speed
300, 600, 900 RPM
Bump Sensor (H.I./Out of Position Alert)
Yes
Display
Backlit, graphic LCD
Protection Class
IP66 dustproof and powerful water jet resistant
Tripod Adapter (Center Screw Thread)
5/8 x 11
Functions
Automatic Leveling
Yes
Beam Operating Modes
Beam masking
Grade Operation
Automatic
General
Dimensions
6.9" L × 8.6" W × 10.0" H
Warranty
5-year
Weight
7.5 lbs (3.4 kg) with D-cell alkaline battery or 7.9 lbs (3.6 kg) with NiMH battery
Grade
Accuracy
Horizontal ±7 arc seconds
Percentage
-5 to +25 %
Type
Single
Laser
Classification
Class 3
Color
Red
Direction
Horizontal and vertical
Visibility
Visible
Wavelength
685 nm
Range
Exterior
Up to 3,600 feet (1,100 m)
Self Leveling
±5 degrees
Temperature
Operating
-4 to 122 °F (-20 to 50 °C)
