Manual Self-Leveling Cross-Line Laser

MFR#: 40-6603
TIGER#: TS42609
Original price List Price: $115.40
You Save: $11.40 -10%
Original price $115.40 - Original price $115.40
Original price List Price: $115.40
Current price $104.00
$104.00 - $104.00
Current price $104.00

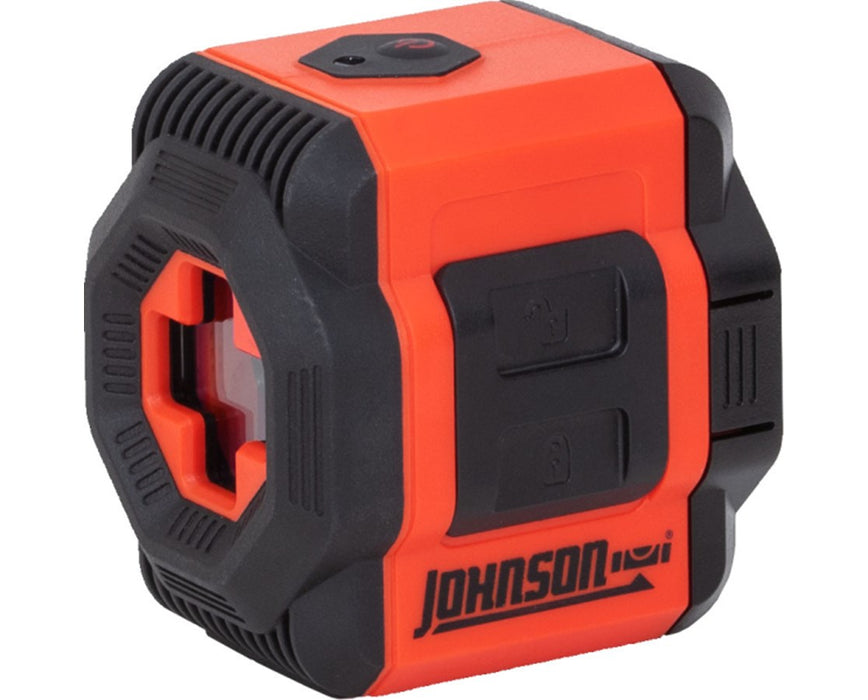

Manual Self-Leveling Cross-Line Laser
Manual Self-Leveling Cross-Line Laser - $104.00
$104.00
*Must Purchase 1 for Manual Self-Leveling Cross-Line Laser

The cart will thereforce automatically set Qty to 1 when you order this product

Free Shipping (USA) Ships Out Within: 7 - 10 Business Days Shipping Date By: 6/28/2024

One of our Sales Experts will be in touch!

  • Vertical and horizontal laser cross
  • Manual mode for use at any angle
  • Locking compensator
  • Visual out-of-level indicator
  • 1/4"-20 tripod thread
  • Up to 30 feet working range
  • ±3/16 inch accuracy at 30 feet
  • IP50 dust and water resistant

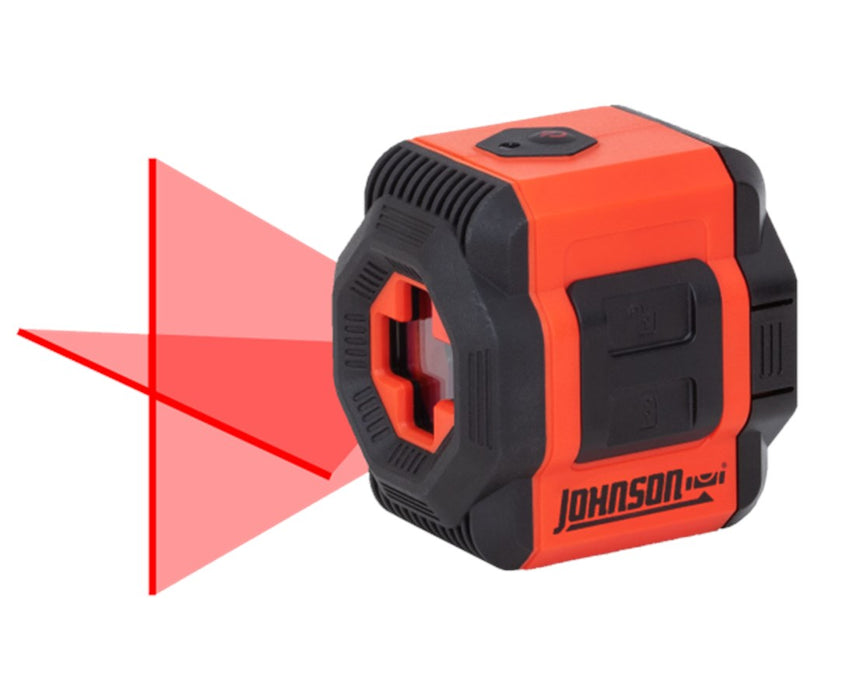

The Johnson Self-Leveling Cross-Line Lasercomes with vertical and horizontal laser cross that makes it ideal for flooring, cabinetry, drop ceiling installation, carpentry, tiling, drywall track/stud wall installation, setting drainage slope and many more indoor applications. It has a manual mode for use at any angle and has a visual out-of-level indicator that indicates when it’s beyond leveling range.

The locking compensator function that comes with this Johnson Self-Leveling Cross-Line Laser protects the pendulum during transport. It comes with an accuracy of ±3/16 inches at 30 feet and has a working range of up to 30 feet. The 1/4"-20 tripod thread is compatible for use with most common tripods.

This Johnson Self Leveling Cross-Line Laser has an IP protection class of 50 that makes it dust and water proof. This laser includes two "AA" alkaline batteries. It also comes with a 2-year warranty.

Product Options

The Johnson Manual Self-Leveling Cross-Line Laser comes in two variations that differ in the model and their inclusions. Kindly choose your preference on the options menu above.

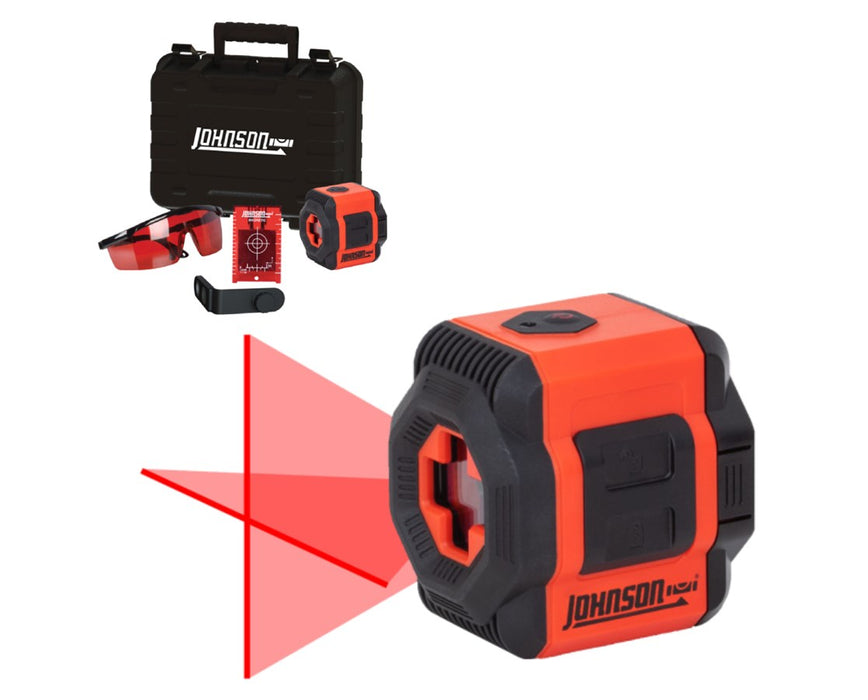

You can choose the standard device option, which comes with the Manual Self-Leveling Cross-Line Laser and two "AA" batteries. If you prefer a complete set, you can choose the Laser Kit, which includes a magnetic target, magnetic bracket, tinted glasses, two (2) "AA" Alkaline Batteries, and a hard-shell case.

  • Standard Laser Device (40-6603)
  • Laser Kit w/ Magnetic Target, Bracket, Glasses & Case (40-6605)

What’s in the Box

  • Johnson Self-Leveling Cross-Line Laser
  • 2 "AA" alkaline batteries
  • 2-year warranty

Available Package Options

  • Model: Standard Laser Device or w/ Magnetic Target, Bracket, Glasses & Case

Tiger Supplies offers a 30-day return policy from date of shipment for this product, subject to return shipping charges. The product must be in new condition and in its original packaging. We take the responsibility to make sure this product arrives in a brand new working condition. Should your item arrive damaged, we will take full responsibility and replace the product at no cost to you.

For complete details of our return policy and process, please refer to our general return policy page.

Applications
Flooring and Tile Layout
Yes
Installing Drop Ceilings and Lights
Yes
Installing Windows and Partition Walls
Yes
Transferring Points from Floor to Ceiling
Yes
Transferring Points from Wall to Wall
Yes
Battery/Power
Operating Temperature
32 to 104 °F (0 to 104 °C)
Operating Time
Up to 20 hours continuous use
Power Source
2 x AA alkaline batteries (included)
Features
Environmental Class
Class II
Self-Leveling
±4°
Tripod Thread
1/4 x 20
Functions
Horizontal Leveling
Yes
Setting out Right Angles
Yes
Vertical Aligning
Yes
Vertical and Horizontal Aligning
Yes
General
Dimensions
2.4" L x 2.9" W x 3.0" H
Laser Class
Class II
Laser Type
635nm ±10nm (Red)
Warranty
2-year
Weight
6.9 oz (without batteries)
Measuring Capabilities
Beam Direction
Horizontal and vertical
Horizontal Accuracy
±3/16 inch at 30 feet
Leveling Accuracy
±3/16 inch at 30 feet
Vertical Accuracy
±3/16 inch at 30 feet
Working Range
Up to 30 feet
