Self-Leveling Cross Line Laser w/ Elevating Magnetic Bracket

MFR#: 40-6650
TIGER#: TS24589
Original price List Price: $314.28
You Save: $89.57 -29%
Original price $314.28 - Original price $314.28
Original price List Price: $314.28
Current price $224.71
$224.71 - $224.71
Current price $224.71
Self-Leveling Cross Line Laser w/ Elevating Magnetic Bracket
Self-Leveling Cross Line Laser w/ Elevating Magnetic Bracket - $224.71
$224.71
*Must Purchase 1 for Self-Leveling Cross Line Laser w/ Elevating Magnetic Bracket

The cart will thereforce automatically set Qty to 1 when you order this product

Free Shipping (USA) Ships Out Within: 7 - 10 Business Days Shipping Date By: 4/26/2024

One of our Sales Experts will be in touch!

  • Range up to 150 feet
  • ±1/8 inch accuracy at 35 feet
  • Self-leveling within ±3 degrees
  • IP55 dust and water-resistant
  • Double thread: 5/8"-11, 1/4"-20
  • Up to 20-hour battery life
  • Rotate 360 degrees
  • Visual out-of-level indicator

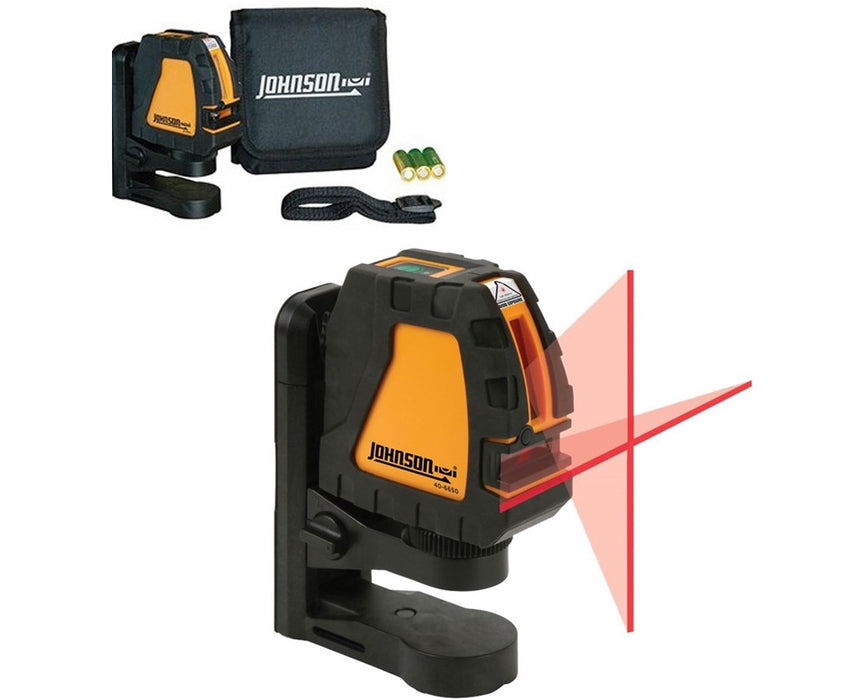

The self-leveling Johnson Cross-Line Laser projects one horizontal, one vertical or cross-line beam separately or simultaneously. It comes with a multi-functional elevating magnetic bracket with rare earth magnets for use on walls, metallic surfaces or tripod. While on the bracket, the laser can be raised or lowered 2-1/2 inches and rotate 360 degrees. It also features a visual out-of-level indicator when beyond leveling range.

This Johnson Self-Leveling Cross-Line Laser is accurate up to ±1/8 inches at 35 feet and self-leveling within ±3 degrees. It has a working range of up to 150 feet depending upon light conditions. It comes with a 5/8"-11 and 1/4"-20 thread and protected against dust and water splashes with an IP-55 rating. The laser comes with multi-functional elevating magnetic bracket, mounting strap, three "AA" alkaline batteries, instruction manual with warranty card and soft-sided pouch. It also comes with a 3-year warranty.

  • Up to 150 ft. interior range
  • ±1/8 inch accuracy at 35 feet
  • Self-leveling within ±3 degrees
  • IP55 dust and water-resistant
  • Double thread: 5/8"-11, 1/4"-20
  • Up to 20-hour battery life
  • Projects one horizontal, vertical or cross-line beam
  • Visual out-of-level indicator
  • Multi-functional elevating magnetic bracket
  • With rare earth magnets
  • Laser can be raised or lowered 2-1/2"
  • Rotate 360 degrees

What’s in the Box

  • Johnson Self-Leveling Cross Line Laser
  • Multifunctional elevating magnetic bracket
  • Mounting strap
  • 3 "AA" alkaline batteries
  • Soft-sided pouch
  • User manual
  • 3-year with warranty card

Tiger Supplies offers a 30-day return policy from date of shipment for this product, subject to return shipping charges. The product must be in new condition and in its original packaging. We take the responsibility to make sure this product arrives in a brand new working condition. Should your item arrive damaged, we will take full responsibility and replace the product at no cost to you.

For complete details of our return policy and process, please refer to our general return policy page.

Applications
Ceiling Joist and Rafter Alignment
Yes
Diagonals and Footings for Patios
Yes
Flooring and Tile Layout
Yes
Installing Drop Ceilings and Lights
Yes
Installing Windows and Partition Walls
Yes
Transferring Points from Floor to Ceiling
Yes
Transferring Points from Wall to Wall
Yes
Battery/Power
Battery Level Indicator
Yes
Operating Temperature
14 to 113 °F (-10 to 45 °C)
Operating Time
Up to 20 hours
Power Source
AA alkaline batteries
Features
Environmental Class
IP55 dustproof and water jet resistant
Self-Leveling
Yes, lockable pendulum
Tripod Thread
5/8 x 11 or 1/4 x 20
Functions
Aligning at an Angle
Yes
Horizontal Leveling
Yes
Setting out Right Angles
Yes
Vertical Aligning
Yes
Vertical and Horizontal Aligning
Yes
General
Dimensions
4.12" L x 1.93" W x 4.12" H
Laser Class
Class 3A
Laser Type
635nm ±10nm
Warranty
3-year
Weight
1.50 lbs (0.3 kg)
Measuring Capabilities
Leveling Accuracy
±1/8 inch at 35 feet
Self-Leveling Range
±3 degrees
Working Range
Up to 150 feet
