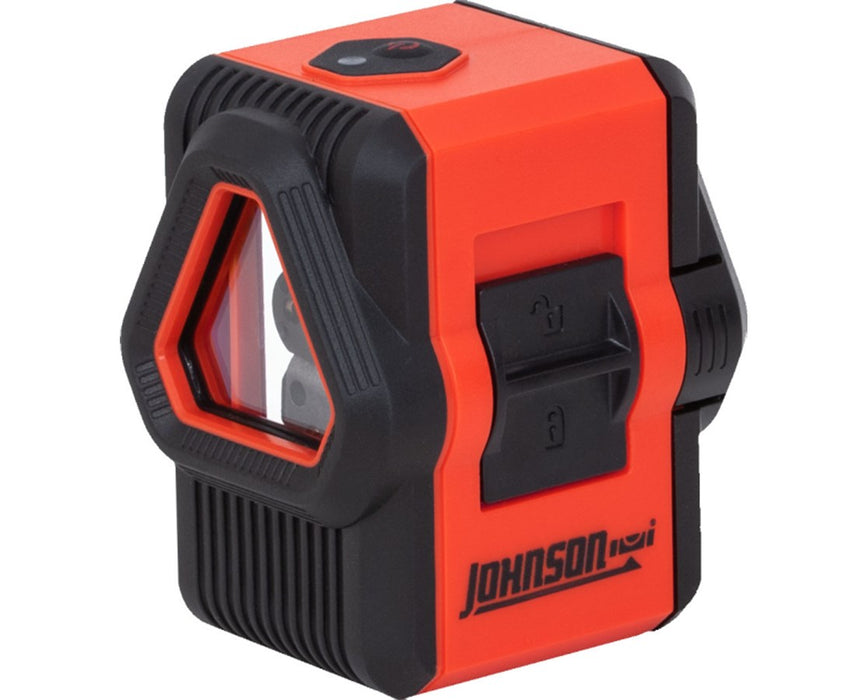

Self-Leveling Cross and Line Laser

MFR#: 40-6648
TIGER#: TS42666
Original price List Price: $140.82
You Save: $13.82 -10%
Original price $140.82 - Original price $140.82
Original price List Price: $140.82
Current price $127.00
$127.00 - $127.00
Current price $127.00
Self-Leveling Cross and Line Laser
Self-Leveling Cross and Line Laser - $127.00
$127.00
*Must Purchase 1 for Self-Leveling Cross and Line Laser

The cart will thereforce automatically set Qty to 1 when you order this product

Free Shipping (USA) Ships Out Within: 7 - 10 Business Days Shipping Date By: 6/12/2024

One of our Sales Experts will be in touch!

  • 1 horizontal and 2 vertical lines at 90 degrees
  • Working range up to 50 feet
  • Manual mode for use at any angle
  • Ideal for flooring and alignment
  • Locking compensator protects pendulum
  • Self-leveling within ±5 degrees
  • ±5/32 inches at 30 ft.
  • 1/4"-20 tripod thread

Combining the features of a cross-laser with the additional 90° plumb line, the Johnson Self-Leveling Cross and Line Laser is useful for checking square reference of beams, posts or any other objects. It is also ideal for flooring and alignment and can be used for indoor applications such as cabinetry, drop ceiling installation, wainscoting, carpentry, tiling, drywall track/stud wall installation, and plumbing.

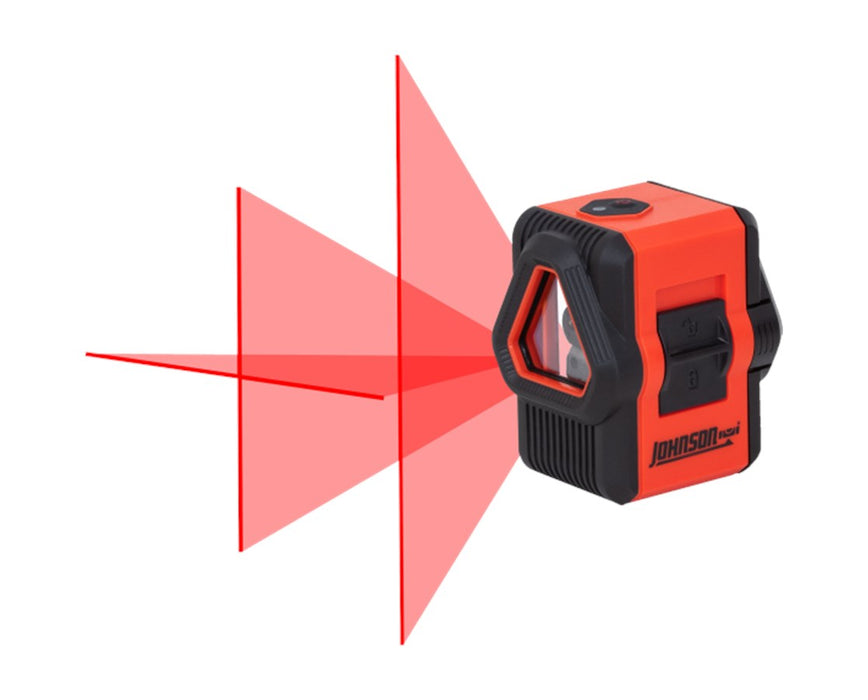

The Johnson Self-Leveling Cross and Line Laser project up to three laser beams simultaneously to plot both crosslines and a plumb line, or either line individually. The tilt or manual mode can be used to project orthogonal lines at any angle for stairs and other non-level applications. Equipped with a magnetically dampened compensator system to stabilize the pendulum quickly and accurately. The locking mechanism protects it during transportation.

With the visual out-of-level indicator, the user is alerted when the laser is beyond its leveling range of ±5°. The Johnson Self-Leveling Cross and Line Laser comes with an accuracy of ±5/32 inches at 30 feet and has a working range of up to 50 feet. It also comes with 2 "AA" alkaline batteries and lasts up to 10 hours of continuous use. With an IP50 protection class, it is dustproof and waterproof.  This laser comes backed by a 2-year warranty.

Product Options

The Johnson Self-Leveling Cross and Line Laser comes in two variations that differ in the model and their inclusions. Kindly choose your preference on the options menu above.

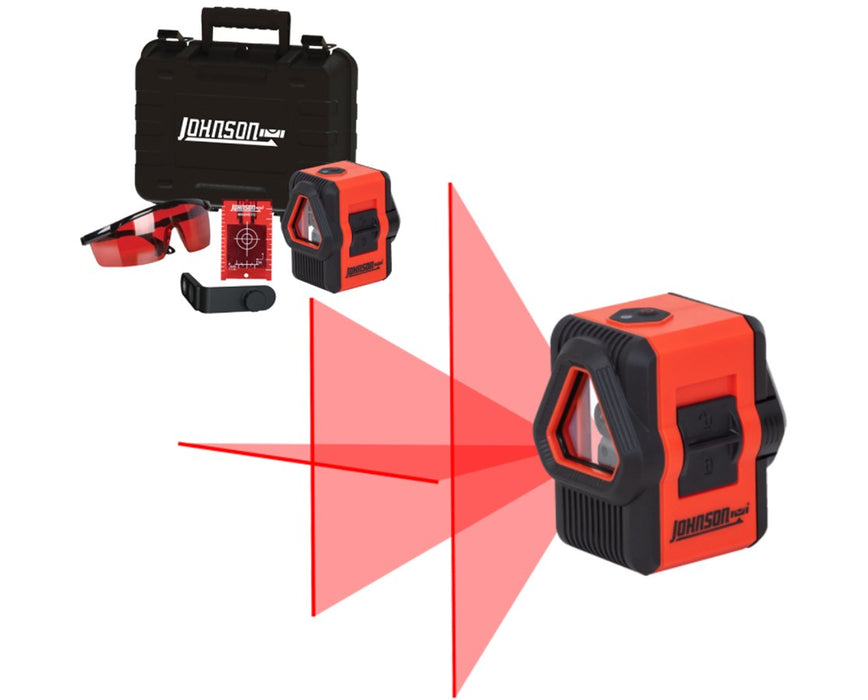

You can choose the standard device option, which comes with the Self-Leveling Cross and Line Laser and two "AA" batteries. If you prefer a complete set, you can choose the Laser Kit, which includes a magnetic target, magnetic bracket, tinted glasses, two (2) "AA" Alkaline Batteries, and a hard-shell case.

  • Standard Laser Device (40-6648)
  • Laser Kit w/ Magnetic Target, Bracket, Glasses & Case (40-6649)

What’s in the Box

  • Johnson Self-Leveling Cross and Line Laser
  • 2 "AA" alkaline batteries
  • 2-year warranty

Available Package Options

  • Model: Standard Laser Device or w/ Magnetic Target, Bracket, Glasses & Case

Tiger Supplies offers a 30-day return policy from date of shipment for this product, subject to return shipping charges. The product must be in new condition and in its original packaging. We take the responsibility to make sure this product arrives in a brand new working condition. Should your item arrive damaged, we will take full responsibility and replace the product at no cost to you.

For complete details of our return policy and process, please refer to our general return policy page.

Applications
Flooring and Tile Layout
Yes
Installing Drop Ceilings and Lights
Yes
Installing Windows and Partition Walls
Yes
Transferring Points from Floor to Ceiling
Yes
Transferring Points from Wall to Wall
Yes
Battery/Power
Operating Temperature
32 to 104 °F (0 to 104 °C)
Operating Time
Up to 10 hours
Power Source
2 x AA alkaline batteries (included)
Features
Environmental Class
IP50 dustproof
Self-Leveling
±5 degrees
Tripod Thread
1/4 x 20
Functions
Horizontal Leveling
Yes
Setting out Right Angles
Yes
Vertical Aligning
Yes
Vertical and Horizontal Aligning
Yes
General
Dimensions
2.5" L x 3.0" W x 3.6" H
Laser Class
Class II
Laser Type
635nm ±10nm (Red)
Warranty
2-year
Weight
8.8 oz (without batteries)
Measuring Capabilities
Beam Direction
Horizontal/Vertical
Leveling Accuracy
±5/32 inch at 30 feet
Number of Lines (Planes)
3
Self-Leveling Range
±5 degrees
Vertical Accuracy
±5/32 inch at 30 feet
Working Range
Up to 50 feet
