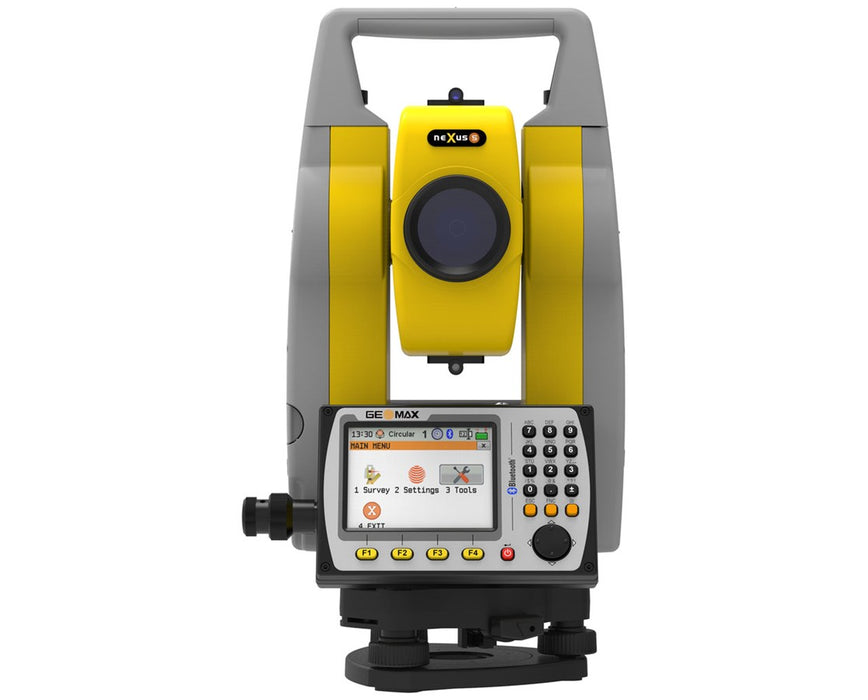

GeoMax Zoom40 Reflectorless Total Station

MFR#: 865959
Original price List Price: USD $8,797.00
You Save: USD $880.00 -10%
Original price USD $8,797.00 - Original price USD $8,797.00
Original price List Price: USD $8,797.00
Current price USD $7,917.00
USD $7,917.00 - USD $7,917.00
Current price USD $7,917.00

Store Pickup: List of available stores available on the Checkout page.

GeoMax Zoom40 Reflectorless Total Station
GeoMax Zoom40 Reflectorless Total Station - USD $7,917.00
USD $7,917.00
*Must Purchase 1 for GeoMax Zoom40 Reflectorless Total Station

The cart will thereforce automatically set Qty to 1 when you order this product

One of our Sales Experts will be in touch!

Free Shipping (USA) Ships Out Within: 2 - 4 Business Days Shipping Date By: 11/20/2024
Software is not included - Sold Separately
Essential Add-Ons:
Universal Contractor's Tripod
Universal Contractor's Tripod
Details
$71.25
Aluminum Rod
Aluminum Rod
Details
$38.95
Fiberglass Rod
Fiberglass Rod
Details
$92.25
  • Angular accuracy  options 2-sec or 5-sec
  • Single-prism range up to 11,482.94 feet
  • Reflectorless range up to 1,640 feet
  • Internal memory up to 2 GB
  • Integrated GeoMax X-PAD, GeoMax FieldGenius, and Carlson SurvCE (sold separately) onboard software
  • Built-in Bluetooth connectivity
  • One-year warranty
  • IP54 dustproof and water spray resistant
  • Battery Life up to 36 hours

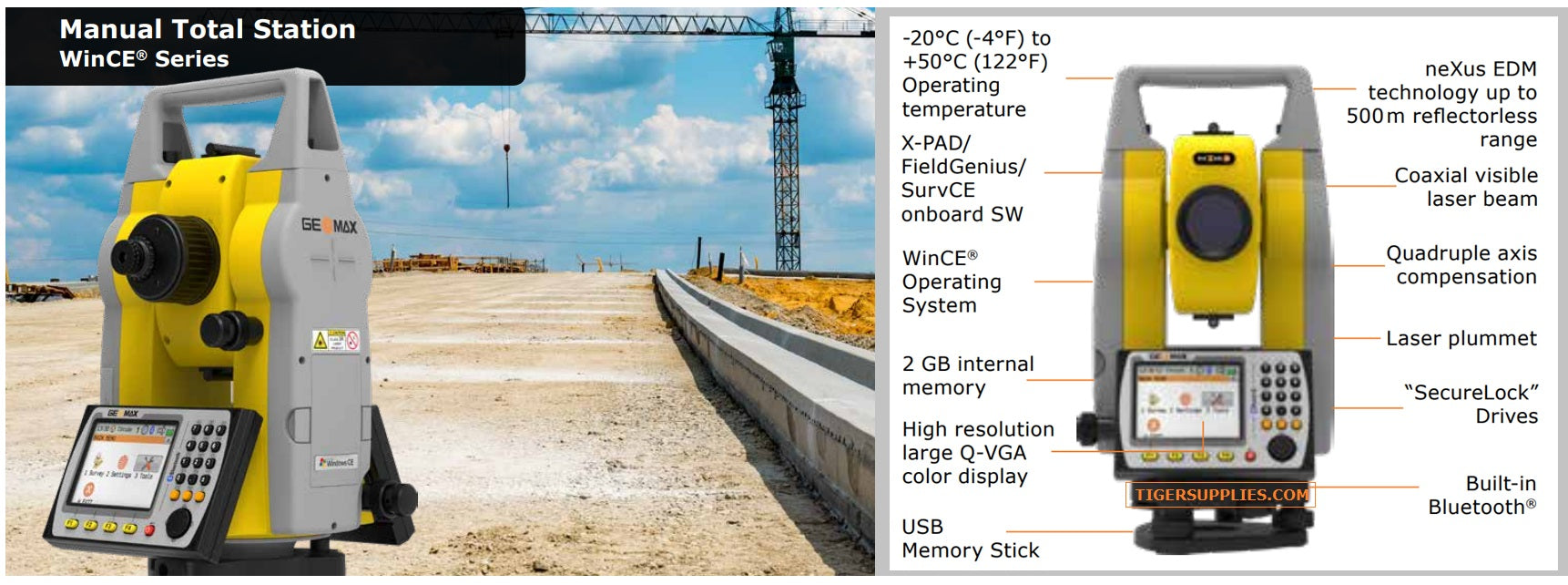

The Geomax Zoom40 Series Reflectorless Total Station is an advanced innovative Surveying piece of equipment, utilizing neXus EDM technology, with a measuring range of up to 1,640 feet without requiring reflection of a prism. Using a single prism, the Zoom 40 has an extended range of up to 11,483 feet. This Total Station features quadruple-axis compensation for reliable angle measurements.

This Geomax Total Station is equipped with a Bluetooth Class 2 for connecting with data collectors, a USB port for easy data transfer, and a high 2GB internal memory. The Zoom40 has a built-in laser plummet and a coaxial visible laser beam. Running Windows CE operating system, it offers onboard software flexibility which makes it compatible with popular surveying software, such as X-PAD, FieldGenius, and Carlson SurvCE (sold separately).

The Zoom 40 boasts a large 3.5-inch high-resolution colored touchscreen display, that comes with a full alphanumeric keypad. With an IP54 rating, this reflectorless Total Station is dustproof and water-resistant. As an additional feature, the Zoom40 uses a Li-ion battery with approximately 36 hours of battery life.

Configuration Options

The Geomax Zoom40 Series Reflectorless Total Station offers two accuracies. Please select your preference from the menu above.

  • 865958: 2-Second
  • 865959: 5-Second

  • Accuracy options: 2-second or 5-second
  • Reflectorless range up to 1,640 feet
  • Range up to 11,483 feet with a single prism
  • Quadruple-axis compensation
  • neXus EDM technology
  • Compatible with onboard software, such as X-PAD, FieldGenius, and Carlson SurvCE
  • Windows CE operating system
  • Class 2 laser plummet
  • Coaxial laser beam
  • Built-in Bluetooth
  • Internal memory of 2GB
  • Large 3.5” high-resolution colored touch screen
  • Full alphanumeric keypad
  • Up to 36-hour battery life
  • IP54 dustproof and water spray resistant

What’s in the Box

  • Geomax Zoom40 Series Reflectorless Total Station
  • Hard carrying case
  • Pouch with tools
  • Protective cover
  • Tribrach
  • Plumb bob
  • USB memory stick
  • Battery and charger
  • Charger adapter
  • Multilingual quick guide
  • User manual
  • 1-year manufacturer's warranty

Available Product Options

  • Accuracy: 2-Second or 5-Second

Tiger Supplies offers a 30-day return policy from date of shipment for this product, subject to a 20% restocking fee, in addition to the return shipping charges. The product must be in new condition and in its original packaging. We take the responsibility to make sure this product arrives in a brand new working condition. Should your item arrive damaged, we will take full responsibility and replace the product at no cost to you.

For complete details of our return policy and process, please refer to our general return policy page.

Angle Measurement
Accuracy
2-second, 5-second
Display Method
0.1” / 0.1 mgon
Measuring Method/Reading System
Absolute, continuous, diametrical
Applications
Accident Reconstruction
Yes
Archaeology
Yes
Environment Studies
Yes
Geomarking
Yes
Mapping and GIS (geographic information systems)
Yes
Surveying and Construction
Yes
Utilities
Yes
Battery/Power
Battery Life
Up to 36 hours (continuous angle); Up to 16 hours (continous distance measurement every 30s)
Power Source
Removable Li-ion
Display and Keypad
Backlight
Yes
Keys
Full alphanumeric
Pixels
320 x 240
Sides
Single
Touchscreen
Yes
Type
Q-VGA color & touch display
Distance Measurement
EDM Accuracy (Precision)
±2mm + 2ppm
Minimum Reading
Up to 1,640 ft. (500 m)
Unit of Measure (distance display)
m/ft
Functions
Angle and Distance Stake Out
Yes
Area Calculation
Yes
Coordinate Measurement Point
Yes
Missing Line
Yes
Offsets
Yes
Real-Time Video Imaging
No
Remote Elevation
Yes
Resection
Yes
Stake Out Line
Yes
General
Dimensions
16” L x 8.27” W x 6.69” H
Internal Memory
2 GB
Protection Class
IP54 dustproof and water spray resistant
Software
GeoMax X-PAD, GeoMax FieldGenius, and Carlson SurvCE (sold separately)
Tribrach
Yes
Warranty
1-year
Weight
14.49 lbs (6.12 kg)
Interface
Bluetooth
Class 2
Operating System
Windows CE
USB
Yes
Laser Plummet
Accuracy
1.5 mm at 1.5 m instrument height
Class
Class 2
Measurement Range (under fair weather conditions)
No Prism
Up to 1,640 ft. (500 m)
Single Prism
Up to 11,482.94 ft. (3,500 m)
Telescope
Field of View
1° 30'
Magnification
30x
Temperature
Operating
-4 to 122 °F (-20 to 50 °C
Tilt Sensor/Compensator
Type
Quadruple-axis compensation
