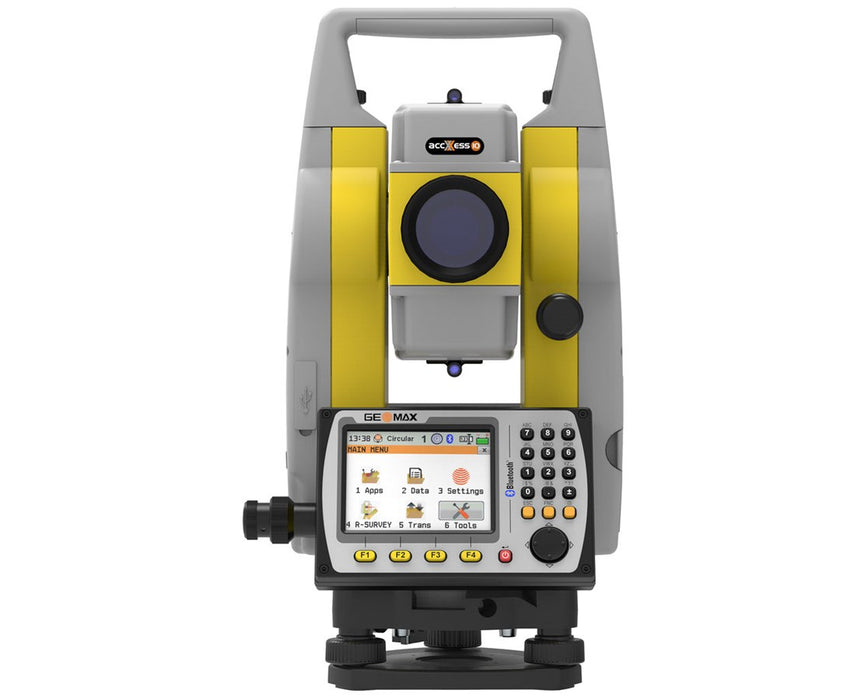

GeoMax Zoom50 Reflectorless Total Station

Geomax
by Geomax
MFR#: 6012499
List Price: USD $10,664.00
You Save: USD $1,114.50 -10%
USD $10,664.00 - USD $10,664.00
List Price: USD $10,664.00
USD $9,549.50
USD $9,549.50 - USD $9,549.50
USD $9,549.50

Store Pickup: List of available stores available on the Checkout page.
GeoMax Zoom50 Reflectorless Total Station
GeoMax Zoom50 Reflectorless Total Station - USD $9,549.50
USD $9,549.50
*Must Purchase 1 for GeoMax Zoom50 Reflectorless Total Station

The cart will thereforce automatically set Qty to 1 when you order this product

One of our Sales Experts will be in touch!

Ghana
Free Shipping (USA) Ships Out Within: 2 - 4 Business Days Shipping Date By: 12/27/2024
Software is not included - Sold Separately
Documents
Product Manual Item Brochure
Essential Add-Ons:
Universal Contractor's Tripod
Universal Contractor's Tripod
Details
$71.25
Aluminum Rod
Aluminum Rod
Details
$38.95
Fiberglass Rod
Fiberglass Rod
Details
$92.25
  • Accuracy up to 5 seconds
  • Reflectorless range up to 3,280 feet
  • Internal memory up to 50,000 points
  • Integrated Geomax Pro Onboard Field Software
  • Built-in Bluetooth connectivity
  • One-year warranty
  • IP55 dustproof and low-pressure water jet resistant
  • Battery Life up to 36 hours

The Geomax Zoom50 Series Reflectorless Total Station features high performance accXess EDM technology and a smart distance measurement engine that is tailored for outstanding range, speed, and precision. With a reflectorless range of up to 3,280 feet, the Zoom 50 has a typical measurement time of one second and is equipped with quadruple-axis compensation. This Geomax Total Station has an outstanding range of up to 11,483 feet using a single prism.

This Geomax Manual Total Station has a built-in laser plummet with adjustable brightness. It also has Bluetooth Class 1 for easy connectivity with data collectors, a RS232 communication port, and a USB port for data sharing and transfer. The Zoom50 has a high capacity internal memory capable of recording data up to 50,000 points. In addition, it boasts an extra-wide 3.5-inch colored touchscreen with a full alphanumeric keyboard.

The Zoom50 Total Station is equipped with Windows Embedded CE OS and Geomax Pro onboard field software that allows Surveyors and Construction professionals to work with versatile and enhanced applications. This Total Station also includes a removable Li-ion internal battery that powers the device up to 36 hours. The Geomax Zoom 50 is dustproof and water-resistant and comes with PowerLock theft protection.

Configuration Options

The Geomax Zoom50 Series Reflectorless Total Station is available in six models with different accuracies and reflectorless range. Please select your preference from the menus above.

  • 6012497: Geomax Zoom50 1-Second Total Station with 1,640-Foot Reflectorless Range
  • 6012500: Geomax Zoom50 1-Second Total Station with 3,280-Foot Reflectorless Range
  • 6012498: Geomax Zoom50 2-Second Total Station with 1,640-Foot Reflectorless Range
  • 6012501: Geomax Zoom50 2-Second Total Station with 3,280-Foot Reflectorless Range
  • 6012499: Geomax Zoom50 5-Second Total Station with 1,640-Foot Reflectorless Range
  • 6012502: Geomax Zoom50 5-Second Total Station with 3,280-Foot Reflectorless Range

  • Choice of reflectorless range & accuracy
  • Reflectorless range up to 3,280 feet
  • Range up to 11,483 feet with a single prism
  • Typical measurement time: 1 second
  • Superior accXess EDM technology
  • Smart distance measurement engine
  • Quadruple-axis compensation
  • Laser plummet with adjustable brightness
  • Bluetooth Class 1 connectivity
  • Windows Embedded CE operating system
  • Geomax Pro Onboard Field Software
  • Internal memory of 50,000 points
  • Extra-wide 3.5” colored touchscreen
  • Full alphanumeric keyboard
  • Removable Li-ion internal battery
  • Up to 36 hours battery life
  • PowerLock theft protection
  • IP55 dustproof and water resistant

What’s in the Box

  • Geomax Zoom50 Series Reflectorless Total Station
  • Hard carrying case
  • Pouch with tools
  • Protective cover
  • ZTR101 standard tribrach without optical plummet
  • Plumb bob
  • USB memory stick
  • ZBA400 Li-ion rechargeable battery
  • ZCH201 charger for ZBA201 and ZBA400 Li-ion battery
  • Multilingual quick guide
  • User manual
  • 1-year manufacturer's warranty

Available Product Options

  • Reflectorless Range: 1,640 Feet or 3,280 Feet
  • Accuracy: 1-Second, 2-Second, or 5-Second

Tiger Supplies offers a 30-day return policy from date of shipment for this product, subject to a 20% restocking fee, in addition to the return shipping charges. The product must be in new condition and in its original packaging. We take the responsibility to make sure this product arrives in a brand new working condition. Should your item arrive damaged, we will take full responsibility and replace the product at no cost to you.

For complete details of our return policy and process, please refer to our general return policy page.

Angle Measurement
Accuracy
1 second, 2 second, 5 second
Display Method
0.1” / 0.1 mgon
Measuring Method/Reading System
Absolute, continuous, diametrical
Applications
Accident Reconstruction
Yes
Archaeology
Yes
Environment Studies
Yes
Geomarking
Yes
Mapping and GIS (geographic information systems)
Yes
Surveying and Construction
Yes
Utilities
Yes
Battery/Power
Battery Life
Up to 36 hours (continuous angle); Up to 16 hours (continous distance measurement every 30s)
Power Source
Removable Li-ion
Display and Keypad
Backlight
Yes
Keys
Full alphanumeric
Pixels
320 x 240
Sides
Single
Touchscreen
Yes
Type
Q-VGA color & touch display
Distance Measurement
EDM Accuracy (Precision)
±2mm + 2ppm
Minimum Reading
Up to 1,640 ft. (500 m); 3,280 ft. (1,000 m)
Unit of Measure (distance display)
m/ft
Functions
Angle and Distance Stake Out
Yes
Area Calculation
Yes
Coordinate Measurement Point
Yes
Missing Line
Yes
Offsets
Yes
Real-Time Video Imaging
No
Remote Elevation
Yes
Resection
Yes
Stake Out Line
Yes
General
Dimensions
12.4" L x 6.82" W x 8.9" H
Internal Memory
50,000 points
Protection Class
IP55 dustproof and low-pressure water jet resistant
Software
Geomax Pro Onboard Field Software
Tribrach
Yes
Warranty
1-year
Weight
11.2 lbs (5.1 kg)
Interface
Bluetooth
Class 1
Operating System
Windows Embedded CE
Pin Port
RS-232
USB
Yes
Laser Plummet
Accuracy
1.5 mm at 1.5 m instrument height
Class
Class 2
Measurement Range (under fair weather conditions)
No Prism
Up to 1,640 ft. (500 m) or 3,280 ft. (1,000 m)
Single Prism
Up to 11,482.94 ft. (3,500 m)
Measurement Time
Fine
1 sec
Rapid
1 sec
Tracking
1 sec
Temperature
Operating
-22 to 122 °F (-30 to 50 °C)
Tilt Sensor/Compensator
Type
Quadruple-axis compensation
