GeoMax Zone20 Self-Leveling Rotary Laser

MFR#: 6013520
TIGER#: TS34602
Original price List Price: $979.00
You Save: $97.90 -10%
Original price $979.00 - Original price $979.00
Original price List Price: $979.00
Current price $881.10
$881.10 - $881.10
Current price $881.10

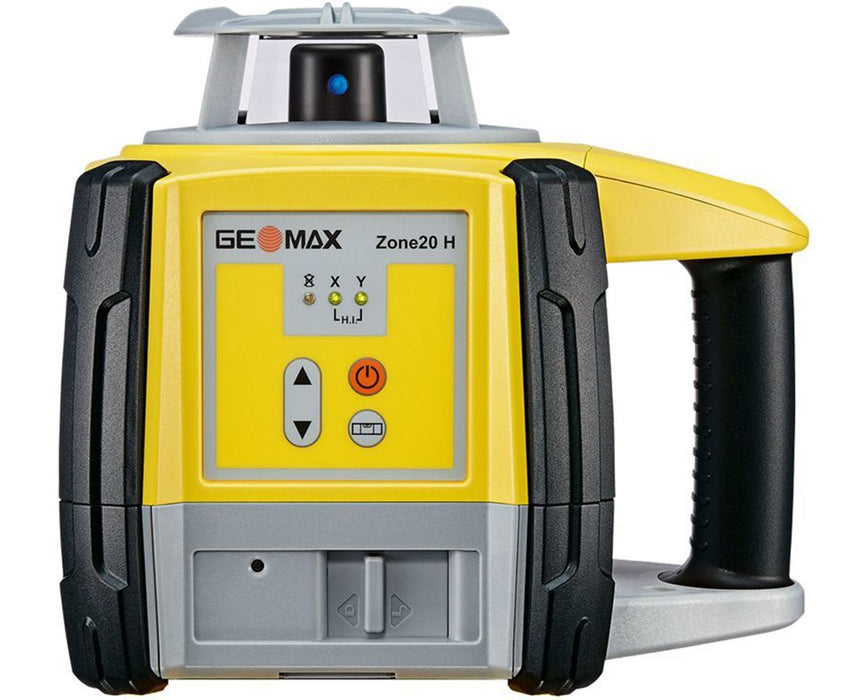

GeoMax Zone20 Self-Leveling Rotary Laser
GeoMax Zone20 Self-Leveling Rotary Laser - $881.10
$881.10
*Must Purchase 1 for GeoMax Zone20 Self-Leveling Rotary Laser

The cart will thereforce automatically set Qty to 1 when you order this product

Free Shipping (USA) Ships Out Within: 2 - 4 Business Days Shipping Date By: 6/4/2024

One of our Sales Experts will be in touch!

Essential Add-Ons:
Fiberglass Rod
Fiberglass Rod
Details
$76.95
Universal Contractor’s Tripod
Universal Contractor’s Tripod
Details
$75.99
$79.99
  • Range up to 3,000 feet with laser receiver
  • Self-leveling within ±6 degrees
  • Accuracy ±3/32 inch at 100 feet
  • Audio indicator
  • Tilt alert control
  • Dustproof and water resistant to IP67
  • Battery life up to 40 hours
  • Thread 5/8-11

The Geomax Zone20 Series Self-Leveling Rotary Laser is a versatile rotary laser for all surveying and engineering applications. This construction tool has a range of up to 3,000 feet with an accuracy of ±3/32-inch at 100 feet. It can perform horizontal self-leveling within ±6 degrees and manual slope in two axes. It also offers three receiver options to increase functionality and enhance accuracy.

Ideal for various concrete and formwork, the Zone20 series also offers optional vertical leveling perfect for working on any aligning, leveling and squaring applications. It has a rotation speed of up to 600 rpm, tilt alert control feature and audio indicators. With an optional ZRC20 remote control that offers long range alignment control for fast one person setups, this laser provides all functions needed for regular and flexible use.

With an IP67 rating, the Geomax Zone20 construction laser is dustproof and resistant against water splashes. In addition, this laser level is built with a non-slip rubber handle, fully protected head, and a 5/8-11 tripod thread for quick and easy setups. Using the Li-ion battery pack, this rotary laser lasts up to 40 hours and comes with a 3-year warranty.

Configuration Options

The Geomax Zone20 Series Self-Leveling Rotary Laser comes in two models and optional accessories for easy and exceptional work result. Select your preference from the drop-down menu above.

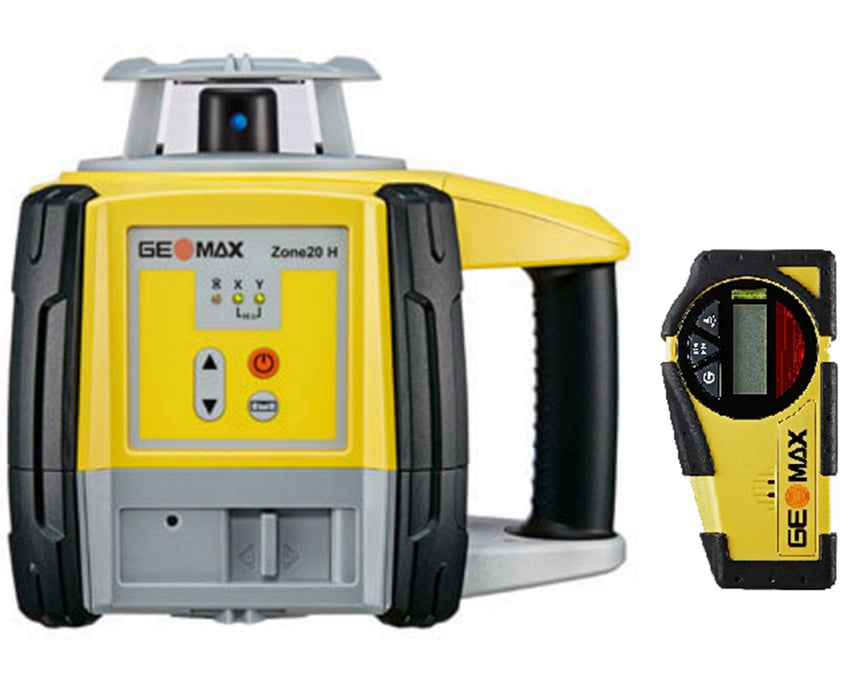

  • 6010635: Geomax Zone20H Horizontal with ZRB35 Basic Receiver

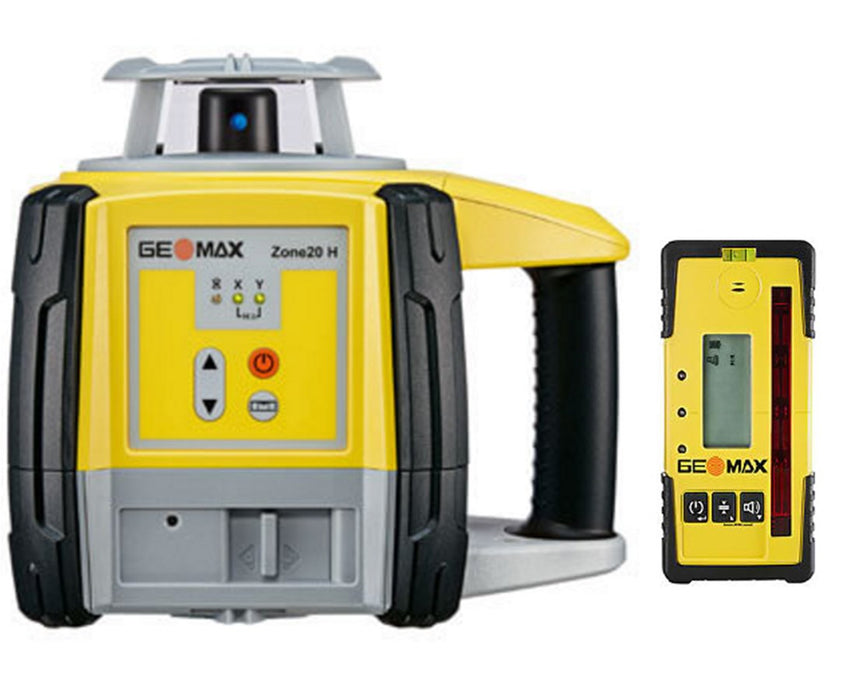

  • 6010636: Geomax Zone20H Horizontal with ZRP105 Pro Receiver

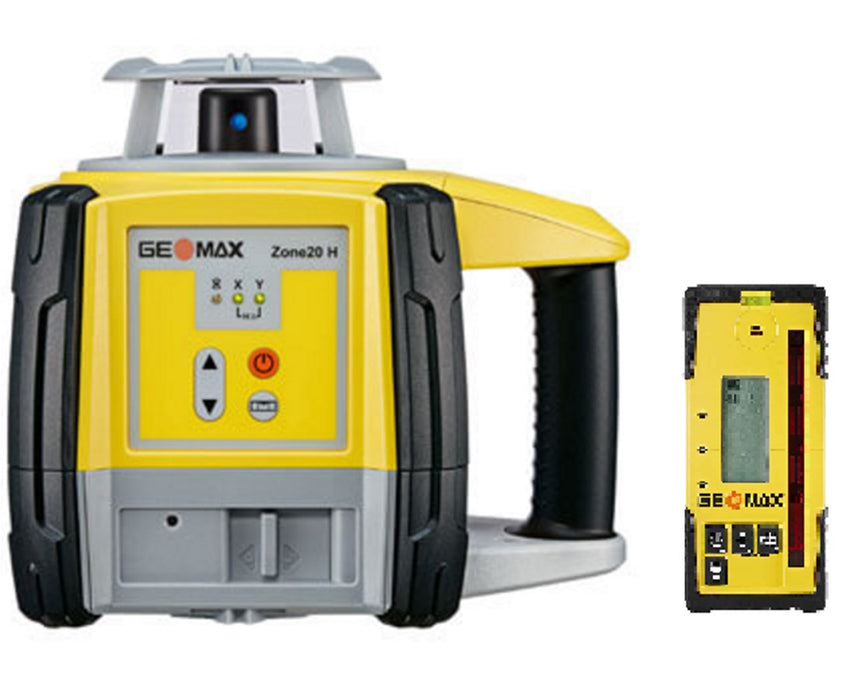

  • 6010637: Geomax Zone20H Horizontal with ZRD105 Digital Receiver
  • 6013522: Geomax Zone20HV Horizontal/Vertical with ZRB35 Basic Receiver and ZRC20 Remote Control

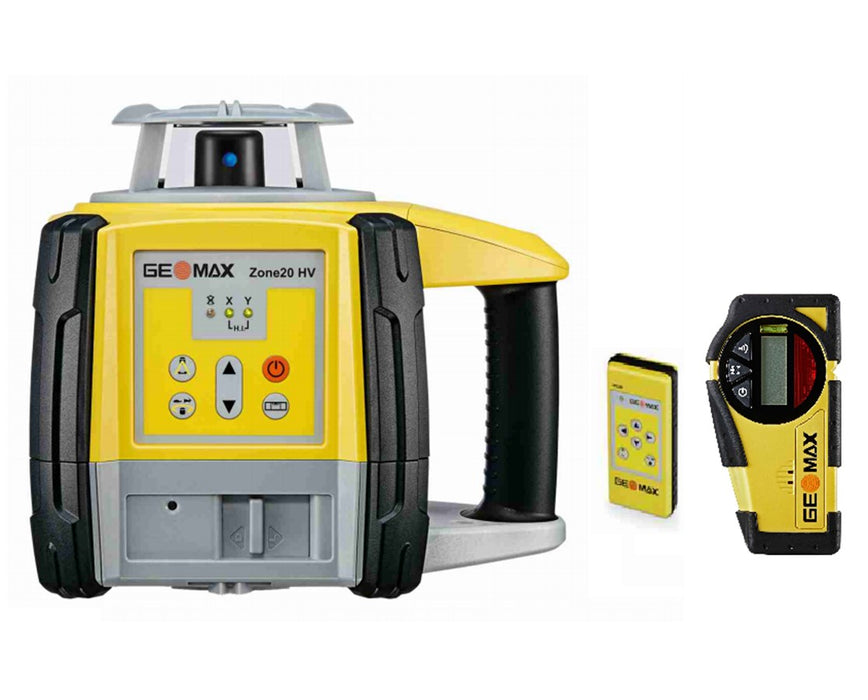

  • 6010642: Geomax Zone20HV Horizontal/Vertical with ZRP105 Pro Receiver and ZRC20 Remote Control

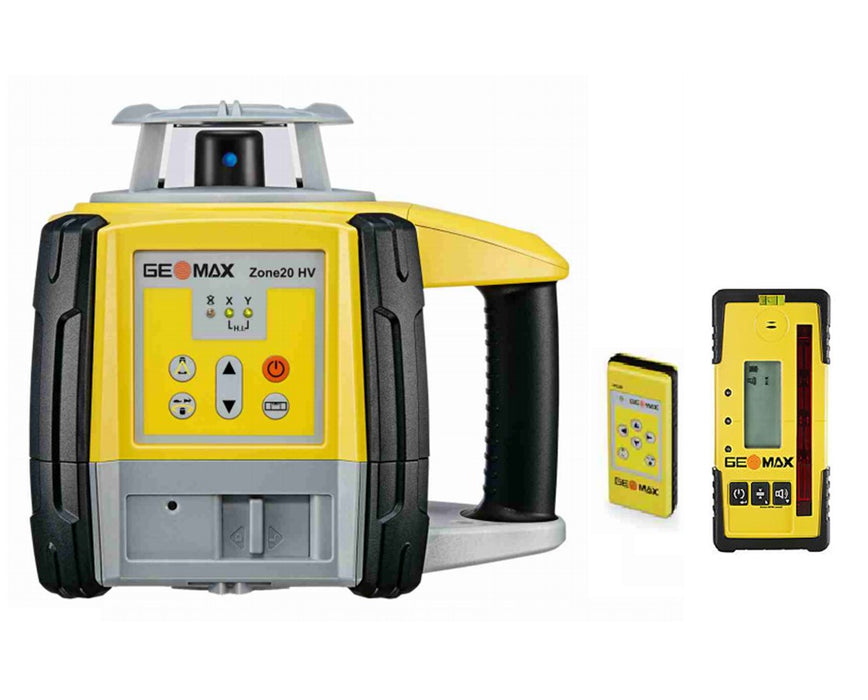

  • 6010643: Geomax Zone20HV Horizontal/Vertical with ZRD105 Digital Receiver and ZRC20 Remote Control


Model

Zone20H

Zone20HV


Range


up to 3,000 ft.


up to 3,000 ft.


Beam Direction


Horizontal


Horizontal & Vertical


Rotation Speed


600 rpm


120, 300, 600 rpm


Remote Control


N/A


Yes


Laser Receiver


ZRB35 Basic


ZRP105 Pro


ZRD105 Digital


Working Diameter


up to 3,000 ft.


up to 3,000 ft.


up to 3,000 ft.


Detection Window


1.5"


4"


4"


Numeric Readout
Height


N/A


N/A


3.5"


Detection Accuracies


Ultra Fine


N/A


N/A


±0.5 mm


Super Fine


±1.0 mm


±1.0 mm


±1.0 mm


Fine


N/A


±2.0 mm


±2.0 mm


Medium


±3.0 mm


±3.0 mm


±3.0 mm


Coarse


N/A


N/A


±5.0 mm

  • Choice of 6 packages
  • Range up to 3,000 feet with laser receiver
  • Horizontal self-leveling within ±6 degrees
  • ±3/32-inch accuracy at 100 feet
  • Optional ZRC20 Remote Control
  • Tilt Alert Control
  • Audio indicator
  • Non-slip rubber handle
  • Up to 40-hour battery life
  • IP67 dust and water-resistant
  • 5/8-11 tripod thread
  • Comes with alkaline battery tray
  • 3-year manufacturer's warranty

What’s in the Box

  • Geomax Zone20 Series Self-Leveling Rotary Laser
  • Alkaline battery tray
  • 3-year manufacturer's warranty

Available Package Options

  • Beam Direction: Horizontal or Horizontal/Vertical
  • Laser Receiver: ZRB35 Basic, ZRP105 Pro or ZRD105 Digital
  • ZRC20 Remote Control: Optional

Tiger Supplies offers a 30-day return policy from date of shipment for this product, subject to a 20% restocking fee, in addition to the return shipping charges. The product must be in new condition and in its original packaging. We take the responsibility to make sure this product arrives in a brand new working condition. Should your item arrive damaged, we will take full responsibility and replace the product at no cost to you.

For complete details of our return policy and process, please refer to our general return policy page.

Accuracy
Horizontal
±3/32 inch at 100 feet
Applications
Concrete Forms, Footings and Foundations
Yes
Installation of Interior Fittings (cabinets, lighting, windows, countertops, etc.)
Yes
Installation/Leveling Interior Walls
Yes
Short-Range Leveling for Decks, Patios & Swimming Pools
Yes
Short-Run Vertical Alignment
Yes
Battery/Power
Battery Life with Alkaline Batteries
Up to 40 hours
Battery Life with Rechargeable Battery Pack
Up to 40 hours
Power Source
Alkaline or Li-Ion batteries
Charger
Charging Time
Up to 5 hours
Input
100 V AC - 240 V AC
Output
12 V DC
Extra Technology
Detector/Receiver
ZRB35 Basic, ZRP105 Pro or ZRD105 Digital Receiver
Remote Control
ZRC20 Remote Control
Features
Adjustable Rotating Speed
120, 300, or 600 RPM
Detecting Indicator
Yes
Protection Class
IP67 dustproof and water submersible
Tripod Adapter (Center Screw Thread)
5/8 x 11
Functions
Automatic Leveling
Yes
General
Warranty
3-year
Weight
8.0 lbs (3.6 kg)
Laser
Classification
Class 1
Color
Red
Direction
Horizontal and vertical
Visibility
Visible
Wavelength
635 nm
Range
Exterior
Up to 3,000 feet (900 meters)
Self Leveling
±6 degrees
Temperature
Operating
14 to 122 °F (-10 to 50 °C)
Storage
-22 to 158 °F (-30 to 70 °C)
