Self-Leveling 360 Degree Line Laser with 4 Horizontal Dots

MFR#: 40-6637
Original price List Price: USD $706.52
You Save: USD $201.35 -28%
Original price USD $706.52 - Original price USD $706.52
Original price List Price: USD $706.52
Current price USD $505.17
USD $505.17 - USD $505.17
Current price USD $505.17

Store Pickup: List of available stores available on the Checkout page.

Self-Leveling 360 Degree Line Laser with 4 Horizontal Dots
Self-Leveling 360 Degree Line Laser with 4 Horizontal Dots - USD $505.17
USD $505.17
*Must Purchase 1 for Self-Leveling 360 Degree Line Laser with 4 Horizontal Dots

The cart will thereforce automatically set Qty to 1 when you order this product

One of our Sales Experts will be in touch!

Free Shipping (USA) Ships Out Within: 7 - 10 Business Days Shipping Date By: 11/23/2024

The Johnson Self-Leveling 360 Degree Line Laser has been improved with four horizontal dots at 90 degrees. Projecting an unbroken horizontal beam at a 360-degree radius with four laser points it provides full coverage of the area for installing partitions, aligning doors and windows, cabinet and countertop alignment and many more.  It features a manual mode that allows the laser to tilt to extreme angles and a locking mechanism to protect the inner pendulum during transport. It is self-leveling within a range of ±1/8 inches at 50 feet and comes with visible and audible alarms when beyond leveling range.

The laser beam can be set to pulse for use with optional line detector. It is accurate within ±1/8 inches at 50 feet. It comes with an interior range of up to 200 feet that can be extended up to 300 feet for outdoor use with the optional detector. Dust proof and water proof this Johnson Self Leveling 360 Degree Line Laser has IP protection class of 54. It includes four "AA" alkaline batteries, wall mount bracket, mounting strap, instruction manual with warranty card and a soft-sided carrying case. The optional detector comes with 9V battery and clamp.

Configuration Options

TheJohnson Self-Leveling 360 Degree Line Laser with four Horizontal Dots is available in different packages. Select your preference from the drop-down menu above.

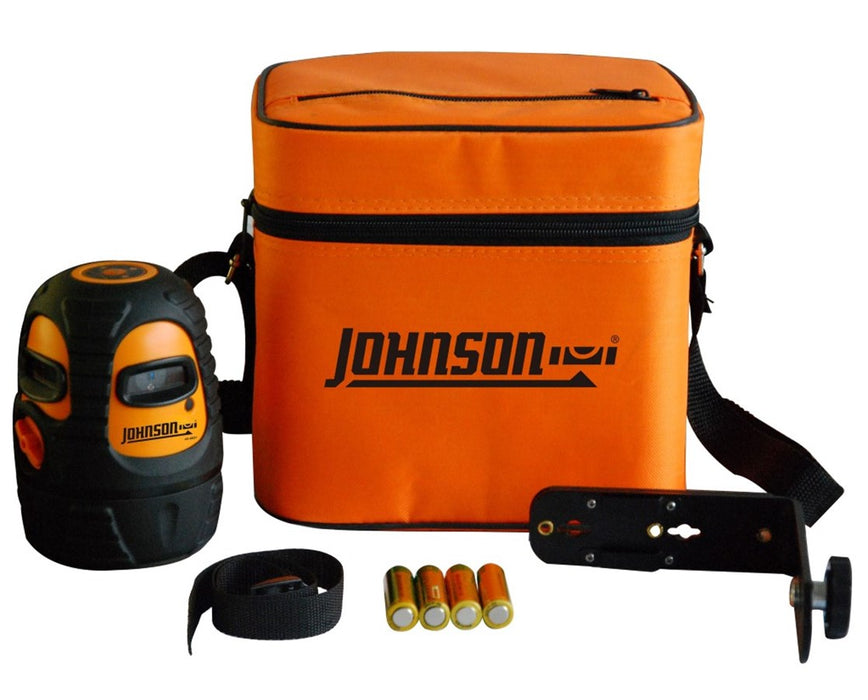

  •  40-6637: Basic Package

This package includes four "AA" alkaline batteries, wall mount bracket, mounting strap, soft-sided carrying case, user manual, and 3-year with warranty card.

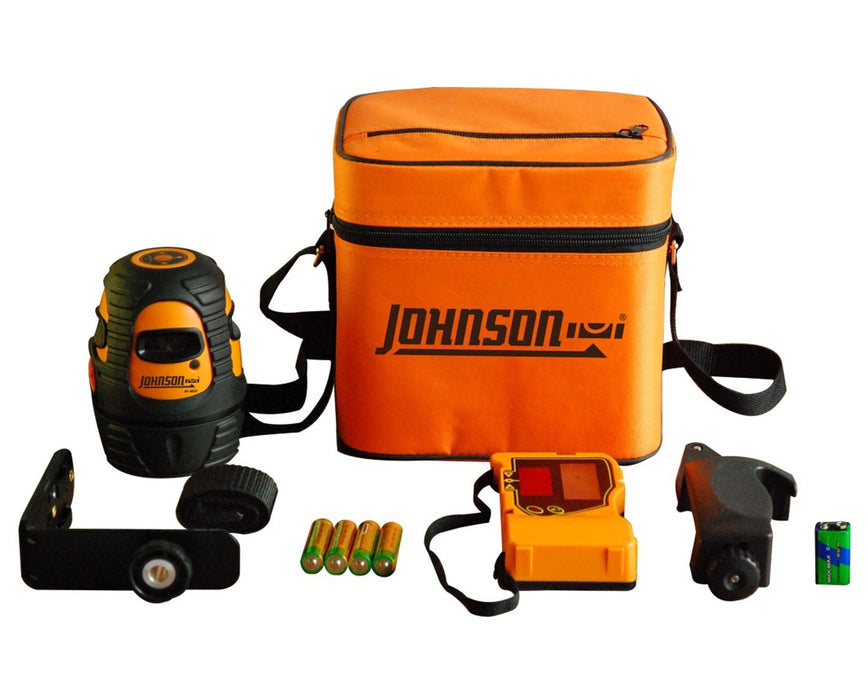

  • 40-6639: Detector with 9V Battery and Clamp

This package includes four "AA" alkaline batteries, wall mount bracket, mounting strap, soft-sided carrying case, a detector with 9V battery and clamp,  user manual, and 3-year with warranty card.

  • Choice of 2 packages
  • 4 horizontal dots at 90 degrees
  • Exterior range up to 300 ft. with detector
  • Up to 200 ft. interior range
  • ±1/8-inch accuracy at 50 feet
  • Self-leveling within ±5 degrees
  • 360-degree continuous horizontal line
  • Audible and visual alerts when out of self-leveling range
  • Manual mode allows tilt to extreme angles
  • Up to 10-hour battery life
  • IP54 dust and water-resistant
  • 5/8-11 tripod thread

Tiger Supplies offers a 30-day return policy from date of shipment for this product, subject to return shipping charges. The product must be in new condition and in its original packaging. We take the responsibility to make sure this product arrives in a brand new working condition. Should your item arrive damaged, we will take full responsibility and replace the product at no cost to you.

For complete details of our return policy and process, please refer to our general return policy page.

Applications
Ceiling Joist and Rafter Alignment
yes
Diagonals and Footings for Patios
yes
Flooring and Tile Layout
yes
Installing Drop Ceilings and Lights
yes
Installing Plumbing Pipes and Conduit
yes
Installing Windows and Partition Walls
yes
Leveling and Excavation
yes
Transferring Points from Wall to Wall
yes
Battery/Power
Battery Level Indicator
yes
Operating Temperature
14°F to 113°F (-10°C to +45°C)
Operating Time
10 hours
Power Source
AA alkaline batteries
Features
Environmental Class
IP54 (protected against dust and splashing water)
Self-Leveling
Yes, lockable pendulum
Tripod Thread
5/8-11
Functions
Aligning at an Angle
yes
Horizontal Leveling
yes
Setting out Right Angles
yes
General
Dimensions
3.74 x 5.11 in (9.5 x 13.0 cm)
Laser Class
3A
Laser Type
635nm+10nm
Warranty
3-year
Weight
1.86 lbs (0.7 Kg)
Measuring Capabilities
Beam Direction
Horizontal
Leveling Accuracy
± 1/8 inch at 50 ft. (1 mm at 10 m)
Number of Lines (Planes)
1
Number of Points
4
Range with Receiver
Up to 300 ft. (90m)
Self-Leveling Range
±5 degrees
Working Range
Up to 200 ft. (60 m)
