Self-Leveling 360 Degree Line Laser

MFR#: 40-6636
TIGER#: TS23920
Original price List Price: USD $641.16
You Save: USD $182.73 -28%
Original price USD $641.16 - Original price USD $641.16
Original price List Price: USD $641.16
Current price USD $458.43
USD $458.43 - USD $458.43
Current price USD $458.43
Self-Leveling 360 Degree Line Laser
Self-Leveling 360 Degree Line Laser - USD $458.43
USD $458.43
*Must Purchase 1 for Self-Leveling 360 Degree Line Laser

The cart will thereforce automatically set Qty to 1 when you order this product

Free Shipping (USA) Ships Out Within: 7 - 10 Business Days Shipping Date By: 7/31/2024

One of our Sales Experts will be in touch!

  • Exterior range up to 300 feet with detector
  • Interior up to 200 feet
  • ±1/8-inch accuracy at 50 feet
  • Self-leveling within ±5 degrees
  • 360-degree continuous horizontal line
  • IP54 dust and water-resistant
  • 5/8-11 tripod thread

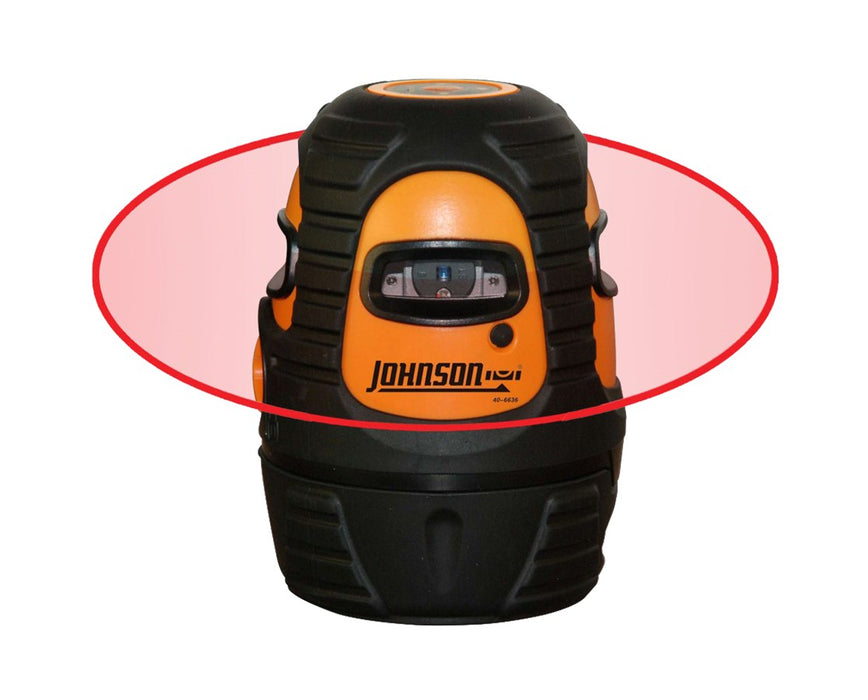

The Johnson Self-Leveling 360 Degree Line Laser projects a 360-degree continuous horizontal laser line that provides precise horizontal alignment. It is self-leveling within ±5 degrees and sounds an alarm and flashes when beyond leveling range. The manual mode allows the laser to tilt to extreme angles. It has a locking mechanism to protect the inner pendulum during transport. The laser beam can be set to pulse for use with optional line detector.

This line laser is accurate within a ±1/8 inch at 50 feet. It has an interior range of up to 200 feet and maximum range of up to 300 feet outdoors, using the optional line detector. This Johnson Self-Leveling 360 Degree Line Laser is dust proof and waterproof, with an IP protection class of 54. The laser comes with four "AA" alkaline batteries, wall mount bracket, mounting strap, instruction manual with warranty card and a soft-sided carrying case. It also comes with a 3-year warranty. The optional line detector has a front and back LED displays and comes with 9V battery and clamp.

Configuration Options

The Johnson Self-Leveling 360 Degree Line Laser is available in different packages. Select your preference from the drop-down menu above.

  •  40-6636: Basic Package

This package includes four "AA" alkaline batteries, wall mount bracket, mounting strap, soft-sided carrying case, user manual, and 3-year with warranty card.

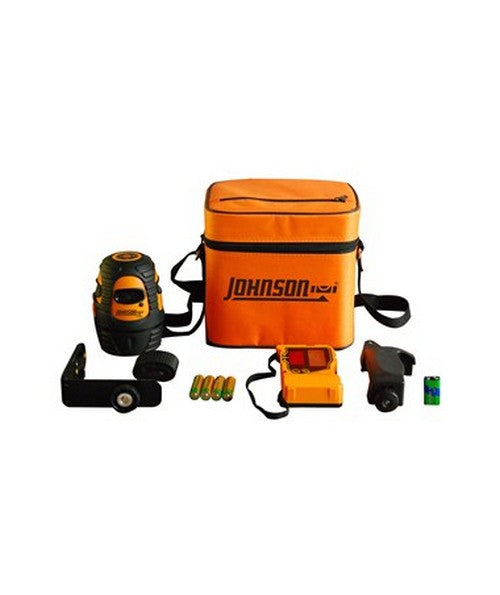

  • 40-6638: Detector with 9V Battery and Clamp

This package includes four "AA" alkaline batteries, wall mount bracket, mounting strap, soft-sided carrying case, a detector with 9V battery and clamp,  user manual, and 3-year with warranty card.

  • Choice of 2 packages
  • Exterior range up to 300 ft. with detector
  • Up to 200 ft. interior range
  • ±1/8-inch accuracy at 50 feet
  • Self-leveling within ±5 degrees
  • 360-degree continuous horizontal line
  • Audible and visual alerts when out of self-leveling range
  • Manual mode allows tilt to extreme angles
  • Up to 40-hour battery life
  • IP54 dust and water-resistant
  • 5/8-11 tripod thread

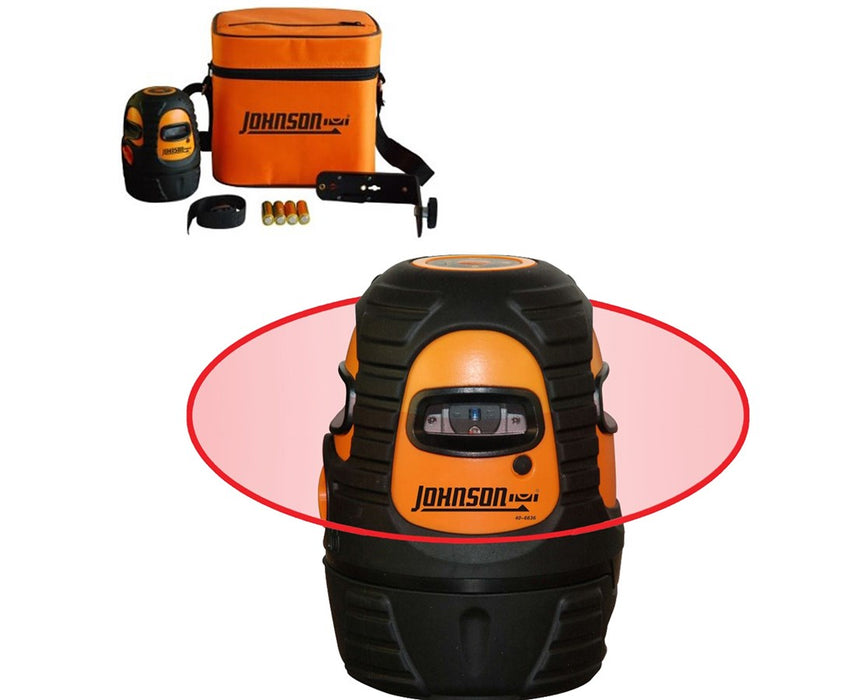

What’s in the Box

  • Johnson Self-Leveling 360 Degree Line Laser
  • 2 "AA" alkaline batteries
  • Wall mount bracket
  • Mounting strap
  • Soft-sided carrying case
  • User manual
  • 3-year with warranty card

Available Package Options

Package: Basic Package or with Line Detector Kit

Tiger Supplies offers a 30-day return policy from date of shipment for this product, subject to return shipping charges. The product must be in new condition and in its original packaging. We take the responsibility to make sure this product arrives in a brand new working condition. Should your item arrive damaged, we will take full responsibility and replace the product at no cost to you.

For complete details of our return policy and process, please refer to our general return policy page.

Applications
Ceiling Joist and Rafter Alignment
Yes
Diagonals and Footings for Patios
Yes
Flooring and Tile Layout
Yes
Installing Drop Ceilings and Lights
Yes
Installing Plumbing Pipes and Conduit
Yes
Installing Windows and Partition Walls
Yes
Leveling and Excavation
Yes
Stud Plumbing and Alignment
Yes
Transferring Points from Wall to Wall
Yes
Battery/Power
Battery Level Indicator
Yes
Operating Temperature
14 to 113 °F (-10 to 45 °C)
Operating Time
Up to 10 hours of continuous use
Power Source
4 x AA alkaline batteries / and 9V with kit
Features
Environmental Class
IP54 dustproof and water spray resistant
Power Save Mode
Auto shut-off after 6 minutes
Self-Leveling
Yes, lockable pendulum
Tripod Thread
5/8 x 11
Functions
Aligning at an Angle
Yes
Horizontal Leveling
Yes
General
Dimensions
5.9" L x 2.99" W x 1.142" H
Laser Class
Class 3A
Laser Type
635nm ±10nm (Red)
Warranty
3-year
Weight
0.39 lbs (0.18 kg)
Measuring Capabilities
Beam Direction
Horizontal
Horizontal Accuracy
±1/8 inch at 50 feet
Leveling Accuracy
eett. (+/-1mm/10m)
Number of Lines (Planes)
1
Range with Receiver
Up to 300 feet
Self-Leveling Range
±5 degrees
Working Range
Up to 200 feet
