Rugby 680 Dual Grade Laser Level

Leica
by Leica
MFR#: 6011159
List Price: USD $2,770.50
You Save: USD $750.50 -27%
USD $2,770.50 - USD $2,770.50
List Price: USD $2,770.50
USD $2,020.00
USD $2,308.50 - USD $2,308.50
USD $2,020.00

Store Pickup: List of available stores available on the Checkout page.
Rugby 680 Dual Grade Laser Level
Rugby 680 Dual Grade Laser Level - USD $2,020.00
USD $2,020.00
*Must Purchase 1 for Rugby 680 Dual Grade Laser Level

The cart will thereforce automatically set Qty to 1 when you order this product

One of our Sales Experts will be in touch!
IN STOCK Free Shipping (USA) Ships Out Within: 24 - 48 Hours Shipping Date By: 11/23/2024

Manufacturer will supplement this order with the AndroTec Digital Laser Receiver MTR-90R  Of similar capabilities and same warranty. Alternate Leica Receivers are on Backorder

Documents
Product Manual Item Brochure Product Video
Essential Add-Ons:
Aluminum Rod
Aluminum Rod
Details
$38.95
Universal Contractor's Tripod
Universal Contractor's Tripod
Details
$71.25
Fiberglass Rod
Fiberglass Rod
Details
$92.25
CR700 Combined Machine Control Receiver
CR700 Combined Machine Control Receiver
Details
$548.00
$685.00
  • Range up to 2,600 feet with a receiver
  • Accuracy 1/16-inch at 100 feet
  • Self-leveling within ±5 degrees
  • Dual-axis slope ±8 degrees
  • Smart Slope disturbance alert
  • Battery life up to 60 hours
  • IP67 dustproof and water immersible
  • Thread 5/8-11

The Leica Rugby 680 Dual Grade Laser Level is a durable self-leveling laser with semi-automatic grade capability in both axes. Construction professionals can dial-in grade up to ±8 percent. This laser level has an accuracy of 1/16 inches at 100 feet and up to 2,600 feet range when used with a laser receiver.

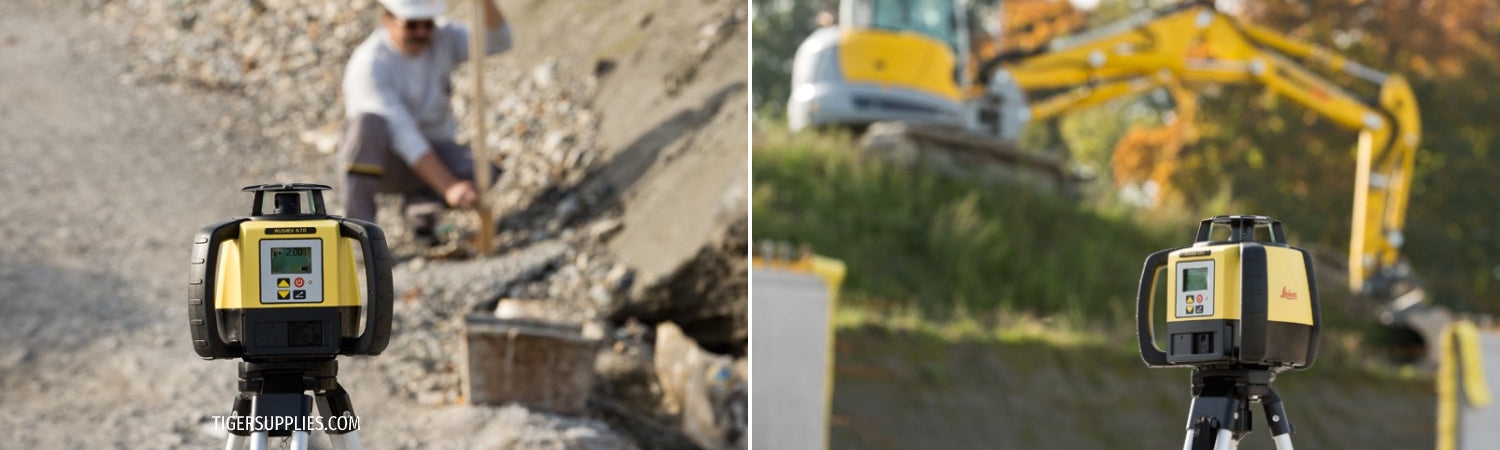

Self-leveling within ±5 degrees, the Leica Rugby 680 is great for indoor and outdoor construction projects such as concrete, formwork, driveways, and any project involving horizontal leveling or dual slope. The laser level allows you to dial in your slope but requires manual adjustment should surveyors need to change the percentage of the grade. The Rugby 680 laser level comes with Leica's Smart Scope technology that continuously monitors and alerts you when there are disturbances to the grade laser, whether bumps or temperature changes.

With an IP67 rating, easy to grip overmold protection handles, one-touch operation, and clear LED indicators, this fully automatic self-leveling laser is user-friendly. With the optional alkaline battery pack, the Rugby 680 can last up to 60 hours. It can also be charged with Leica's advanced solar charger. This dial-in grade dual-slope laser comes with a 5/8-11 tripod thread, 5-year warranty, and a hard shell stackable carrying case.

Configuration Options

The Leica Rugby 680 Grade Laser Level is available in different packages to suit your needs. Please select your preference from the menu above.

  • 790381: Leica Rugby 680 Dual Grade Laser Level Only
  • 6011160: Leica Rugby 680 Dual Grade Laser Level with Rod-Eye 120 and Alkaline Battery Pack
  • 6011159: Leica Rugby 680 Dual Grade Laser Level with Rod-Eye 120 and Li-Ion Battery Pack and Charger
  • 6006007: Leica Rugby 680 Dual Grade Laser Level with Rod-Eye 140 and Alkaline Battery Pack
  • 6006010: Leica Rugby 680 Dual Grade Laser Level with Rod-Eye 160 and Li-ion Battery Pack


Laser Receiver

Rod Eye 120

Rod Eye 140

Rod Eye 160


Working Diameter


up to 2,900 ft


up to 4,400 ft


up to 4,430 feet


Detection Window


2.75" (70 mm)


4.5" (120 mm)


5" (127mm)


Detection Accuracies

Super Fine


N/A


N/A


±0.5 mm


Fine


±1.0 mm


±1.0 mm


±1.0 mm


Medium


±2.0 mm


±2.0 mm


±2.0 mm


Coarse


±3.0 mm


±3.0 mm


±3.0 mm
Very Coarse


N/A


N/A


±5.0 mm
  • Choice of receiver and battery
  • Up to 2,600 feet range with laser receiver
  • 1/16-inch accuracy at 100 feet
  • Self-leveling within ±5 degrees
  • Dual-axis dial-in slope ±8 degrees with manual adjustment
  • Smart Slope to prevent laser disturbances
  • LCD display
  • LED indicators
  • Overmolded handles
  • IP67 dust and water resistant
  • Up to 60-hour battery life
  • 5/8-11 tripod thread
  • 5-year warranty

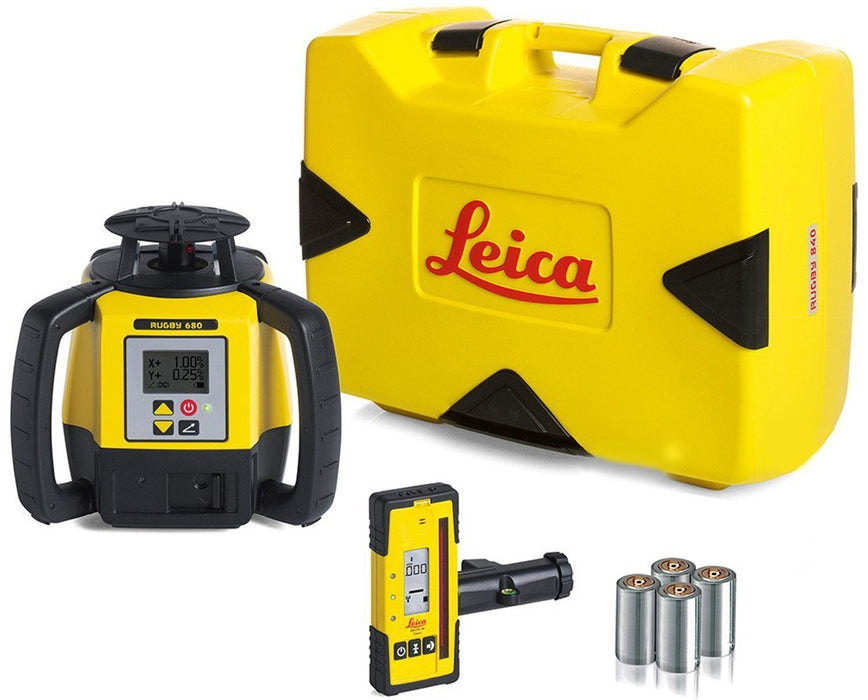

What’s in the Box

  • Leica Rugby 680 Dual Grade Laser
  • Receiver mounting bracket
  • Hard carrying case
  • User manual
  • 5-year warranty

Available Package Options

3-year manufacturer’s warranty.

Leica Geosystems products are special order only.

We do not accept returns or cancellations for special ordered items.

Accuracy
Horizontal
±1/16 inch at 100 feet
Applications
Concrete Forms, Footings and Foundations
Yes
Checking Building Square & Area
Yes
Checking Elevations of Sub-Base and Sub-Grade
Yes
Checking/Setting Elevations
Yes
Estimating Cut & Fill
Yes
Installation of Interior Fittings (cabinets, lighting, windows, countertops, etc.)
Yes
Installation/Leveling Interior Walls
Yes
Locating Finished Floor Levels
Yes
Machine Control of Excavators, Graders, Dozers or Similar Equipment
Yes
Matching Existing Slope & Grade
Yes
Short-Range Leveling for Decks, Patios & Swimming Pools
Yes
Squaring and Layout of Partitions, Walls & Tile Floors
Yes
Battery/Power
Battery Life with Alkaline Batteries
Up to 60 hours
Power Source
Alkaline
Extra Technology
Smart Slope®
Yes
Features
Automatic Shut-Off
Yes
Bump Sensor (H.I./Out of Position Alert)
Yes
Display
LCD
Drop Damage Protection
Yes
Dual Handles
Yes
One-Touch Commands
Yes
Protection Class
IP67 dustproof and water submersible
Tripod Adapter (Center Screw Thread)
5/8 x 11
Functions
Automatic Leveling
Yes
Grade Operation
Semi-automatic
Slope Match
Yes
General
Dimensions
8.38" L × 9.38" W × 7.56" H
Warranty
5-years (with registration)
Weight
5.6 lbs (2.56 kg)
Grade
Percentage
±8%
Type
Dial-in, dual slope
Laser
Classification
Class 2
Color
Red
Direction
Horizontal only
Visibility
Visible
Wavelength
635 nm
Range
Exterior
Up to 2,600 feet/800 meters (dependent on receiver)
Interior
Up to 2,600 feet/800 meters (dependent on receiver)
Self Leveling
±5 degrees (horizontal)
