Mini Prism Stakeout Kit

by Seco
MFR#: 6405-11-FLY
TIGER#: TS11490
Original price List Price: $346.88
You Save: $76.31 -22%
Original price $346.88 - Original price $346.88
Original price List Price: $346.88
Current price $270.57
$270.57 - $270.57
Current price $270.57
Mini Prism Stakeout Kit
Mini Prism Stakeout Kit - $270.57
$270.57
*Must Purchase 1 for Mini Prism Stakeout Kit

The cart will thereforce automatically set Qty to 1 when you order this product

Ships Out Within: 5 - 7 Business Days Shipping Date By: 6/7/2024

One of our Sales Experts will be in touch!

Documents
  • Choice of 2 colors
  • Diameter: 25 mm
  • Offset: 0/-30 mm
  • Copper-coated
  • Site cones on all sides
  • 40-minute level vial
  • Dual 5/8 x 11-in. threads
  • Includes carrying bag

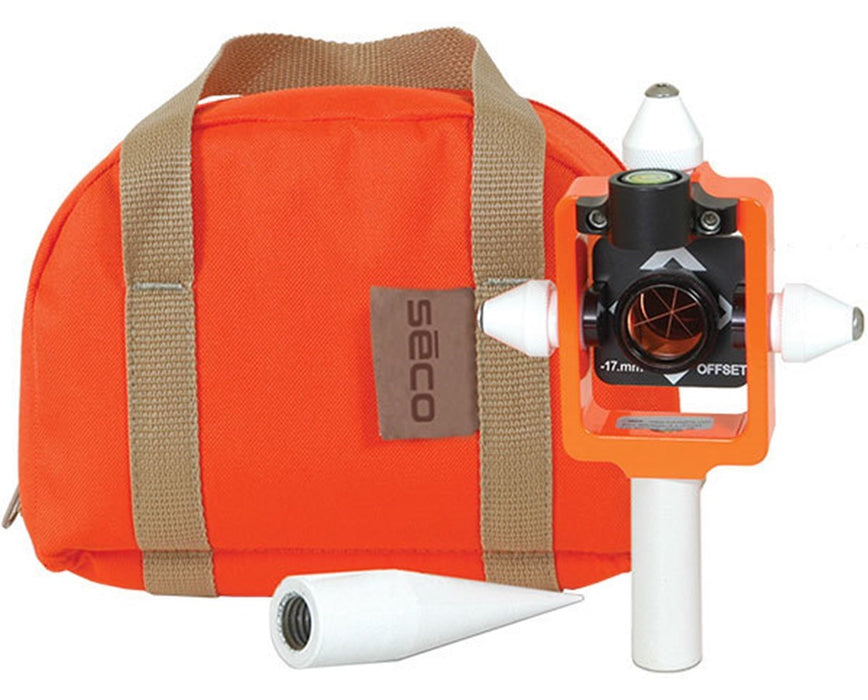

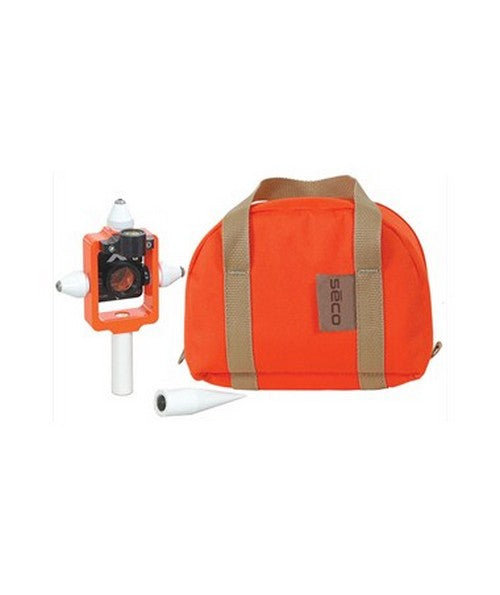

The Seco Mini Prism Stakeout Kit is a useful tool when doing surveys, stakeouts, and other site jobs. It features a 25-millimeter diameter and a -30 millimeters which are held securely within a fluorescent aluminum housing. It has a 5/8 x 11 thread both on the top and bottom. Also, it comes with a white adapter that makes the prism height 115 millimeters for use with most prism holes.

This Seco stakeout kit includes white site cones that are located on the top and sides of the prism which serves as tilting axis lock knobs. Also, it comes with an adjustable circular level vial with 40-minute sensitivity. In addition, this prism can be mounted to four different heights: 50 millimeters, 100 millimeters, 115 millimeters, and 150 millimeters.

Configuration Options

The Seco Mini Prism Stakeout Kit offers two fluorescent colors - orange and yellow. Please select your preference from the drop-down menu above.

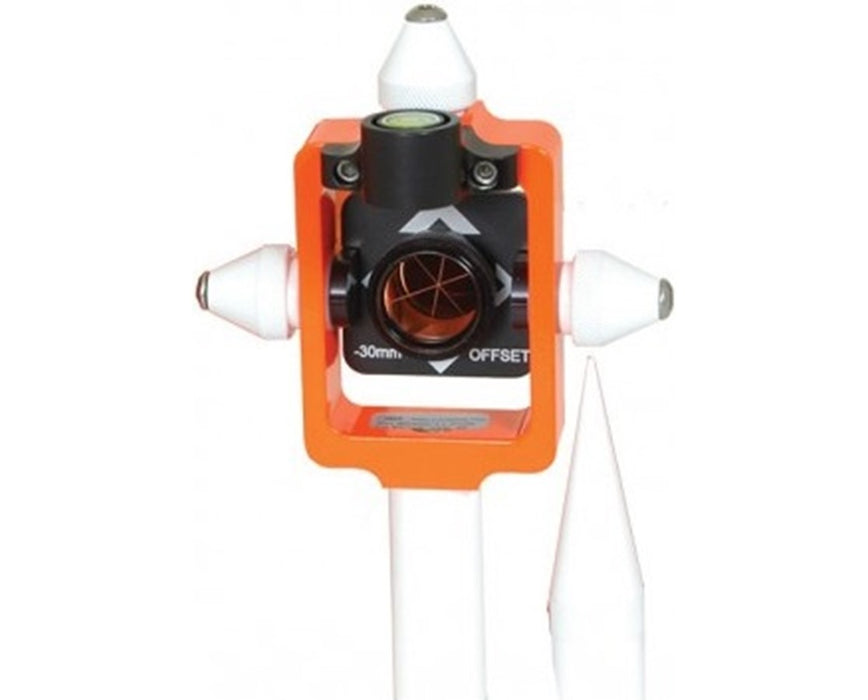

  • 6405-11-FOR — Stakeout Mini Prism Kit - 0 / -30 mm offset – Flo Orange

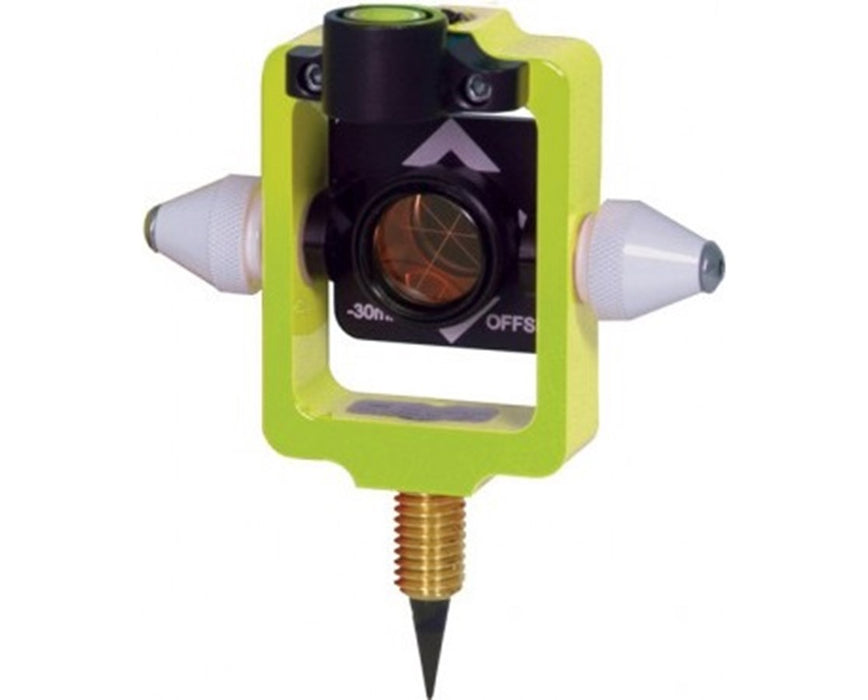

  • 6405-11-FLY — Stakeout Mini Prism Kit - 0 / -30 mm offset – Flo Yellow
  • 6405-13-FLY — Stakeout Mini Prism Kit – Nodal -17.5 mm offset
  • Choice of 2 colors
  • 25 mm diameter
  • 0/-30 mm offset
  • Copper-coated
  • White site cones on all sides
  • 40-minute adjustable circular level vial
  • 5/8 x 11-in. thread on top and bottom
  • Fluorescent orange aluminum housing
  • Includes carrying bag
  • Water-resistant

What’s in the Box

  • Seco Mini Stakeout Prism Kit
  • White adapter
  • White point
  • Carrying bag

Available Package Options

  • Stakeout Mini Prism Kit - 0 / -30 mm offset – Flo Orange
  • Stakeout Mini Prism Kit - 0 / -30 mm offset – Flo Yellow
  • Stakeout Mini Prism Kit – Nodal -17.5 mm offset

Tiger Supplies offers a 30-day return policy from date of shipment for this product, subject to a 15% restocking fee, in addition to the return shipping charges. The product must be in new condition and in its original packaging. We take the responsibility to make sure this product arrives in a brand new working condition. Should your item arrive damaged, we will take full responsibility and replace the product at no cost to you.

Order Cancellations will incur a 15% fee.

For complete details of our return policy and process, please refer to our general return policy page.

Accuracy
Offset
0/-30 mm
Features
Bubble Level
Yes
Case
Included
Holder
Yes
Lock
Yes
Site Cones
Yes
Target
Yes
Tilting Knob
Yes
General
Coating
Copper
Diameter Of Center Hole
25 mm
Material
Aluminum
Thread
5/8 x 11 in.
Type
Mini
Pole
Color
White
Height
50 mm, 100 mm, 115 mm, or 150 mm
Thread
5/8 x 11
