- System Type: 3D excavator guidance with in-field surface design
- GNSS Constellations: GPS, GLONASS, BeiDou, Galileo, QZSS; L-Band support
- Accuracy: Centimeter-level (RTK), real-time cut/fill volume display
- Machine Compatibility: Swivel/offset/triple booms; multiple bucket profiles; tilt bucket support (optional IMU)
-
Display:
- Screen: 10.1", 1024 × 600, ~750 cd/m²
- OS/CPU/Memory: Android 6; Quad-core 1.2 GHz; 2 GB RAM / 16 GB ROM
- Ingress/Vibration/Shock: IP69K; 7.7 Grms (10–1000 Hz); 50 g / 11 ms
- Power: 7–36 V DC input
- Ingress Protection: IP65
- Operating Temperature: -22°F to +158°F (−30°C to +70°C)
- Weight: 3.31 lbs.
-
GNSS Antenna:
- Gain / Noise Figure: 40 ± 2 dB
- Shock: 50 g / 11 ms
- Ingress: IP68
- Power: 3.3–12 V DC
- Vibration: MIL-STD-810H, 7.7 G
- Operating Temperature: -40°F to +185°F (−40°C to +85°C)
-
IMU Sensor:
- Dimensions: 48.9 × 109 × 27.3 mm
- Accuracy (RMS): Static ±0.05°, Dynamic ±0.1°
- Shock: 50 g / 11 ms
- Ingress: IP69K
- Operating Temperature: -40°F to +167°F (−40°C to +75°C)
- Weight: 0.25 lbs.

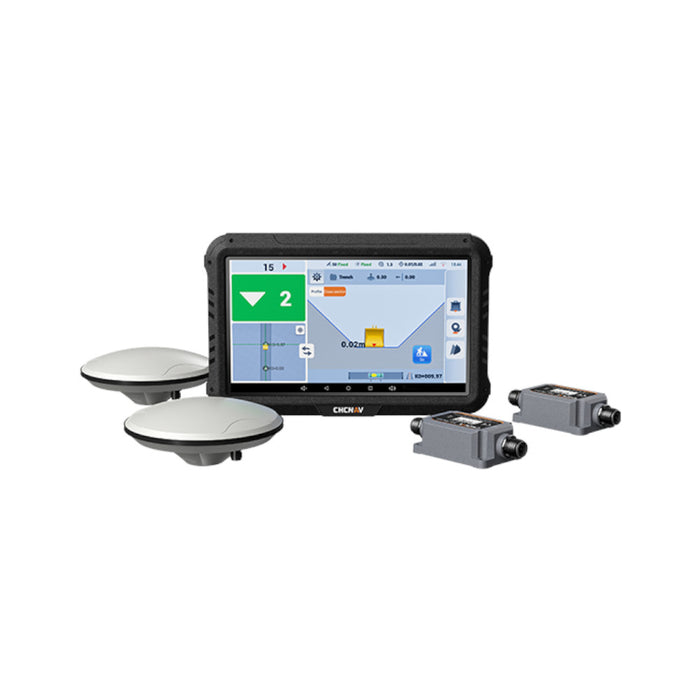

The EasyNAV EMG100 3D Excavator System is a cost-effective entry into 3D machine control for small to mid-scale jobs. Operators get centimeter-level guidance for slope/embankments, trenching, plane cuts, and foundations, with real-time cut/fill volumes to reduce rework. On-machine surface design lets crews create and modify simple plans in the field, minimizing survey callouts and keeping work moving.
Optimized hardware and excavator algorithms shorten setup and training. Most machines are up and running in under 2 hours, calibration takes about 15 minutes, and the display makes it easy for new and experienced operators alike. The system supports swivel/triple booms, tilt buckets (add optional IMU), multiple bucket profiles, and connects to GNSS RTK via network or base—delivering a reliable, repeatable workflow for day-to-day production. Package includes installation, CPC TrueRTK (1 year), and a 1-year support and SIM plan for immediate, out-of-the-box productivity.
- High-Precision Excavation The EMG100 provides centimeter-level positioning accuracy, enabling precise bucket control and reducing the need for manual grade checks or rework on site.
- In-Field Surface Design Operators can create and edit surface designs directly from the cab without relying on external survey data, keeping excavation progress continuous and efficient.
- Fast Installation and Calibration Installation takes less than two hours and calibration about 15 minutes, minimizing setup time and ensuring a quick return to operation.
- Real-Time Cut/Fill Monitoring Live cut/fill feedback allows operators to maintain target grade with precision, improving excavation speed and consistency across the jobsite.
- Simple, Intuitive Operation The easy-to-read display with large visuals and clear indicators makes operation straightforward for users of all experience levels, reducing training time.
- Broad Machine Compatibility Compatible with multiple excavator types, including swivel and triple booms, tilt buckets (with optional IMU sensor), and a variety of bucket profiles for maximum versatility.
- Seamless GNSS Connectivity The system connects smoothly to GNSS RTK networks and base stations, ensuring continuous high-accuracy positioning and minimal downtime.
What’s in the Box
- EasyNAV System Kit - 8007010064
- EasyNAV Installation
- CPC-1Year Point One Nav 1 Year 1 User
- iSite14 Benchmark iSite 1 Year Support & Data Super SIM Plan
