AS2 Magnum Grade Laser

Pro Shot Laser
by Pro Shot Laser
MFR#: 400-0000X
List Price: USD $2,095.00
You Save: USD $327.00 -16%
USD $2,095.00 - USD $2,095.00
List Price: USD $2,095.00
USD $1,768.00
USD $1,768.00 - USD $1,768.00
USD $1,768.00

Store Pickup: List of available stores available on the Checkout page.
AS2 Magnum Grade Laser
AS2 Magnum Grade Laser - USD $1,768.00
USD $1,768.00
*Must Purchase 1 for AS2 Magnum Grade Laser

The cart will thereforce automatically set Qty to 1 when you order this product

One of our Sales Experts will be in touch!
Free Shipping (USA) Ships Out Within: 2 - 4 Business Days Shipping Date By: 11/21/2024
Documents
Product Manual Item Brochure
Essential Add-Ons:
Aluminum Rod
Aluminum Rod
Details
$38.95
Universal Contractor's Tripod
Universal Contractor's Tripod
Details
$71.25
Fiberglass Rod
Fiberglass Rod
Details
$92.25
CR700 Combined Machine Control Receiver
CR700 Combined Machine Control Receiver
Details
$548.00
$685.00
  • Includes S2 compound slope kit
  • Enables dual slope projection
  • Single axis slope capability of 25%
  • Working range of 3,300 ft. w/ R9 receiver
  • Accuracy: ±10 arc sec. (±1/16" per 100')
  • Selectable rotation speed: 600, 900, or 1,200 rpm
  • Self-leveling range: ±4 degrees
  • 90-hour operation w/ 4 alkaline batteries

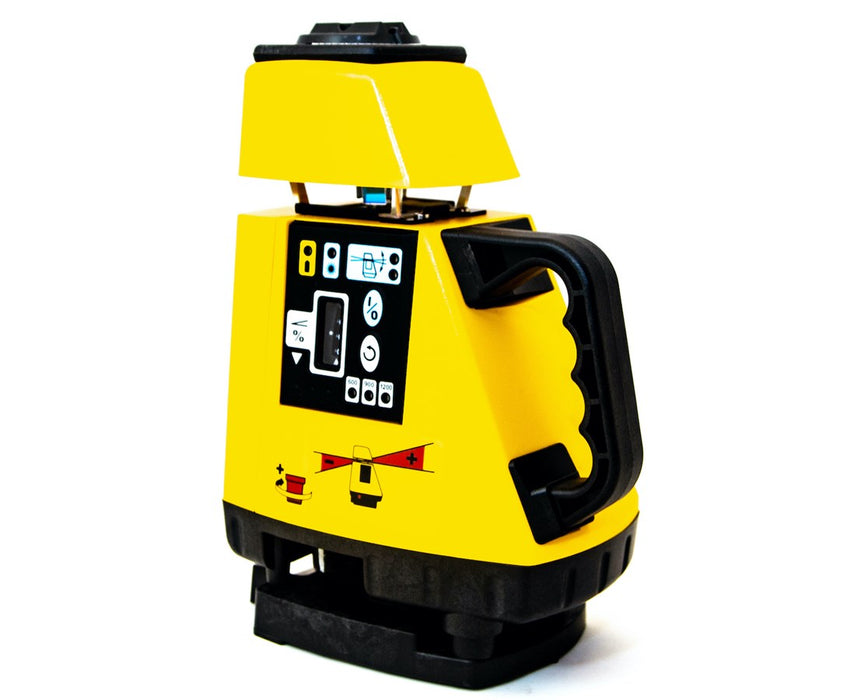

The Pro Shot AS2 Magnum Grade Laser offers maximum functionality and superior accuracy to meet the high demands of the construction industry. Offering dual slope projection with the S2 compound slope kit and single slope capability of 25 percent with precise 0.01-percent increments for setting specific slopes, it accommodates a wide range of applications including excavations, sewer lines, drainage operations, and many others. It has performance accuracy of ±10 arc seconds (±1/16 inch per 100 feet or ± 1.5 millimeters per 30 meters).

This grade laser by Pro Shot is equipped with servo motor leveling technology allowing it to self-level within ±4 degrees. It provides a 360-degree rotation coverage and a wide working range of 3,300-foot diameter when used with the included R9 laser receiver. It has selectable rotation speed of 600, 900, and 1,200 revolutions per minute. Its visible 670-nanometer red laser beam complies with CDRH and IEC standards with Class 3a and Class 3R classifications. Featuring a height alert mechanism, it guarantees consistently accurate readings.

The Pro Shot AS2 Magnum Grade Laser is powered by four C-cell alkaline batteries that can operate for up to 90-hour runtime. It also accepts NiMH rechargeable batteries for up to 65 hours of battery life. With its machine control compatibility, it enables integration with most modern systems. It is durable and resists dust and water withstanding jobsite’s harsh conditions. It includes a clamp, a carrying case, and a three-year Guardian Warranty.

  • S2 compound slope kit included
  • Enables dual slope projection
  • Single axis slope capability of 25% with .01% increments
  • Up to 3,300 ft. working range with R9 receiver
  • Accuracy: ±10 arc sec. (±1/16" per 100' or ±1.5mm per 30m)
  • Selectable rotation speed: 600, 900, or 1,200 rpm
  • 360-degree rotation coverage
  • Self-leveling range: ±4 degrees
  • Servo motor leveling technology
  • Visible 670nm laser beam (<1mW)
  • Height alert for maximum accuracy
  • Machine control compatible
  • Four C alkaline batteries for up to 90-hour operation
  • CDRH Class 3a and IEC Class 3R
  • Rated IP56 for dust and water resistance
  • Operating temperature: -4º F to +140º F (-20º C to +60º C)
  • Includes clamp and carrying case
  • 3-year Guardian Warranty

What’s in the Box

  • Pro Shot AS2 Magnum Grade Laser
  • R9 Laser Receiver
  • 4 x C-cell batteries
  • Clamp
  • Carrying Case
  • 3-Year manufacturer's warranty

Tiger Supplies offers a 30-day return policy from date of shipment for this product, subject to a 5% restocking fee, in addition to the return shipping charges. The product must be in new condition and in its original packaging. We take the responsibility to make sure this product arrives in a brand new working condition. Should your item arrive damaged, we will take full responsibility and replace the product at no cost to you.

For complete details of our return policy and process, please refer to our general return policy page.

Accuracy
Horizontal
±1/16 inch at 100 feet (±10 arc sec. or ±1.5mm per 30m)
Applications
Concrete Forms, Footings and Foundations
Yes
Checking Building Square & Area
Yes
Checking Elevations of Sub-Base and Sub-Grade
Yes
Checking/Setting Elevations
Yes
Estimating Cut & Fill
Yes
Installation of Interior Fittings (cabinets, lighting, windows, countertops, etc.)
Yes
Installation/Leveling Interior Walls
Yes
Locating Finished Floor Levels
Yes
Machine Control of Excavators, Graders, Dozers or Similar Equipment
Yes
Matching Existing Slope & Grade
Yes
Short-Range Leveling for Decks, Patios & Swimming Pools
Yes
Battery/Power
Battery Life Alert
Yes
Battery Life with Alkaline Batteries
Up to 90 hours
Battery Life with Rechargeable Battery Pack
Up to 65 hours
Power Source
4 x C-cell alkaline batteries (included) or NiMH rechargeable batteries (not included)
Extra Technology
Detector/Receiver
R8 laser receiver
Remote Control
Machine control compatible
Features
Adjustable Rotating Speed
Selectable 600, 900, and 1200 rpm
Automatic Shut-Off
On receiver for 30 minutes
Bump Sensor (H.I./Out of Position Alert)
Height alert
Detecting Indicator
LCD indications, LED flashes, and audio tones
Display
On receiver (front and rear)
One-Touch Commands
Yes
Protection Class
IP56 dustproof and powerful water jet resistant
Tripod Adapter (Center Screw Thread)
5/8 x 11
Functions
Automatic Leveling
Yes
Beam Operating Modes
Manual and Automatic
Grade Operation
Manual and Automatic
Scanning Modes
Low, High, On-Grade
Slope Match
Single axis 25% with .01% increments with Compound slope
General
Dimensions
15" L x 12" W x 8" H
Maximum Power Output
<1mW
Warranty
3-year
Weight
10 lbs (4.5 kg)
Grade
Accuracy
(±1/16" (±1.5mm)
Percentage
25% with .01% increments
Type
Compound slope
Laser
Classification
CDRH class IIIa & IEC class 3R
Color
Red
Direction
Horizontal
Visibility
Visible
Wavelength
670nm
Range
Exterior
Up to 3,300 feet (1,006 m)
Self Leveling
±4 degrees
Temperature
Operating
-4 to 140 ºF (-20 to 60 ºC)
