  • CHCNav EasyNav EMG100 3D Excavator System

    CHCNav
    $13,000.00 - $13,000.00
    List Price:
    $13,000.00
    $13,000.00 - $13,000.00
    $13,000.00
    • System Type: 3D excavator guidance with in-field surface design
    • GNSS Constellations: GPS, GLONASS, BeiDou, Galileo, QZSS; L-Band support
    • Accuracy: Centimeter-level (RTK), real-time cut/fill volume display
    • Machine Compatibility: Swivel/offset/triple booms; multiple bucket profiles; tilt bucket support (optional IMU)
    • Display:
      • Screen: 10.1", 1024 × 600, ~750 cd/m²
      • OS/CPU/Memory: Android 6; Quad-core 1.2 GHz; 2 GB RAM / 16 GB ROM
      • Ingress/Vibration/Shock: IP69K; 7.7 Grms (10–1000 Hz); 50 g / 11 ms
      • Power: 7–36 V DC input
      • Ingress Protection: IP65
      • Operating Temperature: -22°F to +158°F (−30°C to +70°C)
      • Weight: 3.31 lbs.
    • GNSS Antenna:
      • Gain / Noise Figure: 40 ± 2 dB
      • Shock: 50 g / 11 ms
      • Ingress: IP68
      • Power: 3.3–12 V DC
      • Vibration: MIL-STD-810H, 7.7 G
      • Operating Temperature: -40°F to +185°F (−40°C to +85°C)
    • IMU Sensor:
      • Dimensions: 48.9 × 109 × 27.3 mm
      • Accuracy (RMS): Static ±0.05°, Dynamic ±0.1°
      • Shock: 50 g / 11 ms
      • Ingress: IP69K
      • Operating Temperature: -40°F to +167°F (−40°C to +75°C)
      • Weight: 0.25 lbs.
    View full details

  • CHCNav LandStar 8 Land Surveying and Mapping App/Software

    CHCNav
    $790.00 - $790.00
    List Price:
    $790.00
    $790.00 - $790.00
    $790.00
    • Android Compatible: Runs on Android 6.0.1+ and CHCNav field controllers like LT700 and HCE600.
    • Survey-Ready Tools: Supports construction layout, control point measurements, GIS data collection, and more.
    • MetaCAD™ Engine: Opens large DWG/DXF CAD files in seconds with smooth rendering.
    • Cloud Connectivity: Enables project backup, real-time collaboration, and remote support.
    • Modular Interface: Customizable layout lets users hide unused tools for a streamlined experience.
    • Visual Stakeout: Includes point, line, and CAD-based stakeout with real-time AR-style guidance.
    • COGO & Site Calibration: Built-in tools for grid-to-ground, inverse, earthwork, and easy site calibration.
    • QR Code Project Transfer: Instantly share settings and projects between controllers with a simple scan.
    • Multilingual Support: Includes voice prompts and interface options in over 25 languages.
    • Seamless GNSS Integration: Fully compatible with CHCNav GNSS receivers and total stations.
    • Standard File Support: Handles RTCM, NMEA, RINEX, and other industry formats for easy import/export.
    View full details

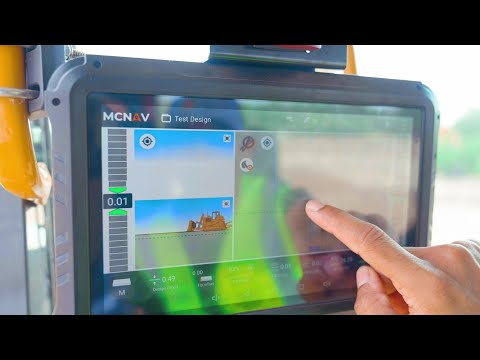

  • CHCNav MCNAV TX73 3D Guidance System for Excavators

    CHCNav
    $21,000.00 - $33,000.00
    List Price:
    $21,000.00 - $33,000.00
    $21,000.00 - $33,000.00
    $21,000.00
    • System Type: 3D excavator guidance with real-time RTK and IMU integration
    • GNSS Constellations: GPS, GLONASS, BeiDou, Galileo, QZSS
    • Supported File Formats: *.LandXML, *.DWG, *.DXF, *.CAL, *.JXL, *.LOC
    • Cloud Platform: iSite (remote data sync, troubleshooting, OTA updates)
    • Receiver (CHCNav MC300)
      • RTK Accuracy: H: 8 mm + 1 ppm RMS; V: 15 mm + 1 ppm RMS
      • Ingress Protection: IP67
      • Operating Temperature: -22°F to 149°F (-30°C to +65°C)
      • Weight: 2.45 lbs.
    • Display (MCPad300)
      • Screen: 10.1″ touch screen (1920 × 1200 px)
      • Operating System: Android 14, 8-core CPU up to 2.2 GHz, 6 GB RAM + 64 GB storage
      • Ingress Protection: IP67
      • Operating Temperature: -22°F to 140°F (-30°C to +60°C)
      • Power: 7–36 V DC input
      • Weight: 3.30 lbs.
    • IMU Sensor (IS300)
      • RMS Accuracy: Dynamic ±0.1°, Static ±0.05°
      • Shock: 50G/ 11 ms
      • Ingress Protection: IP69K
      • Operating Temperature: −40°F to +167°F (−40°C to +75°C)
    • GNSS Antenna (AT315)
      • Ingress Protection: IP68
      • Gain: 40 ± 2 dB
      • Noise: ≤2 dB
      • Shock: 40G/ 11 ms
      • Operating Temperature: −40°F to +167°F (−40°C to +75°C)
    View full details

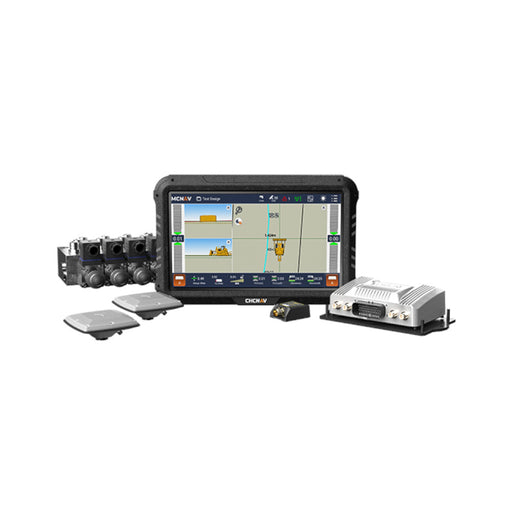

  • CHCNav TD63 Pro 3D Automatic Control System for Dozers

    CHCNav
    $20,000.00 - $20,000.00
    List Price:
    $20,000.00
    $20,000.00 - $20,000.00
    $20,000.00
    • System Type: Automatic 3D dozer control with hydraulic blade automation
    • Positioning: Dual GNSS + IMU (100 Hz)
    • Accuracy: ±2 cm (DO-Tech algorithm)
    • Horizontal Accuracy (RTK): 10 mm + 1 ppm RMS
    • Vertical Accuracy (RTK): 15 mm + 1 ppm RMS
    • Display (Tablet):
      • Screen: 10.1″, 1024 × 600 px, 750 cd/m² sunlight readable
      • Operating System: Android 6.0.1, 4-core 1.5 GHz CPU, 2 GB RAM + 16 GB ROM
      • Ingress Protection: IP65
      • Operating Temperature: -4°F to 158°F (−20°C to +70°C)
      • Size/Weight: 3.30 lbs.
    • GNSS Receiver:
      • Full constellations: GPS, GLONASS, Galileo, BeiDou, QZSS
      • RTK Accuracy: H: 10 mm + 1 ppm RMS; V: 15 mm + 1 ppm RMS
      • Ingress: IP65
      • Operating Temperature: -13°F to +167°F (−25°C to +75°C)
      • Weight: 4.40 lbs.
    • GNSS Antenna:
      • Gain: 40 ± 2 dB
      • Noise Coefficient: ≤ 2 dB
      • Shock: 50 g/ 6 ms
      • Vibration: 5 grms (2–250 Hz)
      • Ingress: IP68
      • Operating Temperature: -4°F to 158°F (−20°C to +70°C)
    • IMU Sensor:
      • Accuracy: Dynamic: ±0.3° ; Static: ±0.1°
      • Shock: 50 g/6 ms
      • Vibration: 5 grms (10–400 Hz)
      • Ingress: IP67
      • Operating Temperature: -40°F to 185°F (−40°C to +85°C)
    View full details
