GeoMax Zone60 HG Semi-Automatic Dual Grade Laser

MFR#: 6013526
TIGER#: TS34643
Original price List Price: $1,563.00
You Save: $156.30 -10%
Original price $1,563.00 - Original price $1,563.00
Original price List Price: $1,563.00
Current price $1,406.70
$1,406.70 - $1,406.70
Current price $1,406.70
GeoMax Zone60 HG Semi-Automatic Dual Grade Laser
GeoMax Zone60 HG Semi-Automatic Dual Grade Laser - $1,406.70
$1,406.70
*Must Purchase 1 for GeoMax Zone60 HG Semi-Automatic Dual Grade Laser

The cart will thereforce automatically set Qty to 1 when you order this product

Free Shipping (USA) Ships Out Within: 2 - 4 Business Days Shipping Date By: 6/5/2024

One of our Sales Experts will be in touch!

Essential Add-Ons:
Aluminum Rod
Aluminum Rod
Details
$33.95
$44.95
Universal Contractor’s Tripod
Universal Contractor’s Tripod
Details
$75.99
$79.99
Topcon LS-B20 Machine Control Laser Receiver - 1063525-03
Topcon LS-B20 Machine Control Laser Receiver - 1063525-03
Details
$651.60
Fiberglass Rod
Fiberglass Rod
Details
$76.95
  • Range up to 3,000 feet with laser receiver
  • Accuracy: ±1/16-inch at 100 feet
  • Dial-in grade range of ±8%
  • Rotation speed of 600 rpm
  • Horizontal self-leveling ±6 degrees
  • Optional ZRC60 remote control
  • IP67 dustproof & water immersible
  • Battery life up to 40 hours

The GeoMax Zone60 HG Semi-Automatic Dual Grade Laser is fashioned after Zone40H but features an easy-to-use, dial-in grade that provides more dependability in daily use. It enables semi-automatic grade in leveling applications with a working range of up to 3,000 feet with a laser receiver. The Zone60 HG is specifically designed for construction workers who need the dependability and accuracy of a fully professional grade laser on a daily basis. With an accuracy of ±1/16-inch at 100 feet, the Zone60 HG is ideal for concrete pouring and interior formwork.

The Zone60 HG is self-leveling within ±6 degrees and has a grade range of up to 8 percent. Offering unbeatable flexibility, it is outlined with 600 rpm speed and features digital slope in dual-axis. Plus, this rotary laser gives surveyors three receiver options to boost range and precision in every work.

Built with fully enclosed head, the Geomax Zone60’s visible 635 nm laser beam is safeguarded and well protected. With an IP67 rating, this self-leveling laser is resistant against water and dust. In addition, it has a 5/8-11 tripod thread and can last up to 40 hours using the included Li-Ion battery pack. This grade laser also comes with a 3-year manufacturer’s warranty.

Configuration Options

The GeoMax Zone60 HG Semi-Automatic Dual Grade Laser comes in three-receiver options to cater all leveling jobs. Select your preference from the drop-down menu above.

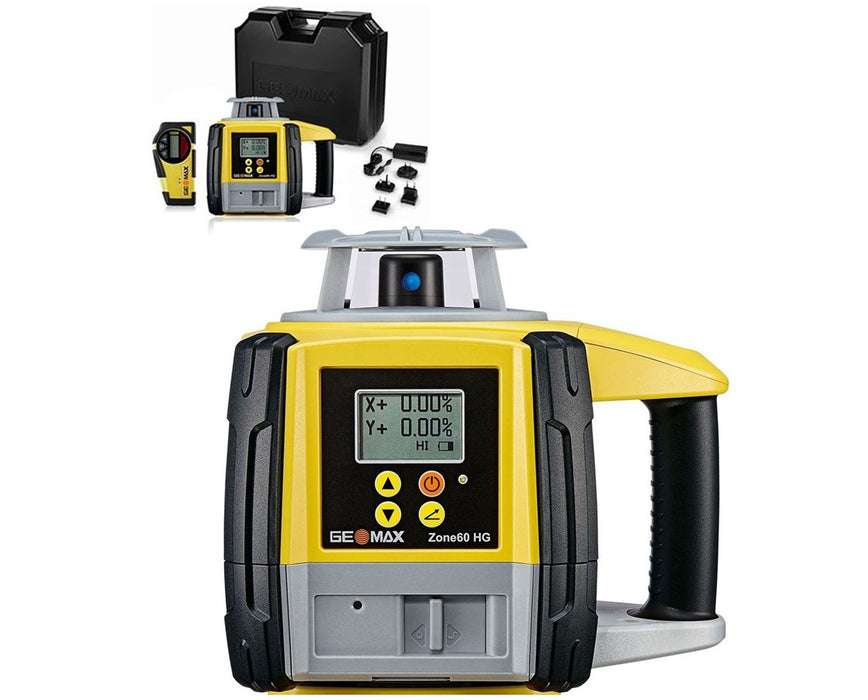

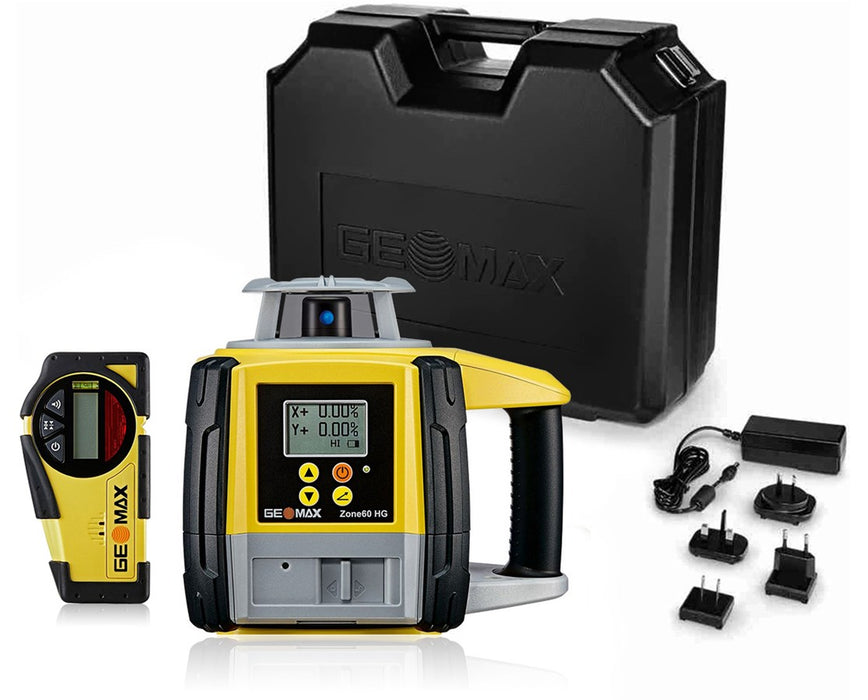

  • 6010659: Zone60 HG With ZRB35 Basic Receiver
  • 6010660: Zone60 HG With ZRP105 Pro Receiver

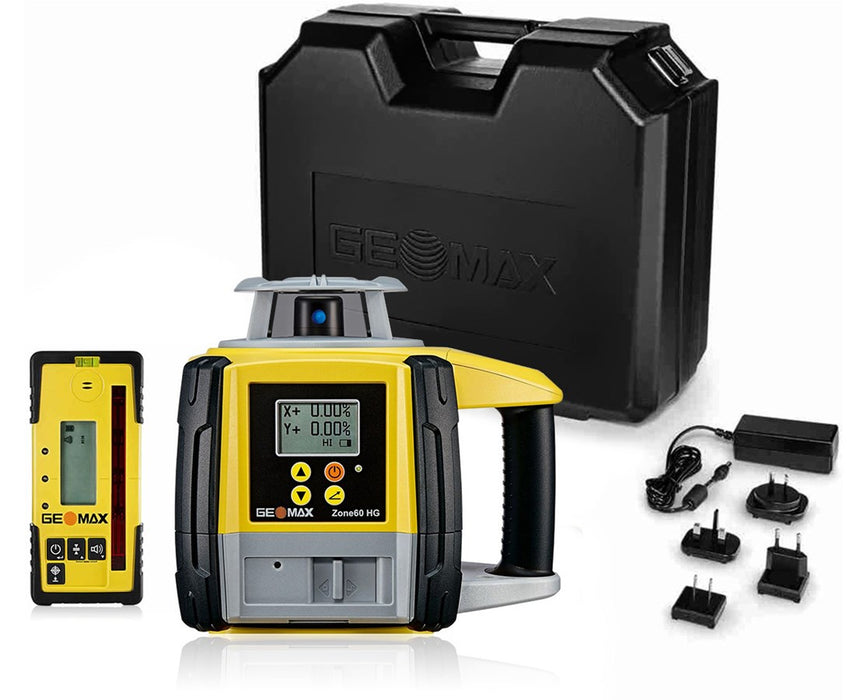

  • 6010661: Zone60 HG With ZRD105 Digital Receiver


Laser Receiver

ZRB35 Basic

ZRP105 Pro

ZRD105 Digital


Working Diameter


up to 3,000 ft.


up to 3,000 ft.


up to 3,000 ft.


Extended Detection Window


1.5"


4"


4"


Numeric Readout
Height


N/A


N/A


3.5"


Detection Accuracies


Ultra Fine


N/A


N/A


±0.5 mm


Super Fine


±1.0 mm


±1.0 mm


±1.0 mm


Fine


N/A


±2.0 mm


±2.0 mm


Medium


±3.0 mm


±3.0 mm


±3.0 mm


Coarse


N/A


N/A


±5.0 mm

  • Choice of laser receiver
  • Range up to 3,000 feet with laser receiver
  • Horizontal self-leveling within ±6 degrees
  • ±1/16-inch accuracy at 100 feet
  • Dial-in grade range of ±8%
  • Optional ZRC60 remote control
  • Rotation speed of 600 rpm
  • Up to 40-hour battery life
  • IP67 dust and water-resistant
  • 5/8-11 tripod thread
  • Comes with alkaline battery tray
  • 3-year manufacturer's warranty

What’s in the Box

  • GeoMax Zone60 HG Semi-Automatic Dual Grade Laser
  • Alkaline battery tray
  • 3-year manufacturer's warranty

Available Package Options

  • Receiver: ZRB35 Basic, ZRP105 Pro, or ZRD105 Digital

Tiger Supplies offers a 30-day return policy from date of shipment for this product, subject to a 20% restocking fee, in addition to the return shipping charges. The product must be in new condition and in its original packaging. We take the responsibility to make sure this product arrives in a brand new working condition. Should your item arrive damaged, we will take full responsibility and replace the product at no cost to you.

For complete details of our return policy and process, please refer to our general return policy page.

Accuracy
Horizontal
±1/16 inch at 100 feet (±1.5 mm at 30 m)
Applications
Concrete Forms, Footings and Foundations
Yes
Installation of Interior Fittings (cabinets, lighting, windows, countertops, etc.)
Yes
Installation/Leveling Interior Walls
Yes
Short-Range Leveling for Decks, Patios & Swimming Pools
Yes
Battery/Power
Battery Life Alert
Yes
Battery Life with Rechargeable Battery Pack
Up to 40 hours
Power Source
4 x D-cell alkaline or Li-Ion batteries
Extra Technology
Detector/Receiver
ZRB35 Basic, ZRP105 Pro or ZRD105 Digital Receiver
Features
Protection Class
IP67 dustproof and water submersible
Tripod Adapter (Center Screw Thread)
5/8 x 11
Functions
Automatic Leveling
Yes
Grade Operation
Semi-Automatic
General
Warranty
3-year
Weight
7.5 lbs (3.4 kg)
Grade
Percentage
±8%
Type
Dual
Laser
Classification
Class 1
Color
Red
Direction
Horizontal only
Visibility
Visible
Wavelength
635 nm
Range
Exterior
Up to 3,000 feet (900 meters)
Self Leveling
±6 degrees
Temperature
Operating
-22 to 122 °F (-20 to 50 °C)
Storage
-22 to 140 °F (-30 to 60 °C)
