GeoMax Zone60 DG Fully-Automatic Dual Grade Laser

MFR#: 6013528
TIGER#: TS35428
Original price List Price: $2,424.00
You Save: $242.40 -10%
Original price $2,424.00 - Original price $2,424.00
Original price List Price: $2,424.00
Current price $2,181.60
$2,181.60 - $2,181.60
Current price $2,181.60
GeoMax Zone60 DG Fully-Automatic Dual Grade Laser
GeoMax Zone60 DG Fully-Automatic Dual Grade Laser - $2,181.60
$2,181.60
*Must Purchase 1 for GeoMax Zone60 DG Fully-Automatic Dual Grade Laser

The cart will thereforce automatically set Qty to 1 when you order this product

Free Shipping (USA) Ships Out Within: 2 - 4 Business Days Shipping Date By: 5/31/2024

One of our Sales Experts will be in touch!

Essential Add-Ons:
Aluminum Rod
Aluminum Rod
Details
$33.95
$44.95
Universal Contractor’s Tripod
Universal Contractor’s Tripod
Details
$75.99
$79.99
Topcon LS-B20 Machine Control Laser Receiver - 1063525-03
Topcon LS-B20 Machine Control Laser Receiver - 1063525-03
Details
$651.60
Fiberglass Rod
Fiberglass Rod
Details
$76.95
  • Range up to 3,000 feet with laser receiver
  • Dual grade to ±15%
  • Two adjustable rotation speeds
  • Self-leveling within ±6 degrees
  • Accuracy of ±1/16 inch at 100 feet
  • Adjustable rotation speeds: 300 & 600 RPM
  • Battery life up to 40 hours
  • IP67 dustproof and water resistant

The GeoMax Zone60 DG Fully-Automatic Dual Grade Laser is a fully-automatic device designed for construction workers who need the dependability of a professional grade laser on a daily basis. With a working range of up to 3,000 feet, the Zone60 DG also boasts an accuracy of ±1/16-inch at 100 feet. The Zone60 DG self-levels within ±6 degrees in both horizontal and vertical direction.

Outlined with a grade range of up to 15 percent, this dual grade laser is designed with adjustable rotation speeds of 300 and 600 rpm, increasing its flexibility. Featuring digital slope in dual axis, the Zone60 HG can also be operated with a remote control for greater accuracy. In addition, this grade laser gives surveyors three receiver options to boost range and precision in every work.

Made with fully enclosed head, the Geomax Zone60’s visible 635 nm laser beam is safeguarded and well protected. With an IP67 rating, this laser is resistant to water and dust. It also has a 5/8-11 tripod thread and a 40-hour battery life with its D-cell batteries. This Geomax grade laser is backed by a 3-year manufacturer’s warranty.

Configuration Options

The GeoMax Zone60 DG Fully-Automatic Dual Grade Laser comes in three-receiver options to cater all leveling jobs. Select your preference from the drop-down menu above.

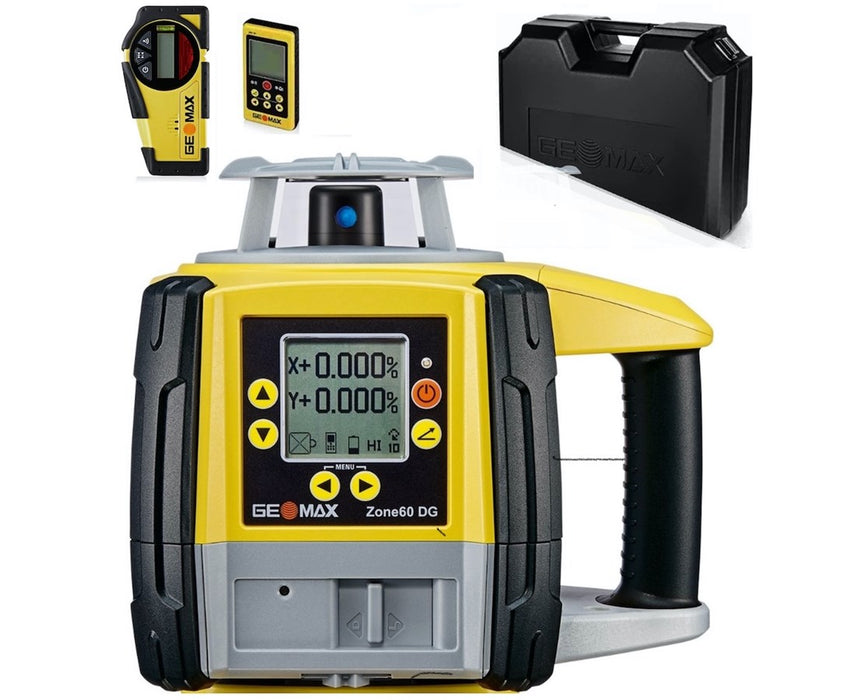

  • 6013528: Zone60 DG With ZRB35 Basic Receiver

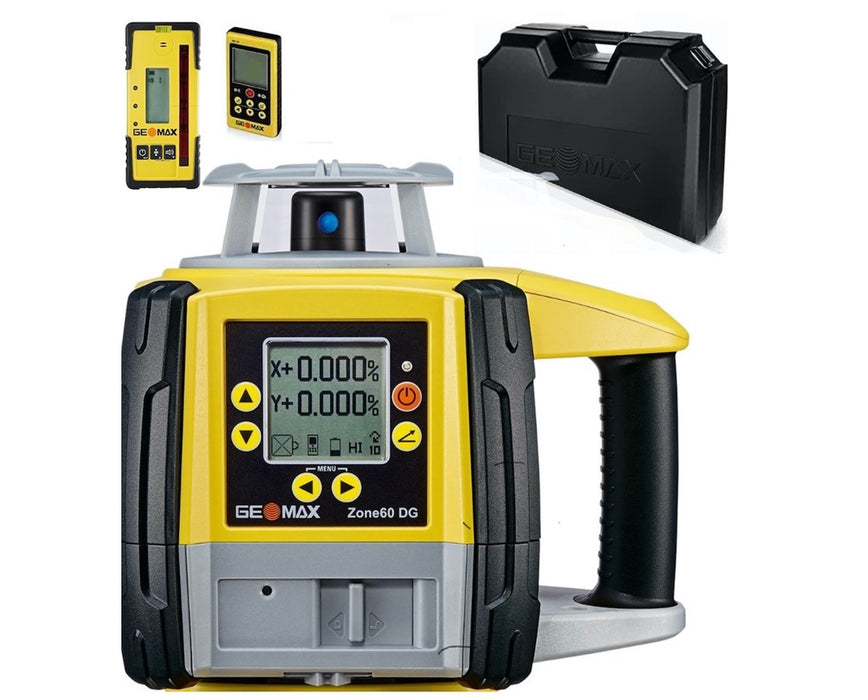

  • 6010666: Zone60 DG With ZRP105 Pro Receiver

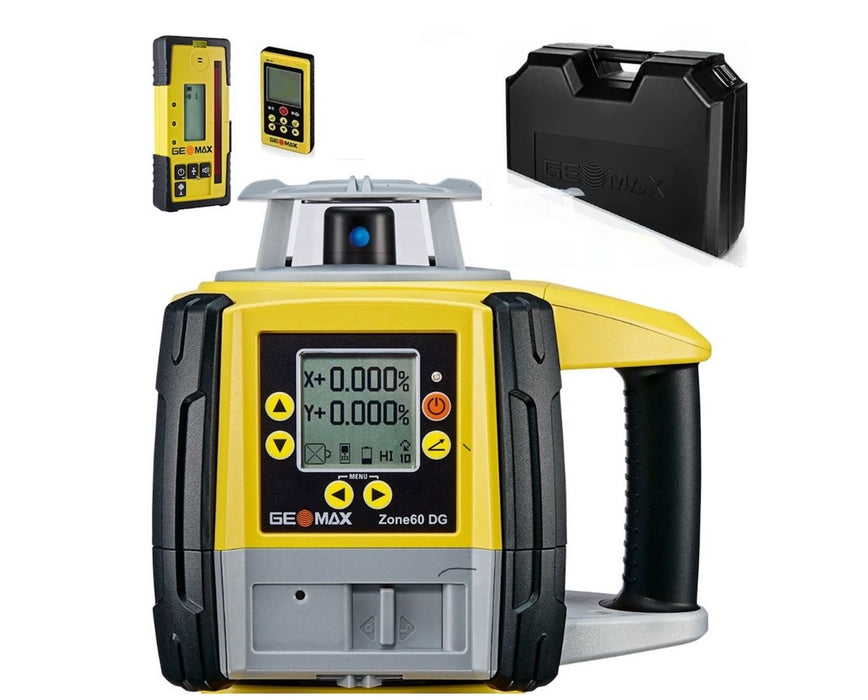

  • 6010667: Zone60 DG With ZRD105 Digital Receiver
  • 6012187: Zone60 DG With ZRD105B Digital Receiver with Beam Catching


Laser Receiver

ZRB35 Basic

ZRP105 Pro

ZRD105 Digital


Working Diameter


up to 3,000 ft.


up to 3,000 ft.


up to 3,000 ft.


Extended Detection Window


1.5"


4"


4"


Numeric Readout
Height


N/A


N/A


3.5"


Detection Accuracies


Ultra Fine


N/A


N/A


±0.5 mm


Super Fine


±1.0 mm


±1.0 mm


±1.0 mm


Fine


N/A


±2.0 mm


±2.0 mm


Medium


±3.0 mm


±3.0 mm


±3.0 mm


Coarse


N/A


N/A


±5.0 mm

  • Choice of laser receiver
  • Range up to 3,000 feet with laser receiver
  • Horizontal and vertical self-leveling within ±6 degrees
  • ±1/16-inch accuracy at 100 feet
  • Dual grade to ±15%
  • ZRC60 Remote Control included
  • Adjustable rotation speeds of 300 & 600 rpm
  • Up to 40-hour battery life
  • IP67 dust and water-resistant
  • 5/8-11 tripod thread
  • Comes with alkaline battery tray
  • 3-year manufacturer's warranty

What’s in the Box

  • GeoMax Zone60 DG Fully-Automatic Dual Grade Laser
  • ZRC60 remote control
  • Alkaline battery tray
  • 5-year manufacturer's warranty

Available Package Options

  • Laser Receiver: ZRB35 Basic, ZRP105 Pro, ZRD105 Digital, or ZRD105B Digital with Beam Catching

Tiger Supplies offers a 30-day return policy from date of shipment for this product, subject to a 20% restocking fee, in addition to the return shipping charges. The product must be in new condition and in its original packaging. We take the responsibility to make sure this product arrives in a brand new working condition. Should your item arrive damaged, we will take full responsibility and replace the product at no cost to you.

For complete details of our return policy and process, please refer to our general return policy page.

Accuracy
Horizontal
±1/16 inch at 100 feet (1.5 mm at 30 m)
Vertical
±1/16 inch at 100 feet (1.5 mm at 30 m)
Applications
Concrete Forms, Footings and Foundations
Yes
Checking/Setting Elevations
Yes
Installation of Interior Fittings (cabinets, lighting, windows, countertops, etc.)
Yes
Installation/Leveling Interior Walls
Yes
Matching Existing Slope & Grade
Yes
Short-Range Leveling for Decks, Patios & Swimming Pools
Yes
Short-Run Vertical Alignment
Yes
Squaring and Layout of Partitions, Walls & Tile Floors
Yes
Battery/Power
Battery Life Alert
Yes
Battery Life with Rechargeable Battery Pack
Up to 40 hours
Power Source
4 x D-cell alkaline or Li-Ion batteries
Extra Technology
Detector/Receiver
ZRB35 Basic, ZRP105 Pro or ZRD105 Digital Receiver
Remote Control
ZRC60 Remote Control
Features
Adjustable Rotating Speed
300, 600 RPM
Protection Class
IP67 dustproof and water submersible
Tripod Adapter (Center Screw Thread)
5/8 x 11
Functions
Automatic Leveling
Yes
Grade Operation
Fully-automatic
General
Warranty
5-year
Weight
7.5 lbs (3.4 kg)
Grade
Percentage
±15%
Type
Dual
Laser
Classification
Class 1
Color
Red
Direction
Horizontal and vertical
Visibility
Visible
Wavelength
635 nm
Range
Exterior
Up to 3,000 feet (900 meters)
Self Leveling
±6 degrees
Temperature
Operating
-22 to 122° F (-20 to 50°C)
Storage
-22 to 140° F (-30 to 60°C)
