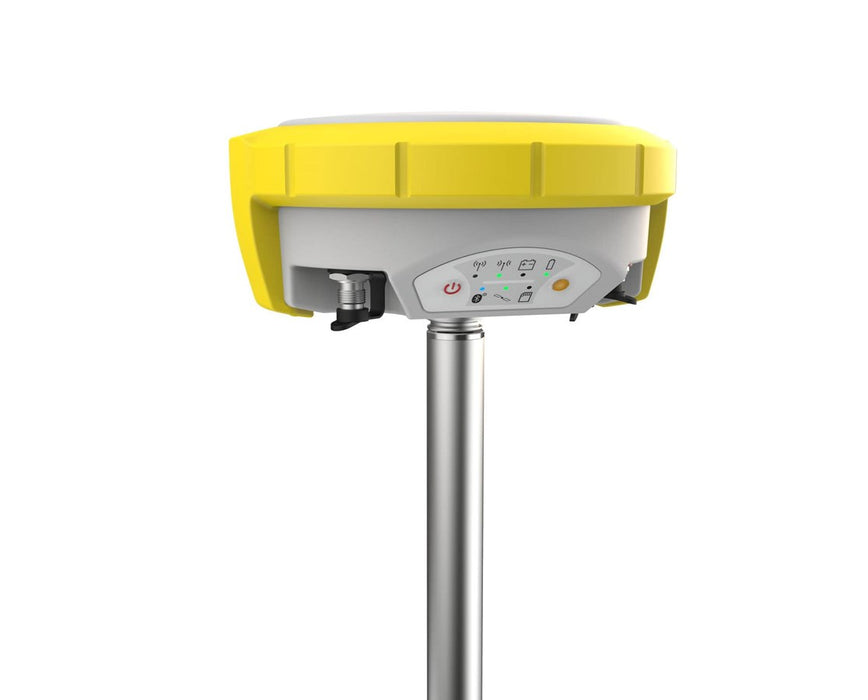

GeoMax Zenith16 GNSS Receiver

MFR#: 6015875
Original price List Price: USD $7,856.00
You Save: USD $786.00 -10%
Original price USD $7,856.00 - Original price USD $7,856.00
Original price List Price: USD $7,856.00
Current price USD $7,070.00
USD $7,070.00 - USD $7,070.00
Current price USD $7,070.00

Store Pickup: List of available stores available on the Checkout page.

GeoMax Zenith16 GNSS Receiver
GeoMax Zenith16 GNSS Receiver - USD $7,070.00
USD $7,070.00
*Must Purchase 1 for GeoMax Zenith16 GNSS Receiver

The cart will thereforce automatically set Qty to 1 when you order this product

One of our Sales Experts will be in touch!

Ghana
Free Shipping (USA) Ships Out Within: 2 - 4 Business Days Shipping Date By: 12/28/2024
Software is not included - Sold Separately
  • 181 NovAtel Channels for reliable satellite tracking
  • Enhanced indoor operations with the optional SATEL UHF module
  • Quick and easy data transfer via Bluetooth and QR-iConnect functionality
  • IP68 dustproof and water-resistant rating
  • Long-lasting 9-hour battery life

Get higher success and productivity rates at an affordable price with the GeoMax Zenith16 GNSS Receiver. This receiver benefits from Hexagon’s cutting-edge technology and partnership with leading brands including NovAtel and SATEL, giving it superior positioning technology and easy configuration.

World-Class Positioning Technology Zenith16 features the multi-constellation NovAtel OEM7 with 181 tracking channels including but not limited to GPS, GLONASS, BeiDou, and SBAS signals. The high-precision GeoMax Q-Lock Pro RTK reduces the time to fix, minimizes issues with canopy covers, and prevents inaccuracies due to multipath signals. With a 5Hz positioning rate, the Zenith16 can track L1, L2, and L2C GPS frequencies.

Open & Flexible Configuration The Zenith16 GNSS Receiver can fit right into your existing workflow. You can use the Zenith16 GNSS Receiver with your preferred software on your own field controller or with GeoMax X-PAD Ultimate on a dedicated GeoMax field controller. It features a strong Bluetooth connection and can also be connected to a field controller by scanning its QR code. Zenith16 can either be fully configured within the field software or with the Zenith Manager, a stand-alone application that can be used on Windows and Android. For use on mobile devices, Zenith Manager is freely available on the Google Play store.

Smooth Workflow with X-PAD X-PAD Ultimate is GeoMax’s dedicated field controller software that features an easy-to-use interface, straightforward workflow, and superior functionalities. Once you’re done, data can be exported via a removable microSD card and processed in the office with the X-PAD Fusion software. Fusion consolidates all data types from both GeoMax sensors and third-party sources such as drones. Zenith16 is also compatible with GeoMax’s X-Pole, an innovative feature that combines GNSS and TPS measurement modes into one pole.

Rugged Construction for Rough Environments Built to be used even in the toughest job sites, the Zenith16 is IP68 dustproof and water-resistant and can operate in extreme temperatures of –40°F to 149°F (–40°C to 65°C). It also withstands 6.5 ft (2 m) drops onto hard surfaces.

With superior positioning technology, excellent connectivity, open configuration, and rugged build, the GeoMax Zenith16 GNSS Receiver is a cost-effective solution for any positioning tasks.

Configuration Options

The GeoMax Zenith16 GNSS Receiver is available in two models with an optional SATEL UHF Flex Rover Set. Please choose your preference from the menu above.

  • 6015875: Zenith16 Rover Set
  • 6015876: Zenith16 UHF Flex Rover Set

The optional SATEL UHF radio module provides long-range base/rover pair operation and is ideal for professionals who often work indoors because of its better penetration through steel and concrete.

What’s in the Box

  • 1 Zenith16 GNSS Receiver
  • 1 ZBA201 Li-ion battery
  • 1 ZCH201 Battery charger
  • 1 GEV192 AC/DC Adapter GK112
  • 1 Zenith16 Accessory Kit: Case, Micro SD Card & USB
  • Quick guide and CD
  • User manual
  • 1-year manufacturer’s warranty
  • Zenith16 UHF Flex Rover Set (Optional)

Tiger Supplies offers a 30-day return policy from date of shipment for this product, subject to a 20% restocking fee, in addition to the return shipping charges. The product must be in new condition and in its original packaging. We take the responsibility to make sure this product arrives in a brand new working condition. Should your item arrive damaged, we will take full responsibility and replace the product at no cost to you.

For complete details of our return policy and process, please refer to our general return policy page.

Accuracy
RTK
Hz: 10 mm + 1 ppm
Static
Hz: 5 mm + 0.5 ppm
Battery/Power
Battery Life
9 hrs (static) / 6 hrs (rover)
Power Source
Removable Li-Ion 2.6 Ah
Voltage
7.4 V
Communication Interface
Bluetooth
Yes
Internal UHF
Optional
USB
Yes
Display/Keypad
Keys
On/off and Fn Key
General
Dimensions
ø7.8 x 3.8 in (ø198 x 95 mm)
Warranty
1-Year Manufacturer's Warrant
Weight
2.5 lbs (1.13 kg)
Temperature
Operating
-40°F to 149°F (–40°C to 65°C)
Tracking Features
Antenna
Optional
Channels
L1, L2, L2C
Satellites
GPS / GLONASS / BeiDou / Galileo / QZSS
