Walleye Prism

by Seco
MFR#: 6603-00
TIGER#: TS38779
Original price List Price: $266.47
You Save: $41.31 -16%
Original price $266.47 - Original price $266.47
Original price List Price: $266.47
Current price $225.16
$225.16 - $225.16
Current price $225.16

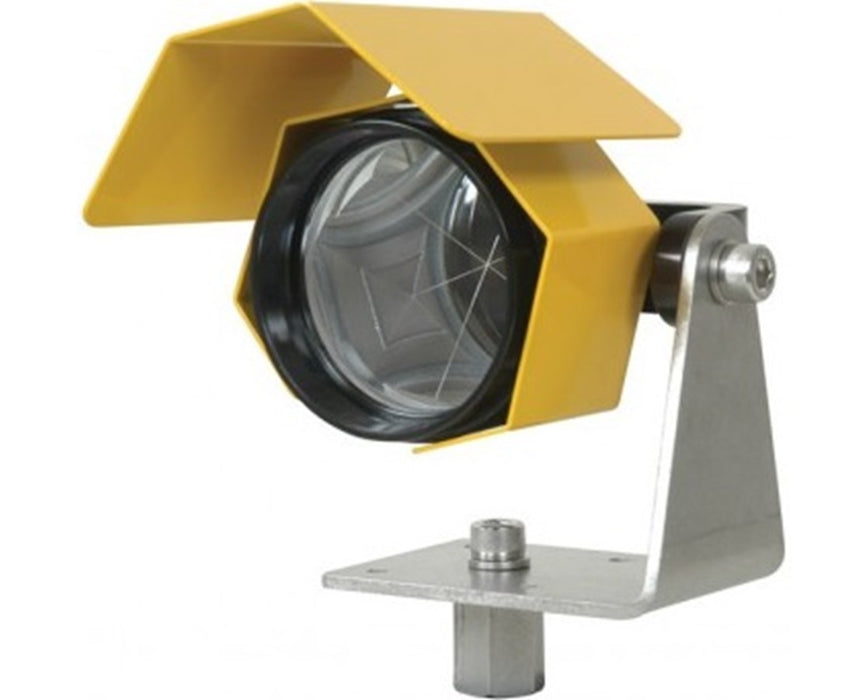

Walleye Prism
Walleye Prism - $225.16
$225.16
*Must Purchase 1 for Walleye Prism

The cart will thereforce automatically set Qty to 1 when you order this product

Ships Out Within: 5 - 7 Business Days Shipping Date By: 6/2/2024

One of our Sales Experts will be in touch!

  • Choice of 2 threaded adapters
  • Includes a -40 mm offset, ± 2 mm
  • Ability to pivot in two axes
  • Stainless-steel locking
  • Accommodates a full size 62 mm prism
  • Rain hood helps keep the prism clean
  • Compatible with all M20 screw-in type prism canisters

The Seco Walleye Prism System accommodates a full size 62 mm prism for long range applications or when a larger prism is needed. Features include a -40 mm offset, ± 2 mm, ability to pivot in two axes, and a stainless-steel locking type.

Plus, this prism has a rain hood that helps keep the prism clean to ensure continual measurements over a long measuring cycle. The flat bottom of this L-Bracket measures 2.3 x 3.4 inches with five holes suitable for mounting to a variety of surfaces.

It also has a center pivot hole which measures 3/8-inch and four screw holes with 11/64-inch outer diameter. The system is compatible with all M20 screw-in type prism canisters.

Configuration Options

The Seco Walleye Prism System comes in two adapter threading for increased flexibility. Choose your preference in the drop-down section above.

  • 6603-00: Complete Walleye Prism System with Prism and 5/8 x 11 Adapter
  • 6603-01: Complete Walleye Prism System with Prism and M8 Adapter
  • Choice of 2 threading adapters
  • Features include a -40 mm offset, ± 2 mm
  • Ability to pivot in two axes
  • Stainless-steel locking
  • Accommodates a full size 62 mm prism
  • Rain hood helps keep the prism clean
  • Components available individually so you can configure your specific needs
  • Flat bottom of the L-Bracket is a large 2.3 x 3.4 inches with five holes for mounting to a variety of surfaces
  • Center pivot hole is 3/8-inch (9.5 mm)
  • Four screw holes have 11/64-inch (4.5 mm) OD
  • Compatible with all M20 screw-in type prism canisters
  • The system weighs 1.55 lb. (0.70 kg)

What’s in the Box

  • Seco Walleye Prism System

Available Package Options

  • Complete Walleye Prism System with Prism and 5/8 x 11 Adapter
  • Complete Walleye Prism System with Prism and M8 Adapter

Tiger Supplies offers a 30-day return policy from date of shipment for this product, subject to a 15% restocking fee, in addition to the return shipping charges. The product must be in new condition and in its original packaging. We take the responsibility to make sure this product arrives in a brand new working condition. Should your item arrive damaged, we will take full responsibility and replace the product at no cost to you.

Order Cancellations will incur a 15% fee.

For complete details of our return policy and process, please refer to our general return policy page.
