UL633N Universal Grade Laser

MFR#: UL633N-BCC
TIGER#: TS20836
Original price List Price: USD $2,990.00
You Save: USD $598.00 -20%
Original price USD $2,990.00 - Original price USD $2,990.00
Original price List Price: USD $2,990.00
Current price USD $2,392.00
USD $2,422.00 - USD $2,422.00
Current price USD $2,392.00
UL633N Universal Grade Laser
UL633N Universal Grade Laser - USD $2,392.00
USD $2,392.00
*Must Purchase 1 for UL633N Universal Grade Laser

The cart will thereforce automatically set Qty to 1 when you order this product

IN STOCK Free Shipping (USA) Ships Out Within: 24 - 48 Hours Shipping Date By: 7/24/2024

One of our Sales Experts will be in touch!

Essential Add-Ons:
Aluminum Rod
Aluminum Rod
Details
$43.95
$44.95
Universal Contractor’s Tripod
Universal Contractor’s Tripod
Details
$75.99
$79.99
Topcon LS-B20 Machine Control Laser Receiver - 1063525-03
Topcon LS-B20 Machine Control Laser Receiver - 1063525-03
Details
$648.00
Fiberglass Rod
Fiberglass Rod
Details
$76.95
  • Range up to 2,600 feet
  • Accuracy ±1/16 inch at 100 feet
  • Self-leveling within ±14 degrees
  • Grade range to ±25% in X, Y, Z axes
  • Includes Spot Finder & two HL760 receivers
  • Automatic axis alignment
  • Grade matching and PlaneLok
  • Graphic LCD display and keypad

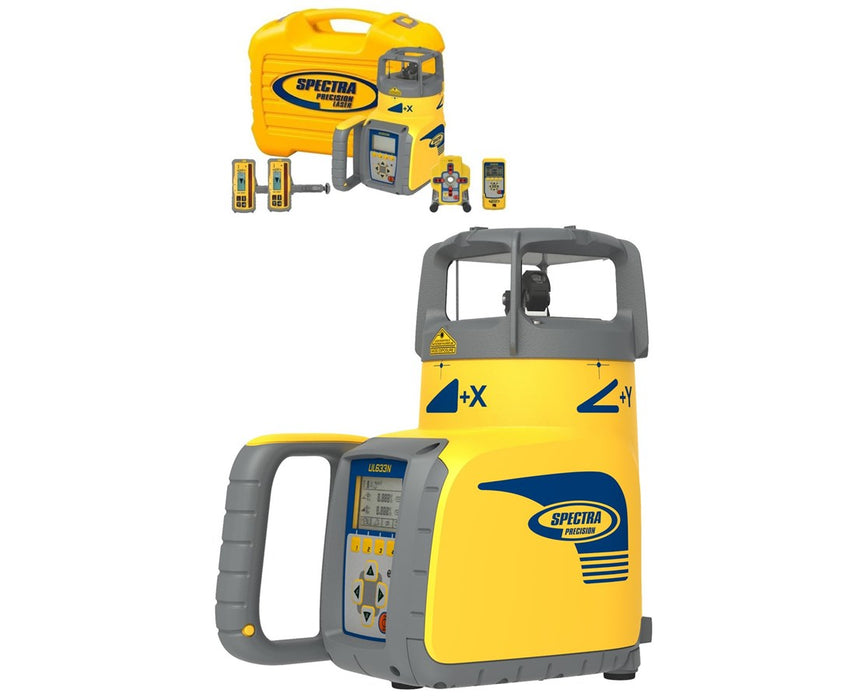

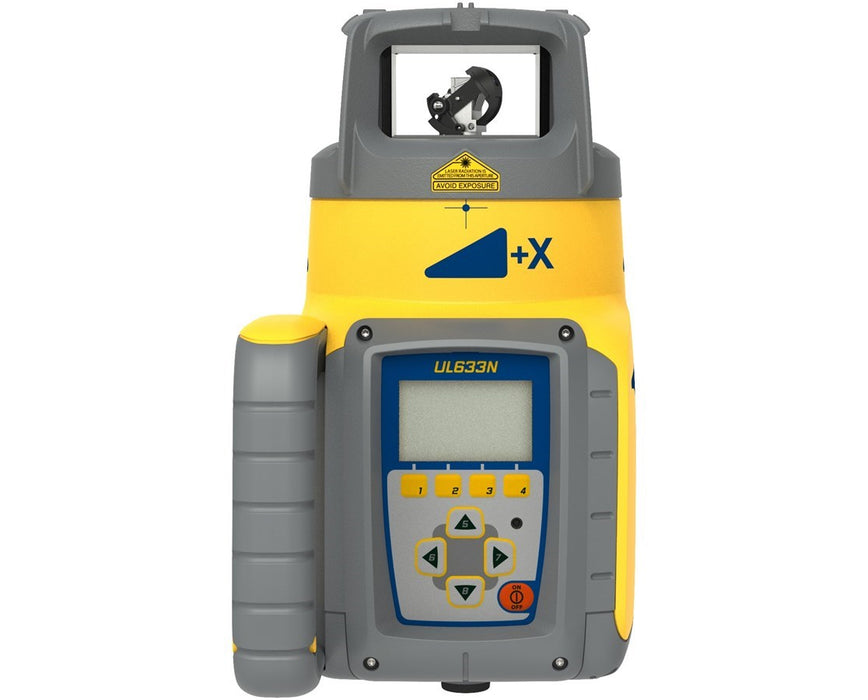

The Spectra UL633N is the first construction grade laser that offers full automatic control of the X, Y, Z axes. With a working range up to 2,600 feet, this rotary laser provides precise automatic axis alignment, PlaneLok, and grade matching capabilities. It also includes a laser receiver, wireless remote display, and monitoring of slope measurements. With a self-leveling accuracy of 1/16th inch and fully automatic to ±25% grade on all X, Y, and Z axes, the versatile UL633N is suitable for both simple and complex grade and concrete work. This Spectra laser facilitates control of the Z axis via automatic detection of the plumb beam, while control of the X and Y axis utilizes a dual radio connection. The UL633 can also be mounted on a 5/8-11 tripod in a vertical or horizontal position.

The Spectra UL633N is also the first laser where the plumb beam can be changed into a rotating fan beam which can be detected by the SF601 Spot Finder. The laser can align the plumb beam automatically to the Spot Finder for pipe laying and trench applications. The combination also offers additional versatility for 90-degree layout applications on concrete pads as well as indoors for drywall. Measuring a grade value through an existing pipe or an open trench can also be done quickly and easily in automatic Spot Match mode. Activating the SpotLok mode ensures the UL633N locks and holds the plumb beam automatically to the Spot Finder at the desired direction or elevation point offering a precise alignment to avoid rework.

Since the UL633N can work with two HL760 laser detectors simultaneously, contractors can measure an unknown grade value automatically between two elevation points in Grade Match mode. This grade laser can also provide precise automatic axes alignments to two desired points without positioning the two HL760 laser detectors 90 degrees perpendicular. This allows construction professionals to easily perform dual axis alignments for applications such as grade work on sports fields, parking lots, tennis courts, and driveways.

The Spectra UL633N incorporates automatic temperature and grade compensation for high accuracy in any weather or geographical location. Mask mode eliminates interference and allows the use of multiple lasers on site, while electronic leveling vibration filter reduces vibrations typically experienced on tall tripods, in high winds or on high vibration job sites. This laser level also includes a combined radio and infrared RC603 remote control with a built-in backlit, graphic display that allows you to control the laser up to 330 feet away. With an IP67 rating, the UL633N is sealed from moisture and dust and is built to survive a drop of up to three feet high on concrete. This dual grade slope laser works up to 35 hours using rechargeable NiMH batteries and approximately 40 hours using alkaline batteries.

Configuration Options

The Spectra Precision UL633N Universal Grade Laser comes in options that differ in their configuration. You may choose the standard package, or the package with additional devices, such as two (2) Laser Receivers, remote, and spot finder. Kindly choose your preference in the options menu above.

  • UL633N-BCC: Standard Package

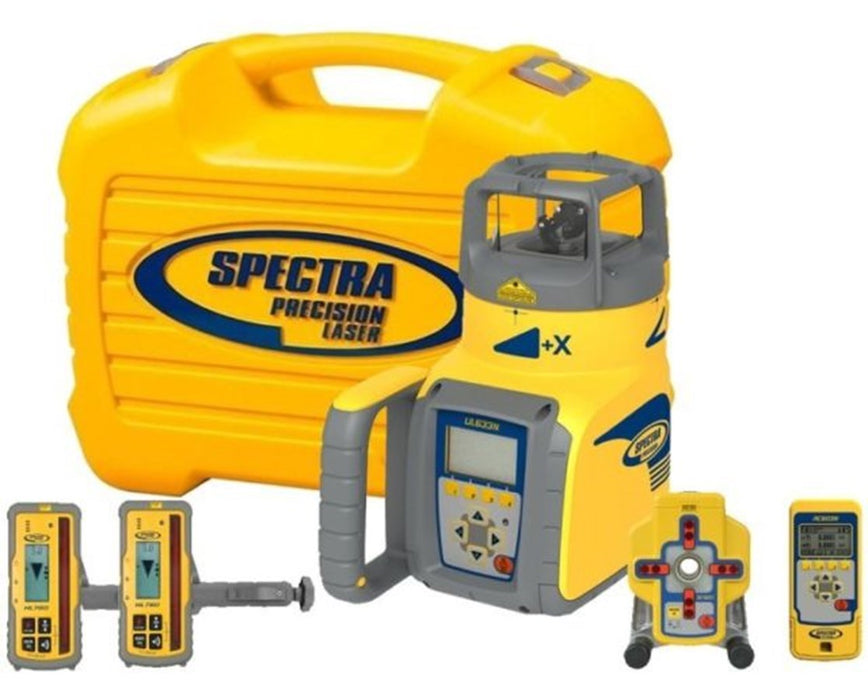

  • UL633N: With Two (2) HL760 Receivers, RC603N Remote, SF601 Spot Finder & Adapter
No Cost 5-Year Warranty offers no repair charge for parts and labor of the laser.
Shock Proof ensures this construction laser withstands a three feet drop onto concrete.
Included Radio Remote control is easier to use because it does not have to be aimed at the laser for it to work. This increases the flexibility of the laser for long-range setups while maintaining outstanding accuracy.
Fingerprint function filters out other lasers that strike the receiver and only accepts the laser that it is paired with.
Grade Match enables contractors to measure an unknown grade value automatically between two elevation points.
Dual Axis PlaneLok keeps the laser beam fixed to a receiver in a set position, making it accurate and error free.

Automatic Axis Alignment provides the benefit of simultaneously aligning two axes at 90 degrees to each other.

Spot Finder allows automatic alignment of the plumb beam. This accessory provides fast alignment to a manhole on a first-day set-up, or to quickly set out a 90-degree angle.
Active Temperature Compensation gives accurate, stable results regardless of temperature changes.
  • Up to 2,600-foot operating range
  • ±1/16 inch accuracy at 100 feet
  • Self-leveling within ±14 degrees
  • Grade range to ±25% in X, Y, Z axes
  • Automatic axis alignment
  • Two HL760 laser receivers
  • Spot finder for detecting the plumb beam
  • Spot match to measure unknown slopes in existing pipes
  • Grade matching measures and displays the existing grade
  • PlaneLok automatically locks on the laser beam
  • Horizontal angle measurement
  • Automatic Spot Align for short pipe laying applications
  • Scan mode with five preset sizes and variable adjustment
  • Different rotation modes
  • Mask mode for using multiple lasers on site
  • Electronic leveling vibration filter
  • Automatic temperature compensation
  • Radio remote control
  • Ideal for machine control applications
  • 5/8-11 tripod thread
  • 40-hour battery life
  • Water resistant and dustproof to IP-67
  • Withstands 3 feet drop onto concrete
  • Graphic LCD display and keypad

What’s in the Box

  • Spectra UL633N Universal Grade Laser
  • Rechargeable NiMH battery pack
  • Universal charger
  • Hard carrying case
  • User manual
  • 5-year manufacturer's warranty

Available Package Options

  • Type: Standard or w/ (2) HL760 Receivers, RC603N Remote, SF601 Spot Finder & Adapter
  •

Tiger Supplies offers a 30-day return policy from date of shipment for this product, subject to a 20% restocking fee, in addition to the return shipping charges. The product must be in new condition and in its original packaging. We take the responsibility to make sure this product arrives in a brand new working condition. Should your item arrive damaged, we will take full responsibility and replace the product at no cost to you.

For complete details of our return policy and process, please refer to our general return policy page.

Accuracy
Horizontal
±1/16 inch at 100 feet
Applications
Concrete Forms, Footings and Foundations
Yes
Checking Building Square & Area
Yes
Checking Elevations of Sub-Base and Sub-Grade
Yes
Checking/Setting Elevations
Yes
Estimating Cut & Fill
Yes
Installation of Interior Fittings (cabinets, lighting, windows, countertops, etc.)
Yes
Installation/Leveling Ceiling Grids
Yes
Installation/Leveling Interior Walls
Yes
Locating Finished Floor Levels
Yes
Machine Control of Excavators, Graders, Dozers or Similar Equipment
Yes
Matching Existing Slope & Grade
Yes
Plumb Reference
Yes
Short-Range Leveling for Decks, Patios & Swimming Pools
Yes
Short-Run Vertical Alignment
Yes
Squaring and Layout of Partitions, Walls & Tile Floors
Yes
Transferring Points from Floor to Ceiling
Yes
Battery/Power
Battery Life Alert
Yes
Battery Life with Alkaline Batteries
Up to 40 hours
Battery Life with Rechargeable Battery Pack
Up to 35 hours
Power Source
NiMH or alkaline batteries
Charger
Charging Time
Up to 10 hours
Extra Technology
Detector/Receiver
2 x HL760
Remote Control
RC603N
Features
Adjustable Rotating Speed
0 - 750 RPM
Automatic Shut-Off
Yes
Detecting Indicator
LCD indications and LED flashes
Display
Backlit, graphic LCD
Drop Damage Protection
Up to 3 feet onto concrete
Protection Class
IP67 dustproof and water submersible
Tripod Adapter (Center Screw Thread)
5/8 x 11
Functions
Automatic Leveling
Yes
Beam Operating Modes
Beam masking
Grade Operation
Automatic
Scanning Modes
5 preset sizes and variable adjustment
Slope Match
Yes
General
Remote Control Operating Distance
Up to 490 feet (150 m)
Warranty
5-year
Weight
6.8 lbs (3.1 kg)
Grade
Accuracy
±1/8 inch at 100 feet (3.0 mm per 30 m)
Percentage
±25% (X,Y,Z axes)
Type
Universal
Laser
Classification
Class 3A/3R
Color
Red
Direction
Horizontal and vertical
Visibility
Visible
Wavelength
650 nm
Range
Exterior
Up to 2,600 feet (800 m)
Self Leveling
±14 degrees
Temperature
Operating
-4 to 122 °F (-20 to 50 °C)
Storage
-4 to 158 °F (-20 to 70 °C)
