ULTRA Precision Utility Tracing Transmitter

by Leica
MFR#: 818702
TIGER#: TS53938
Original price $2,550.00 - Original price $2,550.00
Original price List Price: $2,550.00
$2,550.00
$2,550.00 - $2,550.00
Current price $2,550.00
ULTRA Precision Utility Tracing Transmitter
ULTRA Precision Utility Tracing Transmitter - $2,550.00
$2,550.00
*Must Purchase 1 for ULTRA Precision Utility Tracing Transmitter

The cart will thereforce automatically set Qty to 1 when you order this product

Ships Out Within: 7 - 10 Business Days Shipping Date By: 6/13/2024

One of our Sales Experts will be in touch!

  • Choice of 3 types
  • Cutting-edge communication link
  • 100 custom frequencies
  • Frequency range: 256 Hz – 200 kHz
  • High-contrast graphical LCD
  • 17 user selectable languages
  • IP65 environmental protection class
  • Shock resistant
  • Works with Leica ULTRA Standard and Advanced locators

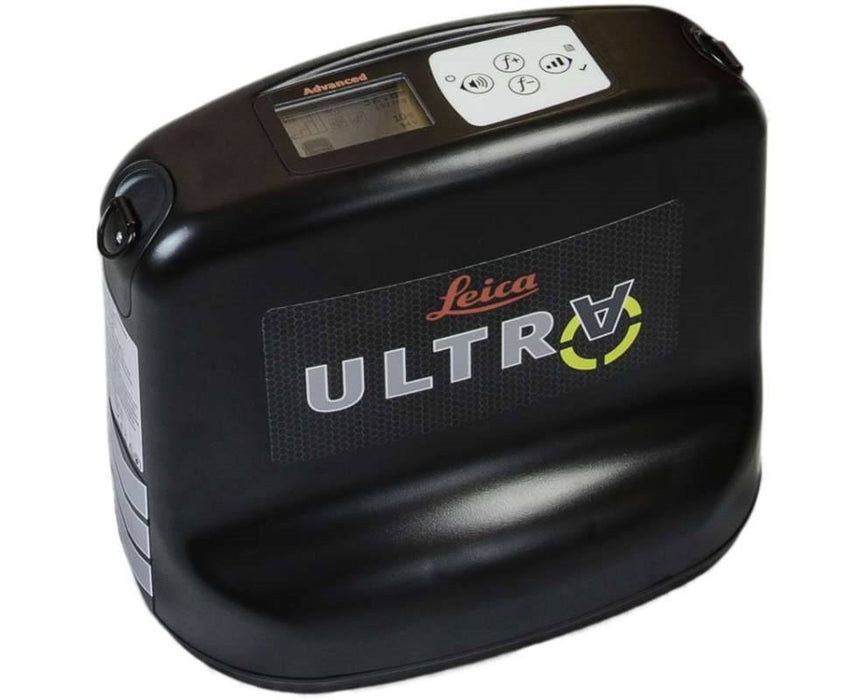

The Leica ULTRA Precision Utility Tracing Transmitter is an essential tool for tracing buried utility lines accurately for safe underground excavations and utility surveys. It works perfectly with the Leica ULTRA Standard and Advanced locators automatically and directly with the cutting-edge communication link between devices. It features up to 100 custom frequencies from 256 Hz to 83 kHz and a frequency range of 256 Hz to 200 kHz.

This transmitter has a high-contrast graphical LCD and supports 17 user selectable languages. It is available in 5-watt and 12-watt standard types and a 12-watt advanced type. The advance version features a dual output, receiver/transmitter communication for remotely controlling of the transmitter, and an external 12-volt power connection.

The ULTRA transmitter is built and designed to withstand the ever-changing and harsh outdoor conditions. It has the IP65 environmental protection class which guarantees that the device is shock resistant and is protected against water and dust ingress. It is powered by 10 D-Cell (LR20) or Li-Ion battery pack and can last up to 100 hours of use.

Configuration Options

The Leica ULTRA Precision Utility Tracing Transmitter is available in three different types. Please select your preference from the menu above.


Item #


Type


Wattage


External 12V Power Connection


Offset Measuring


Bluetooth

818702


Standard


5


No


No


No

818701


Standard


12


No


No


No

818700


Advanced


12


Yes


Yes


Yes

  • Standard or advanced type
  • 5 or 12 watts
  • Cutting-edge communication link
  • 100 custom frequencies
  • Frequency range: 256 Hz – 200 kHz
  • High-contrast graphical LCD
  • 17 user selectable languages
  • IP65 environmental protection class
  • Shock resistant
  • Dual output for advanced type
  • External 12-volt power connection
  • Works with Leica ULTRA Standard and Advanced locators

What’s in the Box

  • Leica ULTRA Precision Utility Tracing Transmitter
  • 1 Year Manufacturer's Warranty

Available Product Options

  • Wattage: 5 or 12
  • Type: Advance or Standard

Leica Geosystems products are special order only.

We do not accept returns or cancellations for special ordered items.

Applications
Cable Location
Yes
Pipe Location
Yes
Battery/Power
Battery Life
100 hrs with alkaline
Power Source
10 D-Cell (LR20) or Li-Ion battery pack (optional)
Features
Display
High contrast graphical LCD
Frequency
Power Mode
512 Hz, 3.14 kHz, 8.192 kHz, 32.768 kHz, 83.1 kHz, and 200 kHz
General
Operating Temperature
-4 °F to 122 °F
Protection Class
IP65
Warranty
1 year
Weight
7.7 lbs
