ULTRA Precision Utility Tracing System Kit

by Leica
MFR#: 6011143
Original price List Price: USD $8,633.00
You Save: USD $1,439.00 -17%
Original price USD $8,633.00 - Original price USD $8,633.00
Original price List Price: USD $8,633.00
Current price USD $7,194.00
USD $7,194.00 - USD $7,194.00
Current price USD $7,194.00

Store Pickup: List of available stores available on the Checkout page.

ULTRA Precision Utility Tracing System Kit
ULTRA Precision Utility Tracing System Kit - USD $7,194.00
USD $7,194.00
*Must Purchase 1 for ULTRA Precision Utility Tracing System Kit

The cart will thereforce automatically set Qty to 1 when you order this product

One of our Sales Experts will be in touch!

Free Shipping (USA) Ships Out Within: 14 - 21 Business Days Shipping Date By: 1/2/2025
Essential Add-Ons:
Mini Sonde
Mini Sonde
Details
$530.00
  • Frequency range: 50 Hz to 200 kHz
  • 100 user-programmable custom frequencies
  • Ambient Interference Measurement
  • Variable antenna configuration
  • Special direction enabled signal
  • Optional Bluetooth connectivity
  • Large backlit LCD display with compass
  • Bluetooth connectivity

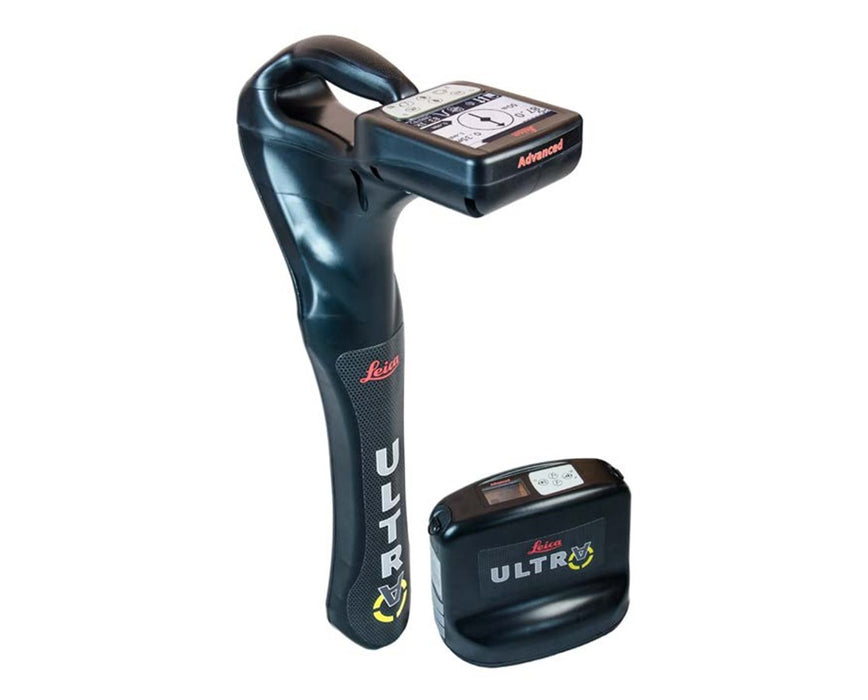

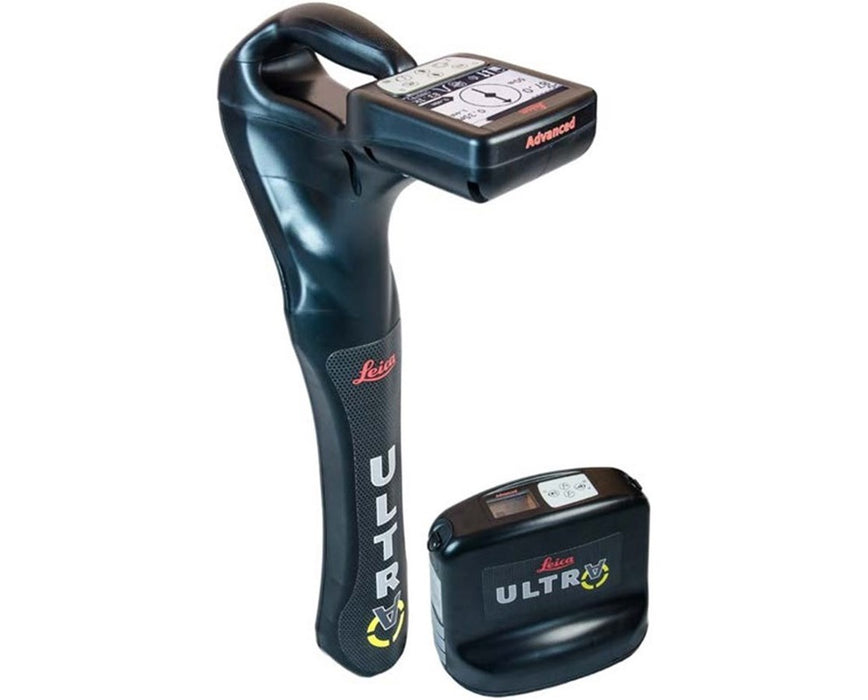

The Leica ULTRA Precision Utility Tracing System is the best precision locating system for detecting utilities buried underground. With over 100 user-programmable custom frequencies, the operator can optimize the instrument to overcome the most challenging and complex site conditions. It features a frequency range from 50 hertz to 200 kilohertz and a depth detection of up to 20 feet.

Featuring the Ambient Interference Measurements (AIM) feature, this tracing system analyzes the surrounding area for noise and recommends the best frequencies for accurate utility tracing. Also, it includes a variable antenna configuration for best job site optimization. Plus, it comes with a Bluetooth connectivity and a special direction enabled signal.

This Ultra tracing system has an IP65 rating which protects the unit from dust and water jets. It includes a large backlit LCD display with a compass that provides a clear and improved location and utility detection. As an extra feature, it uses two D-cell alkaline batteries that power the device up to 30 hours of continuous use.

Configuration Options

The Leica ULTRA Precision Utility Tracing System has three available kits. Please choose from the drop-down menu above.

  • 6011143: 5-Watt Transmitter and Standard Locator Kit
  • 6011141: 12-Watt Transmitter and Advanced Locator Kit
  • 6011142: 12-Watt Transmitter and Standard Locator Kit


Item #


Transmitter Wattage


Locator Type


Ambient Interference Measurements (AIM)


Offset Measuring


Bluetooth

6011143


5


Standard


No


No


No

6011141


12


Advanced


Yes


Yes


Yes

6011142


12


Standard


No


No


No

  • Choice of 3 kits
  • Frequency range from 50 Hz to 200 kHz
  • Up to 100 user-programmable custom frequencies
  • Ambient Interference Measurement
  • Variable antenna configuration
  • Special direction enabled signal
  • Bluetooth connectivity
  • Large backlit LCD display with compass
  • IP65 dustproof and water resistant
  • Up to 30 hours with 2 D-cell alkaline batteries

What’s in the Box

  • Leica ULTRA Precision Utility Tracing System Kit
  • Transmitter
  • 5" Signal Clamp
  • System Bag
  • Quick Guide
  • User Manual
  • 1 Year Manufacturer's Warranty

Available Package Options

  • Transmitter Wattage: 5 or 12 Watt
  • Locator Type: Standard or Advanced

1-year manufacturer’s warranty.

Leica Geosystems products are special order only.

We do not accept returns or cancellations for special ordered items.

Applications
Cable Location
Yes
Drain Location
Yes
Pipe Location
Yes
Battery/Power
Battery Life
Locator: up to 70 hrs intermittent use, Transmitter: up to 100 hrs
Low Battery Alert
Yes
Power Source
Locator: 2 D-cell; Transmitter: 10 D-cell
Features
Audio Alert
Yes
Compatibility
Leica Digimouse and Maxi Sonde
Display
LCD with backlight
GIS Mapping
with Advanced package
Sleep Mode/Auto Shut Off
User-defined
Visual Alert
Yes
Frequency
Power Mode
512 Hz, 3.14 kHz, 8.192 kHz, 32.768 kHz, 83.1 kHz, 200 kHz plus 100 user-selected
Transmitter Mode
512 Hz, 3.14 kHz, 8.192 kHz, 32.768 kHz, 83.1 kHz, 200 kHz plus 100 user-selected
General
Depth Detection
Up to 20 ft. (6.1 m)
Operating Temperature
-4 to 122 °F (-20 to 50°C)
Protection Class
IP65 dustproof and water jet resistant
Warranty
1-year
Weight
4.8 lbs (2.2 kg) Locator; 7.7 lbs (3.5 kg) Transmitter
Wireless Capability
Bluetooth
With Advanced package
Data Transfer
Yes
  • Alternative Models
