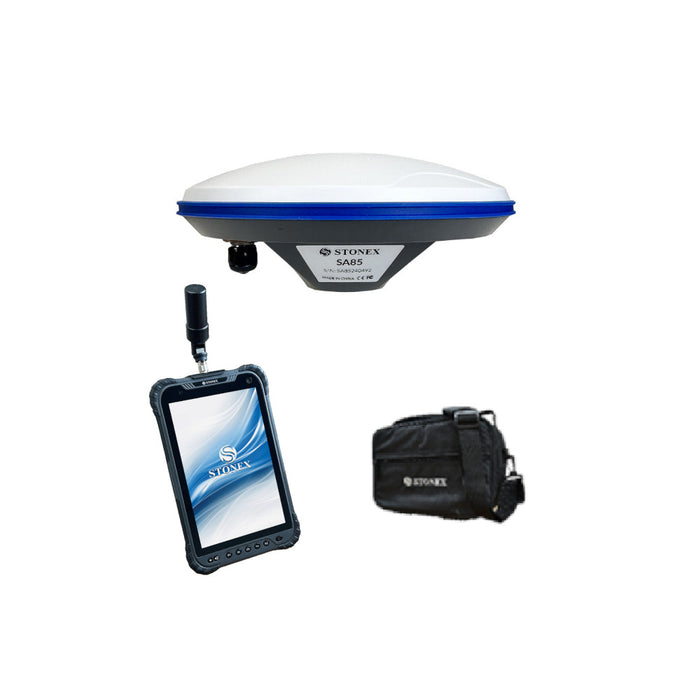

Stonex SA85 GNSS Geodetic Antenna with S80G Tablet Package

by STONEX

MFR#: SA8-P1

List Price: USD $6,300^.00

You Save: USD $1,260^.00

USD $6,300^.00 - USD $6,300^.00

List Price: USD $6,300^.00

USD $5,040^.00

USD $5,040^.00 - USD $5,040^.00

USD $5,040^.00

Store Pickup: List of available stores available on the Checkout page.

Stonex SA85 GNSS Geodetic Antenna with S80G Tablet Package - USD $5,040^.00

USD $5,040^.00

*Must Purchase 1 for Stonex SA85 GNSS Geodetic Antenna with S80G Tablet Package

The cart will thereforce automatically set Qty to 1 when you order this product

Free Shipping (USA) Ships Out Within: 2 - 4 Business Days Shipping Date By: 5/3/2025

All-constellation compatibility Tracks GPS, GLONASS, Galileo, BeiDou, QZSS, IRNSS, SBAS, and L-Band
Geodetic-grade phase stability ±2mm center stability ensures reliable measurement accuracy
Compact, rugged GNSS antenna Lightweight at 1 lbs. (450g) and IP67-rated for outdoor use
S80G Android controller Runs on Android 13 with octa-core processor and 8" HD screen (800 nits)
Cube-a GPS + GIS v6.x Dual-function data collection software included for mapping and surveying workflows
Connectivity ready Bluetooth, Wi-Fi, USB Type-C, cellular LTE with SIM slot
Field-ready package Includes cable, 2m carbon fiber pole, bracket, and soft carry bag for transport

The Stonex SA85 + S80G GNSS Package is a precision-focused solution designed for surveyors and GIS professionals who need reliable performance in demanding environments. Pairing the compact SA85 geodetic GNSS antenna with the rugged S80G Android controller, this package offers a flexible and field-ready setup for high-accuracy static or kinematic measurements.

The SA85 antenna supports all major constellations and L-band corrections, with outstanding phase center stability and high gain reception—even in low-elevation or obstructed environments. With IP67 protection and a compact 450g form factor, it’s easy to deploy for everything from CORS monitoring to mobile surveys.

The S80G tablet features an 8" sunlight-readable touchscreen, a powerful Android 13 OS, and multi-network cellular connectivity. It comes bundled with Cube-a GPS and GIS v6.x software, giving users a streamlined workflow for both GIS mapping and survey-grade positioning.

This package includes a 2-meter carbon fiber pole, antenna cable, rugged pole mount and a soft carry bag.

Complete GNSS solution: SA85 antenna + S80G controller
Tracks GPS, GLONASS, Galileo, BeiDou, QZSS, IRNSS, SBAS, L-Band
±2mm phase center stability for high-precision performance
S80G controller with Android 13 and 8” sunlight-readable display
Cube-a GPS and GIS software included
IP67-rated housing on both units for harsh environments
Includes carbon fiber pole, bracket, cable, and soft carry bag

What’s in the Box

SA85 GNSS Geodetic Antenna
S80G GNSS Tablet - 1408 Channels, Android
S80G Bracket
2M Carbon Fiber Pole (2 section)
Antenna Cable for SA85
Cube-a GPS v6.x software
Cube-a GIS v6.x software
Soft Bag
