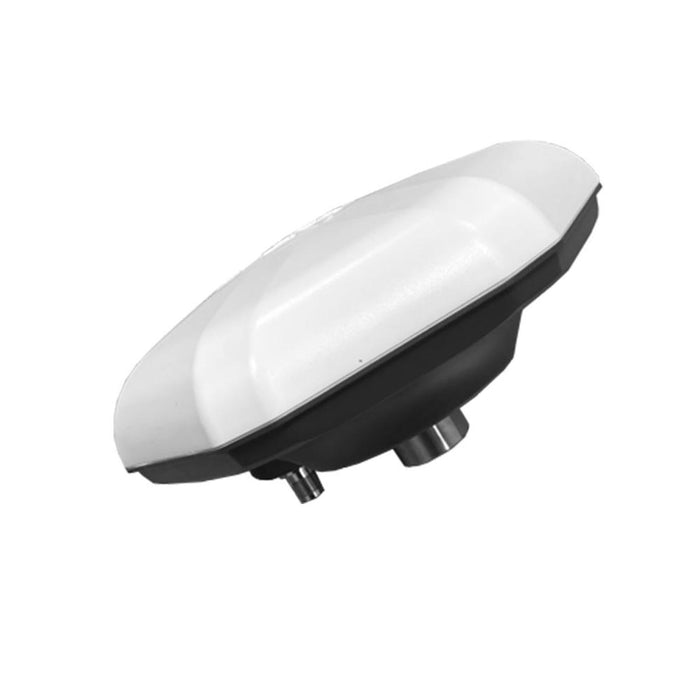

Stonex SA3G+C GNSS Reference Antenna | 30-357120

by STONEX

MFR#: 30-357120

List Price: USD $3,930^.00

You Save: USD $786^.00

USD $3,930^.00 - USD $3,930^.00

List Price: USD $3,930^.00

USD $3,144^.00

USD $3,144^.00 - USD $3,144^.00

USD $3,144^.00

Store Pickup: List of available stores available on the Checkout page.

Stonex SA3G+C GNSS Reference Antenna | 30-357120 - USD $3,144^.00

USD $3,144^.00

*Must Purchase 1 for Stonex SA3G+C GNSS Reference Antenna | 30-357120

The cart will thereforce automatically set Qty to 1 when you order this product

IN STOCK Free Shipping (USA) Ships Out Within: 24 - 48 Hours Shipping Date By: 4/29/2025

Documents

Item Brochure

Polarization: RHCP
Protection Class: IP69
Mounting: 5/8"
Connector: TNC Female
Operating Temperature: -49°F to 167°F (-45°C to 75°C)

The SA3G+C GNSS Antenna is a lightweight yet high-performance solution for precision positioning across a wide range of static and kinematic applications. Designed to rival the capabilities of traditional choke ring antennas, it supports full GNSS constellation tracking—including GPS, GLONASS, Galileo, BeiDou, and L-band correction signals—making it ideal for CORS, RTK networks, and geodetic surveying.

With a single-layer design delivering a unified phase center for all GNSS signals, the SA3G+C achieves exceptional positional precision of ±1 mm. Fully compatible with all geodetic GNSS receivers, it can be seamlessly integrated into both permanent reference stations and field setups.

Despite weighing just 400 grams, the SA3G+C is built for demanding environments. It boasts an IP69 rating and complies with MIL-STD-810G standards, ensuring durability in extreme conditions. Engineered and manufactured in Germany, it is one of the most reliable and precise GNSS antennas available worldwide.

Multi-constellation support: Tracks GPS, GLONASS, Galileo, BeiDou, and receives L-band corrections.
±1 mm precision: High-accuracy measurements with a unified phase center across all GNSS signals.
CORS and network-ready: Ideal for reference stations, static setups, and dynamic survey applications.
Universal compatibility: Works with all GNSS geodetic receivers on the market.
Rugged construction: IP69-rated and MIL-STD-810G certified for harsh weather and field conditions.

What’s in the Box

SA3G+C GNSS Reference Antenna
