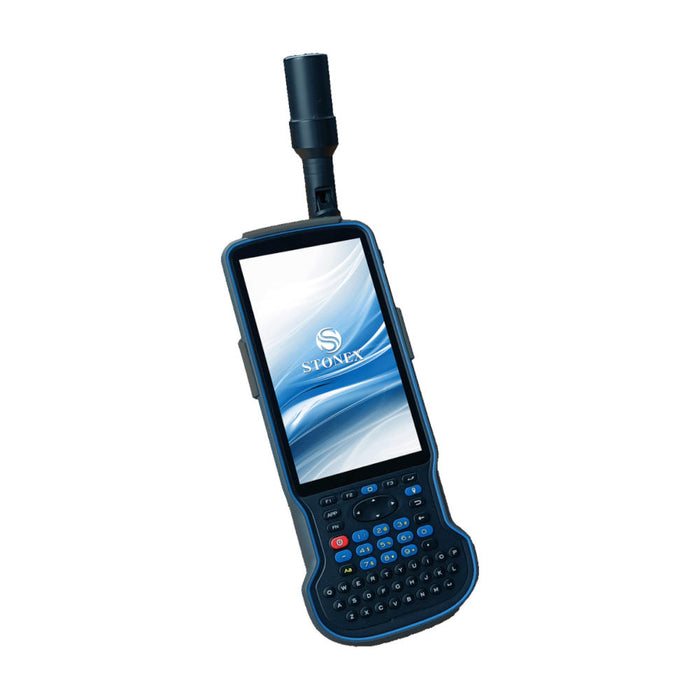

Stonex S55G RTK GNSS Controller, 1408 Channels, 4G | 50-550743

by STONEX

MFR#: 50-550743

List Price: USD $3,190^.00

You Save: USD $638^.00

USD $3,190^.00 - USD $3,190^.00

List Price: USD $3,190^.00

USD $2,552^.00

USD $2,552^.00 - USD $2,552^.00

USD $2,552^.00

Store Pickup: List of available stores available on the Checkout page.

Stonex S55G RTK GNSS Controller, 1408 Channels, 4G | 50-550743 - USD $2,552^.00

USD $2,552^.00

*Must Purchase 1 for Stonex S55G RTK GNSS Controller, 1408 Channels, 4G | 50-550743

The cart will thereforce automatically set Qty to 1 when you order this product

Free Shipping (USA) Ships Out Within: 2 - 4 Business Days Shipping Date By: 5/3/2025

Documents

Item Brochure

Channels: 1408
Position Rate: 5Hz
Display: 5.5"
Camera: Rear
Operating System: Android
Protection Class: IP67
Operating Time: Upto 18 Hours
Operating Temperature: -4°F to 149°F (-20°C to 65°C)

The Stonex S55G is a compact yet powerful RTK GNSS controller that integrates a high-precision GNSS board, a full QWERTY keyboard, and advanced field functionalities for real-time and post-processed data collection. Equipped with 1408 channels and support for all major satellite constellations (GPS, GLONASS, BEIDOU, GALILEO, QZSS, IRNSS), it provides exceptional positioning capabilities in any environment.

Running on Android 12, the S55G offers a simple and intuitive interface on a 5.5″ high-brightness TFT display (1920 x 1080, 500 nits), ensuring clear visibility under all lighting conditions. The integrated laser pointer helps accurately identify surveyed or staked points in the field, enhancing precision during layout tasks.

With the ability to work in real-time using RTK corrections and record raw GNSS data simultaneously, the S55G ensures flexibility for both live positioning and office post-processing. The device also supports PPP correction services (HAS and B2b), enabling decimetric accuracy without the need for a local base station.

Designed for field versatility, the S55G can receive RTK corrections via UHF radio using the external SR02 radio or from a network of GNSS Permanent Stations. With optional compatibility with the SA85 antenna, users can further enhance precision and performance in challenging conditions.

Triple-frequency GNSS board with 1408 channels: Tracks all global constellations for maximum accuracy and redundancy.
5.5″ Full HD touchscreen: Bright, high-resolution (1920x1080) display for outdoor readability.
RTK + Raw Data Logging; Works in real-time with RTK while capturing data for post-processing.
Integrated QWERTY keyboard and laser pointer: Enhances usability and field precision during stakeout.
Supports PPP corrections: Offers decimetric accuracy even without local base stations.

What’s in the Box

S55 Controller
Pen
Hand Strap
Charger with 2 Adapters
Screen Sticker
Carton Box
