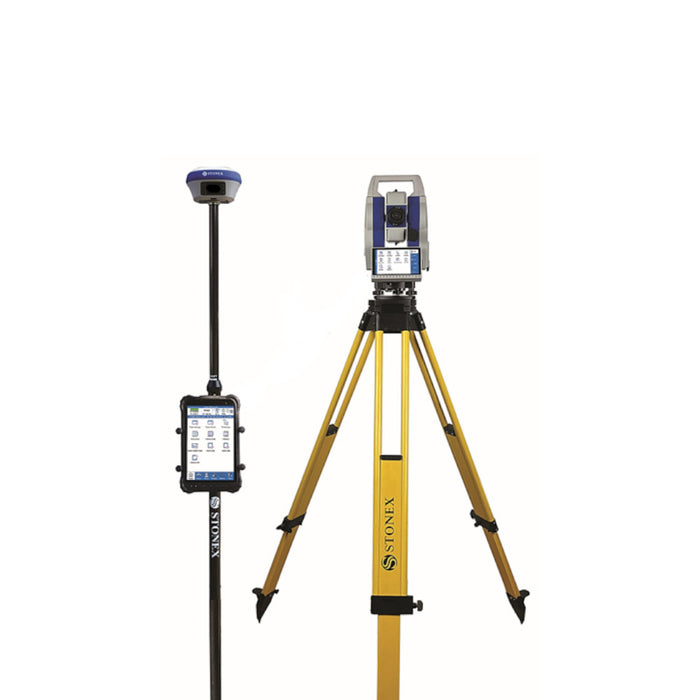

Stonex R60 Total Station with UT12P Controller and S900+ GNSS Receiver Package

by STONEX

MFR#: R60-P1

List Price: USD $18,140^.00

You Save: USD $3,628^.00

USD $18,140^.00 - USD $18,140^.00

List Price: USD $18,140^.00

USD $14,512^.00

USD $14,512^.00 - USD $14,512^.00

USD $14,512^.00

Store Pickup: List of available stores available on the Checkout page.

Stonex R60 Total Station with UT12P Controller and S900+ GNSS Receiver Package - USD $14,512^.00

USD $14,512^.00

*Must Purchase 1 for Stonex R60 Total Station with UT12P Controller and S900+ GNSS Receiver Package

The cart will thereforce automatically set Qty to 1 when you order this product

Free Shipping (USA) Ships Out Within: 2 - 4 Business Days Shipping Date By: 5/3/2025

R60 Total Station

Angular accuracy: 2"
Distance range: 1000m (reflectorless), 5000m (prism), 800m (reflective sheet)
Endless drives for smooth manual targeting
Dual-axis compensator for automatic leveling correction
Red dot laser plummet with ±1.0mm @ 1.5 m accuracy
5.5" color touch (720×1080), Android 11 OS
Communication: USB Type-A & C, RS232, Bluetooth, Wi-Fi
Dual Li-Ion batteries, 6-hour runtime, IP55 rated

Stonex S900⁺ GNSS Receiver

Tracks GPS, GLONASS, Galileo, BeiDou, QZSS, IRNSS, SBAS
RTK Accuracy: 5mm + 0.5 ppm (Horizontal), 10mm + 0.5 ppm (Vertical)
Position update rate: up to 20 Hz
IMU and e-Bubble tilt compensation for faster workflows
Fast initialization (2–4 seconds)
UHF radio (410–470 MHz), range up to 10 km
Dual replaceable Li-Ion batteries, 12-hour runtime, IP67 rated

Stonex UT12P Controller

Android 10 GMS with 6" HD display (400 nits brightness)
Capacitive multi-touch, glove and wet-condition support
Dual cameras (rear and front) for field documentation
GSM, Bluetooth, and Wi-Fi connectivity
Long-lasting battery with up to 15-hour runtime
Bluetooth connection to both GNSS and total station

Stonex R60 OnePole solution combines the efficiency of the Stonex R60 Total Station, the precision of the S900⁺ GNSS receiver, and the dependable performance of the UT12P Android controller, all supported by Cube-a GPS/TS software to streamline complex workflows.

The R60 Total Station is built on an Android platform with a 5.5” high-resolution color touchscreen, intuitive interface, and powerful EDM that measures up to 5000m with a prism and 1000m reflectorless. Features like dual-axis compensation, guide light, integrated temperature and pressure sensors, and laser plummet allow for accurate measurements in dynamic environments. Its communication ports include USB Type-A and C, RS232, Bluetooth, and Wi-Fi, offering flexible data transfer and connectivity options.

Supporting the optical workflow is the S900⁺ GNSS Receiver, a full-constellation RTK device capable of tracking GPS, GLONASS, Galileo, BeiDou, IRNSS, and QZSS satellites. It features IMU and e-bubble tilt support, delivers RTK accuracy of 5mm + 0.5 ppm (horizontal), and initializes in 2–4 seconds for quick job site readiness. With a 20 Hz position update rate, UHF radio (1W, 410–470 MHz), and dual battery slots that offer up to 12 hours of runtime, the S900⁺ is suited for everything from high-precision layout to control point establishment. It supports a range of up to 10km under optimal conditions.

The Stonex UT12P Controller runs on Android 10.0 GMS and features a 6” HD display with 400 nits brightness, dual cameras, and robust connectivity (Bluetooth, Wi-Fi, GSM). It interfaces with both the total station and GNSS receiver via Bluetooth or cable, allowing surveyors to operate confidently in hybrid configurations or switch between modes as needed.

2" total station with 1000m reflectorless and 5000m prism range
Endless drives for smooth, precise manual aiming and angle adjustment
Dual-axis compensator and red dot laser plummet for fast, stable setups
Stonex S900⁺ GNSS receiver with IMU and e-Bubble tilt compensation
RTK accuracy: 5mm + 0.5 ppm (horizontal), 10mm + 0.5 ppm (vertical)
Fast RTK signal initialization in 2–4 seconds
UHF radio range up to 10 km in ideal conditions (3–4 km in urban settings)
High-visibility 5.5" touchscreen with Android 11 on the R60
Rugged UT12P controller with Android 10, GSM, Bluetooth, and Wi-Fi
Cube-a GPS/TS v6.x software included
IP67/IP55 rated for reliable operation in harsh job site environments

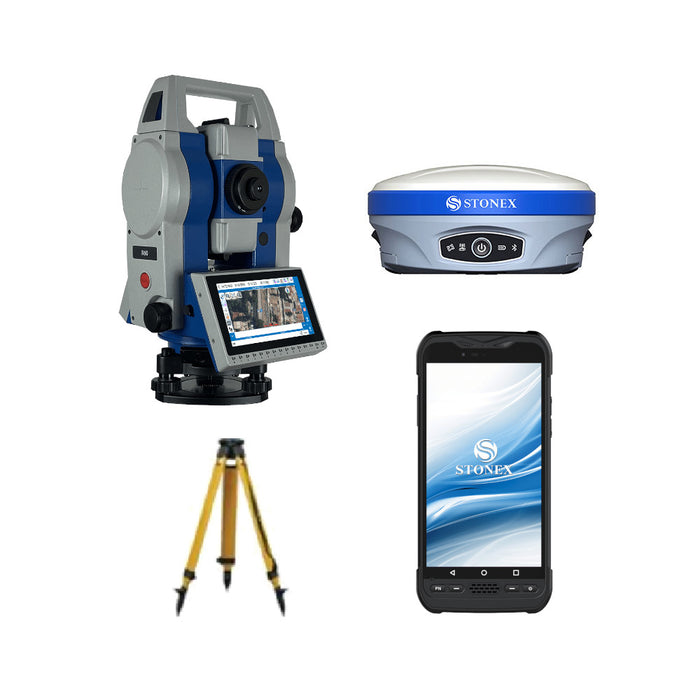

What’s in the Box

R60 Mechanic Total Station - 2", 1000m
S900⁺ GNSS Receiver - 1408 Channels, IMU, 4G
UT12P Controller - 6", 4G, Android
UT12P Bracket
Wooden Tripod (40 inches to 72 inches)
2.6M Carbon Fiber/Aluminum Pole (2 section)
Stonex Cube-a GPS/TS v6.x software
Stonex Cube-a TS/GPS on board v6.x software
