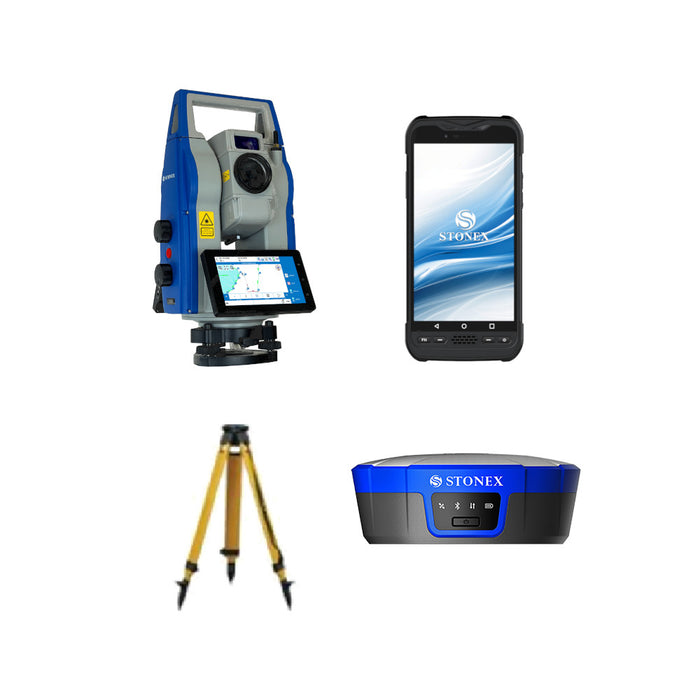

Stonex R180 Total Station with UT12P Controller and S880 Receiver Package

by STONEX

MFR#: R180-P3

List Price: USD $44,460^.00

You Save: USD $8,892^.00

USD $44,460^.00 - USD $44,460^.00

List Price: USD $44,460^.00

USD $35,568^.00

USD $35,568^.00 - USD $35,568^.00

USD $35,568^.00

Store Pickup: List of available stores available on the Checkout page.

Stonex R180 Total Station with UT12P Controller and S880 Receiver Package - USD $35,568^.00

USD $35,568^.00

*Must Purchase 1 for Stonex R180 Total Station with UT12P Controller and S880 Receiver Package

The cart will thereforce automatically set Qty to 1 when you order this product

Free Shipping (USA) Ships Out Within: 2 - 4 Business Days Shipping Date By: 5/3/2025

R180 Robotic Total Station

1” angular accuracy with 6000m prism range and 1000m reflectorless range
Dual-axis compensator and laser plummet for leveling precision
Dual display: 6” LCD + 720×1280 touchscreen for flexible operation
Integrated guide light and camera for faster prism acquisition
Wireless connectivity: Bluetooth, Wi-Fi, 4G, RS232, hotspot
Two Li-Ion batteries with up to 12 hours combined runtime
IP65-rated for reliable use in harsh jobsite conditions

Stonex S880 GNSS Receiver

Tracks GPS, GLONASS, Galileo, BeiDou, QZSS, SBAS, and IRNSS
RTK Accuracy: 8 mm + 1 ppm (horizontal), 15 mm + 1 ppm (vertical)
Position rate: up to 20Hz
Built-in IMU tilt sensor for faster and more flexible stakeout
IP68-rated for durability in rugged and wet environments

Stonex UT12P Field Controller

Android 10.0 GMS with 6” capacitive multi-touch display
400 nits screen brightness for daylight readability
Dual cameras (front + rear) for field documentation
Up to 15 hours of battery life
Connectivity: GSM, Bluetooth, Wi-Fi
Supports both cabled and Bluetooth communication with R180 and S880

Cube-a TS+GPS Software (v6.x)

Unified survey platform for GNSS and optical instruments
Smart station setup, prism tracking, stakeout routines, CAD import/export
Real-time satellite status, base/rover setup, GNSS antenna offset handling
Built-in field book, layer management, geoid support, and shapefile tools

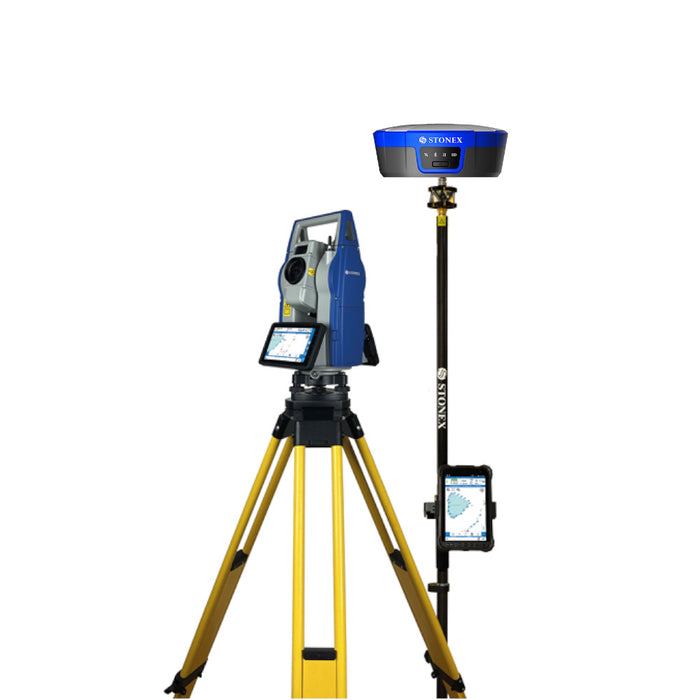

The Stonex R180 OnePole solution package combines the power of a robotic total station, a multi-constellation GNSS receiver, and a rugged UT12P field controller.

Stonex R180 is 1” robotic total station with dual-axis compensation, 6000m prism range, and 1000m reflectorless range. Equipped with a dual display system - a 6" color LCD on one side and a high-resolution touchscreen on the other - it supports both traditional and modern layout tasks. Features like a built-in camera, guide light, and rapid prism search enhance productivity during topographic surveys, construction layout, and control point work. With Bluetooth, Wi-Fi, 4G, and hotspot support, the R180 is engineered for connected job sites.

Paired with the R180 is the Stonex S880 GNSS receiver, a rugged, IP68-rated unit capable of tracking all major satellite constellations, including GPS, GLONASS, Galileo, BeiDou, QZSS, SBAS, and IRNSS. With an RTK accuracy of 8mm + 1ppm (horizontal) and 15mm + 1ppm (vertical), and a fast position update rate up to 20Hz, it’s ideal for stakeout, boundary surveys, and terrain mapping. The built-in IMU tilt sensor streamlines measurements in uneven terrain, reducing the need for perfect pole leveling.

Control and data collection are handled through the Stonex UT12P Android tablet, featuring a bright 6" multi-touch display, dual cameras, and long 15-hour battery life. Fully integrated with Cube-a TS+GPS software, the system enables seamless switching between optical and GNSS modes, without breaking workflow. Whether connected via Bluetooth or cable, the UT12P keeps communication with instruments reliable and lag-free.

This configured package includes everything needed to get started - 360° prism, tripod, carbon fiber pole, bracket and licensed software.

Complete Package: Includes robotic total station, GNSS receiver, rugged controller and all field accessories
High-Precision Optical Surveying: Stonex R180 delivers 1” angular accuracy and 6000m prism range
Full GNSS Constellation Support: S880 tracks GPS, GLONASS, Galileo, BeiDou, QZSS, SBAS, and IRNSS
Tilt-Supported GNSS Surveying: Built-in IMU sensor allows fast stakeout even on uneven ground
Cube-a TS+GPS Software Included: Streamlines workflows across optical and satellite measurements
Ideal For: Construction layout, boundary staking, topographic mapping, hybrid workflows in challenging environments

What’s in the Box

R180 Robotic Total Station - 1", 1000m
S880 GNSS Receiver - 1408 Channels, IMU, Camera
UT12P Controller - 6", 4G, Android
UT12P Bracket
Wooden Tripod (40 inches to 72 inches)
360° Prism
2.6M Carbon Fiber/Aluminum Pole (2 section)
Stonex Cube-a GPS/TS v6.x software
Stonex Cube-a TS+GPS on board v6.x software
