Stonex R120 Total Station with UT12P Controller and S880 Receiver Package

STONEX
by STONEX
MFR#: R120-P1
List Price: USD $32,910.00
You Save: USD $6,582.00
USD $32,910.00 - USD $32,910.00
List Price: USD $32,910.00
USD $26,328.00
USD $26,328.00 - USD $26,328.00
USD $26,328.00

Store Pickup: List of available stores available on the Checkout page.
 More payment options

Pickup available at Raleigh

Usually ready in 2-4 days
Stonex R120 Total Station with UT12P Controller and S880 Receiver Package
Stonex R120 Total Station with UT12P Controller and S880 Receiver Package - USD $26,328.00
USD $26,328.00
Add to wishlist
*Must Purchase 1 for Stonex R120 Total Station with UT12P Controller and S880 Receiver Package

The cart will thereforce automatically set Qty to 1 when you order this product

One of our Sales Experts will be in touch!

Ghana
Free Shipping (USA) Ships Out Within: 2 - 4 Business Days Shipping Date By: 4/20/2025
R120 Robotic Total Station
  • 2" angular accuracy with up to 800m reflectorless range and 3500m prism range
  • Dual display: 5.5” touchscreen (720x1280) + 13-key physical keypad for versatile operation
  • Dual-axis compensator with laser plummet for stable and accurate setup
  • Android 11 OS with full Cube-a onboard integration
  • IP55 protection with 4G, Wi-Fi, Bluetooth, and USB-OTG connectivity
Stonex S880 GNSS Receiver
  • Tracks all major GNSS constellations with multi-frequency support
  • IMU-enabled tilt compensation improves speed and accuracy in uneven terrain
  • 20Hz update rate ideal for fast-moving survey tasks
  • Rugged IP68-rated housing for extreme environments
UT12P Controller
  • Android 10 OS with 6” high-brightness touchscreen and dual cameras
  • Up to 15-hour battery life for full-day operations
  • GSM, Bluetooth, and Wi-Fi connectivity for flexible pairing options
  • Cabled or wireless communication with total station and GNSS receiver
Cube-a Software (TS+GPS)
  • Cube-a GPS/TS software enables hybrid workflows (GNSS + total station) directly on the UT12P controller
  • Supports OnePole and hybrid survey mode, allowing quick switching between optical and GNSS measurements
  • Advanced layout tools, real-time prism tracking, and CAD data handling
  • Fully licensed and pre-installed on the controller—no setup required

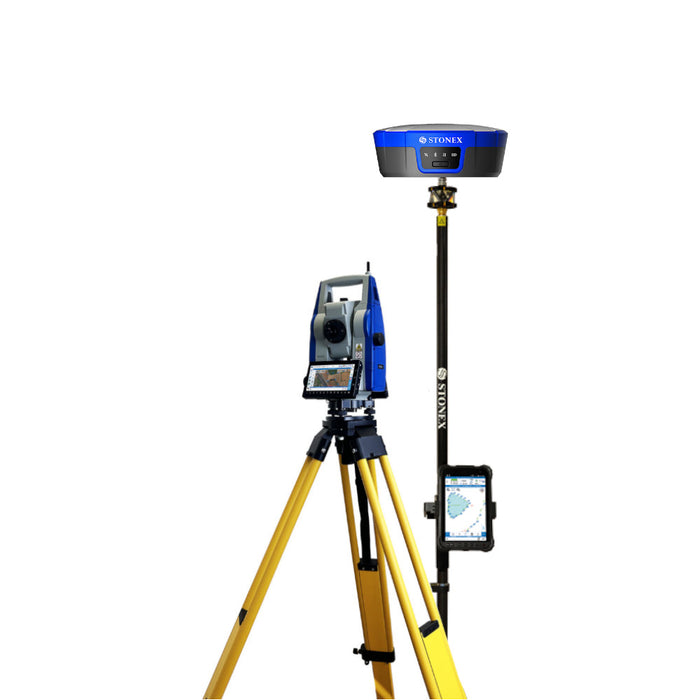

The Stonex R120 + S880 + UT12P OnePole solution is built for professionals who need a versatile, high-accuracy solution that combines the strengths of both total station and GNSS workflows. Whether you're switching between prism-based measurements and satellite positioning or performing hybrid tasks with seamless data transfer, this package is designed to keep up with demanding field conditions and advanced jobsite requirements.

The Stonex R120 is a 2" robotic total station equipped with a 5.5” high-resolution TFT LCD screen, 13-key keyboard, and Android 11 OS—offering a user-friendly, touch-enabled interface. Its reflectorless range extends to 800m, while prism mode reaches up to 3500m. Dual-axis compensation ensures accurate setup, and the laser plummet simplifies alignment. Connectivity options like 4G, long-range Bluetooth, WLAN, and USB-OTG make integration with field systems smooth and reliable.

The S880 GNSS receiver delivers full multi-constellation satellite tracking with support for GPS, GLONASS, Galileo, BeiDou, QZSS, SBAS, and IRNSS. Its IMU tilt sensor allows for fast and accurate offset measurements—even in obstructed environments. With an IP68 rating, it’s built for rugged conditions and provides RTK accuracy up to 8mm horizontally, with update rates up to 20Hz.

Completing the package is the UT12P controller, featuring a 6” touchscreen, front and rear cameras, and up to 15 hours of battery life. Preloaded with Cube-a GPS/TS v6.x, it gives surveyors a unified platform for managing both GNSS and total station workflows—ideal for layout, control, and topo surveys on mixed terrain.

The package includes everything you need to get started right out of the box: a wooden tripod, 360° prism, carbon fiber pole, brackets, cables, and fully licensed Cube-a software.

  • All-in-One Hybrid Survey Kit: Includes total station, GNSS receiver, controller, tripod, prism, pole, and Cube-a TS+GPS software—fully configured and ready to work.
  • Dual-Technology Workflow: Seamlessly switch between GNSS and optical measurements using the included Cube-a software on the UT12P controller.
  • Rugged Total Station Accuracy: Stonex R120 offers 2” angular precision and 800m reflectorless range for precise measurements in varied terrain.
  • Advanced GNSS Receiver: S880 receiver with full constellation support and IMU tilt compensation for faster, more flexible fieldwork.
  • Professional-Grade Controller: UT12P Android tablet with 6” display, long battery life, and wireless connectivity ensures efficient control and data handling.
  • Ideal for: Control surveys, construction layout, boundary surveys, and hybrid jobs requiring both GNSS and total station workflows.

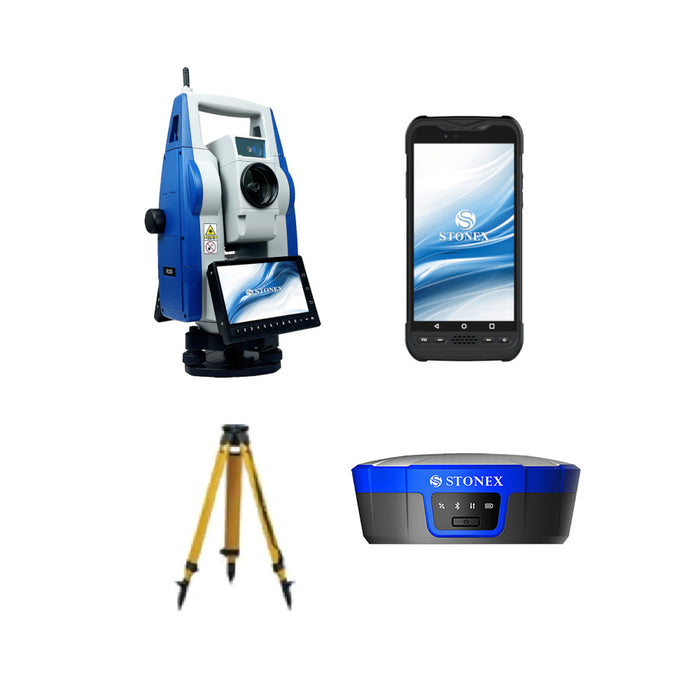

What’s in the Box

  • R120 Robotic Total Station - 2", 800m
  • S880 GNSS Receiver - 1408 Channels, IMU, Camera
  • UT12P Controller - 6", 4G, Android
  • UT12P Bracket
  • Wooden Tripod (40 inches to 72 inches)
  • 360° Prism
  • 2M Carbon Fiber/Aluminum Pole (2 section)
  • Stonex Cube-a GPS/TS v6.x software

Tiger Supplies offers a 30-day return policy from date of shipment for this product, subject to a 20% restocking fee, in addition to the return shipping charges. The product must be in new condition and in its original packaging. We take the responsibility to make sure this product arrives in a brand new working condition. Should your item arrive damaged, we will take full responsibility and replace the product at no cost to you.

We do not accept returns or cancellations for special ordered items.

For complete details of our return policy and process, please refer to our general return policy page.
