Self-Leveling Rotary Laser Kit

MFR#: 40-6532
TIGER#: TS24739
Original price List Price: $1,382.86
You Save: $394.12 -29%
Original price $1,382.86 - Original price $1,382.86
Original price List Price: $1,382.86
Current price $988.74
$988.74 - $988.74
Current price $988.74
Self-Leveling Rotary Laser Kit
Self-Leveling Rotary Laser Kit - $988.74
$988.74
*Must Purchase 1 for Self-Leveling Rotary Laser Kit

The cart will thereforce automatically set Qty to 1 when you order this product

Free Shipping (USA) Ships Out Within: 7 - 10 Business Days Shipping Date By: 6/13/2024

One of our Sales Experts will be in touch!

Documents
Essential Add-Ons:
Aluminum Rod
Aluminum Rod
Details
$33.95
$44.95
Universal Contractor’s Tripod
Universal Contractor’s Tripod
Details
$75.99
$79.99
Topcon LS-B20 Machine Control Laser Receiver - 1063525-03
Topcon LS-B20 Machine Control Laser Receiver - 1063525-03
Details
$651.60
Fiberglass Rod
Fiberglass Rod
Details
$76.95
  • Range up to 2,000 feet with a laser receiver
  • Accuracy ±1/8-inch at 100 feet
  • Self-leveling within ±3.5 degrees
  • Manual-leveling in the vertical plane with a 90-degree split beam
  • Self-leveling in the horizontal plane
  • Rotation speed: 150, 200, 250, 300 RPM
  • Laser beam mode: Dot and 2 line lengths
  • IP66 dustproof and water-resistant

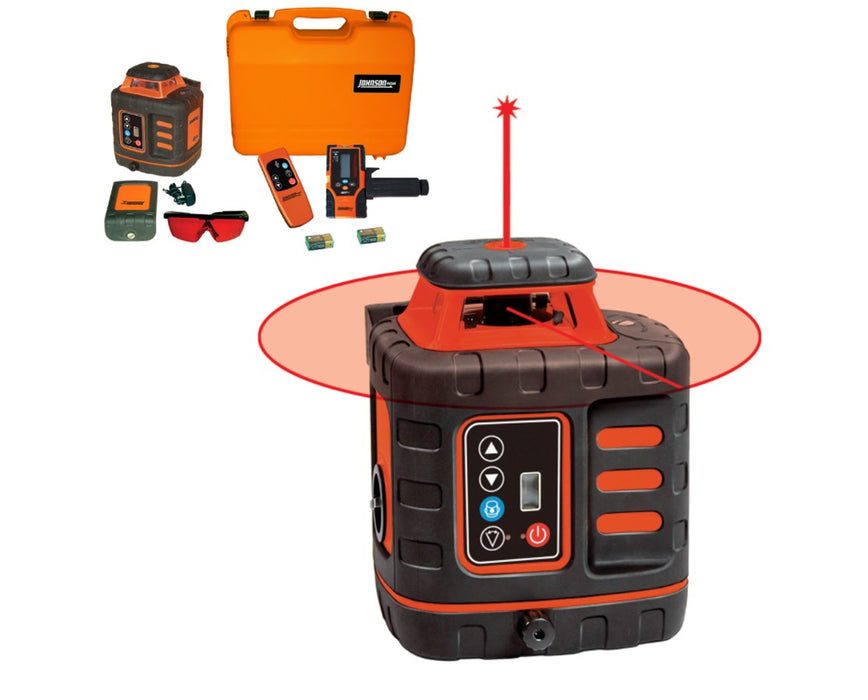

Reliable and robust, the Johnson 40-6532 Self-Leveling Rotary Laser Kit is self-leveling within ±3.5 degrees and is perfect for most indoor and outdoor applications. With an accuracy of ±1/8 inch at 100 feet, it can operate with an interior range of up to 200 feet and an exterior range of up to 2,000 feet with a laser receiver. For a more effective leveling experience, this rotary laser level is self-leveling in the horizontal plane.

This Johnson Level Self-Leveling Rotary Laser also includes a manual-leveling in the vertical plane with a 90-degree split beam. To protect the inner pendulum during transport, it comes with a locking mechanism. Also, this Johnson Level laser has a rotation speed of 150, 200, 250, and 300 rotations per minute. Plus, the laser beam modes include dot and two adjustable line lengths.

Constructed of durable plastic with heavy rubber molds, the Johnson 40-6532 can easily endure the harsh environment of most construction sites. With an IP66 rating, the 40-6532 laser is protected against dust and water splashes. As an extra feature, it has a 5/8-11 center screw thread that is compatible with most tripods.

Configuration Options

The Johnson Self-Leveling Rotary Laser Kit comes in two different variations that differ in the model of laser detector included in the package. You may choose between the 40-6700 Laser Detector model (One-sided display) or the 40-6715 model (Dual-LCD display). Kindly choose your preference on the options menu above.

  • Kit w/ One-Sided Display Laser Detector (40-6539)
  • Kit w/ Dual-Display Laser Detector (40-6532)

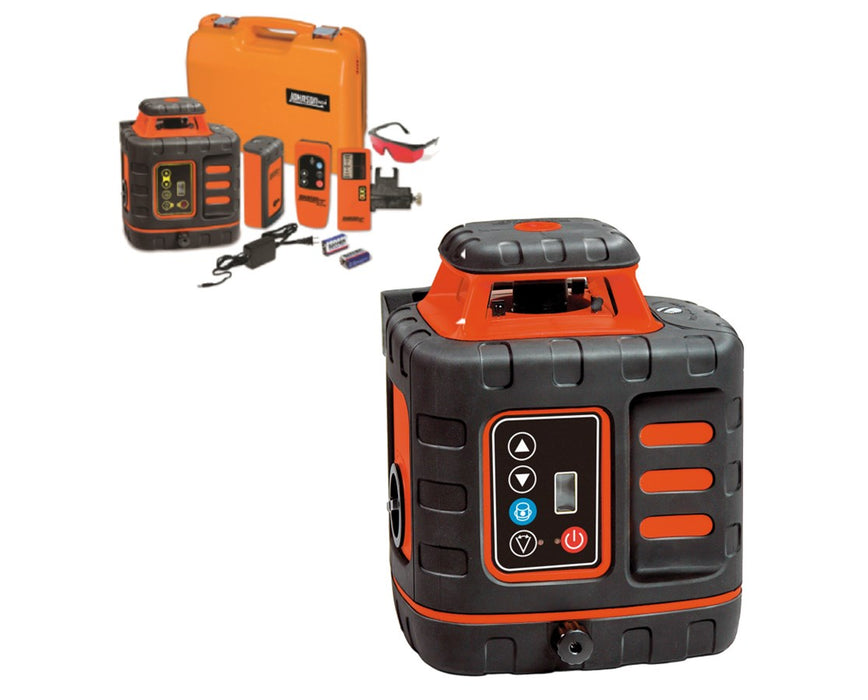

What’s in the Box

  • Johnson 40-6532 Self-Leveling Rotary Laser Kit
  • NiMH rechargeable battery pack
  • 6.4-volt battery adapter
  • 4 x C-cell alkaline battery compartment (battery not included)
  • Laser receiver with clamp
  • Remote control
  • 9V batteries for laser receiver and remote control
  • Tinted laser glasses
  • Hard carrying case
  • User manual
  • 3-year manufacturer's warranty

Available Package Options

  • Laser Detector Type: One-Sided Display or Dual-Display

Tiger Supplies offers a 30-day return policy from date of shipment for this product, subject to return shipping charges. The product must be in new condition and in its original packaging. We take the responsibility to make sure this product arrives in a brand new working condition. Should your item arrive damaged, we will take full responsibility and replace the product at no cost to you.

For complete details of our return policy and process, please refer to our general return policy page.

Accuracy
Horizontal
±1/8 inch at 100 feet
Vertical
±1/8 inch at 100 feet
Applications
Concrete Forms, Footings and Foundations
Yes
Checking Building Square & Area
Yes
Checking Elevations of Sub-Base and Sub-Grade
Yes
Estimating Cut & Fill
Yes
Installation of Interior Fittings (cabinets, lighting, windows, countertops, etc.)
Yes
Installation/Leveling Ceiling Grids
Yes
Installation/Leveling Interior Walls
Yes
Locating Finished Floor Levels
Yes
Plumb Reference
Yes
Short-Range Leveling for Decks, Patios & Swimming Pools
Yes
Short-Run Vertical Alignment
Yes
Squaring and Layout of Partitions, Walls & Tile Floors
Yes
Transferring Points from Floor to Ceiling
Yes
Battery/Power
Battery Life Alert
Yes
Battery Life with Alkaline Batteries
Up to 20 hours
Battery Life with Rechargeable Battery Pack
Up to 15 hours
Power Source
Rechargeable NiMH, 6.4V adapter or C alkaline batteries
Extra Technology
Detector/Receiver
Included
Remote Control
Included
Features
Adjustable Rotating Speed
150, 200, 250, 300 RPM
Bump Sensor (H.I./Out of Position Alert)
Yes
Plumb Point
Yes
Protection Class
IP66 dustproof and powerful water jet resistant
Tripod Adapter (Center Screw Thread)
5/8 x 11
Functions
Automatic Leveling
Yes
General
Dimensions
7.08" L x 6.37" W x 7.95" H
Maximum Power Output
<=5mW
Remote Control Operating Distance
Up to 200 feet (60m)
Warranty
3-year
Weight
4.40 lbs (2 kg)
Laser
Classification
3A
Color
Red
Direction
Horizontal and vertical (manual leveling on the vertical plane)
Visibility
Visible
Wavelength
635nm ±10nm
Range
Exterior
Up to 2,000 feet (600m)
Interior
Up to 200 feet (60m)
Self Leveling
±3.5 degrees
Temperature
Operating
14 to 113 °F (-10 to 45 °C)
