Self-Leveling Rotary Laser

MFR#: 40-6515
TIGER#: TS20814
Original price List Price: $565.70
You Save: $161.22 -28%
Original price $565.70 - Original price $565.70
Original price List Price: $565.70
Current price $404.48
$404.48 - $404.48
Current price $404.48
Self-Leveling Rotary Laser
Self-Leveling Rotary Laser - $404.48
$404.48
*Must Purchase 1 for Self-Leveling Rotary Laser

The cart will thereforce automatically set Qty to 1 when you order this product

Free Shipping (USA) Ships Out Within: 7 - 10 Business Days Shipping Date By: 6/28/2024

One of our Sales Experts will be in touch!

Essential Add-Ons:
Aluminum Rod
Aluminum Rod
Details
$43.95
$44.95
Universal Contractor’s Tripod
Universal Contractor’s Tripod
Details
$75.99
$79.99
Topcon LS-B20 Machine Control Laser Receiver - 1063525-03
Topcon LS-B20 Machine Control Laser Receiver - 1063525-03
Details
$651.60
Fiberglass Rod
Fiberglass Rod
Details
$76.95
  • Exterior range up to 800 feet with a laser receiver
  • Accuracy ±1/8-inch at 50 feet
  • Self-leveling within ±3 degrees
  • Manual leveling in the vertical plane
  • 90-degrees split beam
  • Visual and audible alarms
  • Rotation speed: 200, 400, 600 RPM
  • IP54 dustproof and water splash resistant

With up to 200 feet of interior range depending on light conditions and 800 feet exterior range using a laser receiver, the Johnson 40-6515 Self-Leveling Rotary Laser is ideal for various indoor and outdoor applications. Self-leveling within ±3 degrees, this rotary laser offers an accuracy of ±1/8-inch at 50 feet. Also, it features a 90-degrees split beam.

This Johnson Level Self-Leveling Rotary Laser Level has a locking mechanism that protects the inner pendulum during transportation. Its laser rotates at a speed of 200, 400, and 600 rotations per minute. The vertical vial is illuminated for easy manual leveling in a vertical plane. In addition, it features visual and audible alarms when beyond leveling range.

The Johnson Level 40-6515 Self-Leveling Rotary Laser Level is made of durable plastic with heavy rubber over-molds that can withstand the harsh weather conditions. With an IP54 rating, this laser is protected against dust and water splashes. As an extra feature, it includes a 5/8-11 center screw thread that is compatible with most tripods.

Configuration Options

The Johnson 40-6515 Self-Leveling Rotary Laser offers three packages with varying options of accessories. All are supported by a three-year manufacturer's warranty. Please select your preference from the drop-down menu above.

  • 40-6515: Johnson 40-6515 Rotary Laser
  • 40-6516: Johnson 40-6516 Rotary Laser with Laser Receiver

The Johnson Level laser receiver allows locating red and infrared rotary laser beam easily in bright light and over long distances. It provides a visual reading on both sides of the laser receiver.

  • 40-6517: Johnson 40-6517 Rotary Laser with Laser Receiver, Wall Mount, Tripod and 8' Grade Rod (Feet/8ths)

This package includes a wall mount that provides fine adjustment for aligning jobs and drop-ceiling installations. The grade rod is used to determine differences in elevation. The laser receiver can also be directly attached to this rod. Also included, the tripod is a portable three-legged frame that is used as a platform for supporting the rotary laser while doing leveling operations. Plus, it gives stability regardless of the terrain.

  • Choice of 3 packages
  • Up to 200 feet interior range
  • Up to 800 feet exterior range with a laser receiver
  • ±1/8-inch accuracy at 50 feet
  • Self-leveling within ±3 degrees
  • Manual leveling in the vertical plane
  • 90-degrees split beam
  • Locking mechanism protects inner pendulum during transport
  • Rotation speed: 200, 400, 600 RPM
  • Vertical Vial
  • Visual and audible alarms when beyond leveling range
  • Durable plastic with heavy rubber over-molds
  • IP54 dustproof and water resistant
  • 5/8-11 tripod thread

What’s in the Box

  • Johnson 40-6515 Self-Leveling Rotary Laser
  • User manual
  • 3-year manufacturer's warranty

Available Package Options

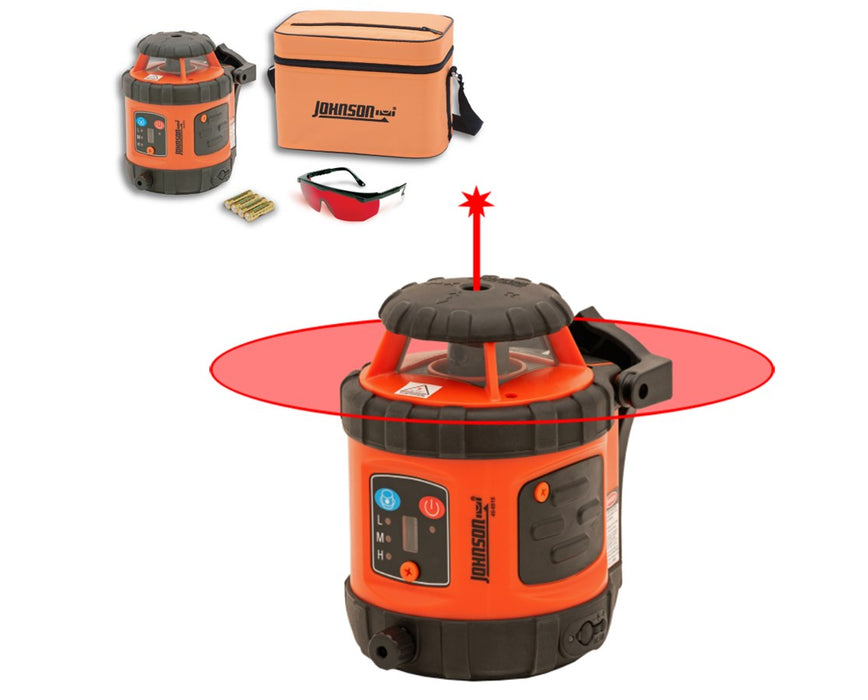

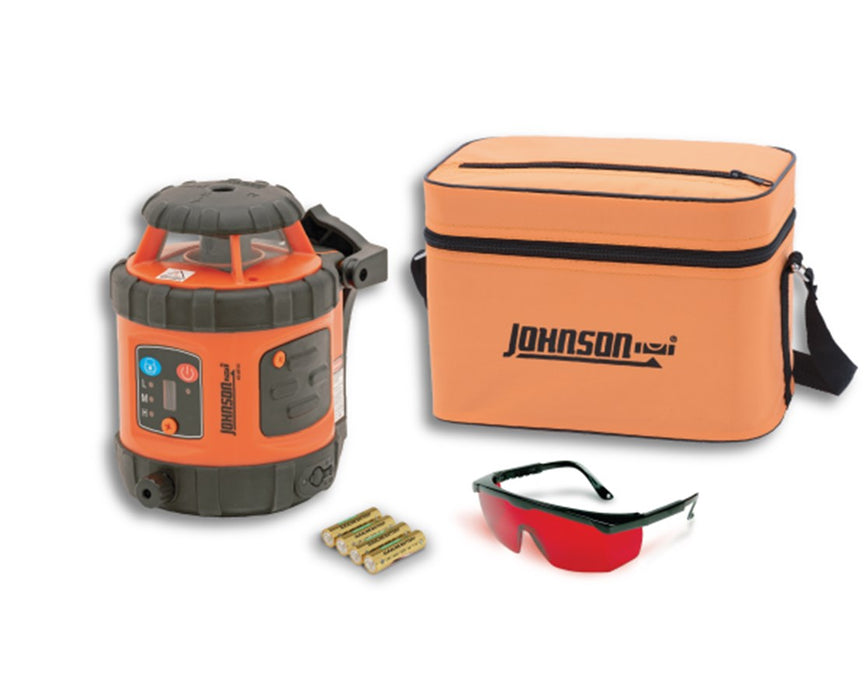

Johnson 40-6515 Rotary Laser Package

  • Tinted laser glasses
  • Soft-sided carrying case
  • 4 x AA alkaline batteries

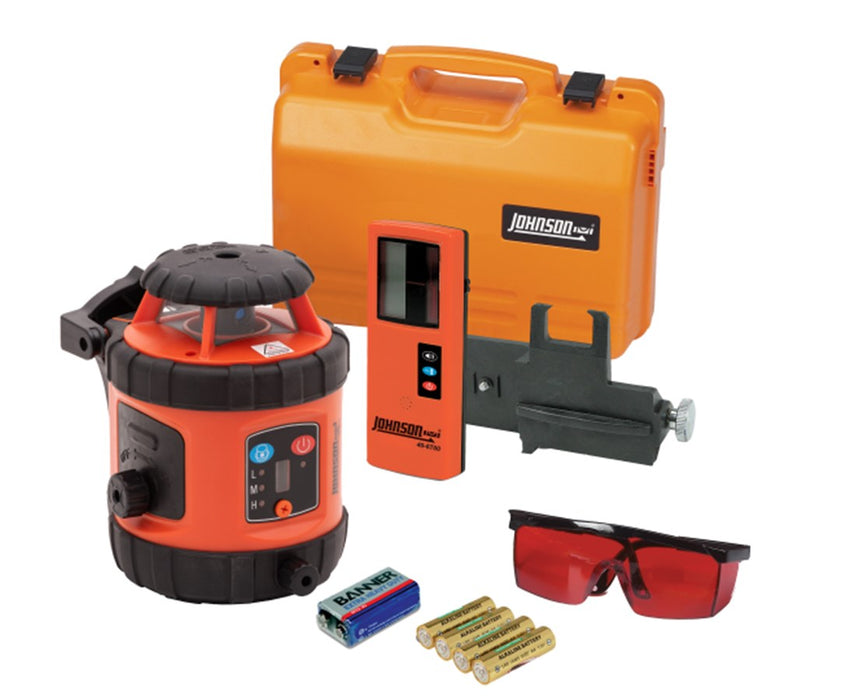

Johnson 40-6516 Rotary Laser Package

  • Laser receiver with clamp
  • 9V battery for receiver
  • Tinted laser glasses
  • Soft-sided carrying case
  • 4 x AA alkaline batteries

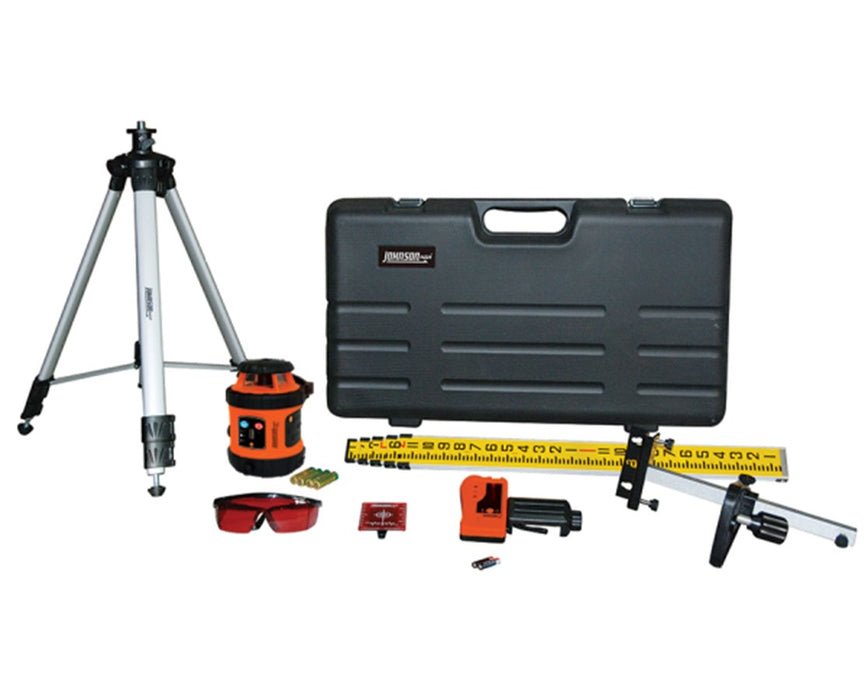

Johnson 40-6517 Rotary Laser Package

  • Magnetic Target
  • 8' grade rod (feet/8ths)
  • Elevating tripod
  • Laser receiver with clamp
  • 2 x AAA alkaline batteries for receiver
  • Wall mount
  • Tinted laser glasses
  • Soft-sided carrying case
  • 4 x AA alkaline batteries

Tiger Supplies offers a 30-day return policy from date of shipment for this product, subject to return shipping charges. The product must be in new condition and in its original packaging. We take the responsibility to make sure this product arrives in a brand new working condition. Should your item arrive damaged, we will take full responsibility and replace the product at no cost to you.

For complete details of our return policy and process, please refer to our general return policy page.

Accuracy
Horizontal
±1/8 inch at 100 feet
Vertical
±1/8 inch at 100 feet
Applications
Concrete Forms, Footings and Foundations
Yes
Estimating Cut & Fill
Yes
Installation/Leveling Ceiling Grids
Yes
Installation/Leveling Interior Walls
Yes
Plumb Reference
Yes
Short-Range Leveling for Decks, Patios & Swimming Pools
Yes
Short-Run Vertical Alignment
Yes
Battery/Power
Battery Life Alert
Yes
Battery Life with Alkaline Batteries
Up to 20 hours
Power Source
AA alkaline batteries
Extra Technology
Detector/Receiver
Included (40-6515, 40-6517)
Features
Adjustable Rotating Speed
200, 400, 600 RPM
Built-in Bubble Vial
Yes
Plumb Point
Yes
Protection Class
IP54 dustproof and water splash resistant
Tripod Adapter (Center Screw Thread)
5/8 x 11
Wall Mount Bracket
Optional
Functions
Automatic Leveling
Yes
General
Dimensions
4.96" L x 6.69" W x 6.61" H
Maximum Power Output
<=5mW
Warranty
3-year
Weight
3.3 lbs (1.5 kg)
Laser
Classification
3A
Color
Red
Direction
Horizontal and vertical (manual leveling on the vertical plane)
Visibility
Visible
Wavelength
635nm ±10nm
Range
Exterior
Up to 800 feet (240m)
Interior
Up to 200 feet (60m)
Self Leveling
±3 degrees
Temperature
Operating
14 to 113 °F (-10 to 45 °C)
