Self-Leveling 5-Beam Laser Dot

MFR#: 40-6680
TIGER#: TS10643
Original price List Price: $414.84
You Save: $118.23 -29%
Original price $414.84 - Original price $414.84
Original price List Price: $414.84
Current price $296.61
$296.61 - $296.61
Current price $296.61
Self-Leveling 5-Beam Laser Dot
Self-Leveling 5-Beam Laser Dot - $296.61
*Must Purchase 1 for Self-Leveling 5-Beam Laser Dot

The cart will thereforce automatically set Qty to 1 when you order this product

Free Shipping (USA) Ships Out Within: 7 - 10 Business Days Shipping Date By: 5/2/2024

One of our Sales Experts will be in touch!

Essential Add-Ons:
Heavy-Duty Elevating Survey Tripod
Heavy-Duty Elevating Survey Tripod
5/8"-11 to 1/4"-20 Tripod Adapter
  • Interior range of up to 200 feet
  • Accuracy: ±1/8-inch at 50 feet
  • Self-leveling within ±4.5 degrees
  • Projects 5 self-leveling beams simultaneously
  • Locking compensator protects pendulum
  • Laser can be rotated 360 degrees
  • Multi-functional magnetic base
  • IP55 dustproof and water jet resistant

Featuring five self-leveling beams that can project simultaneously this laser is perfect for plumb level and alignment projects. The two beams are projected vertically for plumb reference and transferring points from the floor to ceiling while the three horizontal beams are projected to the right and left and forward, providing perfect 90-degree angles. With an interior range of up to 200 feet and accuracy of ±1/8 inch at 50 feet the Johnson Self-Leveling 5-Beam Laser Dot can be used in the layout of interior walls, room additions/partition installation, align 90-degree joints and edges, level cabinets, shelving and countertops and many more. It has a self-leveling range of ±4.5 degrees and audible and visual alarms when beyond leveling range.

The Johnson Self-Leveling 5-Beam Laser Dot can be rotated 360 degrees when attached to magnetic laser mount. It also comes with a locking mechanism that protects the inner pendulum during transportation. With an IP-55 rating, this laser is dust and water resistant. This laser comes with multi-functional magnetic base, three "AA" alkaline batteries, mounting strap, magnetic target, tinted glasses, instruction manual with warranty card, and soft-sided carrying case. It also comes with a 3-year warranty.

  • 5 laser beams simultaneously project up, down, forward, left, and right
  • Self-leveling within ±4.5 degrees with visible and audible alarm when out of level
  • Self-leveling lock mechanism ensures  protection during transport
  • Easy plumbing up and down
  • Sets out right angles
  • Working range up to 200 ft.
  • Accuracy within ±1/8 inch at 50 ft.
  • Included multifunctional base for attaching magnetically, onto tripod, or onto uneven surface using included strap
  • Rotates 360 degrees when attached to multi-functional base
  • Power indicator light flashes was batteries are low
  • Can be recalibrated by user if necessary
  • Dual tripod thread and magnetic mount
  • IP55 dust and water resistant
  • 3-year warranty

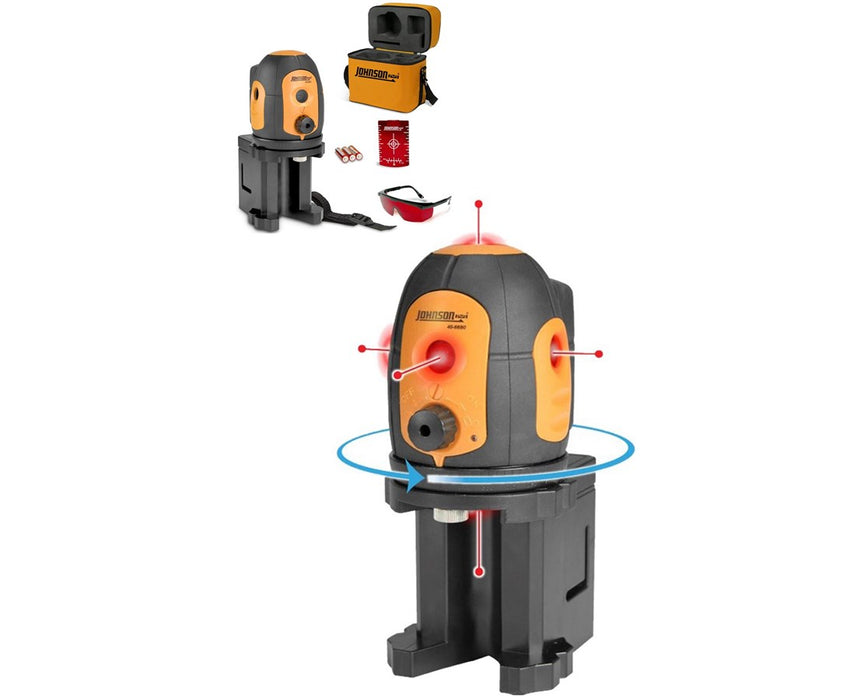

What’s in the Box

  • Johnson Self-Leveling 5-Beam Laser Dot
  • Multi-functional magnetic base
  • 3 "AA" alkaline batteries
  • Mounting strap
  • Magnetic target
  • Tinted glasses
  • Soft-sided carrying case
  • User manual
  • 3-year with warranty card

Tiger Supplies offers a 30-day return policy from date of shipment for this product, subject to return shipping charges. The product must be in new condition and in its original packaging. We take the responsibility to make sure this product arrives in a brand new working condition. Should your item arrive damaged, we will take full responsibility and replace the product at no cost to you.

For complete details of our return policy and process, please refer to our general return policy page.

Ceiling Joist and Rafter Alignment
Diagonals and Footings for Patios
Flooring and Tile Layout
Installing Drop Ceilings and Lights
Installing Plumbing Pipes and Conduit
Installing Windows and Partition Walls
Stud Plumbing and Alignment
Transferring Points from Floor to Ceiling
Transferring Points from Wall to Wall
Battery Level Indicator
Operating Temperature
14 to 113 °F (-10 to 45 °C)
Power Source
3 x AA alkaline batteries (included)
Environmental Class
IP55 dustproof and water jet resistant
with lock option
Tripod Thread
5/8 x 11 or 1/4 x 20 with multi-functional base
Horizontal Leveling
Plumbing Up and Down
Setting out Right Angles
3.150" L x 3.858" W x 4.000" H
Laser Class
Class 3A
Laser Type
650 nm ±10 nm
1.1 lbs (0.50 kg)
Measuring Capabilities
Beam Direction
Up, down, forward, right, left
Leveling Accuracy
±1/8 inch at 50 feet
Number of Points
Self-Leveling Range
±4.5 degrees
Working Range
Up to 200 feet (60 m)
