Rugby 640G Green Rotary Laser Level

by Leica

MFR#: 845495

List Price: USD $1,584^.00

You Save: USD $264^.00 -17%

USD $1,584^.00 - USD $1,584^.00

List Price: USD $1,584^.00

USD $1,320^.00

USD $1,320^.00 - USD $1,320^.00

USD $1,320^.00

Store Pickup: List of available stores available on the Checkout page.

Rugby 640G Green Rotary Laser Level - USD $1,320^.00

USD $1,320^.00

*Must Purchase 1 for Rugby 640G Green Rotary Laser Level

The cart will thereforce automatically set Qty to 1 when you order this product

IN STOCK Free Shipping (USA) Ships Out Within: 24 - 48 Hours Shipping Date By: 12/24/2024

Manufacturer will supplement this order with the AndroTec Digital Laser Receiver MTR-90R Of similar capabilities and same warranty. Alternate Leica Receivers are on Backorder

Documents

Product Manual Item Brochure Product Video

Essential Add-Ons:

Aluminum Rod

Details

$38^.95

Universal Contractor's Tripod

Details

$71^.25

Fiberglass Rod

Details

$92^.25

CR700 Combined Machine Control Receiver

Details

$548^.00

$685^.00

Range up to 1,300 feet with laser receiver
Accuracy ±3/32 inch at 100 feet
Self-leveling within ±5 degrees
Horizontal and vertical leveling
Dual-axis manual slope
Plumb beam
Rotation speed: 0, 120, 300, 600 RPM
IP67 dustproof and water immersible

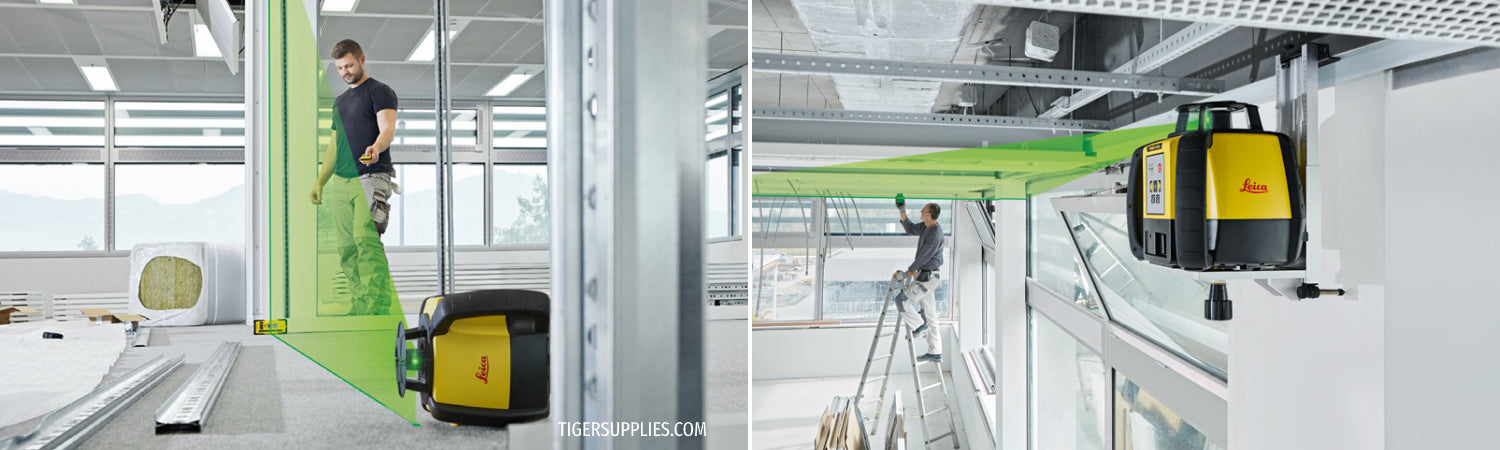

Designed for all leveling, aligning, and squaring applications, the Leica Rugby 640G Green Rotary Laser is a multi-purpose self-leveling laser. Featuring an accuracy of ±3/32 inch at 100 feet, it can easily work on a range up to 1,300 feet with the use of the Rod Eye 120G laser receiver. With its green beam technology, the laser is four times more visible to the human eye compared to usual red beam lasers.

Self-leveling within ±5 degrees, the Leica Rugby 640G can perform all horizontal and vertical leveling tasks and has a dual-axis manual slope. Plus, it boasts interior functions including plumb down, beam scanning, and four adjustable rotation speeds of 0, 120, 300, and 600 rotations per minute. Featuring elevation alert, this construction laser will notify the user if the height has been adjusted preventing errors and miscalculations. Plus, Scan 90 makes layout easier by moving the beam 90 degrees either to the right or left.

With an IP67 rating, this construction laser is dust and water-resistant. The Leica Rugby 640G includes clear LED indicators and a sleep mode function to help save battery. As an additional feature, it comes with a 5/8-11 thread for an easy and hassle-free tripod attachment.

Configuration Options

The Leica Rugby 640G Green Rotary Laser has an optional Rod Eye 120G receiver which has a built-in seven-centimeter detection window that allows easy detection of the beam up to 650 feet radius. It features two large LCD graphic displays on the front and back.

The Leica Rugby 640G also comes with an optional RC400 multipurpose remote control. With up to 200 feet operating range, this remote is integrated with controls with the same functions as the laser level's keypad. Please select your preference from the menu above.

845495: With Hard Carrying Case Only
6011485: With Rod Eye 120G and Li-Ion Battery
6011486: With Rod Eye 120G and Alkaline Battery
6011487: With RC400 Remote Control, Rod Eye 120G and Li-Ion Battery
6011488: With RC400 Remote Control, Rod Eye 120G and Alkaline Battery
6011489: With RC400 Remote Control, Rod Eye 120G, wall mount bracket, Green Target, and Li-Ion Battery
6011836: With RC400 Remote Control, Wall Mount Bracket, Green Target and Li-Ion Battery

Choice of 6 packages
Up to 1,300 feet range with laser receiver
±3/32 inch accuracy at 100 feet
Green beam technology
Self-leveling within ±5 degrees
Horizontal and vertical leveling
Rotation speed: 0, 120, 300, 600 RPM (0, 2, 5, 10 RPS)
Dual-axis manual slope
Plumb beam
Elevation alert
Scan 90
Clear LED indicators
IP67 dustproof and water resistant
Sleep mode
5/8-11 tripod thread

What’s in the Box

Leica Rugby 640G Green Rotary Laser
User Manual
3-year manufacturer’s warranty

Available Package Options

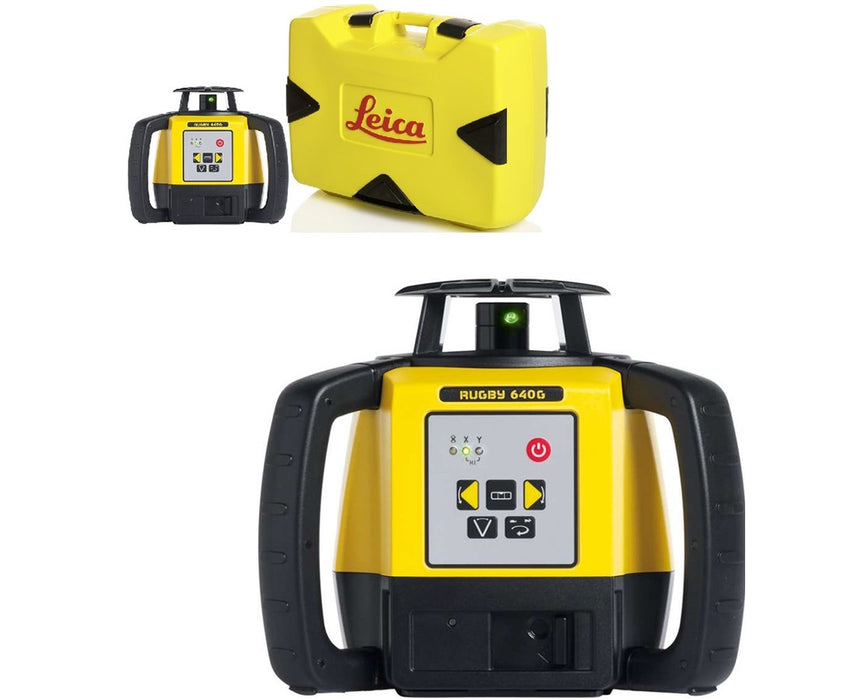

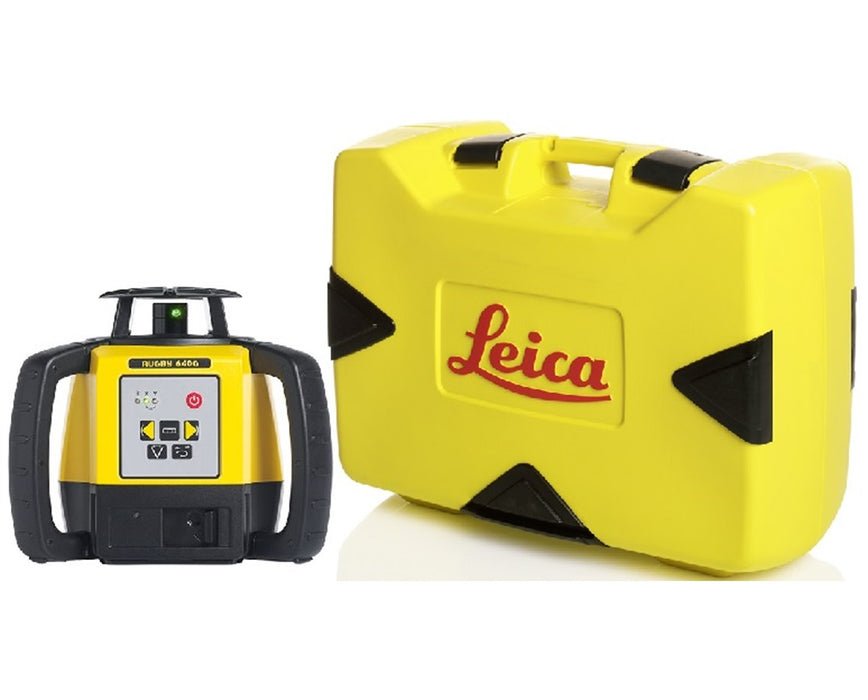

Rugby 640G Rotary Laser 845495

Rugby 640G Rotary Laser
Hard carrying case

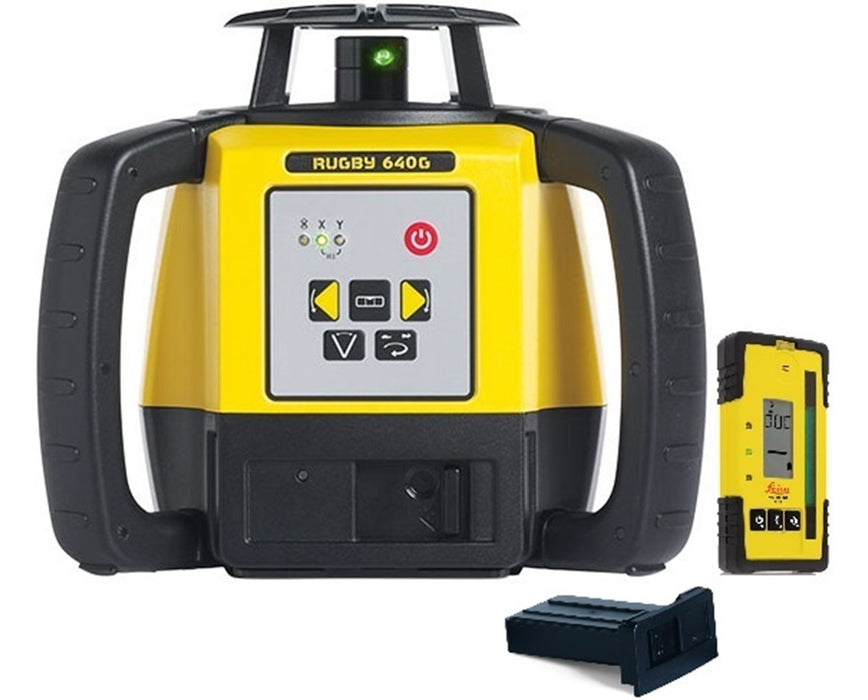

Rugby 640G Rotary Laser 6011485

Rugby 640G Rotary Laser
Hard carrying case
Rod Eye 120G laser receiver with bracket
A-600 Li-ion battery
Battery charger

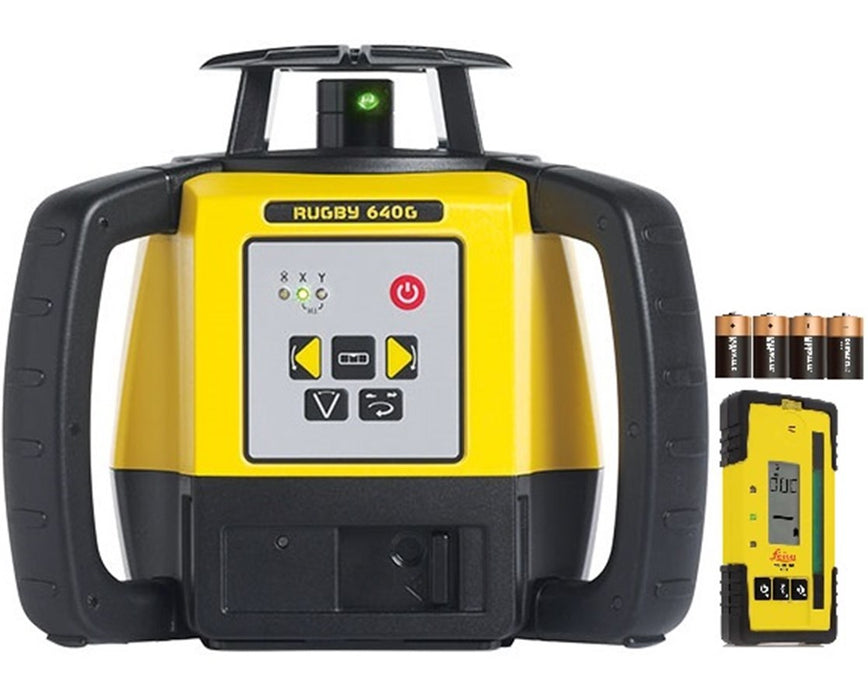

Rugby 640G Rotary Laser 6011486

Rugby 640G Rotary Laser
Hard carrying case
Rod Eye 120G laser receiver with bracket
Alkaline battery pack

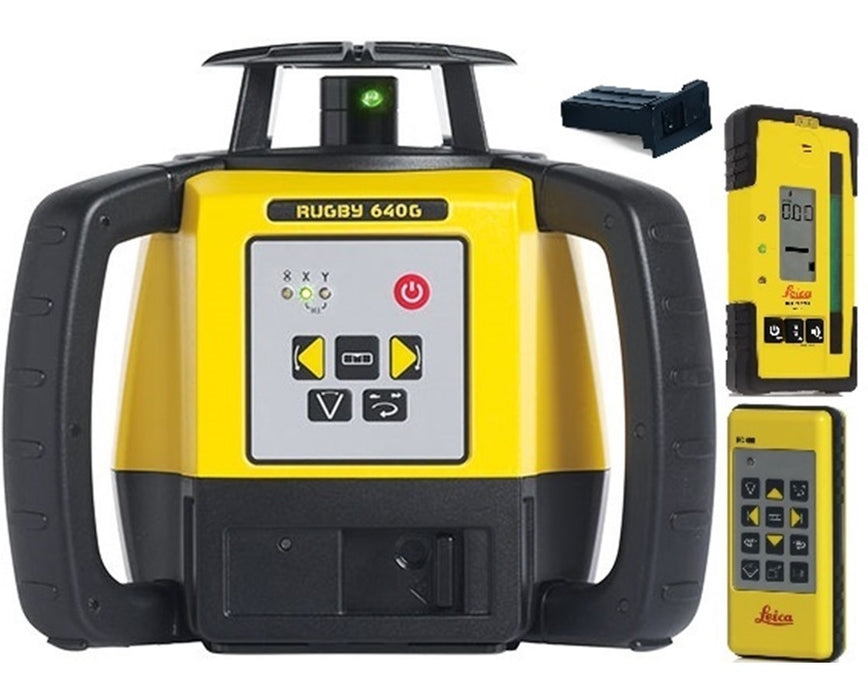

Rugby 640G Rotary Laser 6011487

Rugby 640G Rotary Laser
Hard carrying case
RC400 multi-purpose remote control
Rod Eye 120G laser receiver with bracket
A-600 Li-ion battery
Battery charger

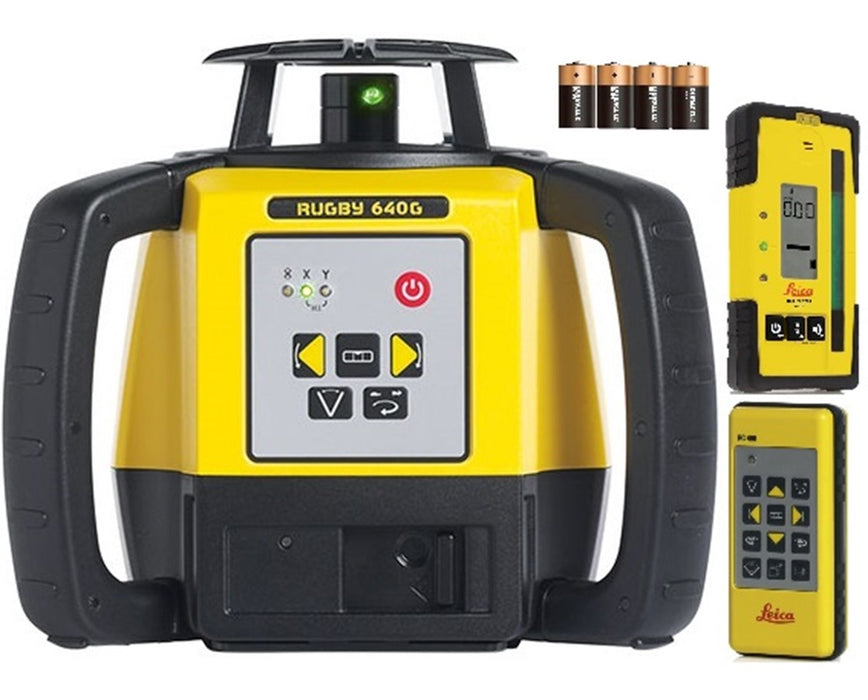

Rugby 640G Rotary Laser 6011488

Rugby 640G Rotary Laser
Hard carrying case
RC400 multi-purpose remote control
Rod Eye 120G laser receiver with bracket
Alkaline battery pack

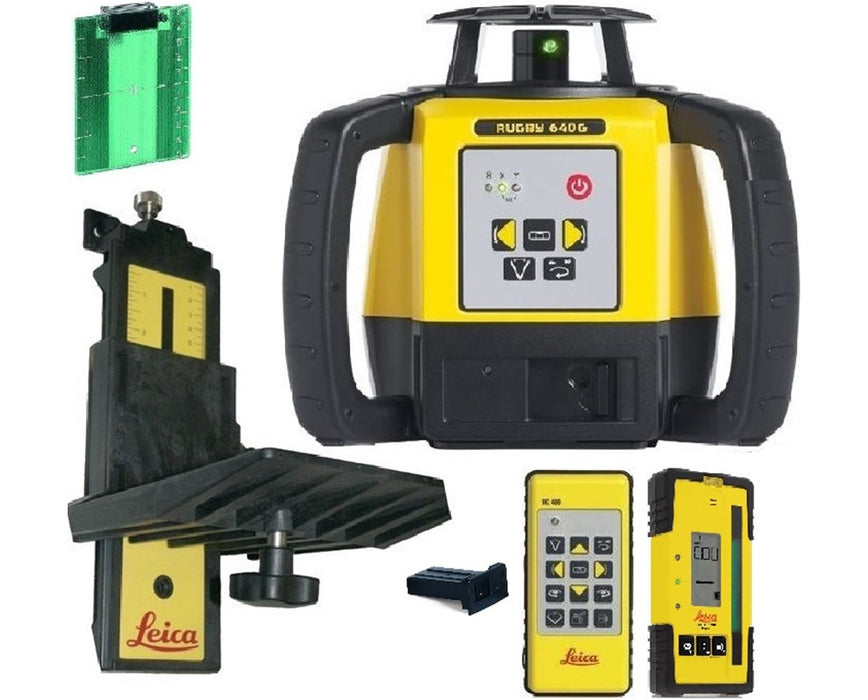

Rugby 640G Rotary Laser 6011489

Rugby 640G Rotary Laser
Hard carrying case
RC400 multi-purpose remote control
Rod Eye 120G laser receiver with bracket
A-200 wall mount bracket
A-210G green ceiling grid target
A-600 Li-ion battery
Battery charger

Rugby 640G Rotary Laser 6011836

Rugby 640G Rotary Laser
Hard carrying case
RC400 multi-purpose remote control
A-200 wall mount bracket
A-210G green ceiling grid target
A-600 Li-ion battery
Battery charger

3-year manufacturer’s warranty.

Leica Geosystems products are special order only.

We do not accept returns or cancellations for special ordered items.

Accuracy

Horizontal

±3/32 inch at 100 feet

Vertical

±3/32 inch at 100 feet

Applications

Concrete Forms, Footings and Foundations

Yes

Checking/Setting Elevations

Yes

Installation of Interior Fittings (cabinets, lighting, windows, countertops, etc.)

Yes

Installation/Leveling Ceiling Grids

Yes

Installation/Leveling Interior Walls

Yes

Short-Range Leveling for Decks, Patios & Swimming Pools

Yes

Short-Run Vertical Alignment

Yes

Squaring and Layout of Partitions, Walls & Tile Floors

Yes

Transferring Points from Floor to Ceiling

Yes

Battery/Power

Battery Life with Alkaline Batteries

Up to 60 hours

Battery Life with Rechargeable Battery Pack

Up to 40 hours

Power Source

Alkaline or Li-Ion batteries

Charger

Charging Time

Up to 5 hours

Input

100 V AC - 240 V AC

Output

12 V DC

Extra Technology

Detector/Receiver

Leica Rod Eye 120G

Remote Control

Leica RC400 Multipurpose Remote Control

Features

Adjustable Rotating Speed

Yes

Automatic Shut-Off

Yes

Bump Sensor (H.I./Out of Position Alert)

Yes

Dual Handles

Yes

Plumb Point

Yes

Protection Class

IP67 dustproof and water submersible

Tripod Adapter (Center Screw Thread)

5/8 x 11

Wall Mount Bracket

Yes

Functions

Automatic Leveling

Yes

Scanning Modes

Yes

General

Warranty

3-year

Laser

Classification

Class 2

Color

Green

Direction

Horizontal, Vertical

Visibility

Highy visible

Wavelength

520 nm

Range

Exterior

Up to 1,300 feet (396 m)

Interior

Up to 1,300 feet (396 m)

Self Leveling

±5 degrees

Temperature

Operating

–4 to 122 °F (–20 to 50 °C)
