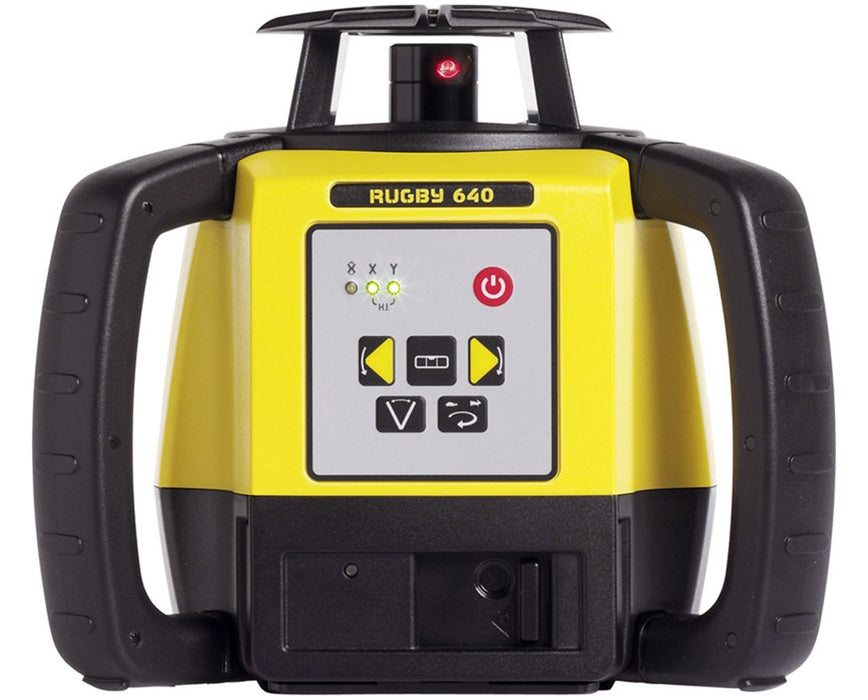

Rugby 640 Rotary Laser Level

Leica
by Leica
MFR#: 6011153
You Save: USD $288.50 -18%
USD $1,618.50 - USD $1,618.50
List Price: USD $1,618.50
USD $1,330.00
USD $1,618.50 - USD $1,618.50
USD $1,330.00

Store Pickup: List of available stores available on the Checkout page.
Rugby 640 Rotary Laser Level
Rugby 640 Rotary Laser Level - USD $1,330.00
USD $1,330.00
*Must Purchase 1 for Rugby 640 Rotary Laser Level

The cart will thereforce automatically set Qty to 1 when you order this product

One of our Sales Experts will be in touch!
IN STOCK Free Shipping (USA) Ships Out Within: 24 - 48 Hours Shipping Date By: 11/25/2024

Manufacturer will supplement this order with the AndroTec Digital Laser Receiver MTR-90R  Of similar capabilities and same warranty. Alternate Leica Receivers are on Backorder

Documents
Product Manual Item Brochure Product Video
Essential Add-Ons:
Aluminum Rod
Aluminum Rod
Details
$38.95
Universal Contractor's Tripod
Universal Contractor's Tripod
Details
$71.25
Fiberglass Rod
Fiberglass Rod
Details
$92.25
CR700 Combined Machine Control Receiver
CR700 Combined Machine Control Receiver
Details
$548.00
$685.00
  • Range up to 2,000 feet with laser receiver
  • Self-leveling within ±5 degrees
  • Accuracy ±1/16 inch at 100 feet
  • Dual-axis manual slope
  • Scan 90 and plumb down
  • Horizontal and vertical leveling
  • Rotation speed: 0, 120, 300, 600 RPM
  • Scanning angle: 10, 45, 90 degrees

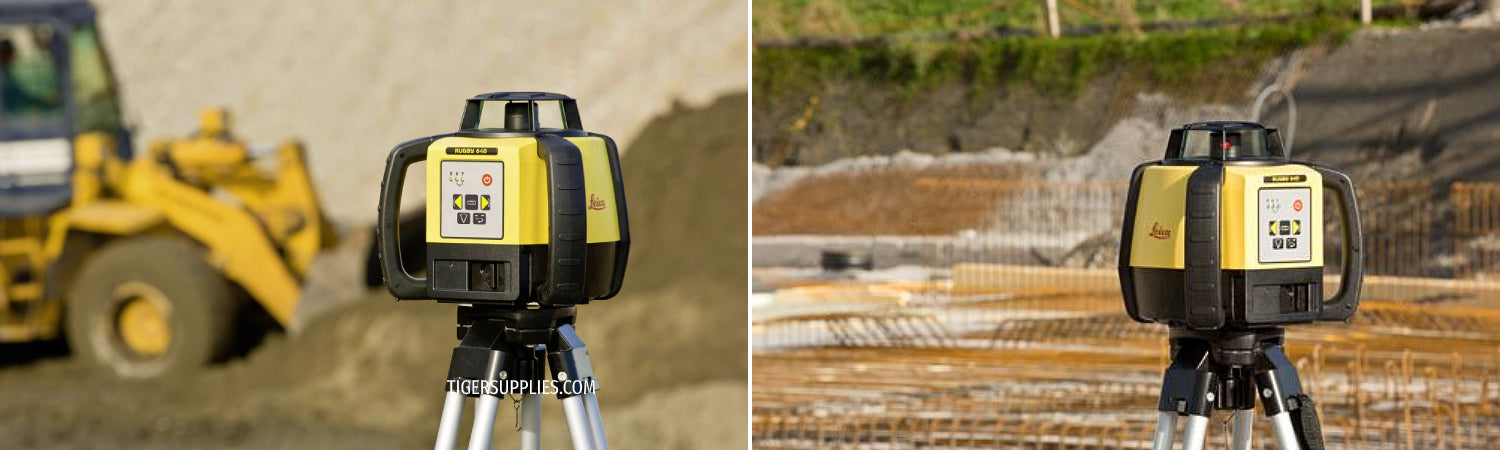

The Leica Rugby 640 Rotary Laser Level is a multi-purpose self-leveling vertical, horizontal, manual, and 90-degree slope in dual axis construction laser level. With a range up to 2,000 feet with the Rod-Eye laser receiver, this is great for both indoor and outdoor applications. Also, the Rugby 640 is self-leveling within ±5 degrees and has an accuracy of ±1/16 inch at 100 feet.

The Leica Rugby 640 has 0, 120, 300, 600 rotations per minute. It also has three scanning angles of 10, 45, and 90 degrees. Featuring LED indicators and a scan 90 function, making layouts is easier by quickly moving the beam to the left or right side. Plus, this rotating laser that has a plumb down needed for automatic and accurate for alignment over a reference point.

Having an IP67 rating, this Leica Rugby 640 is dustproof and water-resistant. It has a glass cage, tough housing, and rubber handles for grip to provide ultimate protection. Also, it can operate up to 40 hours with Li-ion batteries and 60 hours with alkaline batteries. As an extra feature, it comes with a 5/8-11 tripod thread for a smooth leveling experience.

Configuration Options

The Leica Rugby 640 Rotary Laser Level comes with an optional RC400 multipurpose remote control. With up to 200 feet working range, this remote has 12 buttons that can easily control and adjust the laser's functionality. Please select your preference from the menu above.

  • 790363: Rugby 640 Rotating Laser Only
  • 6011154: With Rod Eye 120 and Alkaline Battery Pack
  • 6011153: With Rod Eye 120, Li-Ion Battery Pack and Charger
  • 6011483: With Rod Eye 120, Remote Control, Alkaline Battery Pack
  • 6011481: With Rod Eye 120, Remote Control, Li-Ion Battery Pack
  • 6011156: Interior Package w/ Rod Eye 120, Remote Control, Magnetic Ceiling Grid Target, Li-ion Battery Pack
  • 6005988: With Rod Eye 140, Li-Ion Battery Pack and Charger
  • 6005989: With Rod Eye 160 and Alkaline Battery Pack
  • 6006000: With Rod Eye 160 and Rechargeable Battery Pack


Laser Receiver

Rod Eye 120

Rod Eye 140

Rod Eye 160


Working Diameter


up to 2,900 ft


up to 4,400 ft


up to 4,430 feet


Detection Window


2.75" (70 mm)


4.5" (120 mm)


5" (127mm)


Detection Accuracies
Super Fine


N/A


N/A


±0.5 mm


Fine


±1.0 mm


±1.0 mm


±1.0 mm


Medium


±2.0 mm


±2.0 mm


±2.0 mm


Coarse


±3.0 mm


±3.0 mm


±3.0 mm
Very Coarse


N/A


N/A


±5.0 mm
  • Choice of laser receiver and battery
  • Range up to 2,000 feet with laser receiver
  • Self-leveling within ±5 degrees
  • ±1/16 inch accuracy at 100 feet
  • Dual-axis manual slope
  • Horizontal and vertical leveling
  • Rotation speed: 0, 120, 300, 600 RPM (0, 2, 5, 10 RPS)
  • Scanning angle: 10, 45, 90 degrees
  • LED indicators
  • Scan 90
  • Plumb down
  • IP67 dustproof and water resistant
  • Glass cage and tough housing
  • Rubber handles
  • Operates up to 40 hours with Li-ion batteries
  • Operates up to 60 hours with Alkaline batteries
  • 5/8-11 tripod thread

What’s in the Box

  • Leica Rugby 640 Rotary Laser Level
  • Detector mounting bracket
  • Hard carrying case
  • Batteries
  • User manual
  • 3-year warranty

Available Package Options

3-years manufacturer’s warranty.

Leica Geosystems products are special order only.

We do not accept returns or cancellations for special ordered items.

Accuracy
Horizontal
±1/16 inch at 100 feet
Vertical
±1/16 inch at 100 feet
Applications
Concrete Forms, Footings and Foundations
Yes
Checking Building Square & Area
Yes
Checking Elevations of Sub-Base and Sub-Grade
Yes
Checking/Setting Elevations
Yes
Estimating Cut & Fill
Yes
Installation of Interior Fittings (cabinets, lighting, windows, countertops, etc.)
Yes
Installation/Leveling Ceiling Grids
Yes
Installation/Leveling Interior Walls
Yes
Locating Finished Floor Levels
Yes
Plumb Reference
Yes
Short-Range Leveling for Decks, Patios & Swimming Pools
Yes
Short-Run Vertical Alignment
Yes
Squaring and Layout of Partitions, Walls & Tile Floors
Yes
Transferring Points from Floor to Ceiling
Yes
Battery/Power
Battery Life with Alkaline Batteries
Up to 60 hours
Battery Life with Rechargeable Battery Pack
Up to 50 hours
Power Source
Alkaline or Li-Ion
Features
Adjustable Rotating Speed
0, 2, 5, 10 RPS
Automatic Shut-Off
Yes
Bump Sensor (H.I./Out of Position Alert)
Yes
Display
LED
Drop Damage Protection
Yes
Dual Handles
Yes
One-Touch Commands
Yes
Plumb Point
Yes
Protection Class
IP67 dustproof and water submersible
Tripod Adapter (Center Screw Thread)
5/8 x 11
Functions
Automatic Leveling
Yes
Scanning Modes
10, 45, 90
General
Dimensions
8.38" L × 9.38" W × 7.56" H
Warranty
3-years (with registration)
Weight
5.6 lbs (2.56 kg)
Grade
Type
Manual, dual slope
Laser
Classification
Class 2
Color
Red
Direction
Horizontal and vertical
Visibility
Visible
Wavelength
635 nm
Range
Exterior
Up to 2,000 feet/600 meters (dependent on receiver)
Interior
Up to 2,000 feet/600 meters (dependent on receiver)
Remote
Up to 650 feet (sold seperately)
Self Leveling
±5 degrees
Temperature
Operating
14 to +122 °F (–10 to +50 °C)
Storage
–4 to +158 °F (–20 to +70 °C)
