Rugby 620 Rotary Laser Level

Leica
by Leica
MFR#: 6011151
USD $1,403.50 - USD $1,403.50
List Price: USD $1,403.50
USD $1,403.50
USD $1,403.50 - USD $1,403.50
USD $1,403.50

Store Pickup: List of available stores available on the Checkout page.
Rugby 620 Rotary Laser Level
Rugby 620 Rotary Laser Level - USD $1,403.50
USD $1,403.50
*Must Purchase 1 for Rugby 620 Rotary Laser Level

The cart will thereforce automatically set Qty to 1 when you order this product

One of our Sales Experts will be in touch!
IN STOCK Free Shipping (USA) Ships Out Within: 24 - 48 Hours Shipping Date By: 11/25/2024

Manufacturer will supplement this order with the AndroTec Digital Laser Receiver MTR-90R  Of similar capabilities and same warranty. Alternate Leica Receivers are on Backorder

Documents
Product Manual Item Brochure Product Video
Essential Add-Ons:
Aluminum Rod
Aluminum Rod
Details
$38.95
Universal Contractor's Tripod
Universal Contractor's Tripod
Details
$71.25
Fiberglass Rod
Fiberglass Rod
Details
$92.25
CR700 Combined Machine Control Receiver
CR700 Combined Machine Control Receiver
Details
$548.00
$685.00
  • Range up to 2,600 feet with laser receiver
  • Accuracy ±1/16 inch at 100 feet
  • Horizontal self-leveling within ±5 degrees
  • Single-axis manual slope
  • Rotation speed: 600 RPM
  • Battery life up to 60 hours
  • IP67 dustprood and water immersible
  • 5/8-11 tripod thread

The Leica Rugby 620 Rotary Laser Level has all the great features of the Rugby 610 plus the addition of a manual slope option, an increased accuracy of ±1/16-inch at 100 feet, and improved range of up to 2,600 feet. It is also easy to use with its one-button self-leveling operation, grade entry arrows, and LED indicators for all general construction application.

Self-leveling within ±5 degrees, the Leica Rugby 620 can perform all horizontal leveling tasks indoors or outdoors and is great for concrete and formwork. Construction professionals can also choose to turn off the laser's self-leveling function for single-axis manual grading. It comes with an easy-to-grip over-mold protection handles and clear LED indicators. Plus, the Rugby 620 uses a Class 2, 635-nanometer red laser.

With an IP67 environmental rating, this Leica rotating laser is dustproof and water-resistant. With the included alkaline battery pack, the laser level can last up to 60 hours and 40 hours with the Li-ion rechargeable battery. In addition, the Leica Rugby 620 rotary laser level comes with a 5/8-11 thread for easy tripod attachment.

Configuration Options

The Leica Rugby 620 Rotary Laser Level is available in various packages to suit your needs. Please select your preference from the menu above.

  • 790359: Rugby 620 Rotary Laser Level Only
  • 6011152: With RE120 and Alkaline Battery Pack
  • 6011151: With RE120 and Rechargeable Battery Pack
  • 6005983: With RE140 and Alkaline Battery Pack
  • 6005984: With RE140 and Rechargeable Battery Pack
  • 6005985: With RE160 Receiver and Alkaline Batteries
  • 6005986: With RE160 Receiver and Li-Ion Batteries


Laser Receiver


Rod Eye 120

Rod Eye 140

Rod Eye 160


Working Diameter


up to 2,900 ft


up to 4,400 ft


up to 4,430 feet


Detection Window


2.75" (70 mm)


4.5" (120 mm)


5" (127mm)


Detection Accuracies


Super Fine


N/A


N/A


±0.5 mm


Fine


±1.0 mm


±1.0 mm

±1.0 mm


Medium


±2.0 mm


±2.0 mm

±2.0 mm


Coarse


±3.0 mm


±3.0 mm

±3.0 mm


Very Coarse


N/A


N/A


±5.0 mm
  • Choice of laser receiver and battery
  • Range up to 2,600 feet with Rod Eye 140
  • Range up to 2,000 feet with Rod Eye Basic
  • ±1/16 inch accuracy at 100 feet
  • Horizontal self-leveling within ±5 degrees
  • Single-axis manual slope
  • One-button operation
  • LED indicator
  • Rotation speed: 600 RPM (10 RPS)
  • Class 2, 635nm red laser
  • Over-molded handles
  • IP67 dustproof and water resistant
  • Up to 60 hours using 4 D-cells alkaline
  • Up to 40 hours using Li-ion pack
  • 5/8-11 tripod thread

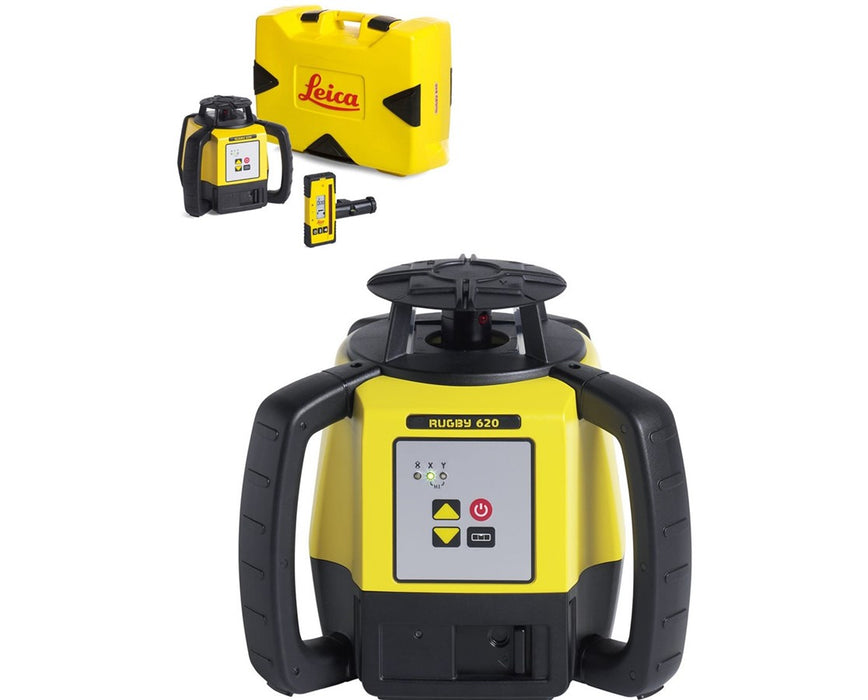

What’s in the Box

  • Leica Rugby 620 Rotary Laser Level
  • Detector mounting bracket
  • Hard carrying case
  • User manual
  • 3-year warranty

Available Package Options

3-year manufacturer’s warranty.

Leica Geosystems products are special order only.

We do not accept returns or cancellations for special ordered items.

Accuracy
Horizontal
±1/16 inch at 100 feet
Applications
Concrete Forms, Footings and Foundations
Yes
Checking Building Square & Area
Yes
Checking Elevations of Sub-Base and Sub-Grade
Yes
Checking/Setting Elevations
Yes
Installation of Interior Fittings (cabinets, lighting, windows, countertops, etc.)
Yes
Installation/Leveling Interior Walls
Yes
Locating Finished Floor Levels
Yes
Short-Range Leveling for Decks, Patios & Swimming Pools
Yes
Squaring and Layout of Partitions, Walls & Tile Floors
Yes
Battery/Power
Battery Life with Alkaline Batteries
Up to 60 hours
Battery Life with Rechargeable Battery Pack
Up to 40 hours
Power Source
Alkaline or Li-Ion rechargeable
Charger
Charging Time
Up to 5 hours
Input
100 V AC - 240 V AC
Output
12 V DC
Extra Technology
Detector/Receiver
Rod Eye Basic/Rod Eye 140
Features
Adjustable Rotating Speed
10 RPS
Automatic Shut-Off
Yes
Bump Sensor (H.I./Out of Position Alert)
Yes
Display
LED
Drop Damage Protection
Yes
Dual Handles
Yes
One-Touch Commands
Yes
Protection Class
IP67 dustproof and water submersible
Tripod Adapter (Center Screw Thread)
5/8 x 11
Functions
Automatic Leveling
Yes
General
Dimensions
8.38" L × 9.38" W × 7.56" H
Warranty
3-years (with registration)
Weight
5.6 lbs (2.56 kg)
Grade
Type
Manual, single slope
Laser
Classification
Class 2
Color
Red
Direction
Horizontal
Visibility
Visible
Wavelength
635 nm
Range
Exterior
Up to 2,000 feet (Rod Eye Basic); Up to 2,600 feet (Rod Eye 140)
Interior
Up to 2,000 feet (Rod Eye Basic); Up to 2,600 feet (Rod Eye 140)
Self Leveling
±5 degrees (horizontal)
Temperature
Operating
14 to 122 °F (–10 to 50 °C)
Storage
–4 to 158 °F (–20 to 70 °C)
