Rugby 610 Rotary Laser Level

by Leica
MFR#: 6011150
TIGER#: TS24386
Original price $900.00 - Original price $900.00
Original price List Price: $900.00
$1,175.50
$1,175.50 - $1,175.50
Current price $1,175.50
Rugby 610 Rotary Laser Level
Rugby 610 Rotary Laser Level - $1,175.50
$1,175.50
*Must Purchase 1 for Rugby 610 Rotary Laser Level

The cart will thereforce automatically set Qty to 1 when you order this product

IN STOCK Free Shipping (USA) Ships Out Within: 24 - 48 Hours Shipping Date By: 4/19/2024

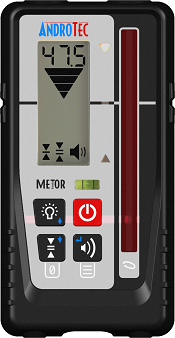

Manufacturer will supplement this order with the AndroTec Digital Laser Receiver MTR-90R  Of similar capabilities and same warranty. Alternate Leica Receivers are on Backorder

One of our Sales Experts will be in touch!

Essential Add-Ons:
Heavy-Duty Tripod
Heavy-Duty Tripod
Details
$154.99
Fiberglass Rod
Fiberglass Rod
Details
$76.95
  • Range up to 2,000 feet with laser receiver
  • Accuracy ±3/32 inch at 100 feet
  • Horizontal self-leveling within ±5 degrees
  • One-button operation
  • Rotation speed: 600 RPM
  • IP67 dustproof and water immersible
  • Battery life up to 60 hours
  • 5/8-11 tripod thread

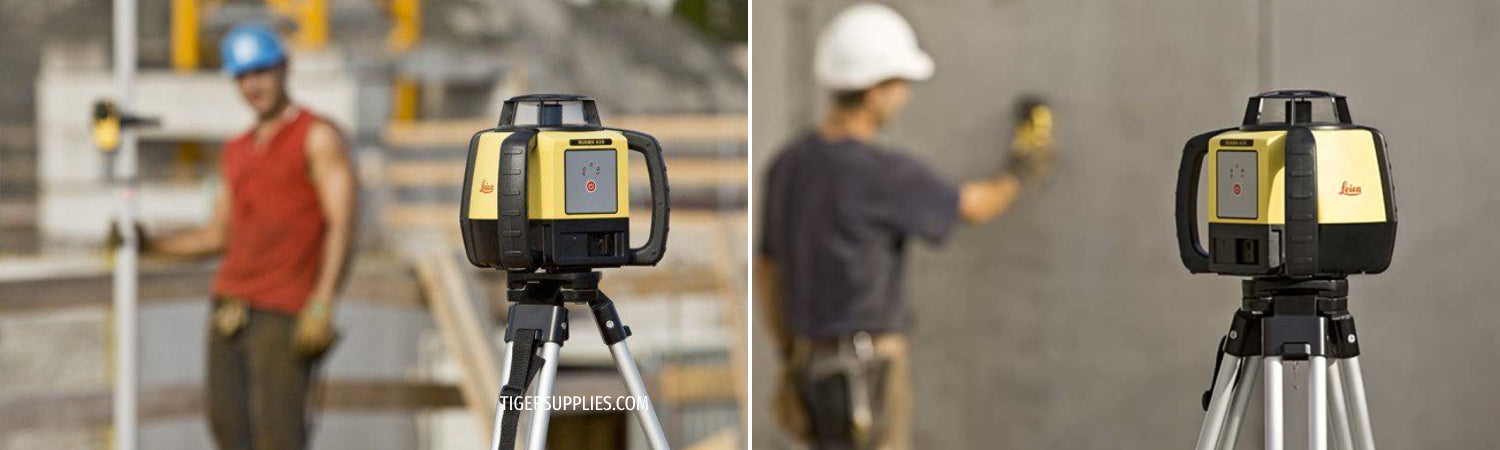

Ideal for all general construction applications, the Leica Rugby 610 Rotary Laser Level is an easy-to-use laser that is self-leveling within ±5 degrees in a horizontal fashion. It features a range up to 2,000 feet with the use of a laser receiver and provides an accuracy of ±3/32 inch at 100 feet. Featuring a one-button operation, it is perfect for site preparation, grade checking, formwork verticality, concrete pouring, formwork leveling, and other similar jobs.

The Rugby 610 features a rotation speed of 600 rotations per minute. Also, it comes with a clear LED indicator for a clear battery and function display. This Leica rotating laser uses the Class 2, 635-nanometer, visible red laser.

Having an IP67 rating, the Leica Rugby 610 is dustproof and water-resistant. Made from a co-molded rubber and high-impact plastic, it can withstand the harshest weather conditions. Also, it includes robust grab handles for easy grip. The Rugby 610 can run up to 40 hours with Li-ion batteries and up to 60 hours with Alkaline batteries. As an additional feature, it comes with a 5/8-11 thread for easy attachment on compatible tripods.

Configuration Options

The Leica Rugby 610 Rotary Laser Level is available in various packages to suit your needs. Please select your preference from the menu above.

  • 810945: Rugby 610 Rotating Laser Only
  • 6011150: With Rod-Eye 120 and Alkaline Battery Pack
  • 6011149: With Rod-Eye 120, Li-Ion Battery Pack and Charger
  • 6014248: With Rod Eye 120, Li-Ion Battery, Tripod, and Telescopic Staff
  • 6008614: With Rod-Eye 140 and Alkaline Battery Pack
  • 6008613: With Rod-Eye 140, Li-Ion Battery Pack and Charger
  • 6008616: With Rod Eye 160 and Alkaline Batteries
  • 6008615: With Rod Eye 160 and Rechargeable Battery Pack


Laser Receiver

Rod Eye 120

Rod Eye 140

Rod Eye 160


Working Diameter


up to 2,900 ft


up to 4,400 ft


up to 4,430 feet


Detection Window


2.75" (70 mm)


4.5" (120 mm)


5" (127mm)


Detection Accuracies

Super Fine


N/A


N/A


±0.5 mm


Fine


±1.0 mm


±1.0 mm


±1.0 mm


Medium


±2.0 mm


±2.0 mm


±2.0 mm


Coarse


±3.0 mm


±3.0 mm


±3.0 mm

Very Coarse


N/A


N/A


±5.0 mm

Scroll back to Top

  • Choice of receiver and battery
  • Up to 2,000 feet range with laser receiver
  • Horizontal self-leveling within ±5 degrees
  • ±3/32 inch accuracy at 100 feet
  • One-button operation
  • Rotation speed: 600 RPM (10 RPS)
  • LED indicator
  • Class 2 635-nm visible red laser
  • Robust grab handles
  • IP67 dust and water resistant
  • Up to 60-hour battery life
  • 5/8-11 tripod thread

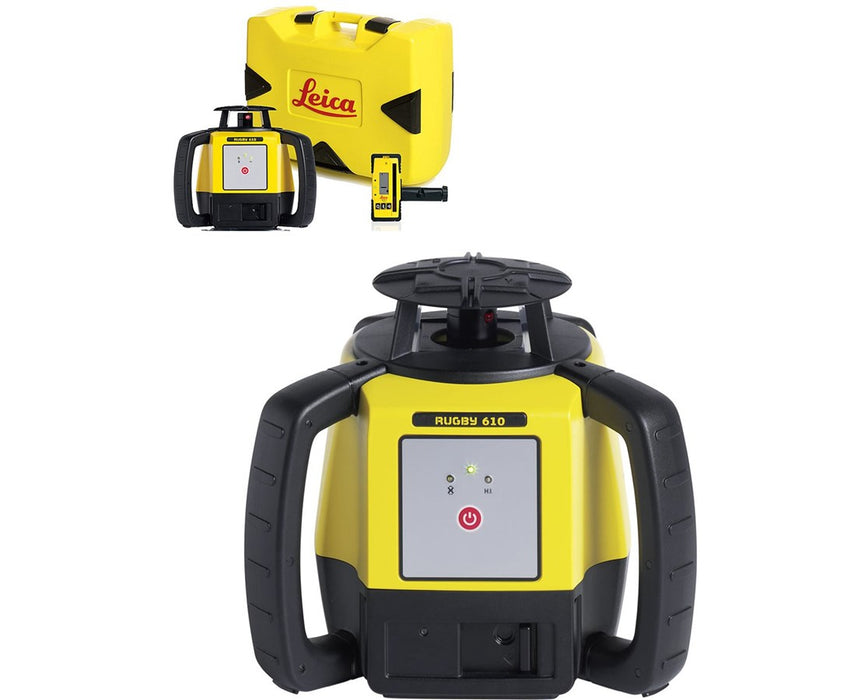

What’s in the Box

  • Leica Rugby 610 Rotary Laser Level
  • Detector mounting bracket
  • Hard carrying case
  • User manual
  • 3-year warranty

Available Package Options

Leica Geosystems products are special order only.

We do not accept returns or cancellations for special ordered items.

Accuracy
Horizontal
±3/32 inch at 100 feet
Applications
Concrete Forms, Footings and Foundations
Yes
Checking Building Square & Area
Yes
Checking/Setting Elevations
Yes
Estimating Cut & Fill
Yes
Installation of Interior Fittings (cabinets, lighting, windows, countertops, etc.)
Yes
Installation/Leveling Interior Walls
Yes
Locating Finished Floor Levels
Yes
Short-Range Leveling for Decks, Patios & Swimming Pools
Yes
Squaring and Layout of Partitions, Walls & Tile Floors
Yes
Battery/Power
Battery Life with Alkaline Batteries
Up to 60 hours
Battery Life with Rechargeable Battery Pack
Up to 40 hours with Li-ion rechargeable battery
Power Source
Alkaline or Li-Ion rechargeable
Charger
Charging Time
Up to 5 hours
Input
100 V AC - 240 V AC
Output
12 V DC
Extra Technology
Detector/Receiver
Rod Eye Basic/Rod Eye 140
Features
Automatic Shut-Off
Yes
Bump Sensor (H.I./Out of Position Alert)
Yes
Display
LED
Drop Damage Protection
Yes
Dual Handles
Yes
One-Touch Commands
Yes
Protection Class
IP67 dustproof and water immersible up to 3 feet (1 m)
Tripod Adapter (Center Screw Thread)
5/8 x 11
Functions
Automatic Leveling
Yes
General
Dimensions
8.38" L × 9.38" W × 7.56" H
Warranty
3-years (with registration)
Weight
5.2 lbs (2.38 kg)
Laser
Classification
Class 2
Color
Red
Direction
Horizontal
Visibility
Visible
Wavelength
635 nm
Range
Exterior
Up to 1,650 feet (Rod Eye Basic); Up to 2,000 feet (Rod Eye 140)
Interior
Up to 1,650 feet (Rod Eye Basic); Up to 2,000 feet (Rod Eye 140)
Self Leveling
±5 degrees (horizontal)
Temperature
Operating
14 to 122 °F (–10 to 50 °C)
Storage
–4 to 158 °F (–20 to 70 °C)
