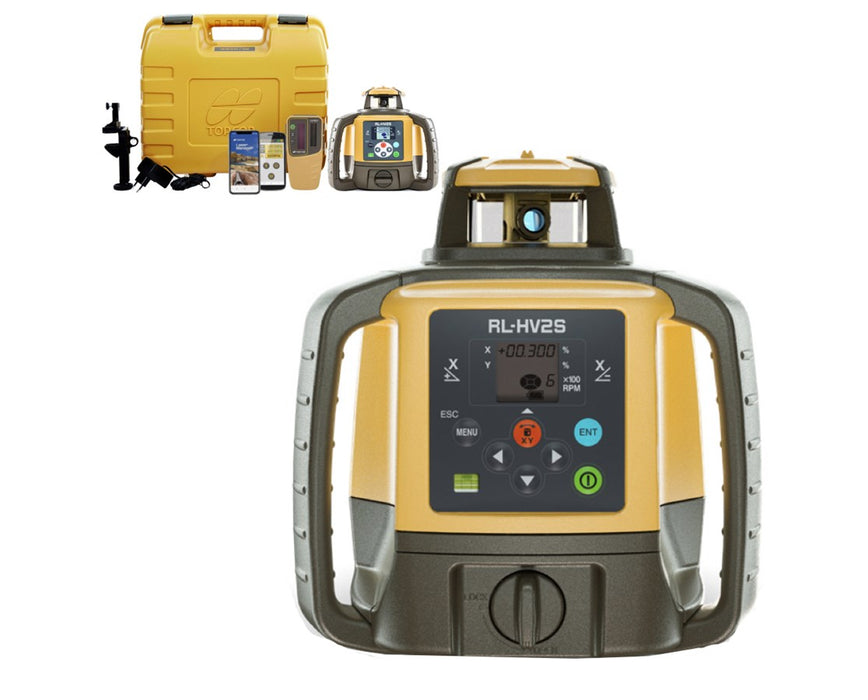

Topcon RL-HV2S Dual Grade Laser

MFR#: 1051612-01
TIGER#: TS20860
Original price List Price: $2,740.00
You Save: $963.10 -35%
Original price $2,740.00 - Original price $2,740.00
Original price List Price: $2,740.00
Current price $1,776.90
$1,776.90 - $1,776.90
Current price $1,776.90
Topcon RL-HV2S Dual Grade Laser
Topcon RL-HV2S Dual Grade Laser - $1,776.90
$1,776.90
*Must Purchase 1 for Topcon RL-HV2S Dual Grade Laser

The cart will thereforce automatically set Qty to 1 when you order this product

IN STOCK Free Shipping (USA) Ships Out Within: 24 - 48 Hours Shipping Date By: 6/16/2024

Requires Manager App for Bluetooth Connectivity. Purchase in Appstore for $99

One of our Sales Experts will be in touch!

Essential Add-Ons:
Aluminum Rod
Aluminum Rod
Details
$43.95
$44.95
Universal Contractor’s Tripod
Universal Contractor’s Tripod
Details
$75.99
$79.99
Topcon LS-B20 Machine Control Laser Receiver - 1063525-03
Topcon LS-B20 Machine Control Laser Receiver - 1063525-03
Details
$651.60
Fiberglass Rod
Fiberglass Rod
Details
$76.95
  • Range of Up to 2,625 feet (800m)
  • Accuracy of ±10 Arc Seconds in X & Y Axes; Self-Leveling Within ±5 degrees
  • Dual Grade of ±5%, ±15% if Used w/ Plate
  • Features Laser Manager App for Bluetooth Connectivity
  • Comes w/ Height-of-Instrument Sensor (LS-80X Receiver)
  • Adjustable Rotation Speed (300 or 600 RPM)
  • IP66 Dustproof & Powerful Water Jet Resistant

The Topcon RL-HV2S Dual Grade Laser is a reliable and functional device used to calibrate and level horizontal, vertical, and multi-slope areas in the site. This long range laser is ideal for grade checking while excavating, pipe laying, landscaping, foundations, retaining walls, drop ceilings, and more. The device comes with a free Laser Manager App, that allows bluetooth connectivity to the user's mobile device, for an easier control and navigation of the laser.

Accurate & Reliable: Self-leveling within ±5 degrees, this Topcon device has a working range up to 2,625 feet (800m), offers an accuracy of ±10 arc seconds in both X and Y axes, and is designed to cover larger projects, with its Laser Class 1 construction. Also, it features two rotational speeds of 300 and 600 rotations per minute, offers an accuracy of ±10 arc seconds, and can efficiently measure dual grade range of up to ±5 percent (±15% if used with plate). It can also be used for layout and alignment applications when the device is turn on its side.

Heavy-Duty Design: With an IP66 rating, this Topcon dual grade laser is dustproof and water-resistant, and can ultimately withstand the toughest environments. It can operate up to 120 hours if alkaline batteries are used, and 65 hours for Ni-MH rechargeable battery pack. In addition, it features an operating temperature of -4 °F to 122 °F which is built to work perfectly even under extreme temperatures. The device also includes a height-of-instrument sensor (for LS-80X Receiver), that notifies the construction professional that the device has been moved.

Excellent Bluetooth Connectivity: With the help of the Laser Manager Mobile App (for iOS and Android), the user can remotely access the functions and display of the Topcon laser device via bluetooth, allowing simpler navigation for slope adjustments, setting of position, modes, and rotation speeds, and allowing self-leveling and calibration of the laser. This provides convenience and a more efficient work without the need of other remote controls to carry in the field.

Configuration Options

The Topcon RL HV2S Dual Grade Laser Single Grade Laser offers different packages that suit your needs. All are supported by a five-year warranty. Please choose from the drop-down menu above.

  • Laser w/ LS-80X Receiver (1051612-01)
  • Laser w/ Rechargeable NiMH Battery & LS-100D Receiver (1051612-02)

Replaces the Discontinued RL-SV2S Dual Grade Lasers: 313990752, 313990772

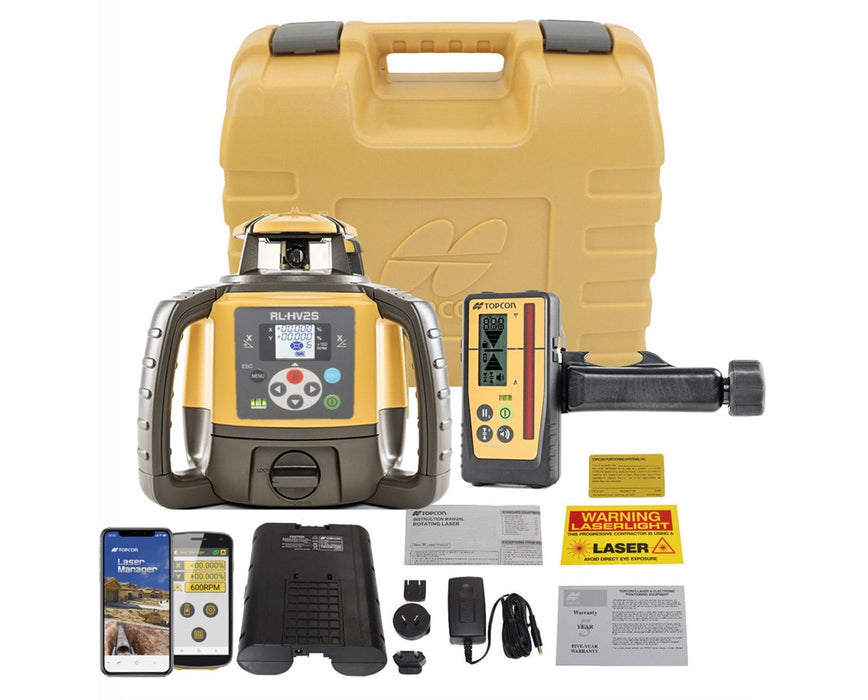

What’s in the Box

  • Topcon RL-HV2S Dual Grade Laser
  • Laser Manager App
  • Laser Receiver
  • Sensor Holder
  • LS-80X Height Sensor
  • Batteries
  • Charger
  • Carrying case
  • User manual
  • 5-year manufacturer's warranty

Available Package Options

  • Laser Receiver: LS-80X or LS-100D
  • Battery: Standard or Rechargeable Battery

Tiger Supplies offers a 30-day return policy from date of shipment for this product, subject to a 20% restocking fee, in addition to the return shipping charges. The product must be in new condition and in its original packaging. We take the responsibility to make sure this product arrives in a brand new working condition. Should your item arrive damaged, we will take full responsibility and replace the product at no cost to you.

For complete details of our return policy and process, please refer to our general return policy page.

Accuracy
Horizontal
Horizontal ±10 arc seconds
Applications
Concrete Forms, Footings and Foundations
Yes
Checking Elevations of Sub-Base and Sub-Grade
Yes
Checking/Setting Elevations
Yes
Estimating Cut & Fill
Yes
Installation of Interior Fittings (cabinets, lighting, windows, countertops, etc.)
Yes
Installation/Leveling Ceiling Grids
Yes
Installation/Leveling Interior Walls
Yes
Locating Finished Floor Levels
Yes
Matching Existing Slope & Grade
Yes
Short-Range Leveling for Decks, Patios & Swimming Pools
Yes
Short-Run Vertical Alignment
Yes
Battery/Power
Battery Life Alert
Yes
Battery Life with Alkaline Batteries
Up to 120 hours
Battery Life with Rechargeable Battery Pack
Up to 65 hours
Power Source
Rechargeable NiMH or D-cell
Charger
Charging Time
Up to 13 hours
Extra Technology
Detector/Receiver
LS-80X or LS-100D
Remote Control
via Mobile Bluetooth (Laser Manager App)
Features
Adjustable Rotating Speed
300, 600 RPM
Built-in Bubble Vial
Yes
Bump Sensor (H.I./Out of Position Alert)
Yes
Display
Backlit, graphic LCD
Dual Handles
Yes
Protection Class
IP66 dustproof and powerful water jet resistant
Tripod Adapter (Center Screw Thread)
5/8 x 11
Functions
Automatic Leveling
Yes
Beam Operating Modes
Beam masking
Grade Operation
Automatic
General
Dimensions
7.0" L × 7.7" W × 8.5" H
Remote Control Operating Distance
Up to 328 feet (99.97 m)
Warranty
5-year
Weight
5.95 lbs (2.7 kg)
Grade
Percentage
±15%
Type
Dual
Laser
Classification
Class 1
Color
Red
Direction
Horizontal and vertical
Visibility
Visible
Wavelength
635 nm
Range
Exterior
Up to 2,625 feet (800 m)
Self Leveling
±5 degrees
Temperature
Operating
-4 to 122 °F (-20 to 50 °C)
Storage
-22 to 140 °F (-30 to 60 °C)
