Topcon RL-HV1S Single Grade Laser

MFR#: 313990749
TIGER#: TS51572
Original price List Price: $2,290.00
You Save: $600.25 -26%
Original price $2,290.00 - Original price $2,290.00
Original price List Price: $2,290.00
Current price $1,689.75
$1,689.75 - $1,689.75
Current price $1,689.75

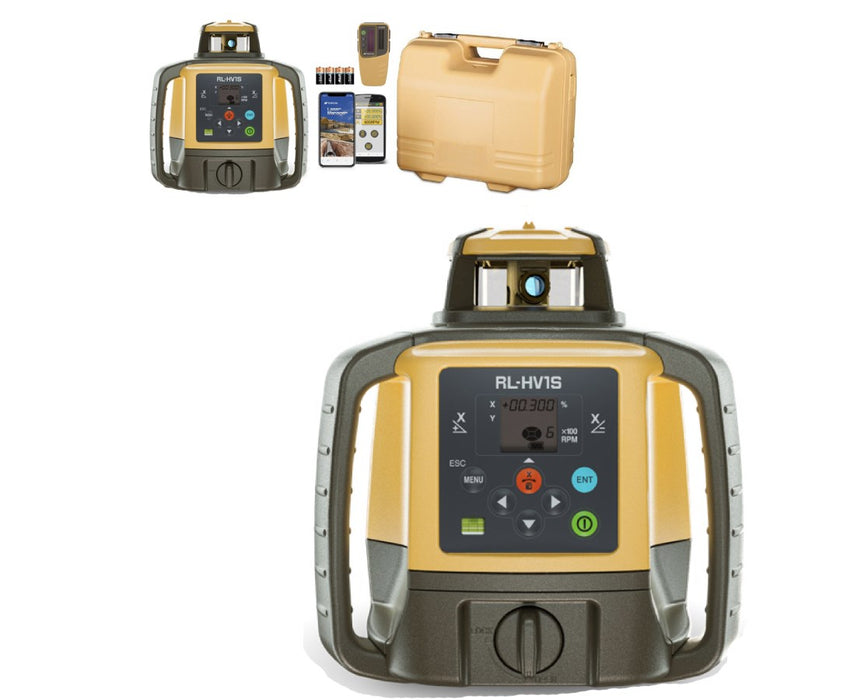

Topcon RL-HV1S Single Grade Laser
Topcon RL-HV1S Single Grade Laser - $1,689.75
$1,689.75
*Must Purchase 1 for Topcon RL-HV1S Single Grade Laser

The cart will thereforce automatically set Qty to 1 when you order this product

Free Shipping (USA) Ships Out Within: 5 - 7 Business Days Shipping Date By: 6/23/2024

Requires Manager App for Bluetooth Connectivity. Purchase in Appstore for $99

One of our Sales Experts will be in touch!

Essential Add-Ons:
Aluminum Rod
Aluminum Rod
Details
$43.95
$44.95
Universal Contractor’s Tripod
Universal Contractor’s Tripod
Details
$75.99
$79.99
Topcon LS-B20 Machine Control Laser Receiver - 1063525-03
Topcon LS-B20 Machine Control Laser Receiver - 1063525-03
Details
$651.60
Fiberglass Rod
Fiberglass Rod
Details
$76.95
  • Range of up to 2,625 feet (800m)
  • Accuracy of ±10 Arc Seconds & Single Grade Range of ±5%
  • Horizontal Self-leveling Within ±5 degrees
  • Features Laser Manager App for Bluetooth Connectivity
  • Rotational speeds: 300 & 600 RPM
  • IP66 dustproof & Water-Resistant
  • Battery life up to 120 hours

The Topcon RL-HV1S Single Grade Laser is an economical and user-friendly laser that is built for single slope and layout applications. With a working range up to 2,625 feet (800m), this laser is ideal for land surveying, geospatial monitoring, civil engineering works and other site works. The device comes with a free Laser Manager App, that allows bluetooth connectivity to the user’s mobile device, for an easier control and navigation of the laser.

Accurate & Reliable: Self-leveling within ±5 degrees horizontally, the Topcon RL-HV1S is designed for different indoor and outdoor tasks, and is designed to cover larger projects, with its Laser Class 1 construction. Also, it features two rotational speeds of 300 and 600 rotations per minute, offers an accuracy of ±10 arc seconds, and can accurately measure single grade range of up to ±5 percent (±15% if used with plate) in the X axis.

Heavy-Duty Design: This Topcon Single Grade Laser features an IP66 rating which protects the instrument from dust and water, and can withstand the toughest environments. Built for long hours of work, it can operate up to 120 hours if alkaline batteries are used, and 65 hours for Ni-MH rechargeable battery pack. In addition, it features an operating temperature of -4 F to 122 F which is built to work perfectly even under extreme temperatures.

Excellent Bluetooth Connectivity: With the help of the Laser Manager Mobile App (for iOS and Android), the user can remotely access the functions and display of the Topcon laser device via bluetooth, allowing simpler navigation for slope adjustments, setting of position, modes, and rotation speeds, and allowing self-leveling and calibration of the laser. This provides convenience and a more efficient work without the need of other remote controls to carry in the field.

Configuration Options

The Topcon RL-HV1S Single Grade Laser offers different packages that suit your needs. All are supported by a five-year warranty. Please choose from the drop-down menu above.

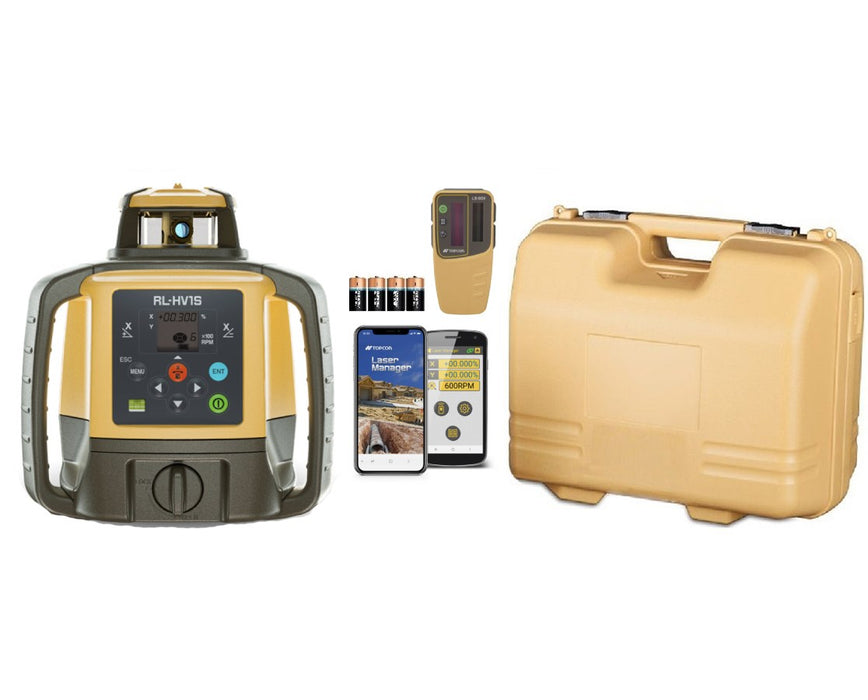

  • Laser w/ LS-80X Receiver (1051612-08)

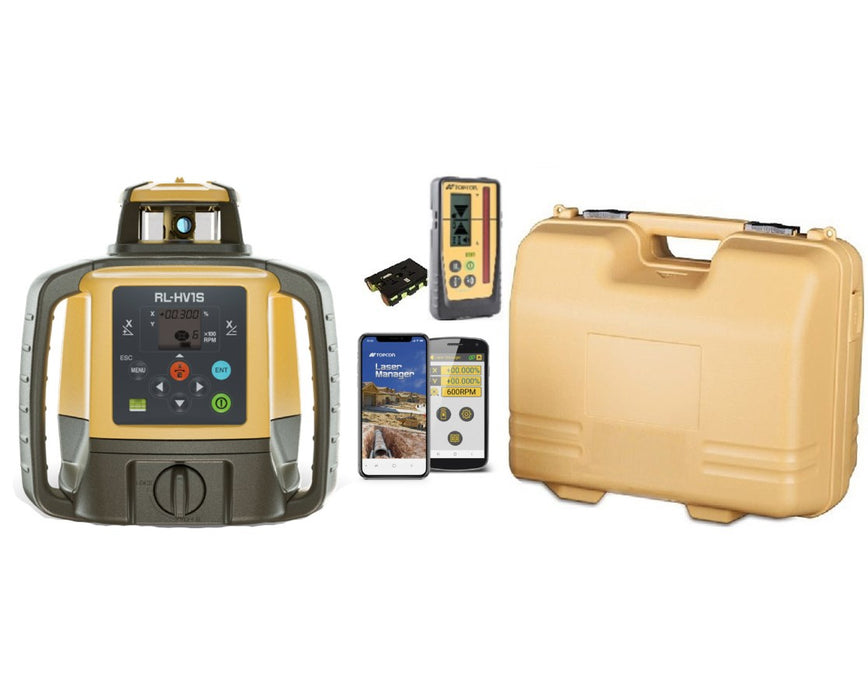

  • Laser w/ LS-100D Receiver & Rechargeable Battery (1051612-09)

Replaces the Discontinued RL-SV1S Dual Grade Lasers: 313990756, 313990706, 313990776, 313990749, 313990739, 313990779

What’s in the Box

  • Topcon RL-HV1S Single Grade Laser
  • Laser Manager App
  • Laser Receiver
  • Sensor Holder
  • Batteries
  • Charger
  • Carrying case
  • User manual
  • 5-year manufacturer's warranty

Available Package Options

  • Battery: Standard or Rechargeable
  • Laser Receiver: LS-80X or LS-100D



Tiger Supplies offers a 30-day return policy from date of shipment for this product, subject to a 20% restocking fee, in addition to the return shipping charges. The product must be in new condition and in its original packaging. We take the responsibility to make sure this product arrives in a brand new working condition. Should your item arrive damaged, we will take full responsibility and replace the product at no cost to you.

For complete details of our return policy and process, please refer to our general return policy page.

Accuracy
Horizontal
±10 arc seconds
Applications
Concrete Forms, Footings and Foundations
Yes
Checking Building Square & Area
No
Checking Elevations of Sub-Base and Sub-Grade
No
Checking/Setting Elevations
Yes
Estimating Cut & Fill
No
Installation of Interior Fittings (cabinets, lighting, windows, countertops, etc.)
Yes
Installation/Leveling Ceiling Grids
No
Installation/Leveling Interior Walls
Yes
Locating Finished Floor Levels
No
Machine Control of Excavators, Graders, Dozers or Similar Equipment
No
Matching Existing Slope & Grade
Yes
Plumb Reference
No
Short-Range Leveling for Decks, Patios & Swimming Pools
Yes
Short-Run Vertical Alignment
Yes
Squaring and Layout of Partitions, Walls & Tile Floors
Yes
Transferring Points from Floor to Ceiling
No
Battery/Power
Battery Life Alert
No
Battery Life with Alkaline Batteries
Up to 120 hours
Battery Life with Rechargeable Battery Pack
Up to 65 hours
Power Source
Drycell Alkaline or NiMH rechargeable
Extra Technology
Detector/Receiver
LS-80X or LS-100D
Remote Control
Yes
Features
Adjustable Rotating Speed
300 and 600 RPM
Display
Digital value readout
Dual Handles
Yes
Protection Class
IP66 dustproof and water resistant
Functions
Automatic Leveling
Yes
Beam Operating Modes
Yes
Grade Operation
Yes
Scanning Modes
Yes
Slope Match
Yes
General
Dimensions
7" L × 7.7"W × 8.5"H (17.7 × 19.6 × 21.7 cm)
Remote Control Operating Distance
via Bluetooth (Laser Manager App)
Warranty
5-year
Weight
5.95 lbs
Grade
Accuracy
±10 arc seconds
Percentage
±5%
Type
Single
Laser
Color
Red
Direction
Horizontal only
Visibility
Visible
Range
Exterior
Up to 2,600 feet
Interior
Up to 2,600 feet
Self Leveling
±5 degrees
Temperature
Operating
-4 to 122 °F (-20 to 50 °C)
