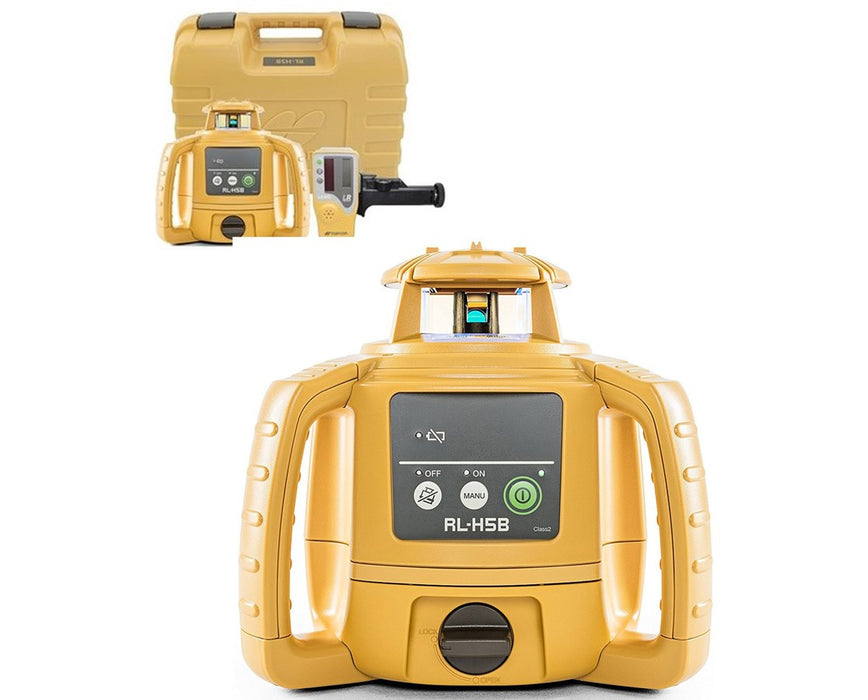

Topcon RL-H5B Horizontal Self-Leveling Rotary Laser w/ LS-80X Receiver- 1021200-73

MFR#: 1021200-73
TIGER#: TS55239
Original price $549.95 - Original price $549.95
Original price List Price:
$549.95
$549.95 - $549.95
Current price $549.95
Topcon RL-H5B Horizontal Self-Leveling Rotary Laser w/ LS-80X Receiver- 1021200-73
Topcon RL-H5B Horizontal Self-Leveling Rotary Laser w/ LS-80X Receiver- 1021200-73 - $549.95
$549.95
*Must Purchase 1 for Topcon RL-H5B Horizontal Self-Leveling Rotary Laser w/ LS-80X Receiver- 1021200-73

The cart will thereforce automatically set Qty to 1 when you order this product

IN STOCK Free Shipping (USA) Ships Out Within: 24 - 48 Hours Shipping Date By: 6/22/2024

Battery / Charger are not included - Sold Separately

One of our Sales Experts will be in touch!

Essential Add-Ons:
Aluminum Rod
Aluminum Rod
Details
$43.95
$44.95
Universal Contractor’s Tripod
Universal Contractor’s Tripod
Details
$75.99
$79.99
Topcon LS-B20 Machine Control Laser Receiver - 1063525-03
Topcon LS-B20 Machine Control Laser Receiver - 1063525-03
Details
$648.00
Fiberglass Rod
Fiberglass Rod
Details
$76.95
  • Range up to 1,300 feet with LS-80X receiver
  • Accuracy of ±1/8 inch at 100 feet
  • Self-leveling within ±5 degrees
  • Out-of-level alert
  • Rotation speed: 600 RPM
  • Battery life up to 100 hours
  • IP66 dustproof and water resistant
  • 5/8-11 tripod thread

The Topcon RL-H5B Horizontal Self-Leveling Rotary Laser is an accurate construction laser that is perfect for excavating, grading, and other general construction applications. When paired with the LS-80X laser receiver, this rotary laser offers long-range operation up to 1,312 feet with an accuracy of ±1/8" at 100 feet. Also, the RL-H5B horizontally self-levels within ±5 degrees.

The Topcon RL-H5B self-leveling rotary laser uses a Class 2 visible red laser for indoor or outdoor use. Packed with advanced features, this laser level enables site engineers to conveniently use the device by pressing one button. It is capable of 600 rotations per minute and comes with an out-of-level notification that lets the device automatically relevel when disturbed.

The included Topcon LS-80X laser receiver features a dual LCD display and two on-grade precision settings. It also has a two-inch beam detection width and nine-channel grade indicators with high/low out-of-range alert.

Using four D-cell alkaline batteries, the Topcon RL-H5B laser operates up to 100 hours with continuous use. It has an IP66 protection rating that protects the rotary laser from dust and water or even rainfall. In addition, the Topcon RL-H5B laser level has a standard 5/8-11 tripod thread.


Model #

RL-H4C

RL-H5A

RL-H5B


Range (Diameter)


Up to 2,624 ft


Up to 2,624 ft


Up to 1,312 ft


Accuracy


±1/16" at 100 ft


±1/16" at 100 ft


±1/8" at 100 ft


Self Leveling


±5°


±5°


±5°


Slope


Manual 1 Axis


Manual 1 Axis


No


Receiver


LS-80L/LS-100D


LS-80L/LS-100D


LS-80L


Run Charge


Yes


No


No


Rechargeable Battery Life
[sold separately]


60 hrs


60 hrs


60 hrs


Dry Cell Battery Life


100 hrs


100 hrs


100 hrs


Rotation Speed


600 rpm


600 rpm


600 rpm


Source


LD 635nm Class 2 (EU)/3R


LD 635nm Class 2 (EU)/3R


LD 635nm Class 2


Protective Glass


Yes


Yes


Yes


Remote Control


No


No


No


Dimensions (mm)


177 L x 196 W x 217 H


172 L x 211 W x 205 H


172 L x 211 W x 205 H


Weight


5.29 lbs


5.07 lbs


5.07 lbs


Proof Rating


IP66


IP66


IP66


Warranty


5 years


5 years


5 years

Scroll back to Top

  • Range up to 1,300 feet with LS-80X receiver
  • Accuracy of ±1/8" at 100 feet
  • Self-leveling within ±5 degrees
  • Out-of-level notification
  • 600 rotations-per-minute
  • Class 2 visible red laser
  • Convenient to use
  • Uses 4 x D-cell alkaline batteries
  • Up to 100 hours battery life
  • IP66 dustproof and water resistant
  • 5/8-11 tripod thread

What’s in the Box

  • Topcon RL-H5B Horizontal Self-Leveling Rotary Laser
  • LS-80X laser receiver
  • Sensor holder 6 receiver bracket
  • Hard carrying case
  • User manual
  • 5-year manufacturer's warranty

Tiger Supplies offers a 30-day return policy from date of shipment for this product, subject to a 20% restocking fee, in addition to the return shipping charges. The product must be in new condition and in its original packaging. We take the responsibility to make sure this product arrives in a brand new working condition. Should your item arrive damaged, we will take full responsibility and replace the product at no cost to you.

For complete details of our return policy and process, please refer to our general return policy page.

Accuracy
Horizontal
±1/8 inch at 100 feet
Applications
Concrete Forms, Footings and Foundations
Yes
Checking Building Square & Area
No
Checking Elevations of Sub-Base and Sub-Grade
No
Checking/Setting Elevations
No
Estimating Cut & Fill
No
Installation of Interior Fittings (cabinets, lighting, windows, countertops, etc.)
Yes
Installation/Leveling Ceiling Grids
No
Installation/Leveling Interior Walls
Yes
Locating Finished Floor Levels
No
Machine Control of Excavators, Graders, Dozers or Similar Equipment
Yes
Matching Existing Slope & Grade
No
Plumb Reference
No
Short-Range Leveling for Decks, Patios & Swimming Pools
No
Short-Run Vertical Alignment
No
Squaring and Layout of Partitions, Walls & Tile Floors
No
Transferring Points from Floor to Ceiling
No
Battery/Power
Battery Life Alert
Yes
Battery Life with Alkaline Batteries
Up to 100 hours
Power Source
D-cell alkaline
Extra Technology
Detector/Receiver
LS-80L
Features
Adjustable Rotating Speed
600 RPM only
Bump Sensor (H.I./Out of Position Alert)
Yes
Dual Handles
Yes
Protection Class
IP66 dustproof and powerful water jet resistant
Tripod Adapter (Center Screw Thread)
5/8 x 11
Functions
Automatic Leveling
Yes
Beam Operating Modes
No
Grade Operation
No
Scanning Modes
No
Slope Match
No
General
Dimensions
6.77" L x 8.31" W x 8.07" H
Warranty
5-year
Weight
5.07 lbs (2.3 kg)
Laser
Classification
Class 2
Color
Red
Direction
Horizontal only
Visibility
Visible
Wavelength
635 nm
Range
Exterior
Up to 1,312 feet (400 m)
Interior
Up to 1,312 feet (400 m)
Remote
None
Self Leveling
±5 degrees
Temperature
Operating
-4 to 122 ºF (-20 to 50 ºC)
