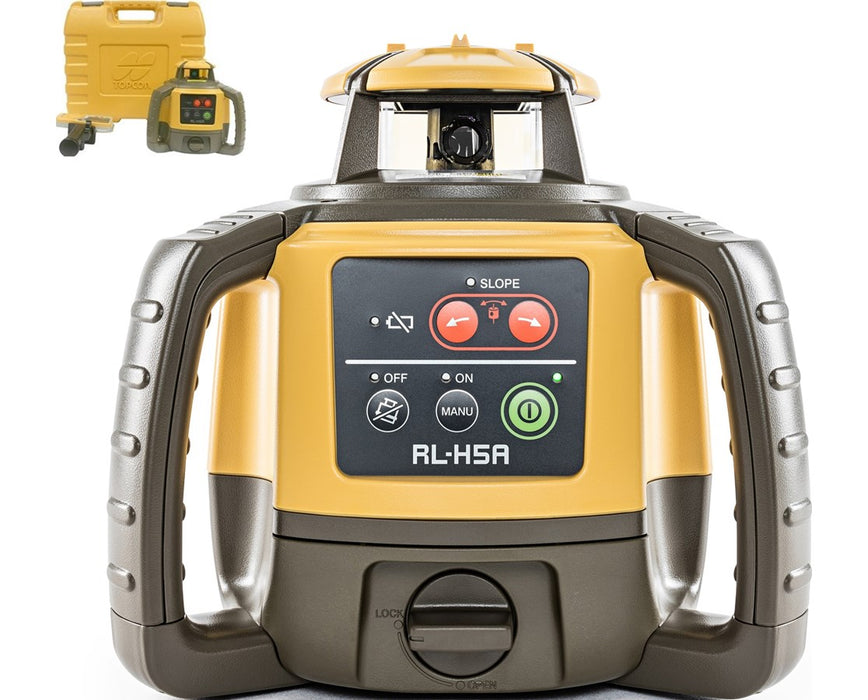

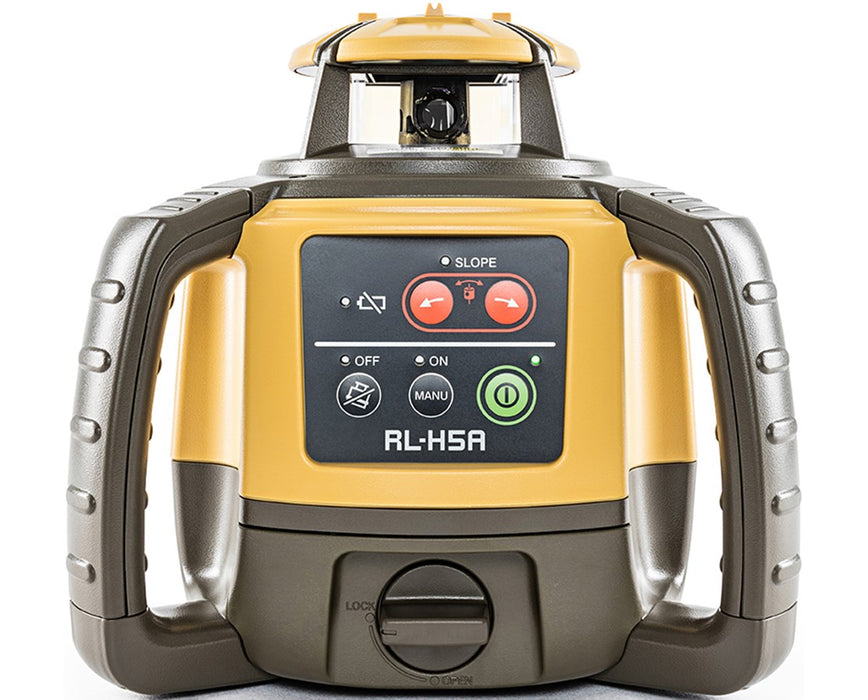

Topcon RL-H5A Horizontal Self-Leveling Rotary Laser

MFR#: 1021200-50
TIGER#: TS52434
Original price List Price: $970.00
You Save: $355.05 -37%
Original price $970.00 - Original price $970.00
Original price List Price: $970.00
Current price $614.95
$614.95 - $614.95
Current price $614.95
Topcon RL-H5A Horizontal Self-Leveling Rotary Laser
Topcon RL-H5A Horizontal Self-Leveling Rotary Laser - $614.95
$614.95
*Must Purchase 1 for Topcon RL-H5A Horizontal Self-Leveling Rotary Laser

The cart will thereforce automatically set Qty to 1 when you order this product

IN STOCK Free Shipping (USA) Ships Out Within: 24 - 48 Hours Shipping Date By: 6/1/2024

Replaces the RL-H4C Self-Leveling Laser

One of our Sales Experts will be in touch!

Essential Add-Ons:
Aluminum Rod
Aluminum Rod
Details
$33.95
$44.95
Universal Contractor’s Tripod
Universal Contractor’s Tripod
Details
$75.99
$79.99
Topcon LS-B20 Machine Control Laser Receiver - 1063525-03
Topcon LS-B20 Machine Control Laser Receiver - 1063525-03
Details
$651.60
Fiberglass Rod
Fiberglass Rod
Details
$76.95
  • 2,624 ft. Range & ±1/16" Accuracy
  • Range up to 2,600' with laser receiver
  • Accuracy ±1/16 inch at 100 feet
  • Manual single-axis leveling
  • Self-leveling within ±5 degrees
  • Rotation speed: 600 RPM
  • IP66 dustproof and water resistant
  • Battery life up to 100 hours
  • Multi-purpose laser

The Topcon RL-H5A Horizontal Self-Leveling Rotary Laser is a multi-purpose laser ideal for grading, excavating, site preparation, concrete works, and other general construction projects. When used with a receiver, it offers a long operating range up to 2,600 feet in diameter. This laser level also offers an accuracy of up to 1/16" at 100 feet and is self-leveling within 5 degrees.

For added precision and accuracy, the RL-H5A features a manual single-axis leveling mode and rotates 600 times per minute. This horizontal rotating laser is simple to use, intuitive, and re-levels itself immediately if the device is disturbed on the job.

With an IP66 rating, the Topcon RL-H5A is protected from dust and low-pressure water jets. This rotary laser uses either a dry cell or a rechargeable battery that can power the device up to 100 hours, making it the great companion for a long day at work.

____

Configuration Options

The Topcon RL-H5A has an optional LS-80X laser receiver that features dual LCD and two on-grade precision settings. It also has a two-inch beam detection width and nine-channel grade indicators with high/low out-of-range alert.

Another optional laser receiver is the Topcon LS-100D which has a digital readout and five on-grade precision settings. This dual LCD display laser detector comes with an extra-wide beam capture sensor that eliminates interference from strobe light exposures. Please select your preference from the menu above.

  • 1021200-15: With LS-80X Receiver, Receiver Mounting Bracket, and BT-79Q rechargeable battery
  • 1021200-06: With LS-80X Receiver, Receiver Mounting Bracket, Charger, and BT-79Q rechargeable battery
  • 1021200-08: With LS-100D Receiver, Receiver Mounting Bracket, Charger, and BT-79Q rechargeable battery


Model #

RL-H4C

RL-H5A

RL-H5B


Range (Diameter)


Up to 2,624 ft


Up to 2,624 ft


Up to 1,312 ft


Accuracy


1/16" at 100 ft


1/16" at 100 ft


1/8" at 100 ft


Self Leveling


5


5


5


Slope


Manual 1 Axis


Manual 1 Axis


No


Receiver


LS-80X/LS-100D


LS-80X/LS-100D


LS-80X


Run Charge


Yes


No


No


Rechargeable Battery Life


60 hrs


60 hrs


60 hrs


Dry Cell Battery Life


100 hrs


100 hrs


100 hrs


Rotation Speed


600 rpm


600 rpm


600 rpm


Source


LD 635nm Class 2 (EU)/3R


LD 635nm Class 2 (EU)/3R


LD 635nm Class 2


Protective Glass


Yes


Yes


Yes


Remote Control


No


No


No


Dimensions (mm)


177 L x 196 W x 217 H


172 L x 211 W x 205 H


172 L x 211 W x 205 H


Weight


5.29 lbs


5.07 lbs


5.07 lbs


Proof Rating


IP66


IP66


IP66


Warranty


5 years


5 years


5 years

Scroll back to Top

  • Range up to 2,600 feet with receiver
  • Accuracy 1/16" at 100 feet
  • Manual single-axis leveling
  • Self-leveling within 5 degrees
  • Rotation speed: 600 RPM
  • Re-levels immediately if disturbed
  • IP66 dustproof and water resistant
  • Option for dry cell or rechargeable battery
  • Up to 100 hours battery life
  • Weighs 5.07 lbs
  • Size: 6.77" L x 8.31" W x 8.07" H
  • Multi-purpose laser

What’s in the Box

  • Topcon RL-H5A Horizontal Self-Leveling Rotary Laser
  • Receiver mounting bracket
  • Hard carrying case
  • User manual
  • 5-year manufacturer's warranty

Available Package Options

Tiger Supplies offers a 30-day return policy from date of shipment for this product, subject to a 20% restocking fee, in addition to the return shipping charges. The product must be in new condition and in its original packaging. We take the responsibility to make sure this product arrives in a brand new working condition. Should your item arrive damaged, we will take full responsibility and replace the product at no cost to you.

For complete details of our return policy and process, please refer to our general return policy page.

Accuracy
Horizontal
±1/16 inch at 100 feet
Applications
Concrete Forms, Footings and Foundations
Yes
Checking Building Square & Area
No
Checking Elevations of Sub-Base and Sub-Grade
No
Checking/Setting Elevations
No
Estimating Cut & Fill
No
Installation of Interior Fittings (cabinets, lighting, windows, countertops, etc.)
Yes
Installation/Leveling Ceiling Grids
No
Installation/Leveling Interior Walls
Yes
Locating Finished Floor Levels
No
Machine Control of Excavators, Graders, Dozers or Similar Equipment
Yes
Matching Existing Slope & Grade
Yes
Plumb Reference
No
Short-Range Leveling for Decks, Patios & Swimming Pools
No
Short-Run Vertical Alignment
No
Squaring and Layout of Partitions, Walls & Tile Floors
No
Transferring Points from Floor to Ceiling
No
Battery/Power
Battery Life Alert
No
Battery Life with Alkaline Batteries
Up to 100 hours
Battery Life with Rechargeable Battery Pack
Up to 60 hours
Power Source
D alkaline or rechargeable battery pack
Extra Technology
Detector/Receiver
LS-80L or LS-100D
Features
Adjustable Rotating Speed
600 RPM only
Bump Sensor (H.I./Out of Position Alert)
Yes
Dual Handles
Yes
Protection Class
IP66 dustproof and water resistant
Functions
Automatic Leveling
Yes
Beam Operating Modes
No
Grade Operation
No
Scanning Modes
No
Slope Match
Yes
General
Dimensions
6.77" L x 8.31" W x 8.07" H
Warranty
5-year
Weight
5.07 lbs (2.3 Kg)
Laser
Classification
Class 2/3R
Color
Red
Direction
Horizontal only
Visibility
Visible
Wavelength
635 nm
Range
Exterior
Up to 2,600 feet (800 m)
Interior
Up to 2,600 feet (800 m)
Remote
None
Self Leveling
±5 degrees
  • Alternative Models

      Topcon RL-H5B Horizontal Self-Leveling Rotary Laser w/ LS-80X Receiver- 1021200-73
      $549.95
      View Details
      Topcon RL-HV2S Dual Grade Laser
      $1,776.90
      View Details

    Customer Reviews

    Based on 342 reviews
    87%
    (298)
    8%
    (26)
    2%
    (7)
    1%
    (3)
    2%
    (8)
    E
    Eric Von

    Topcon RL-H5A Horizontal Self-Leveling Rotary Laser w/ LS-80X Receiver - 1021200-50

    J
    Jason
    Awesome laser 10/10 would recommend!

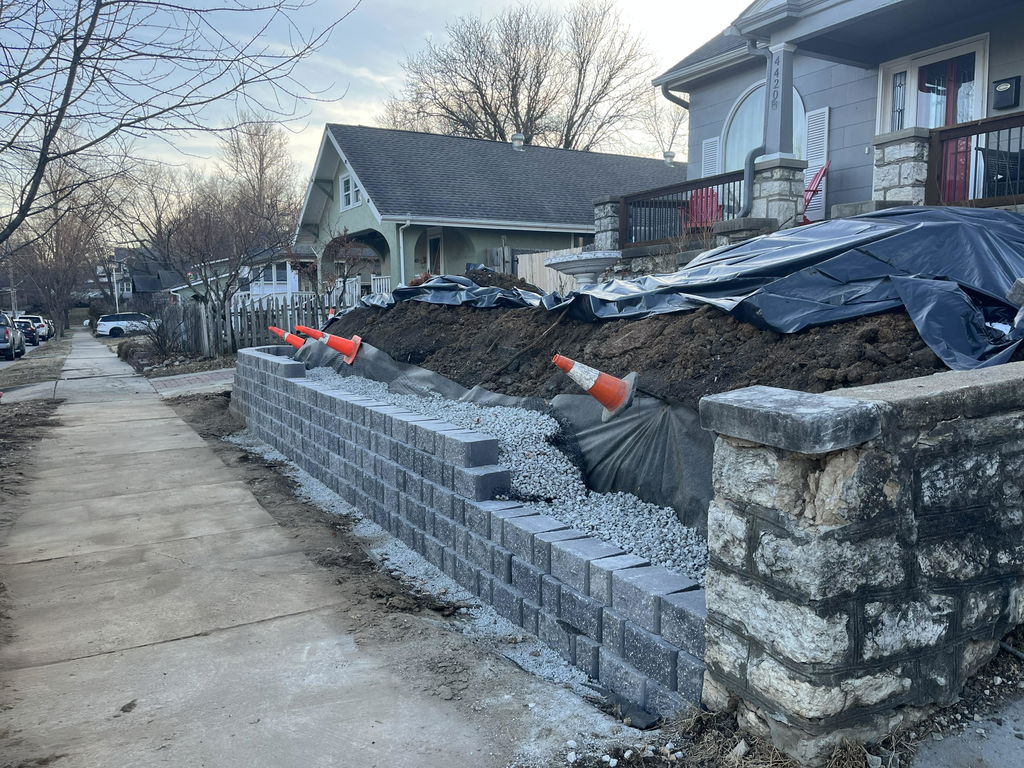

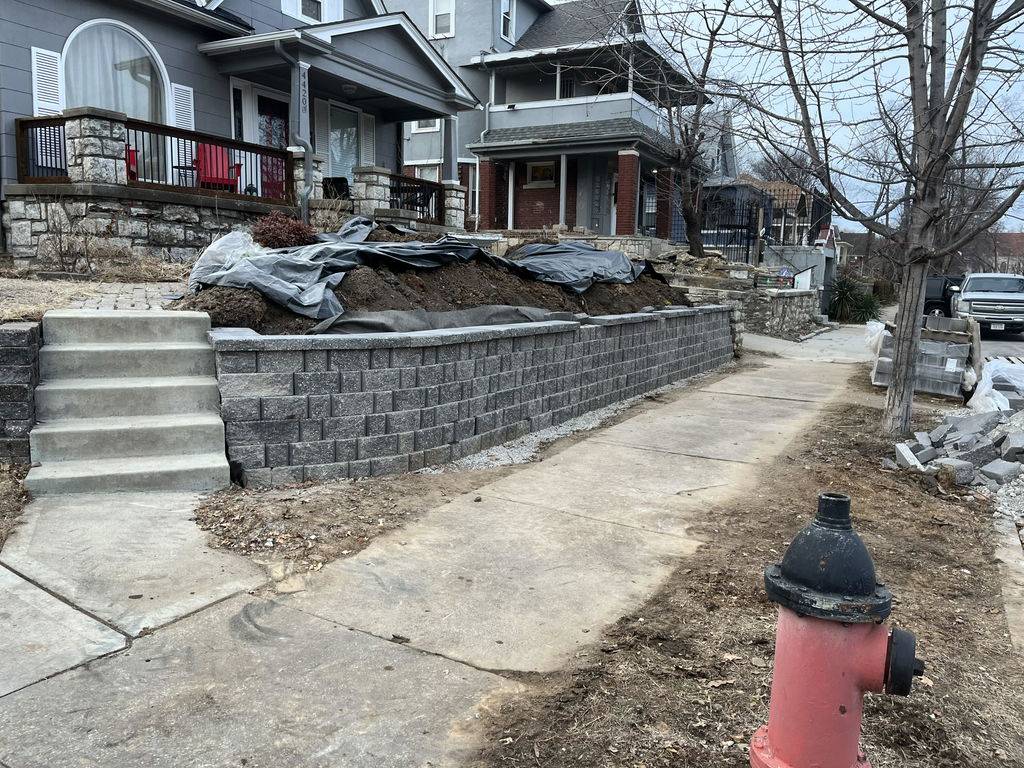

    Super easy purchase process and it was delivered quickly. I really like the laser. Simple to setup and use. The receiver is pretty nice too. We used it to set grade for this wall!
