REVOLVE4000 Connected Self-Leveling Horizontal Rotary Laser Package

by Bosch
MFR#: GRL4000-80CH
TIGER#: TS79840
Original price List Price: $3,329.46
You Save: $1,344.00 -40%
Original price $3,329.46 - Original price $3,329.46
Original price List Price: $3,329.46
Current price $1,985.46
$1,985.46 - $1,985.46
Current price $1,985.46
REVOLVE4000 Connected Self-Leveling Horizontal Rotary Laser Package
REVOLVE4000 Connected Self-Leveling Horizontal Rotary Laser Package - $1,985.46
$1,985.46
*Must Purchase 1 for REVOLVE4000 Connected Self-Leveling Horizontal Rotary Laser Package

The cart will thereforce automatically set Qty to 1 when you order this product

Free Shipping (USA) Ships Out Within: 5 - 7 Business Days Shipping Date By: 6/29/2024

One of our Sales Experts will be in touch!

Essential Add-Ons:
Aluminum Rod
Aluminum Rod
Details
$43.95
$44.95
Universal Contractor’s Tripod
Universal Contractor’s Tripod
Details
$75.99
$79.99
Topcon LS-B20 Machine Control Laser Receiver - 1063525-03
Topcon LS-B20 Machine Control Laser Receiver - 1063525-03
Details
$648.00
Fiberglass Rod
Fiberglass Rod
Details
$76.95
  • Accuracy of ± 1/16" at 100 ft
  • Range of up to 4000 ft
  • IP 68 rating against foreign particles and moisture
  • Laser Diode Class 2 <1mW at 630 nm
  • Self-Leveling, Up to 5°
  • Rechargeable Li-Ion Battery of 18 V

The Bosch REVOLVE4000 Self-Leveling Horizontal Rotary Laser is a fully featured rotary laser that provides great usability and value to the user with features like interchangeable power source, Dual Dial-In slope, user calibration, Bluetooth connectivity and more. The device features a horizontal self-leveling laser, suitable for a plethora of leveling and aligning applications. This rotary laser is a useful tool for framing or foundation work.

High Quality Laser: The REVOLVE4000 rotary laser has only a tiny tolerance of ±1/16” at a distance of 100 ft and, with the included receiver, has a working range of up to 4,000 ft.

Feature Rich Operability: The electronic self-leveling system allows for a quick setup and fine adjustments on the job. There is also a built-in disturbance monitor which indicates if the tool position has changed, thus providing a consistent leveling accuracy. The slope angle on the laser on both, the X- and Y-axes, may be adjusted by the Dual Dial-In Slope. Bluetooth connectivity is possible through an app to control a number of actions. uCAL (user-calibration) feature guides the user while calibrating the laser for maximum accuracy.

Durability and Lasting Design: The REVOLVE4000 rotary laser unit itself features a cage rubber overmold, innovative and easy-to-grip carrying handles for convenience and drop protection and an IP68 dust and water protection. All these features make it very suitable for the toughest job sites.

Product Choices:

The Revolve4000 Horizontal Rotary Laser comes in a couple of different packages which you can choose from according to your needs.

  • GRL4000-80CH: Revolve4000 Connected Self-Leveling Horizontal Rotary Laser Package
  • GRL4000-80CHK: Revolve4000 Connected Self-Leveling Horizontal Rotary Laser Extended Package

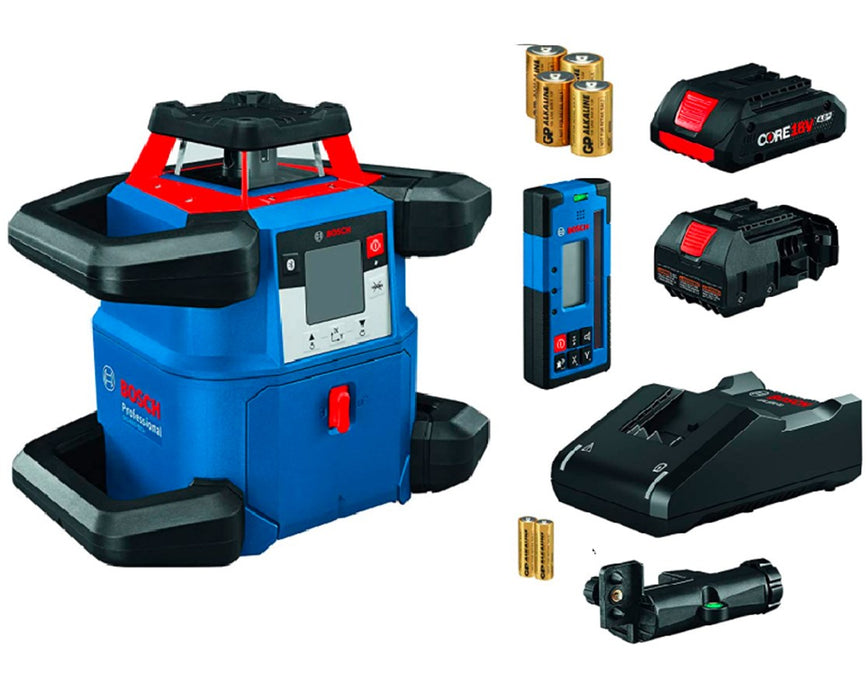

What’s in the Box

  • GRL4000-80CH 18V REVOLVE4000 Connected Self-Leveling Horizontal Rotary Laser
  • LR40 Laser Receiver with Bracket
  • GBA18V40 18V CORE18V Lithium-Ion 4.0 Ah Compact Battery
  • 18V Battery Charger
  • BA1 Alkaline Battery Adapter
  • 4 x D Batteries
  • 2 x AA Batteries
  • Carrying Case

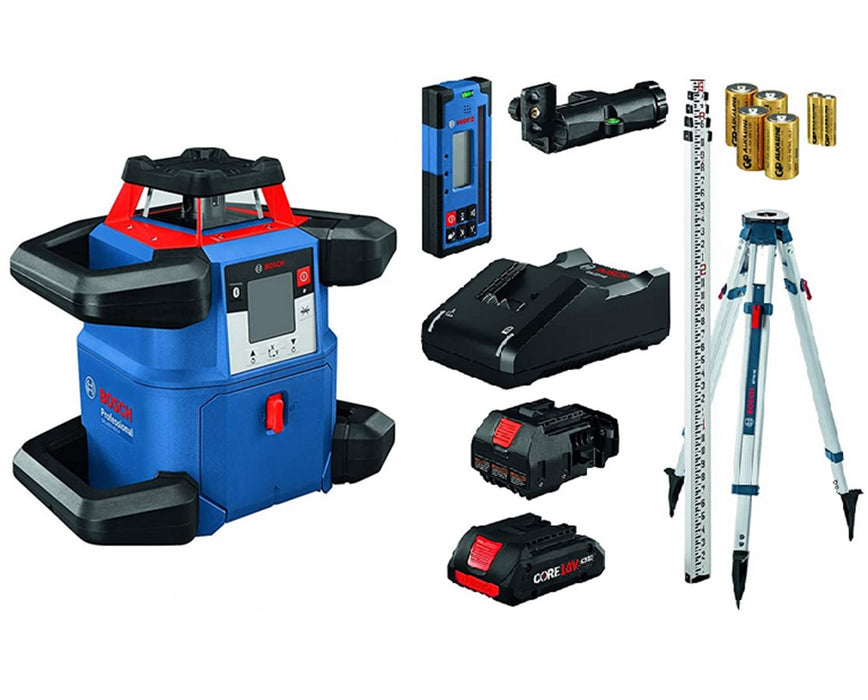

Available Options (included in Extended Package):

  • BT170 Heavy-Duty Aluminum Tripod
  • GR13 13 Ft. Grade Rod

2 Year Limited Warranty

Accuracy
Horizontal
± 1/16" at 100 ft
Battery/Power
Power Source
GBA18V40 18V CORE18V Lithium-Ion 4.0 Ah Compact Battery
Power Source
18V rechargeable Li-Ion
Charger
Output
18V
Extra Technology
Detector/Receiver
LR40
Features
Drop Damage Protection
Yes
Dual Handles
Yes
Plumb Point
No
Tripod Adapter (Center Screw Thread)
5/8-11
Functions
Automatic Leveling
yes
Beam Operating Modes
yes
Slope Match
yes
General
Dimensions
12.8” x 11” x 7.4”
Warranty
2 Years limited
Weight
8.2 lb
Laser
Classification
2
Color
Red
Direction
horizontal rotary
Wavelength
630 ~ 670nm
Range
Exterior
4000 ft
Interior
4000 ft
Self Leveling
Temperature
Operating
14° F (-10° C) - 122° F (50° C)
