Red Beam Industrial Alignment Dot Laser

MFR#: 40-6222
Original price List Price: USD $641.16
You Save: USD $182.73 -28%
Original price USD $641.16 - Original price USD $641.16
Original price List Price: USD $641.16
Current price USD $458.43
USD $458.43 - USD $458.43
Current price USD $458.43
Red Beam Industrial Alignment Dot Laser
Red Beam Industrial Alignment Dot Laser - USD $458.43
USD $458.43
*Must Purchase 1 for Red Beam Industrial Alignment Dot Laser

The cart will thereforce automatically set Qty to 1 when you order this product

One of our Sales Experts will be in touch!

Ships Out Within: 7 - 10 Business Days Shipping Date By: 10/24/2024

? California Proposition 65 WARNING: This product can expose you to chemicals including lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

  • Choice of 2 voltage outputs
  • Laser beam is aligned with the brass housing.
  • Projects a vertical and horizontal laser chalk line
  • Solid brass industrial grade housing
  • Accuracy of ±1/8 inch at 100 ft.
  • Designed for harsh work environments
  • IP67 water and oil proof "O" ring seal
  • Beam-on indicator

The Johnson Level Red Beam Industrial Alignment Dot Laser is ideal for a wide range of indoor application such as centering parts on equipment – riveters, fluid and dry good filters, positioning parts on welders, drill press alignments, crosscut and break measurements, transit work and more. The laser beam is aligned to be concentric with the outside diameter of the brass housing to allow the installer to use the outside of the case for centering and positioning the beam. It projects vertical and horizontal laser chalk line with an accuracy of  ±1/8" at 100 feet.

The laser diode of this Johnson alignment laser is protected with a solid brass industrial grade housing that won’t rust or spark. The solid glass optic is designed for harsh work environments. In addition, it comes with wedge internal prisms that steer beam and maintain beam alignment for impact resistance.

The "O" ring seal is water and oil resistant with an IP67 rating. This Johnson Level Industrial Alignment Dot Laser features a beam-on indicator that verifies the unit is working from a distance. This Johnson Industrial Alignment Dot Laser comes with 110V AC Adapter, instruction manual, and a 1-year warranty.

Configuration Options

The Johnson Level Red Industrial Alignment Dot Laser is available in two different power outputs. Select your preference from the drop-down menu above.

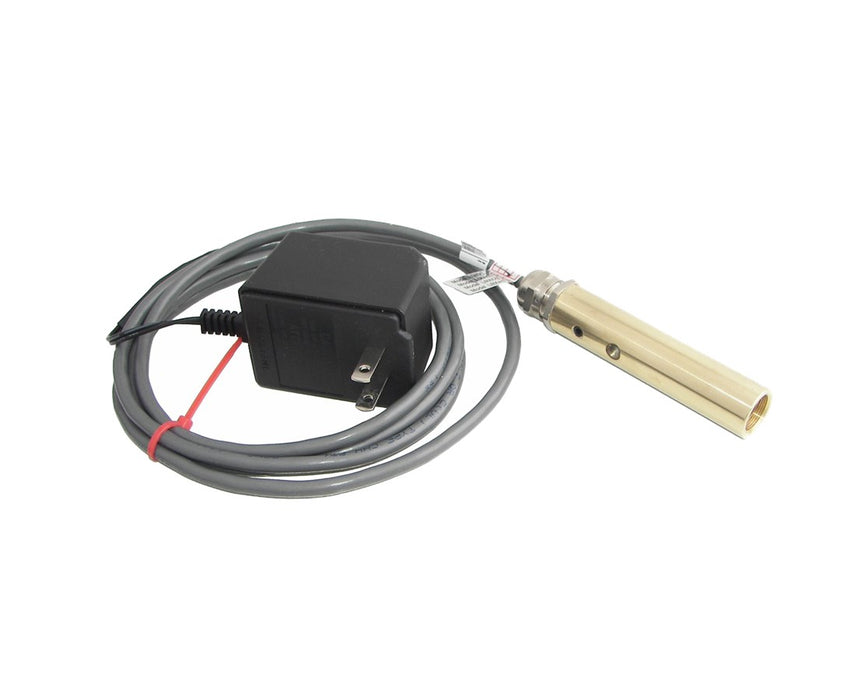

  • 40-6220: 110V AC Adapter

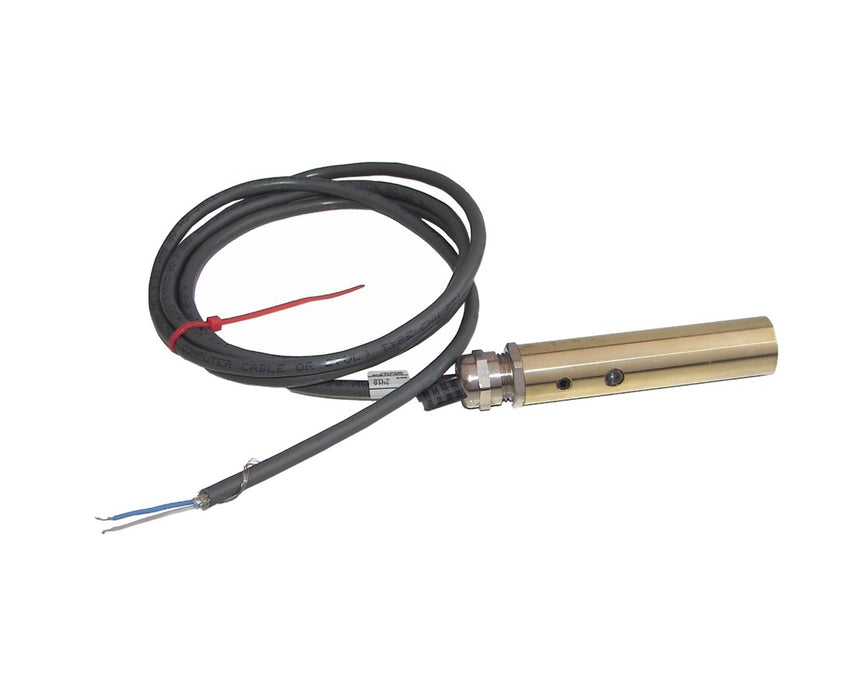

  • 40-6222: 24V DC Connector
  • Choice of 2 voltage outputs
  • Laser beam is aligned with the brass housing.
  • Projects a vertical and horizontal laser chalk line
  • Solid brass industrial grade housing
  • Won’t rust or Spark
  • Solid glass optics
  • Designed for harsh work environments
  • Wedge internal prisms steer beam
  • Maintain beam alignment for impact resistance
  • IP67  water and oil proof "O" ring seal
  • Beam-on indicator

What’s in the Box

  • Johnson Level Red Beam Industrial Alignment Dot Laser
  • User manual
  • 1-year warranty

Available Package Options

Power Output: 110V AC Adapter or 24V DC Connector

Tiger Supplies offers a 30-day return policy from date of shipment for this product, subject to return shipping charges. The product must be in new condition and in its original packaging. We take the responsibility to make sure this product arrives in a brand new working condition. Should your item arrive damaged, we will take full responsibility and replace the product at no cost to you.

For complete details of our return policy and process, please refer to our general return policy page.

Battery/Power
Operating Temperature
50 degrees to 12 degrees
Power Source
AC adapter
Features
Environmental Class
IP 67
General
Laser Class
3A
Laser Type
635nm+/-10nm
Warranty
1-year
Measuring Capabilities
Leveling Accuracy
±1/8 inch at 100 ft.
Number of Lines (Planes)
1
Number of Points
1
Self-Leveling Range
±1/8 inch at 100 ft.
Working Range
Up to 100 ft.
